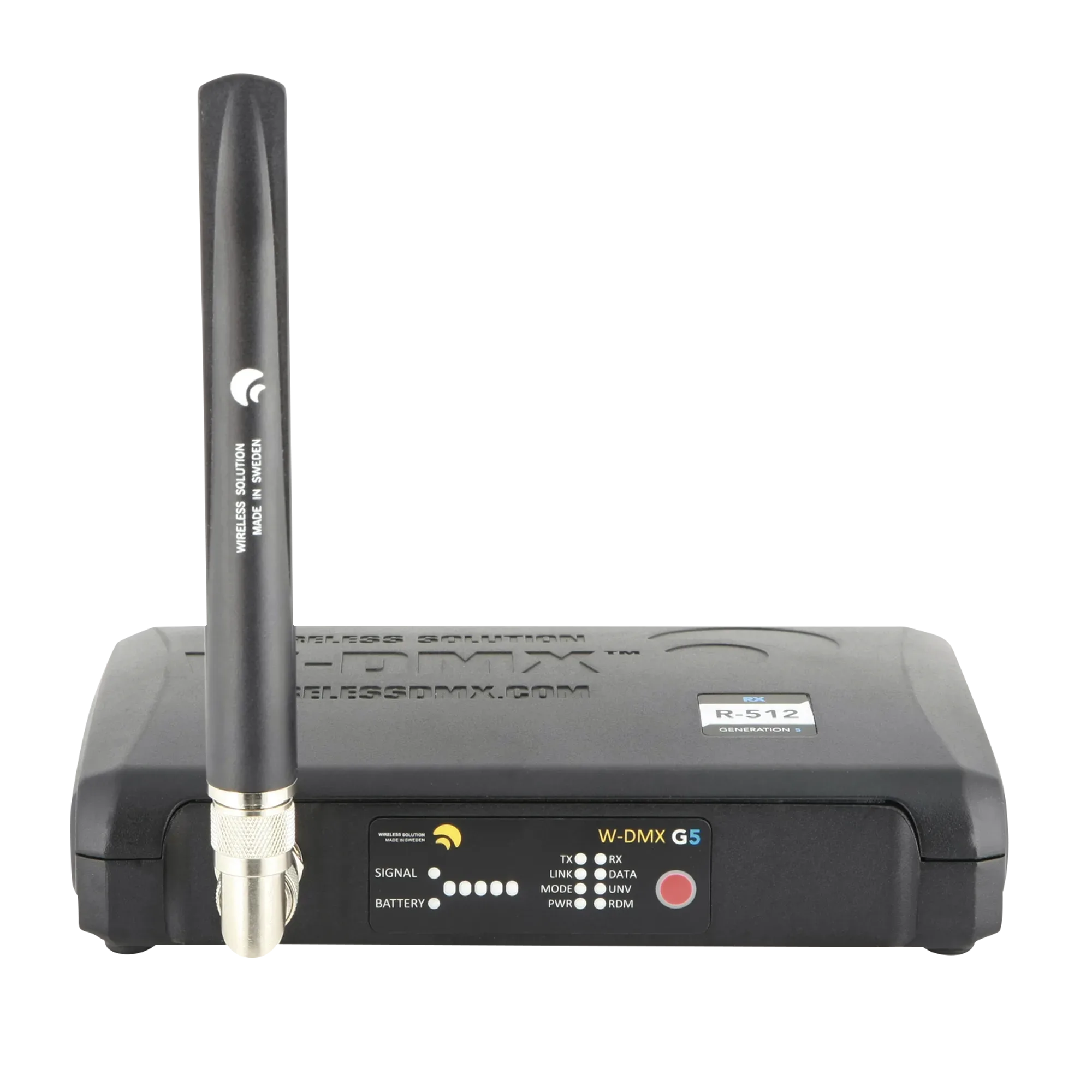

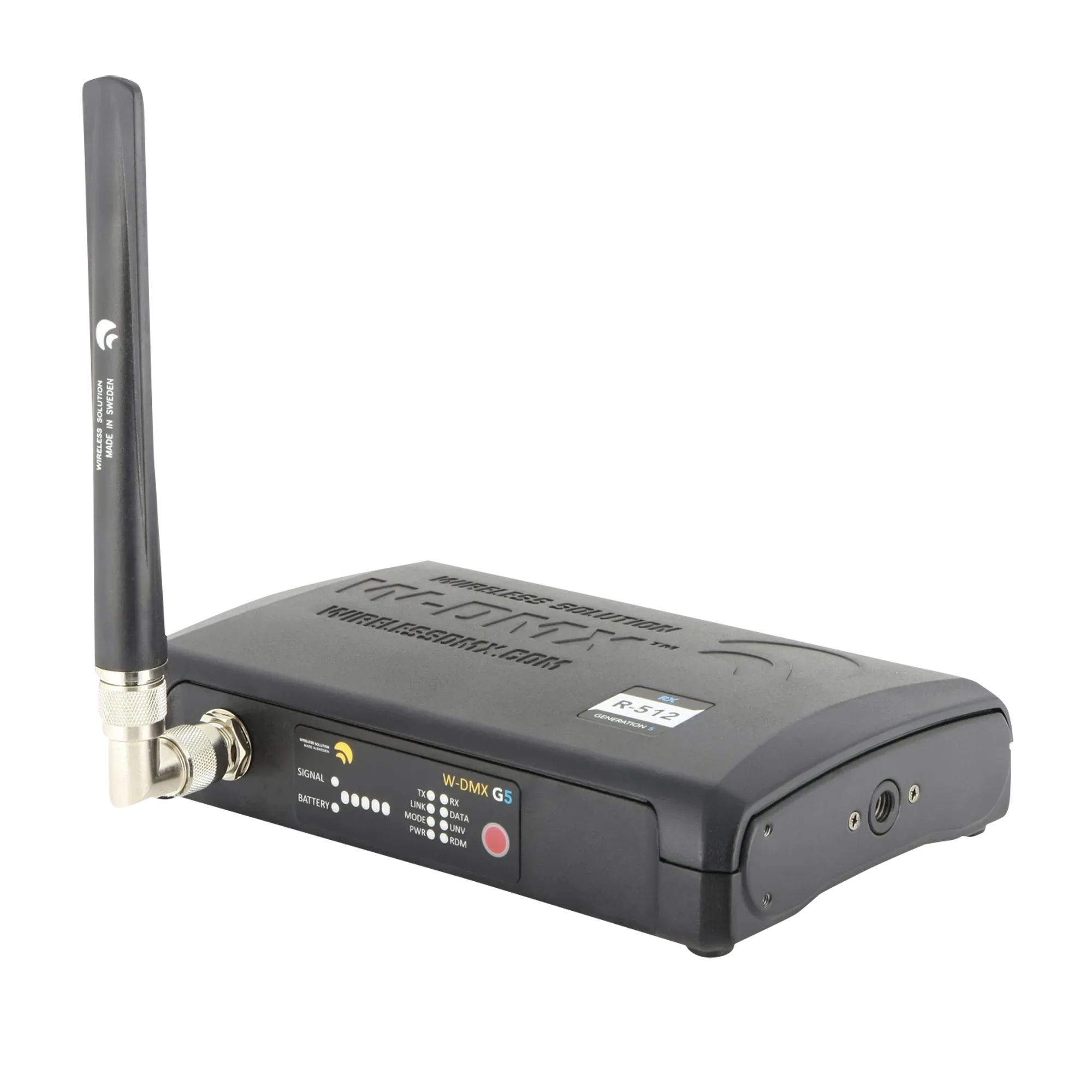

Wireless Solution W-DMX™ BlackBox R-512 G5 Receiver

The W-DMX™ BlackBox series is an industry leader for Wireless DMX and RDM control, packed into a tough, roadworthy die-cast metal casing. As with all our top W-DMX™ technologies, the W-DMX™ BlackBox series is built for the true lighting professional.

Quick Lock Mounting
Die-Cast Moulding
High-Speed Frequency Hopping
Less Than 5 ms Latency
Supporting the 2.4 and 5.8 GHz frequency bands.
Tootekood: 8717748426451 Kategooria:


Wireless Specifications
Wireless Mode G3, G4, G4s, G5
Reaction Time 5 ms
Antenna Boost 3 dBi
Antenna Type Omni
Antenna Radiation 360 x 360 °
Control and Programming
DMX Channels 512
Protocols DMX
Operational Modes Receiver
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Connector In Phoenix, powerCON Blue

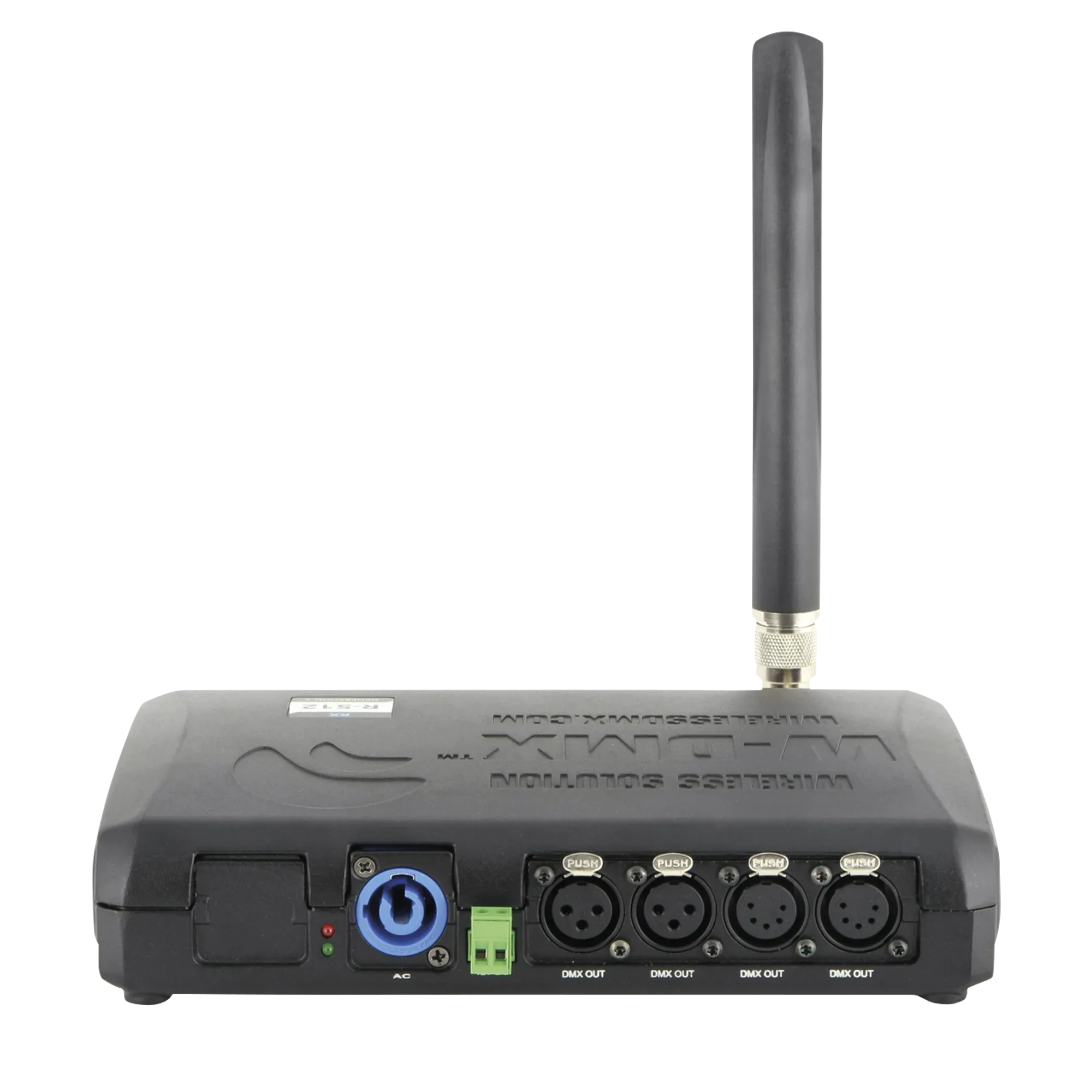

DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
IP Rating IP45
Housing Aluminium die-cast
Colour Black
Mounting Options Bracket, Clamp
Thermal Specifications
Maximum Ambient Temperature 45 °C
Minimum Ambient Temperature -20 °C
Minimum Operating Temperature -10 °C


Kaal 1.2 kg
Mõõtmed 28 × 23.5 cm
