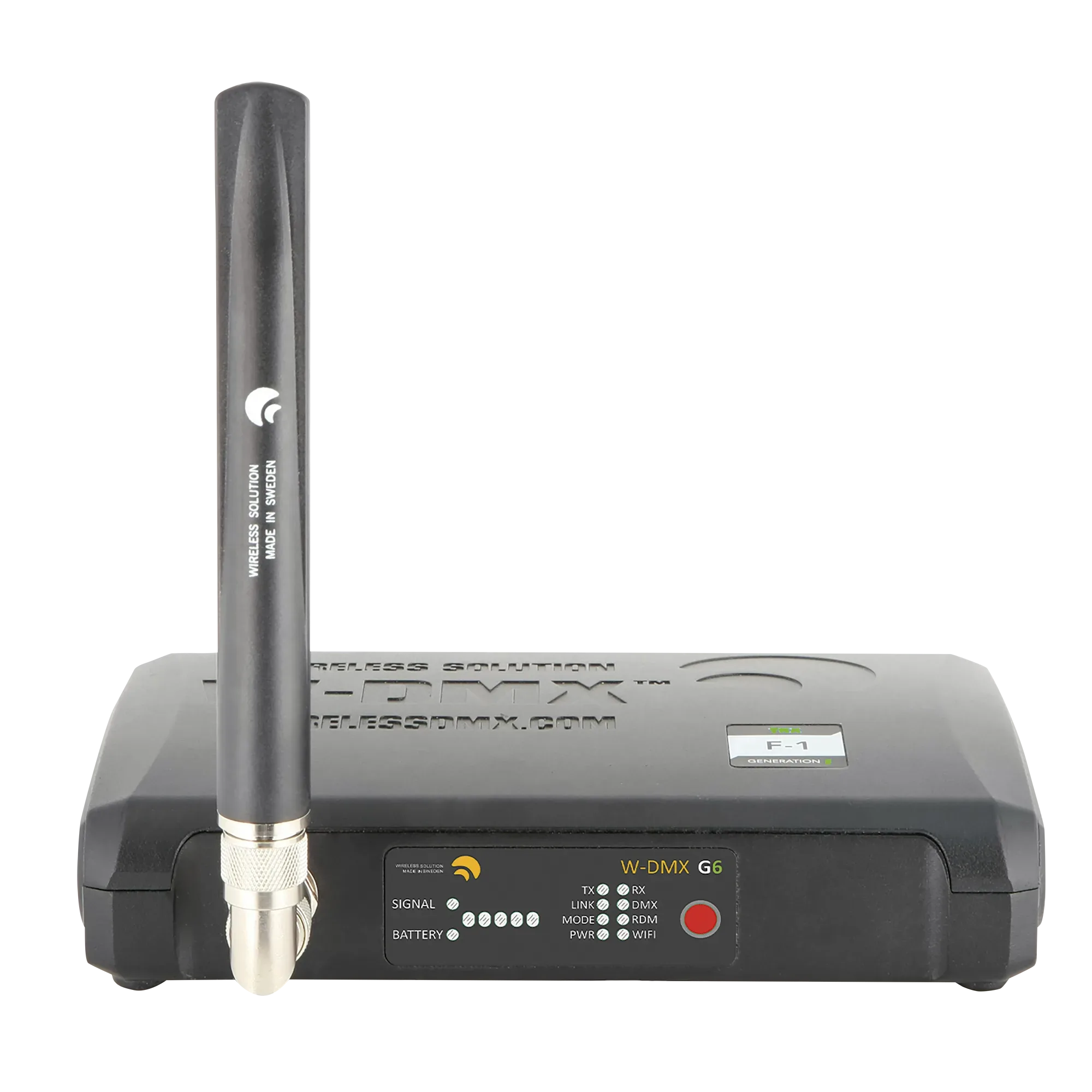

Wireless Solution BlackBox F-1 G6 Transceiver

The Blackbox F-1 G6 is a simple and reliable RDM and Wi-Fi transmitter and receiver. This allows you to create a solid wireless connection up to a distance of 700 metres (2200 ft). You can send / receive up to 512 DMX channels with it. In addition, it can be used in combination with previous generations, such as the G3, G4, G4S and G5. If you want to connect the Blackbox F1 G6 to a Lumens Radio CRMX transmitter, you can opt for the optional CRMX upgrade for F1 G6. This makes this receiver box the first in the world to work with more than two million wireless DMX units.
The Blackbox F-1 G6 is an advanced device, yet very easy to control with just one button and status indication LEDs. You can also easily perform updates via Bluetooth using the W-DMX Configurator app. The aluminium housing has a built-in M10 clamp mount and hole with which it can be securely attached with hook and loop and an extra security thread.

RDM & Wi-Fi transmitter & receiver
Suitable for W-DMX, Art-Net & Streaming ACN
Range up to 700 metres (2200 ft)
512 DMX channels
Bluetooth connectivity for updates and configuration
Tootekood: 8717748519542 Kategooria:


Wireless Specifications
Wireless Mode G3, G4
Gain (mW) 100 mW
Reaction Time 5 ms
Antenna Boost 3 dBi
Antenna Type Omni
Control and Programming
DMX Channels 512
Protocols Art-Net, DMX, RDM, sACN
Operational Modes Transceiver
Electrical Specifications and Connections
Power Supply 88-264 V AC
Power Consumption 50 W
Power Connector In powerCON TRUE1 TOP
DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
Rack Units 1 U
IP Rating IP42
Material Aluminium
Housing Aluminium die-cast
Colour Black
Mounting Options Clamp
Thermal Specifications
Maximum Ambient Temperature 55 °C
Minimum Ambient Temperature -20 °C
Included Items
Included Cables None
Included Accessories 19” Rack installation kit, RF antenna


Kaal 1 kg
Mõõtmed 26 × 15 × 0.45 cm
