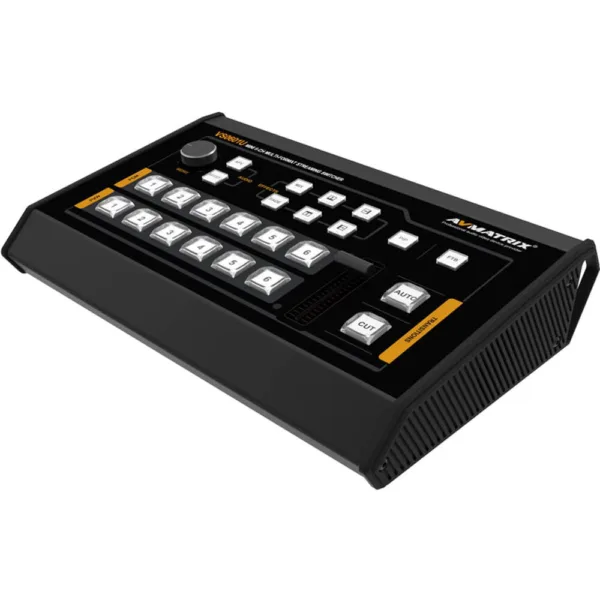

VS0601U – Mini 6CH Streaming Switcher

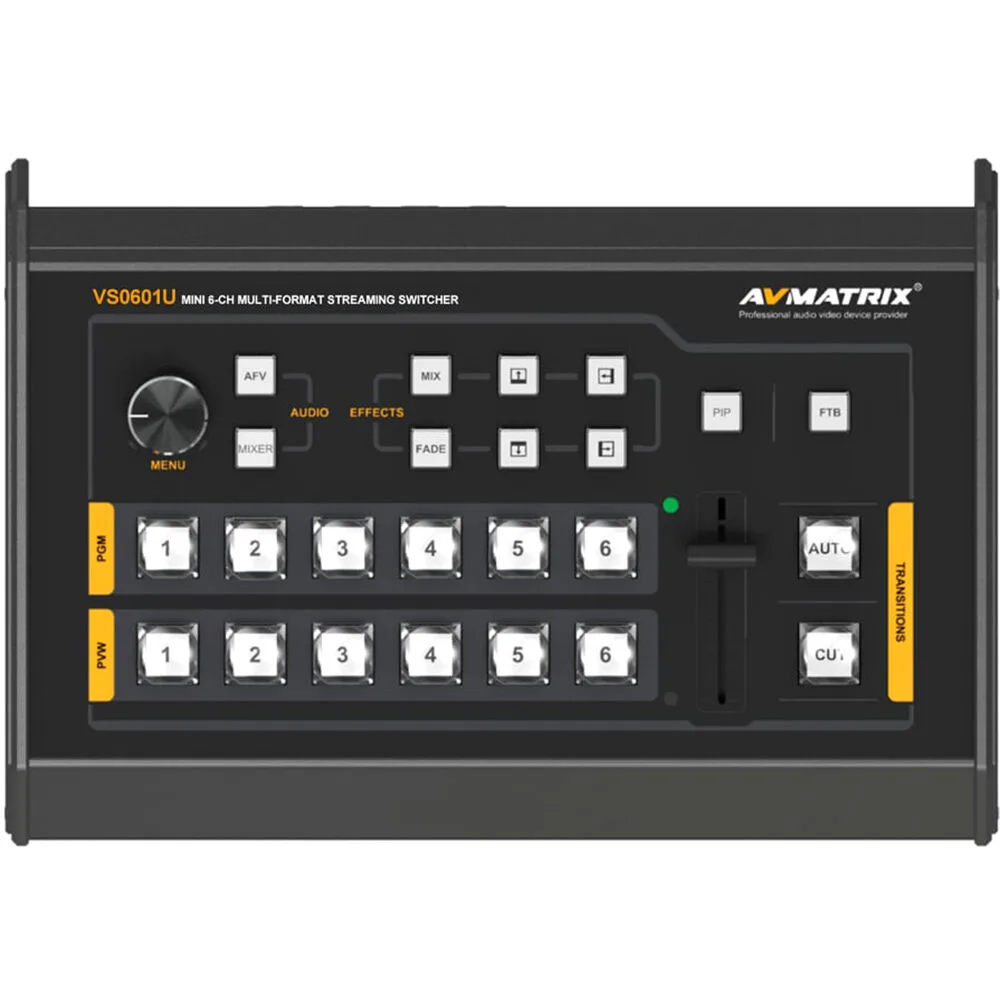

VS0601U – Mini 6CH Streaming Switcher - Image 2

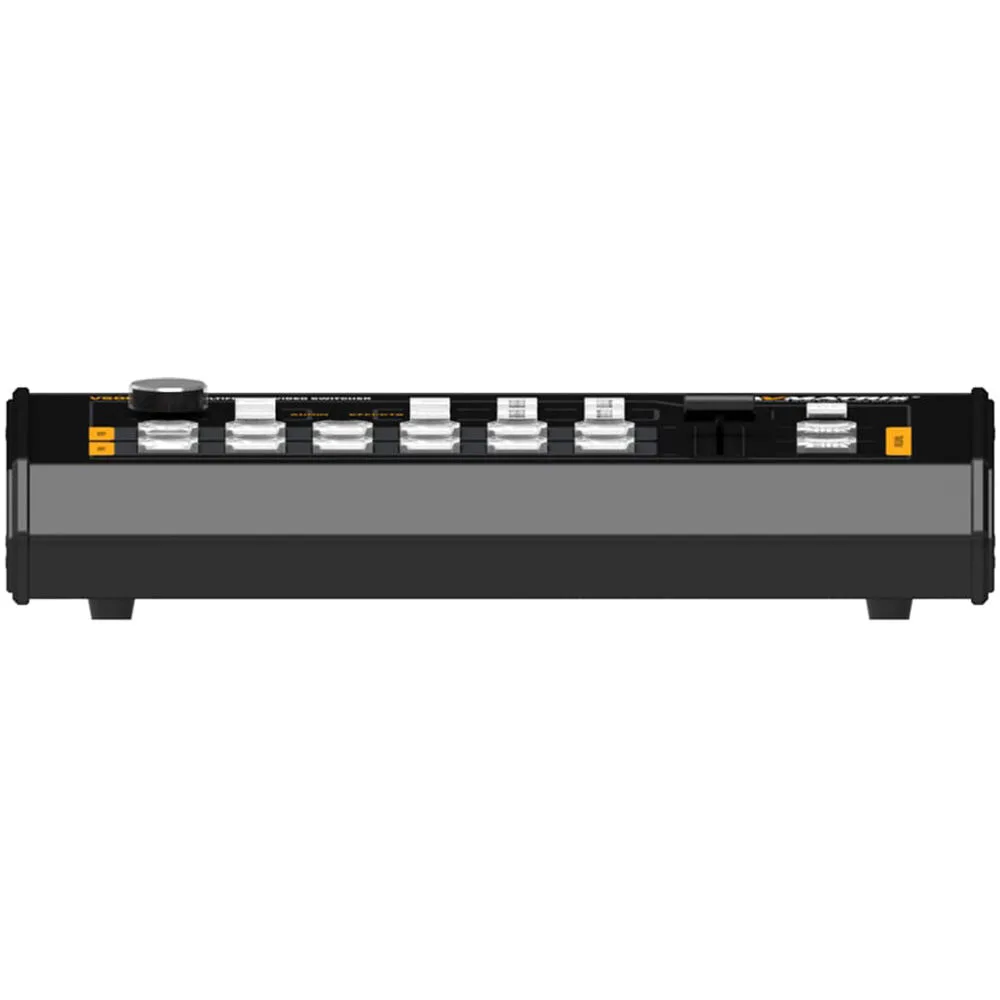

VS0601U – Mini 6CH Streaming Switcher - Image 3

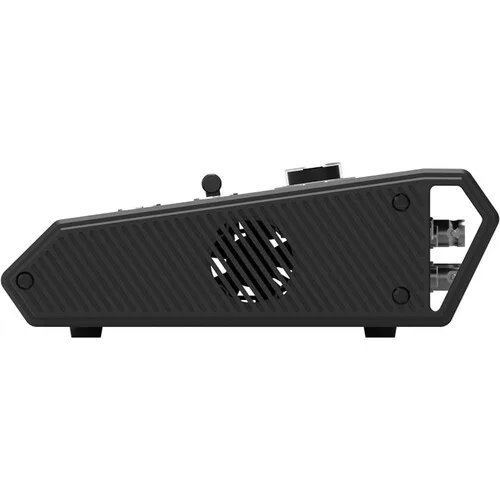

VS0601U – Mini 6CH Streaming Switcher - Image 4

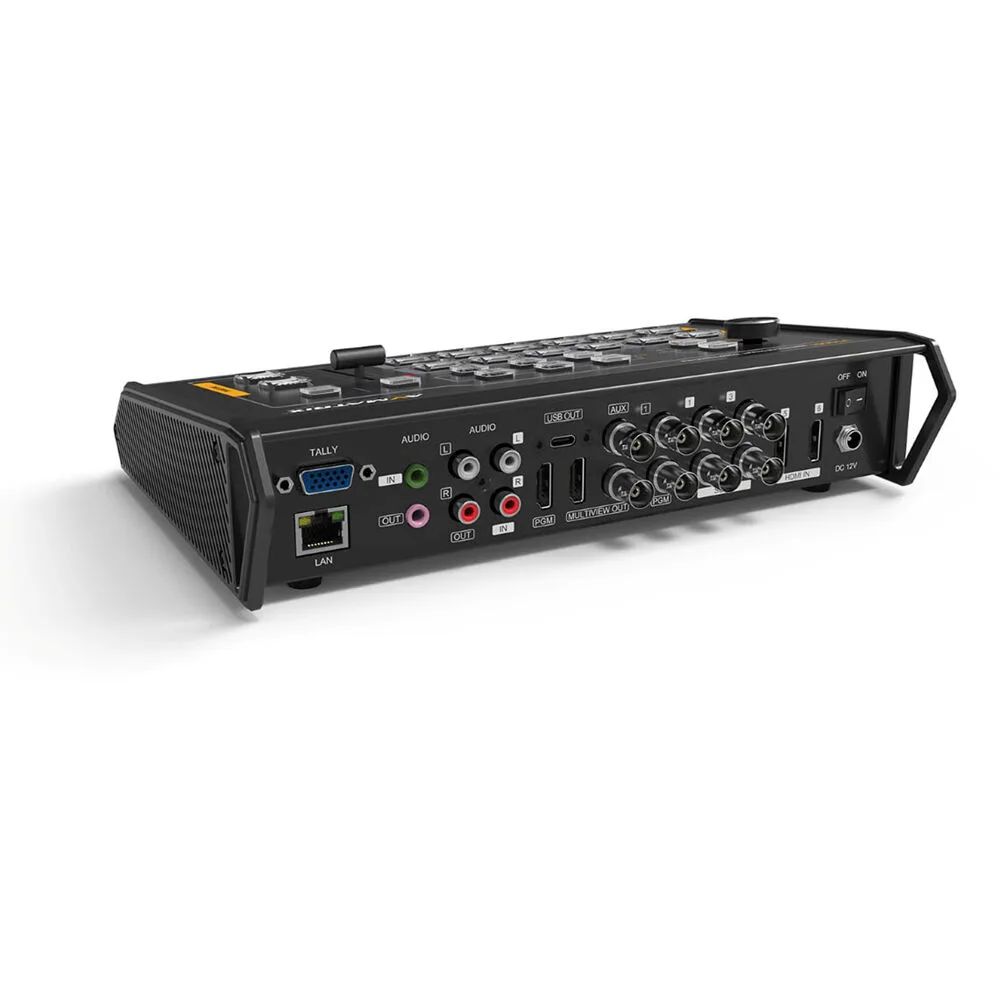

VS0601U – Mini 6CH Streaming Switcher - Image 5

VS0601U – Mini 6CH Streaming Switcher

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 6 channel inputs: 4×SDI & 2×HDMI
  • 1×USB type-C output, 2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview outputs
  • 1×SDI AUX output, can be selected as PGM or PVW
  • Multi-format inputauto-detected and PGM outputs format selectable
  • T-Bar/ AUTO/ CUT transitions
  • Mix/ Fade/ Wipe transition effects
  • PIP mode size and position adjustable
  • Support audio MIXING and AFV mode
  • GPIO for Tally, FTB for emergency

Kogus *

Kategooria:

Kirjeldus

Effect Types: 1x Transition
Processing
Switching Type: T-Bar
Processing Resolution : 1080p
Input
Number of Video Input Sources: 6
Video Inputs:
4x BNC (3G-SDI) Female
2x HDMI Female
Input Video Format:
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Audio Inputs
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
1x 2RCA Stereo Analog Female
Input Audio Format: Analog
Embedded Audio Input: HDMI, SDI
Output
Video Output Channels: 6
Video Outputs:
2x BNC (3G-SDI) Female (Program)
1x HDMI Female (Program)
2x BNC (3G-SDI) Female (Monitor)
1x HDMI Female (Monitor)
1x USB-C (USB Video) Female (Program)
Output Video Format:
HDMI / SDI / USB-C
1080p at 24/25/30/50/60 fps
1080i 50/60 fps
Audio Outputs
1x 2RCA Stereo Analog Female
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Output Audio Format : Analog
Embedded Audio Output:
HDMI: 2-Channel (per Output)
SDI: 2-Channel (per Output)
USB-C: 2-Channel
Multiview Output
6-Way Multiview via HDMI, SDI
Connectivity
Other I/O
1x DE-15/DB-15 Tally Input
1x RJ45 LAN Input/Output
Video Standard Compliance: SMPTE 259M/292M/424M
HDCP Support: No
OS Compatibility
Windows 7 or Later / macOS / Linux: OS Compatibility
Windows 7 or Later: macOS
Linux
Processor: Not Specified by Manufacturer
Wi-Fi: No
Bluetooth
No
Power I/O:
1x Barrel (12 VDC at 1.2 A) Input
Power Consumption
Power Supply: 12 VDC at 2 A

Lisainfo

Kaal 1.2 kg
Mõõtmed 24.9 × 17.23 × 5.5 cm
