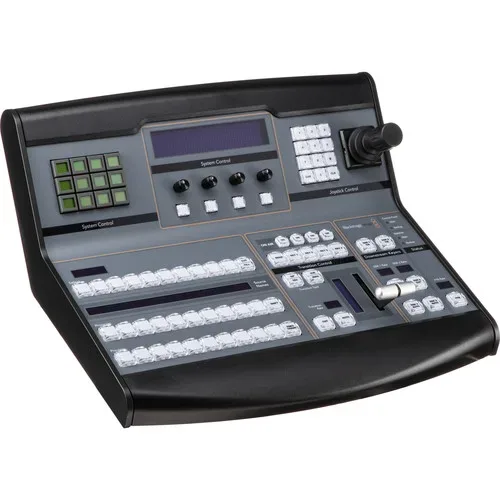

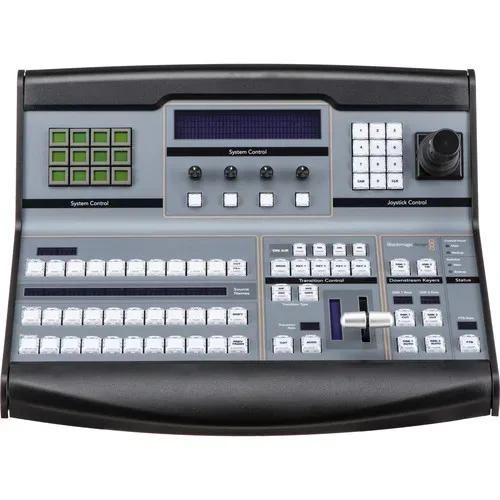

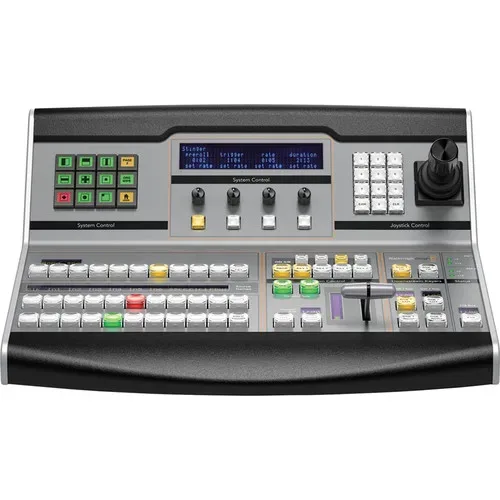

Blackmagic Design ATEM 1 M/E Broadcast Panel

When you need more control of you ATEM switcher than the software control panel provides, the Blackmagic Design ATEM 1 M/E Broadcast Panel delivers 24/7 switching control in a robust yet compact hardware panel. This 1 M/E (mix effect) panel incorporates professional-grade buttons, knobs, and controls that would be at home in a broadcast control room. It features dedicated buttons for direct and shifted crosspoints, an on-air indicator, a fader, and 3-axis joystick.
The buttons are illuminated by a tri-color LED system, and support 4-character length labeling. Use the panel to control inputs, outputs, and effects on your switcher. The panel connects and controls your ATEM switcher via Ethernet, and features a second Ethernet port. The panel fits within a standard rack unit width, and features built-in redundant 120 VAC power supplies to minimize downtime.
Enables you to have full control over the switcher, input selection, transitions, keyers, fader, and DVE control. Robust enough to handle 24/7 production.
Two Ethernet ports allow you to control your ATEM switcher, and connect to another panel or a computer. Can be stored in a drawer or a shelf in a 19″ rack.

1 laos

Kategooriad: ,

Kirjeldus

Connections
10/100/1000BASET with loop-through output for additional control panels or computers
1 x USB for firmware updates
Buttons
Tri-color LED crosspoint buttons (10 direct crosspoints; 20 shifted crosspoints) with high-contrast RGB bitmap labels
Next Transition Selectors: BKG, Key1 – Key4
DSK Transition Selectors: Auto, Cut, Tie/Pvw
Menu Control: LCD bitmap buttons
Controls
3-axis joystick
Numeric keypad
Fader bar
Indicators
On-air
Operating System
Aerospace-certified embedded OS
OS Compatibility
Mac
OS X 10.10 Yosemite
OS X 10.11 El Capitan or laterWindows
Windows 8.1 64-bit or Windows 10 64-bit
Redundant Power
Yes
Input Voltage
100 to 240 VAC
Power Consumption
40 W
Dimensions
44.7 x 17.5 x 38.4 cm
Weight
6 kg
