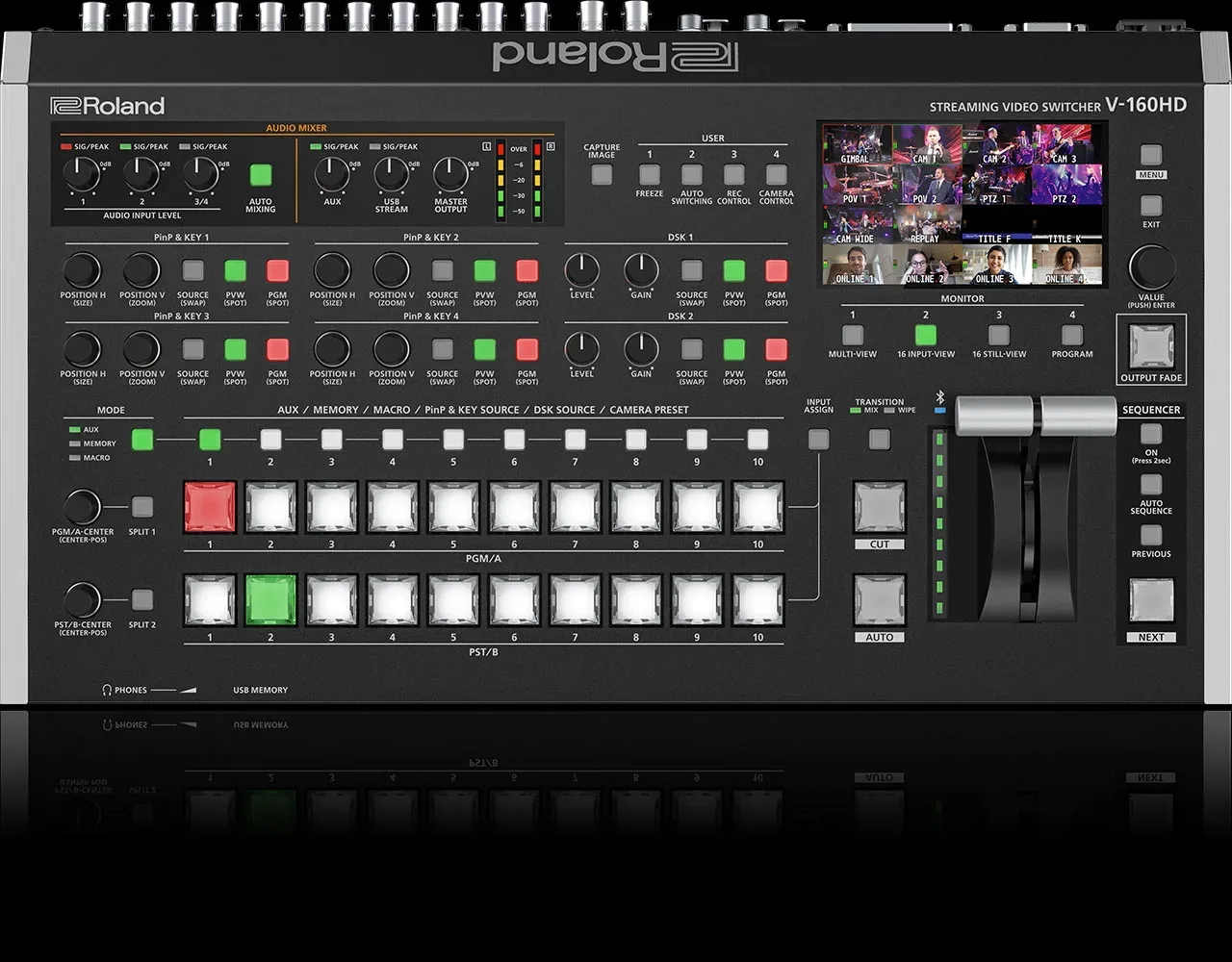

Roland – V-160HD
Streaming Video Switcher.
Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There’s also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
- Portable hybrid event switcher with comprehensive features and connectivity
- Eight 3G SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
- Seven total outputs across SDI, HDMI, and USB-C streaming
- Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
- 40-channel digital audio mixer with effects and processing
- Eight-layer video effects engine
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Powerful live production automation with sequencing, macros, and preset memories
- PTZ control with support for multiple brands and mixed protocols running at once
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Wireless and wired camera tally support
- Remote control software available for iPad, macOS, and Windows
2 laos
Kirjeldus
VIDEO
Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels 16 channels
Video Input Formats:
HDMI IN 1–4, SDI IN 1–8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz, 60 Hz
*4 FRAME RATE = 50 Hz
HDMI IN 5–8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz, 60 Hz
*2 FRAME RATE = 50 Hz
Video Output Formats
HDMI OUT 1–2, SDI OUT 1–3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 OUTPUT FORMAT = 720p
*2 OUTPUT FORMAT = 1080i
*3 OUTPUT FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 29.97 Hz
*7 FRAME RATE = 30 Hz
*8 FRAME RATE = 50 Hz
*9 FRAME RATE = 25 Hz
*10 FRAME RATE = 23.98 Hz
*11 FRAME RATE = 24 Hz
HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/29.97p *3
1080/30p *4
1080/50p *5
1080/25p *6
1080/23.98p *7
1080/24p *8
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 29.97 Hz
*4 FRAME RATE = 30 Hz
*5 FRAME RATE = 50 Hz
*6 FRAME RATE = 25 Hz
*7 FRAME RATE = 23.98 Hz
*8 FRAME RATE = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p, 640 x 480/25p *6
1080/23.98p, 720/23.98p, 640 x 480/23.98p *7
1080/24p, 720/24p, 640 x 480/24p *8
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 60 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 30 Hz
*5 FRAME RATE(USB OUT) = 50 Hz
*6 FRAME RATE(USB OUT) = 25 Hz
*7 FRAME RATE(USB OUT) = 23.98 Hz
*8 FRAME RATE(USB OUT) = 24 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB flash drive.
* PNG alpha channel supported.
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi-View(3 types), Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing
Sample rate: 24 bits, 48 kHz
Number of Audio Channels 40 channels
Audio Formats
USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 3-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 3-Band equalizer, Multi-band compressor, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, Delay
Others: Output fade, Test tone output
COMMON SECTION
Other Functions
Preset Memory (30 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 16 units)
External Rec Control

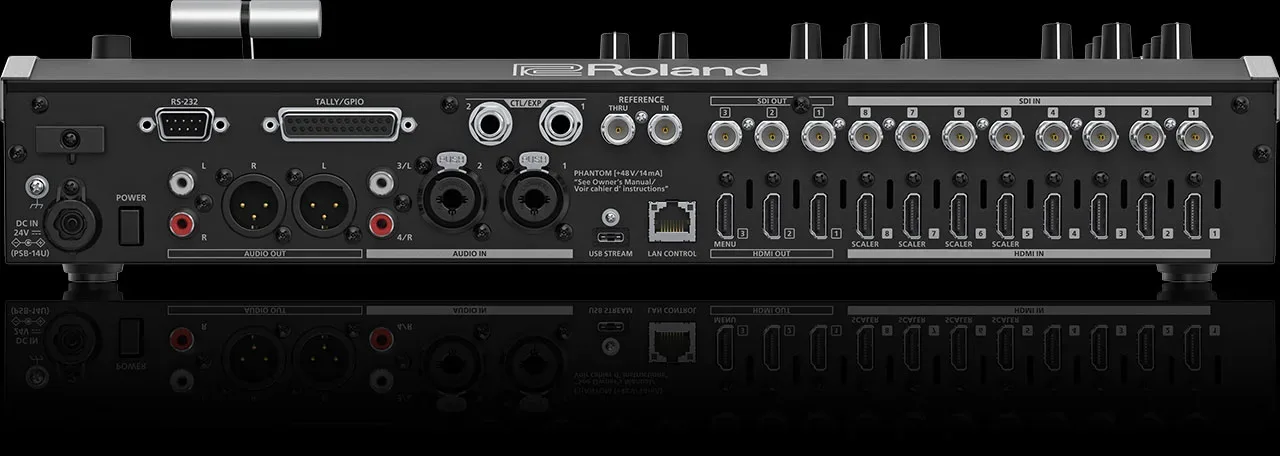

CONNECTORS
Video Input Connectors
HDMI IN 1–4: HDMI type A x 4
* HDCP Supported
HDMI IN 5–8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1–8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors
HDMI OUT 1–3: HDMI type A x 3
* HDCP Supported
SDI OUT 1–3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
Audio Input Connectors
Analog:
AUDIO IN 1–2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1–8: HDMI type A x 8
SDI IN 1–8: BNC type x 8
Audio Processing
Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1–3: HDMI type A x 3
SDI OUT 1–3: BNC type x 3
Other Connectors
USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
AUDIO IN 1, 2: -60–+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧ 24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms
Output Level
AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
OTHERS
Bluetooth Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply AC Adaptor
Current Draw 2.5 A
Power Consumption 55 W
Operation Temperature +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Accessories
Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6
Options (sold separately)
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
