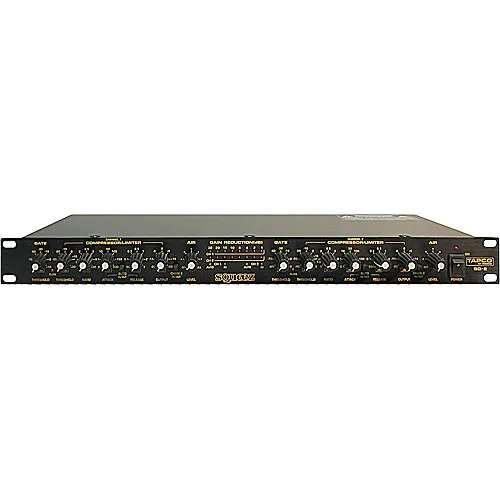

Tapco SQUEEZ SQ-2

The Squeez SQ-2 from Tapco is a dual channel compressor with gating and a single band, adjustable “Air” EQ. The EQ can be used for obtaining the classic vocal sound of the 60s and 70s, or for replacing high frequency content due to heavy compression. Inserts on both channels allow for frequency sensitive compression.
The compressor section offers both auto “soft-knee” and “hard-knee” curves, while the gate employs “soft” operation and an expander function at the threshold to eliminate clicks from drums and other percussive sounds.
The unit provides dedicated threshold and ratio controls along with attack and release controls for the compressor, an output control that allows for volume make-up and eight LEDs on each channel display gain reduction. An automatic attack/release button is provided for those that prefer ease of use, or are unfamiliar with the subtleties of compression.

Dual channel compressor with gate
Auto Soft-Knee/Hard-Knee curves depending on compression setting
Adjustable “Air” filter adds natural high-end for “classic” studio compression sounds
Soft Gate circuitry provides expansion at the threshold to eliminate clipped gated sounds
Individual threshold, ratio, attack and release controls per channel
Auto attack/release function with indicator
Output gain compensation controls
Individual Channel In/Out button and indicator
Precision eight-segment gain reduction meters
Side chain connections for frequency-sensitive compression such as de-essing

1 laos

Kategooriad: ,

Kirjeldus

Function
Compressor/gate
Number of Channels
2
Inputs
2 x XLR
2 x 1/4″ TRS phone
Outputs
2 x XLR
2 x 1/4″ TRS phone
Maximum Input Level
+21dBu, balanced and unbalanced
Compression Threshold
-40dBu to +20dBu
Compression Ratio
1:1 to Limit
Attack Time
0.1 mSec to 200 mSec
Release Time
5 mSec to 3 S
Gate Threshold
OFF to +10dBu
Gate Rate
Soft gate
Maximum Output Level
+21dBu
Make-up Gain
-20dB to +20dB
Frequency Response
20Hz to 20kHz, +0, -1dB
Dynamic Range
Not specified by manufacturer
Noise
Noise and Hum: <-93dBu, unity gain
Specialties
“Air” EQ circuit restores the high frequencies lost in compression
