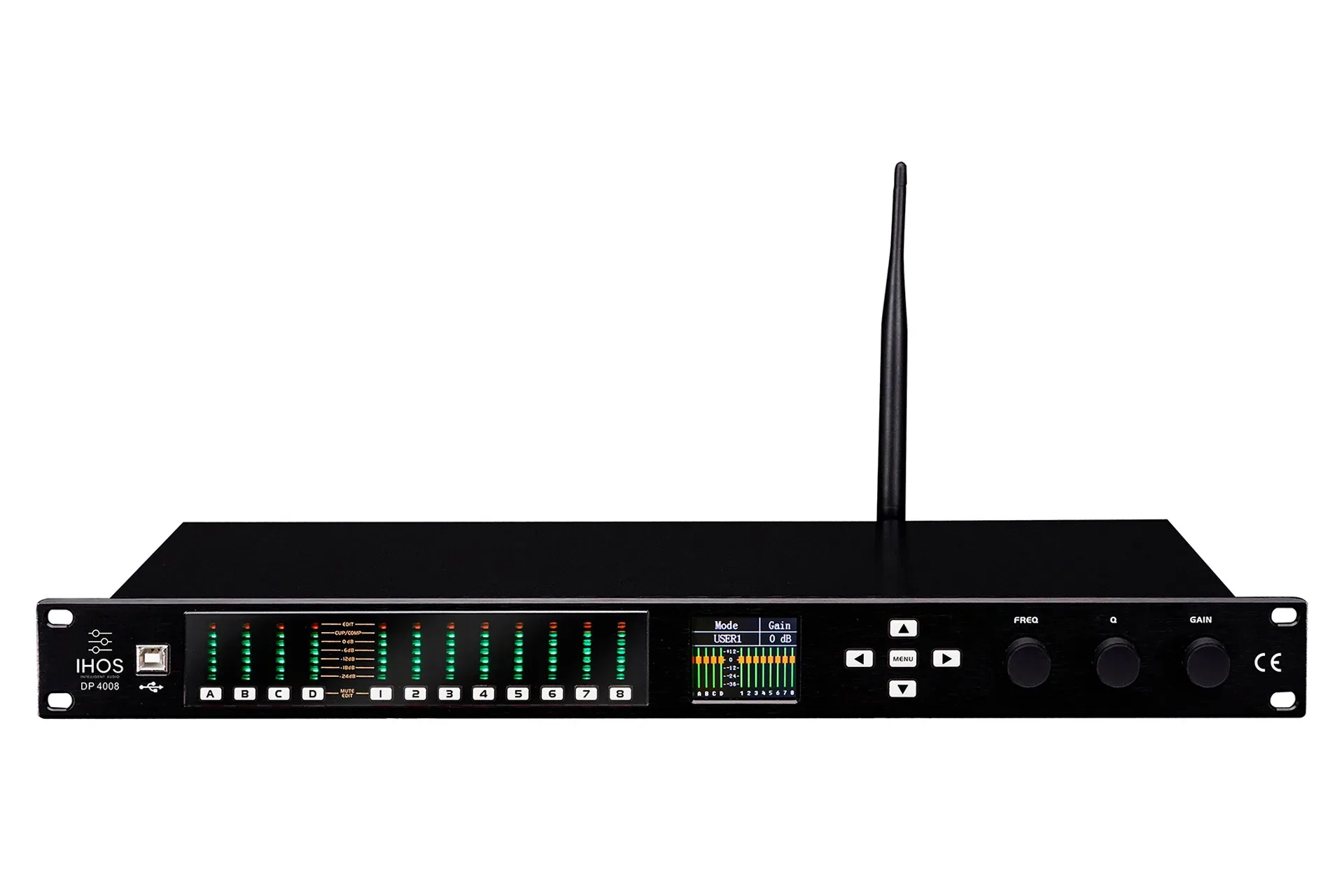

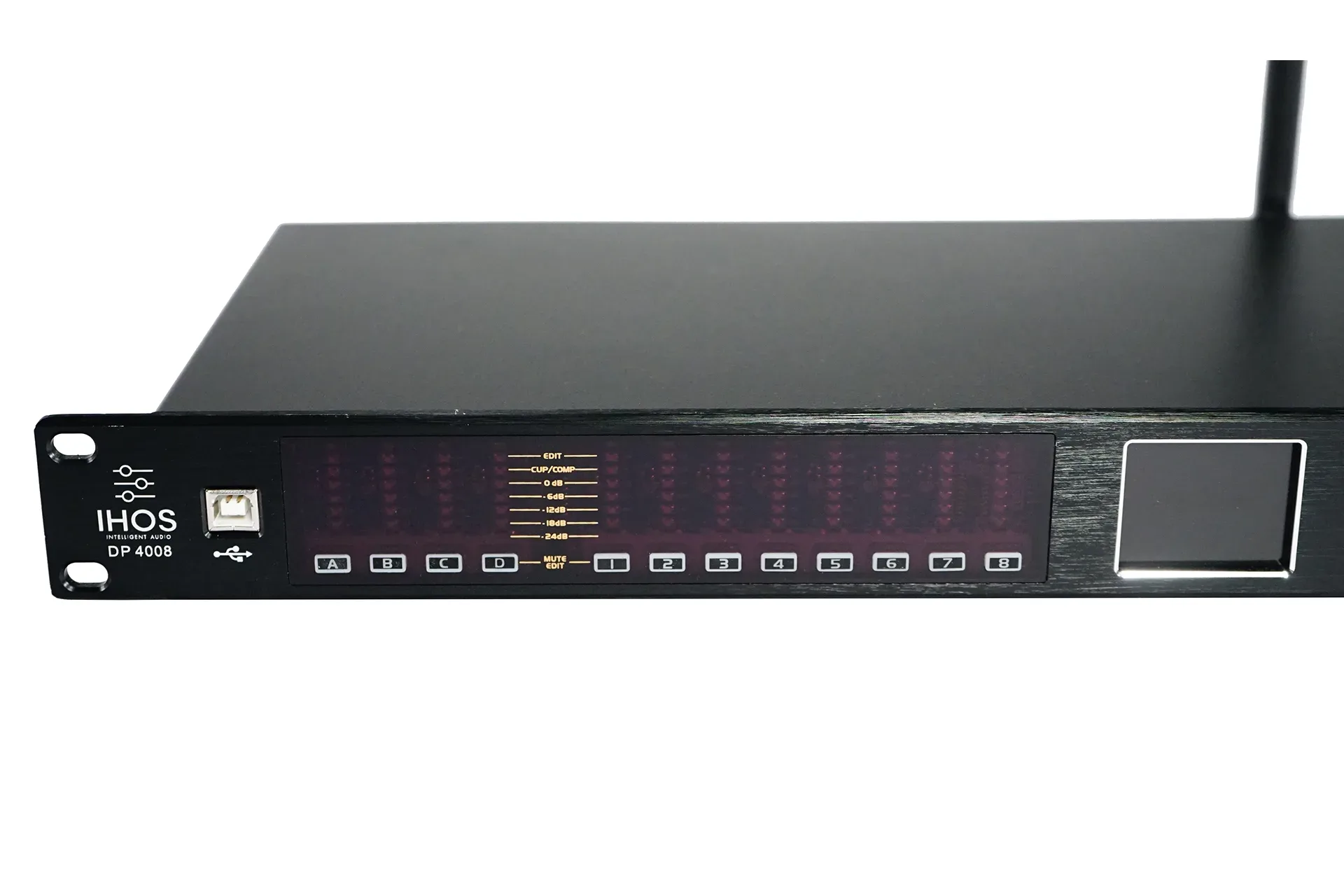

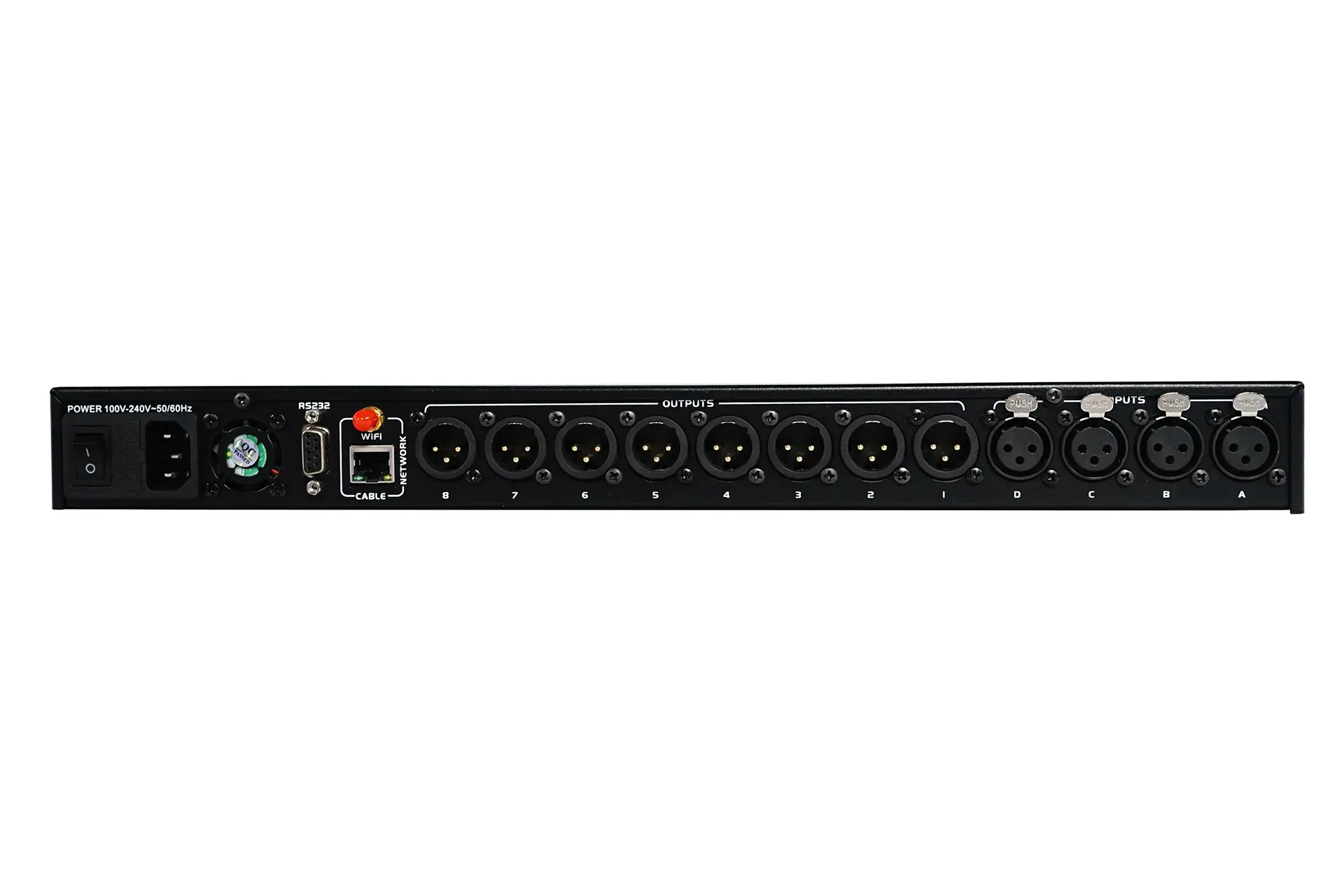

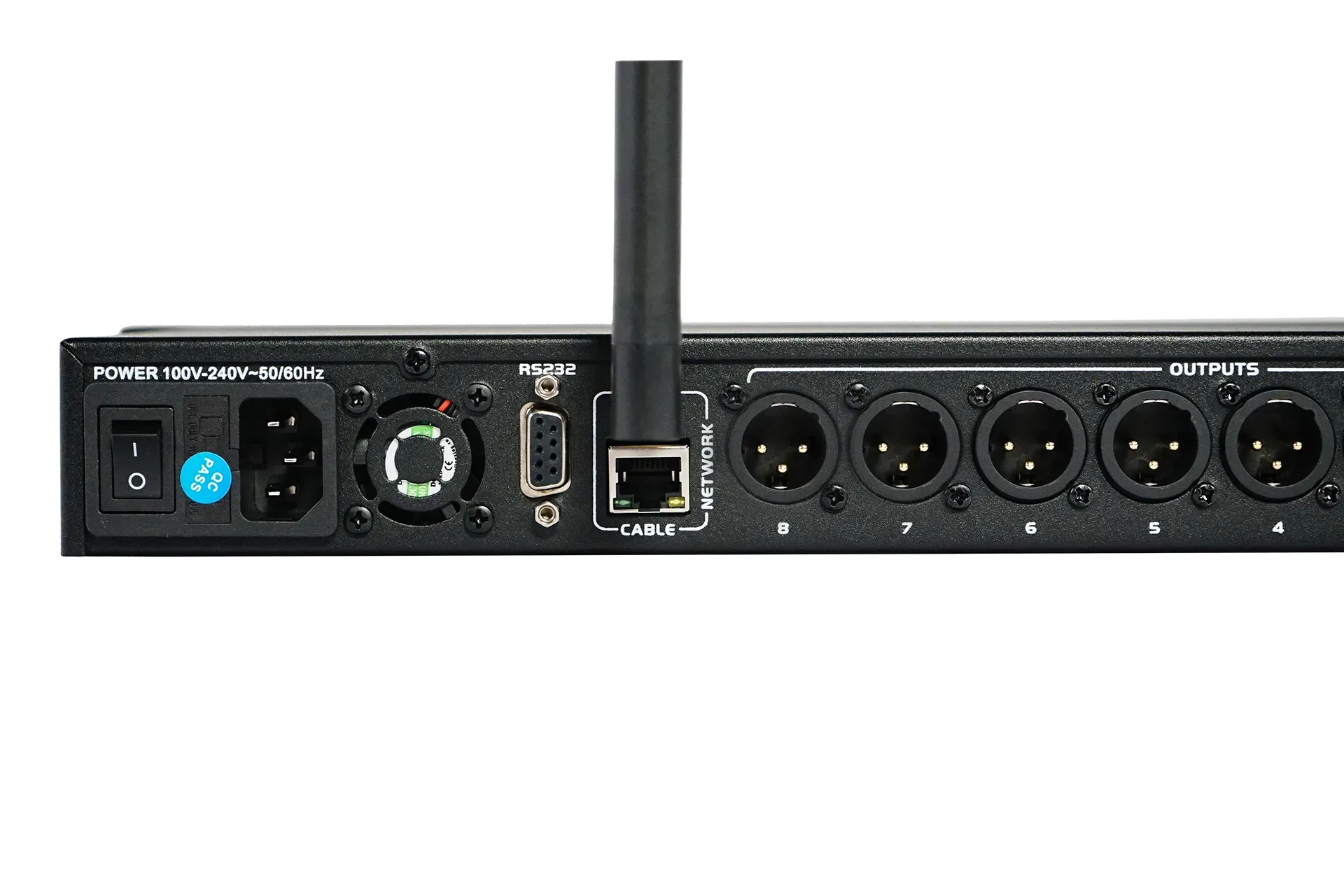

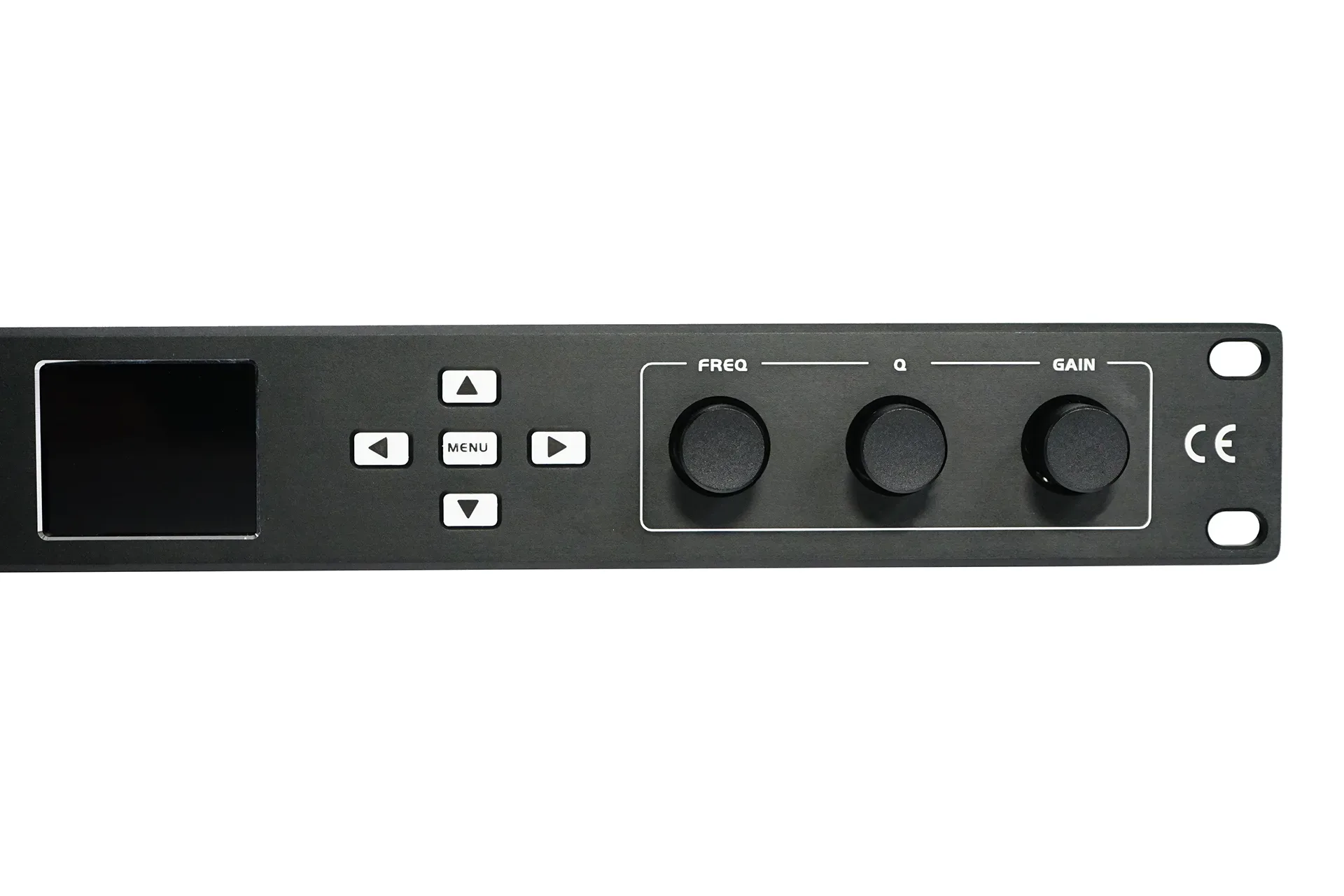

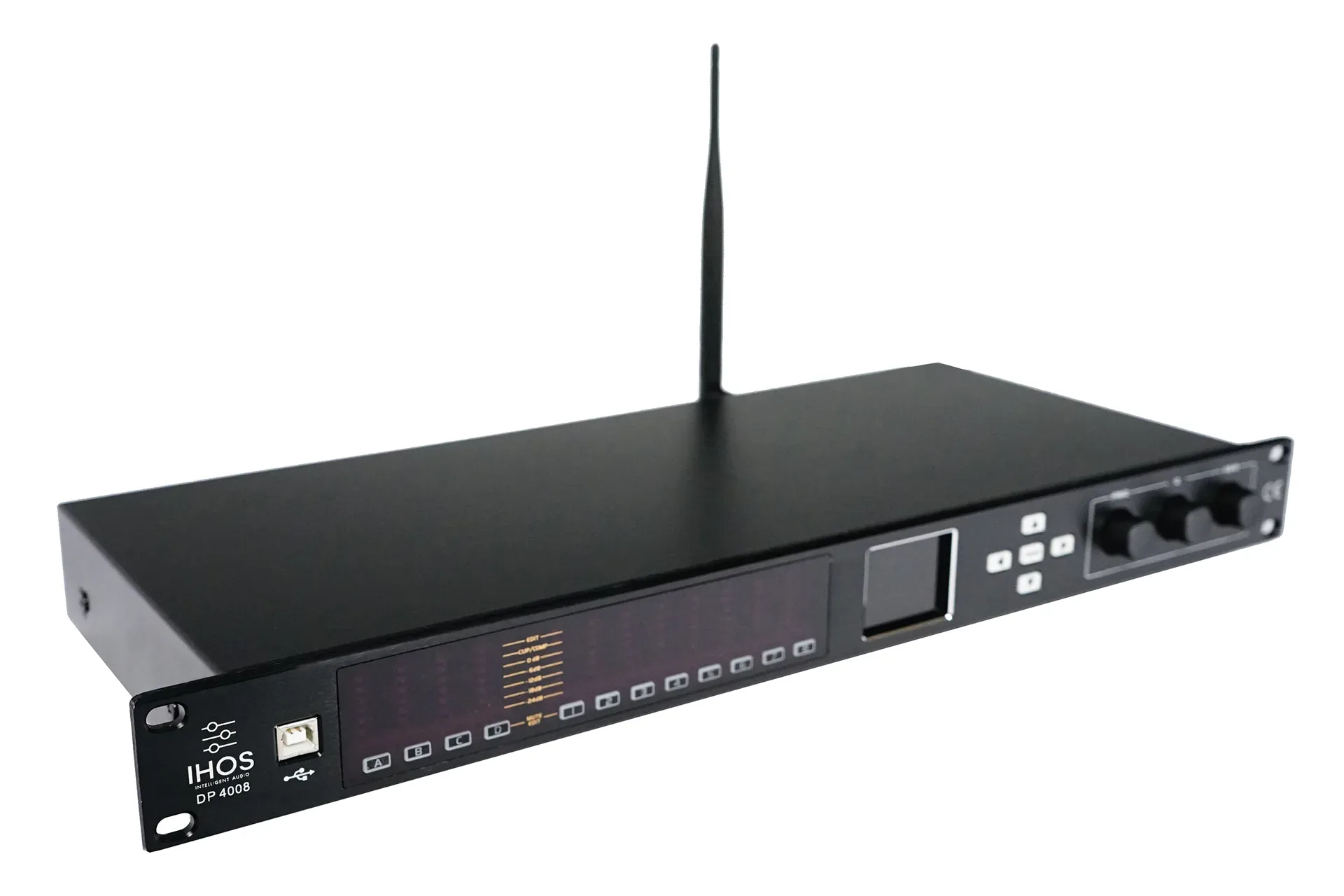

DP4008
Professional audio processor 4 input/ 8output, 96KHz sampling frequency, 32bit DSP, 24bit A/D and D/A converter, 8 bands PEQ, delay up to 1000ms, HPF and LPF filters, wifi access point, PC software and tablet IOS and Android apllication.
Kirjeldus
4 Input / 8 Output channels.
Input impedance: 20 kΩ.
Output impedance: 100 Ω.
1x USB port.
CMRR: >70 dB (1 kHz).
Impot range: ≤+18 dBu.
Frequency: 20 Hz – 20 kHz (-0.5 dB).
S/N: >110 dB.
THD: <0,01 % Output= 0dBu / 1 kHz.
Separation: >80 dB (1 kHz).
Input channels:
Mute
Delay adjustment range: 0 – 1000 ms.
Polarity – in phase (+) & reversed phase (-).
PEQ: 8 bands PEQ, Freq: 20 Hz – 20 kHz, bandwidth 0,05 – 3 oct. Step: 0,05 oct, Gain +/- 20 dB, Step: 0,1 dB.
Output channels:
Mute
Select: each output channel can be select different input channels, you can select any combination of input channels.
Gain: adjustment range: 12dB, step: 0,1 dB.
Delay adjustment range: 0 – 1000 ms.
Polarity – in phase (+) & reversed phase (-).
PEQ: Each output channel with 8 bands PEQ and 3 modes: PEQ/Lo-shelf/Hi-shelf.
Frequency: LPF, HPF, mode: Linkwitz – Riley/Bessel/Butterworth, FREQ: 20 Hz – 20 kHz, Slop:12dB/oct, 18dB/oct, 48dB/oct.
Limiter: Gate level: 20dB, step: 1dB, start time: 0,3 ms – 100 ms, <1 ms, Step: 0,1 ms>, 1ms, Step: 1 ms Release Time is the 4, 8, 16, 32 times of the start time.
Processor: 96 kHz sampling frequency, 32-bit DSP chip processor, 24-bit A/D and D/A converter.
Consumption: ≤25W.
Power input: 110 / 240 Volt AC, 50/60 Hz.
Lisainfo
| Kaal | 3.15 kg |
|---|---|
| Mõõtmed | 57 × 26 × 9 cm |
