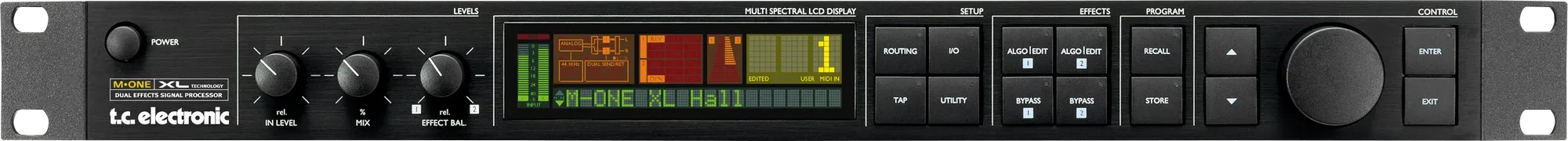

TC Electronic M-ONE XL

Dual-Engine Signal Processor with High-Quality Reverb and Multi-Effects for Live or Studio Applications.

1 laos

Kirjeldus

Connectors RCA Phono (S/PDIF)
Formats S/PDIF (24 bit), EIAJ CP-340, IEC 958
Output Dither HPF/TPDF dither 24/20/16/8 bit
Sample Rates 44.1 kHz, 48 kHz
Processing Delay 0.1 ms @ 48 kHz
Frequency Response DIO DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Inputs
Connectors XLR, balanced
Impedance, Bal / Unbal 21 kOhm / 13 kOhm
Max. Input Level +24 dBu
Min. Input Level for 0 dBFS 0 dBu
Sensitivity @ 12 dB headroom -12 dBu to +12 dBu
A to D Conversion 24 bit, 128 x oversampling bitstream
A to D Delay 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz
Dynamic Range 100 dB typ, 20 Hz – 20 kHz
THD typ < 92 dB (0,0025 %) @ 1 kHz
Frequency Response +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk <-95 dB, 20 Hz to 20 kHz
Analog Outputs
Connectors XLR, balanced
Impedance Balanced / Unbalanced 40 Ohm
Max. Output Level +20 dBu (balanced)
Output Ranges Balanced 20/14/8/2 dBu Unbalanced: 14/8/2 dBu
D to A Conversion 24 bit, 128 x oversampling bitstream
D to A Delay 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz
Dynamic Range 104 dB typ, 20 Hz to 20 kHz
THD typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz <-100 dB, 20 Hz to 20 kHz
EMC
Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Safety Certified to IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093
Environment
Operating Temperature 32° F to 122° F (0° C to 50° C)
Storage Temperature -22° F to 167° F (-30° C to 70° C)
Humidity Max. 90 % non-condensing
Control Interface
MIDI In/Out/Thru 5 Pin DIN
Pedal 1/4″ phone jack
General
Finish Anodized aluminum front. Plated and painted steel chassis
Display 23 character / 280 icon STN-LCD display
Dimensions 483 x 44 x 195 mm
Weight 1.85 kg
Mains Voltage 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption <15 W
