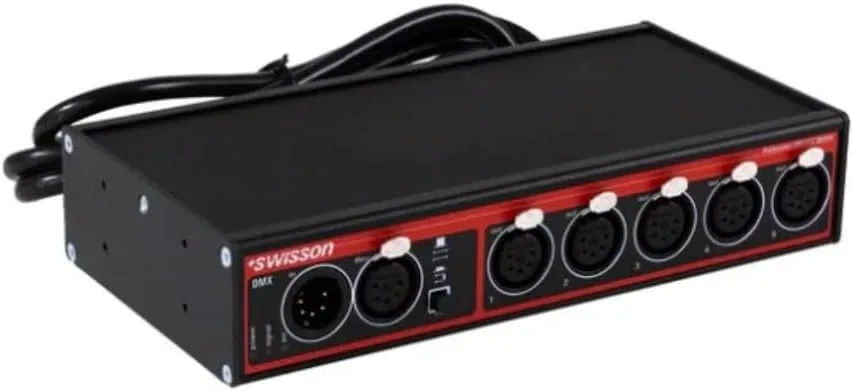

Swisson XSP-5B DMX-Splitter Box

XSP-5B DMX 5way DMX Splitter & Booster Box with XLP 5pin Connectors. Suitable for Desk Top and Truss Mounting. Supplied with M10 Threaded Socket (max 20mm) and Eye for Safety Bond.

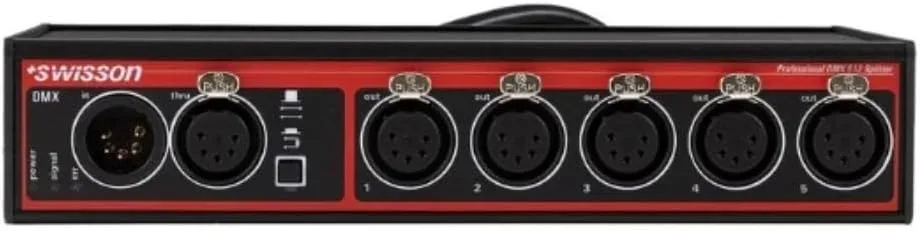

  • 1x DMX in (5-pin) to 5x DMX out (5-pin) + thru (5-pin)
  • Professional DMX splitter with optically isolated ports
  • The DMX signal is regenerated and amplified without changing the DMX protocol timing
  • Reduces reflection problems
  • Signal error display
  • Switchable terminating resistor
  • For Rruss mounting
  • Connection via fixed cable with open ends
  • Voltage: 100 – 240V, 50/60Hz
  • Internal power supply unit
  • Metal housing
    Type Splitter
    Input 5-pole XLR
    3-pole XLR Outputs No
    5-pole XLR Outputs Yes
    19″-capable No
    RDM-compatible No
    WDMX-capable No


Kaal 0.75 kg
Mõõtmed 21.5 × 11.2 × 0.45 cm
