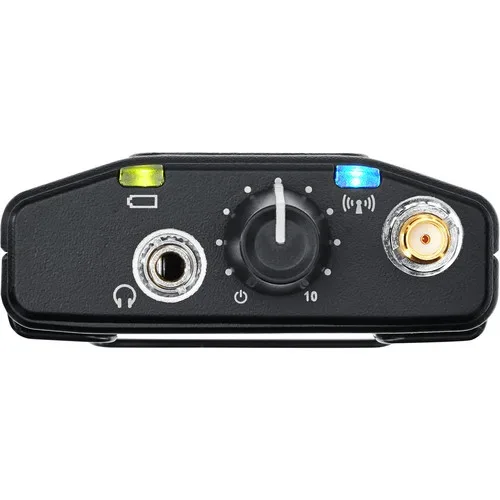

Shure PSM900 – K1E

Professional In-Ear Personal Monitoring System.

With patented Audio Reference Companding, exceptional transmitter linearity, and patented CueMode functionality, the Shure PSM® 900 Wireless Personal Monitor System meets the needs of professional audio applications of all kinds, providing excellent audio quality and reliable RF performance. Twenty compatible frequencies per band and a 36 MHz to 40 MHz tuning bandwidth give the PSM 900 system the horsepower to handle demanding environments, including professional IEM and IFB applications.

Kategooria:

Kirjeldus

Frequency Band
K1E: 596-632 MHz
RF Filter Range
-3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain
Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
RF Sensitivity
2.2 μV (20 dB SINAD)
Image Rejection
>90 dB
Adjacent Channel Rejection
>70 dB
Squelch Threshold
22 dB SINAD (±3 dB), Default Setting
Intermodulation Attenuation
>70 dB
Blocking
>80 dB
Audio Output Power
100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
4-Band Parametric Equalizer
Low-Shelf Selectable Gain: ±2, ±4, ±6 dB at 100 Hz
Low-Mid Selectable Gain: ±2, ±4, ±6 dB at 160, 250, 400, 500, 630 Hz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Mid Selectable Gain: ±2, ±4, ±6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Shelf Selectable Gain: ±2, ±4, ±6 dB at 10 kHz
Volume Limiter
Selectable: 0 to -48 dB in 3 dB Steps
Volume Lock
Selectable: 0 to -70 dB
Limits Volume Adjustment Knob
Selected Value Analogous to Volume Knob Increment
Audio Connector
1/8″ / 3.5 mm
Battery Life
4-6 Hours (Continuous Use) with 2 x AA Batteries

Lisainfo

Kaal 0.154 kg
Mõõtmed 6.5 × 2.2 × 8.5 cm
