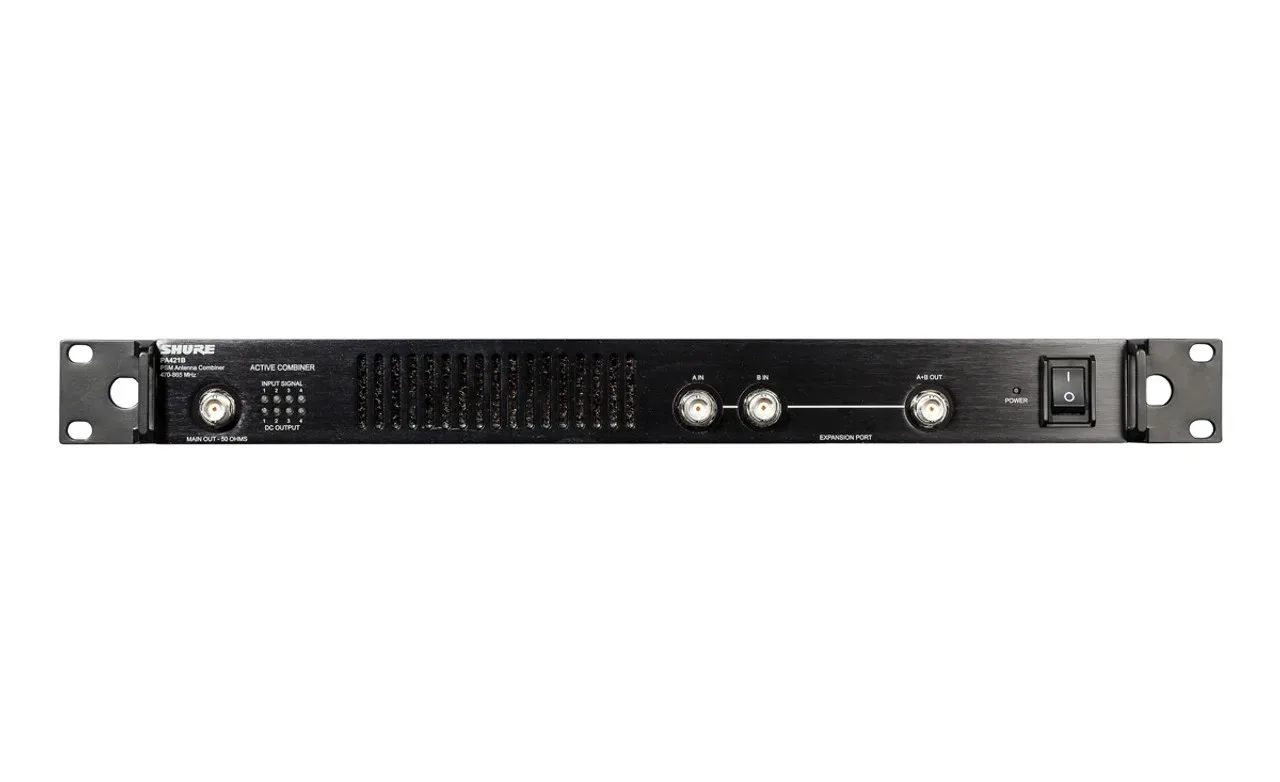

Shure PA421B

Antenna Combiner for PSM® Wireless Systems.

  • Combines up to four PSM transmitters to a single antenna set for improved RF networking & reduced rack clutter.
  • Wideband operation (470-865 MHz)
  • 4 Input LED signals (green when active; off when inactive)
  • Quieter, temperature-sensitive fan for significant reductions in ambient unit noise and heat
  • Daisy-chain up to 2 combiners with the expansion port.
  • LED indicators for signal presence and signal overload
  • Passive (non-powered) antenna combining*

* Contact Shure Service Department for more detail and availability. Requires modification of unit by qualified service technician.

The PA821B active broadband antenna combiner streamlines the simultaneous operation of many PSM systems at a venue.  The PA821B combines the RF outputs from up to four PSM transmitters into one RF output to feed a single transmit antenna.  This provides significantly improved reception quality due to reduced intermodulation distortion and dropouts due to multipath interference. (Directly replaces PA421A.)
The PA421B is compatible with Shure PSM300, PSM 900 and PSM 1000.

Four-to-One Wideband PSM Antenna Combiner for all P3T, P9T and P10T Transmitters (470-865 MHz).

Kategooriad: ,

Kirjeldus

  • RF Frequency Range
  • PA421B: 470-865 MHz
  • PA421BX: 865-960 MHz
  • Impedance 50 Ω
  • Operating Temperature Range −18 °C (0 °F) to 63 °C (145 °F)
  • Power Requirements 100 to 240 V AC, 50-60 Hz
  • Current Drain 1.09 A (referenced at 100 V AC) (109 VA)
  • Power Consumption 98 W max.

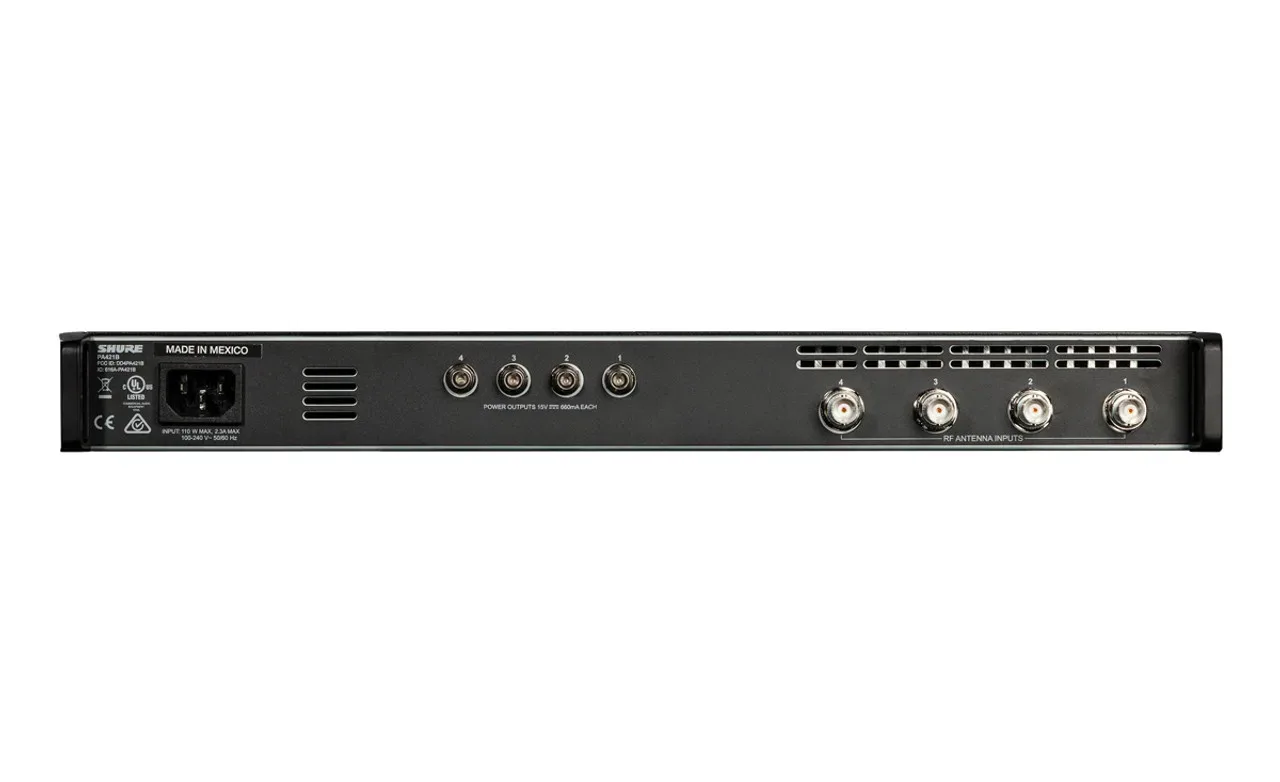

  • RF Input
    Connector Type BNC
  • Configuration Active
  • Impedance 50 Ω
  • RF Gain 0 dB (±2 dB)
  • LED Indicator Min. Detection Threshold 2.5 dBm
  • LED Indicator Overload Threshold >24 dBm
  • Main Output
    Connectory Type BNC
  • Impedance 50 Ω
  • Expansion Port
    Connector Type BNC
  • Configuration Passive
  • Impedance 50 Ω
  • Insertion Loss <4 dB
  • RF Expansion Port Normal Operating Range 33 dBm (2 W)
  • DC Outputs
  • Output Voltage 15 V DC
  • Output Current (Per Output) 660 mA max
  • Output Power (Per Output) 9.9 W
  • LED Indicator Min. Detection Threshold 85 mA
  • LED Indicator Overload Threshold >660 dBm

Lisainfo

Kaal 4.3 kg
Mõõtmed 40.1 × 36.5 × 0.43 cm
