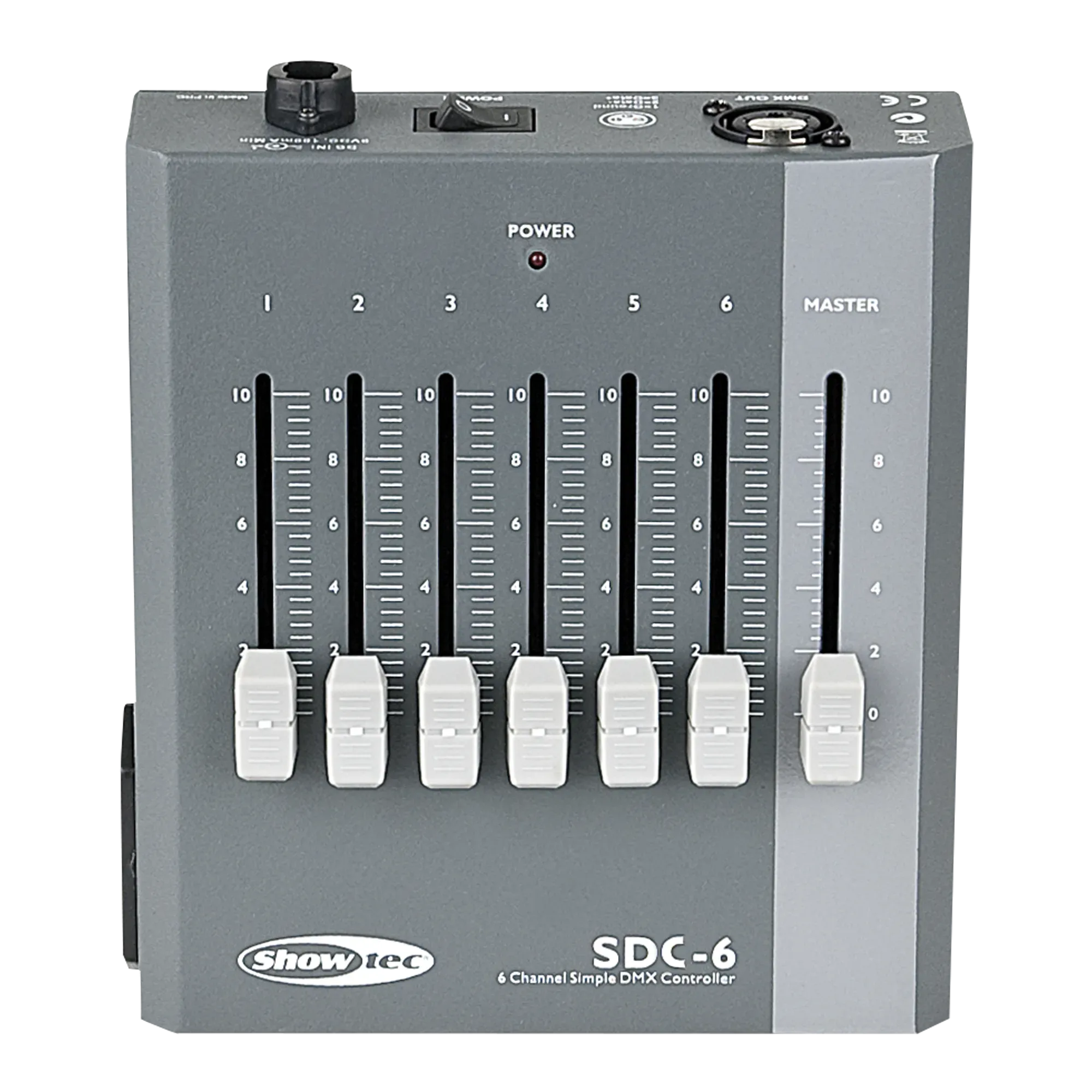

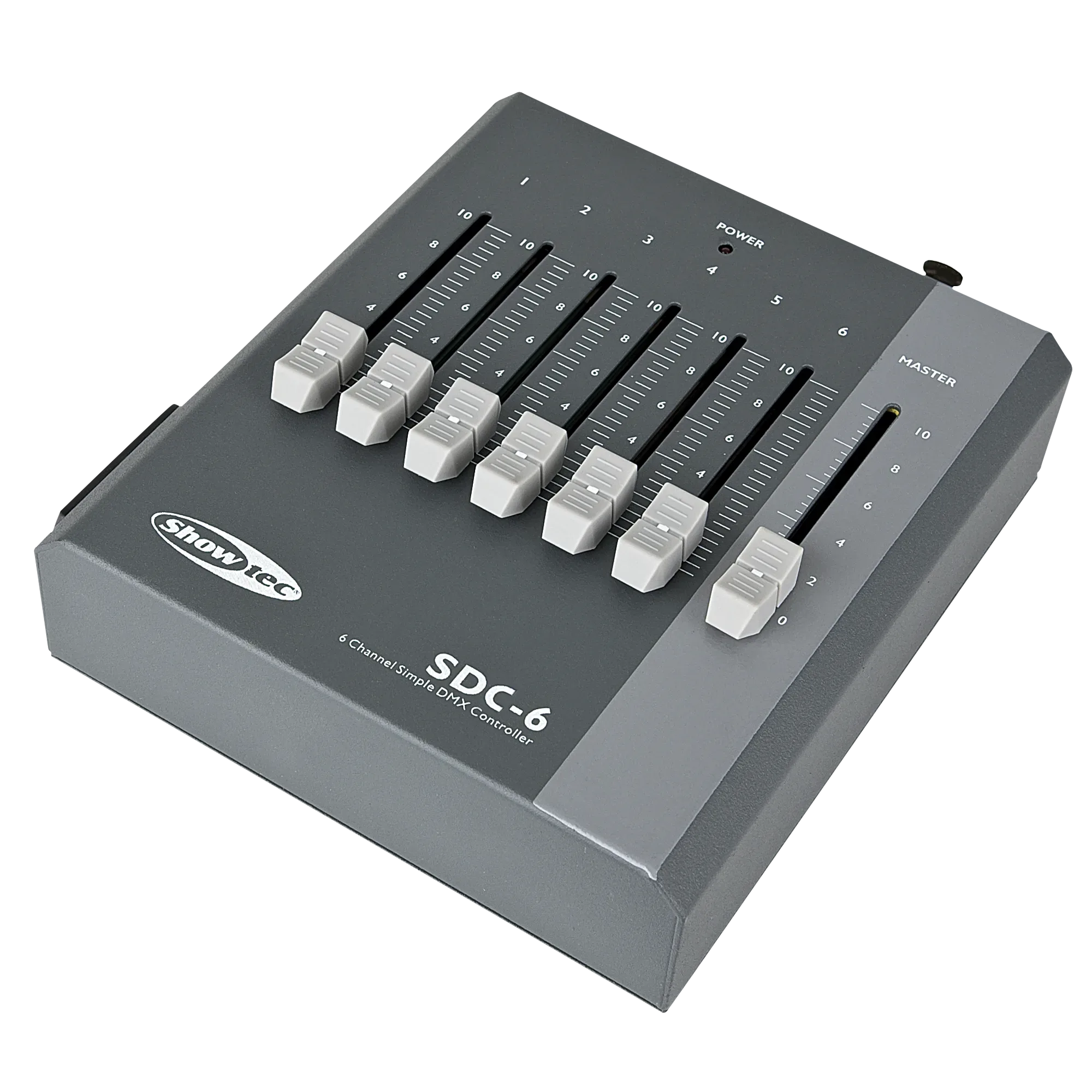

Showtec SDC-6

The SDC-6 is a small battery operated 6-channel DMX controller. It is very suitable for easy applications such as exhibitions, small shops as well for testing of your DMX equipment.

• 6 individual Channel Fader
• 1 Master Fader
• 6 DMX Channels (1 to 6)
• Compact Design & Simple Operation

Kogus *

Tootekood: 8717748208521 Kategooria:

Kirjeldus

Control and Programming
Control Mode DMX, Manual
DMX Channels 6
Faders 7
Electrical Specifications and Connections
Power Supply 230 V AC 50 Hz (Power adapter)
Output voltage 9 V DC
Power Consumption 1 W
Power Connector In Low Voltage DC plug

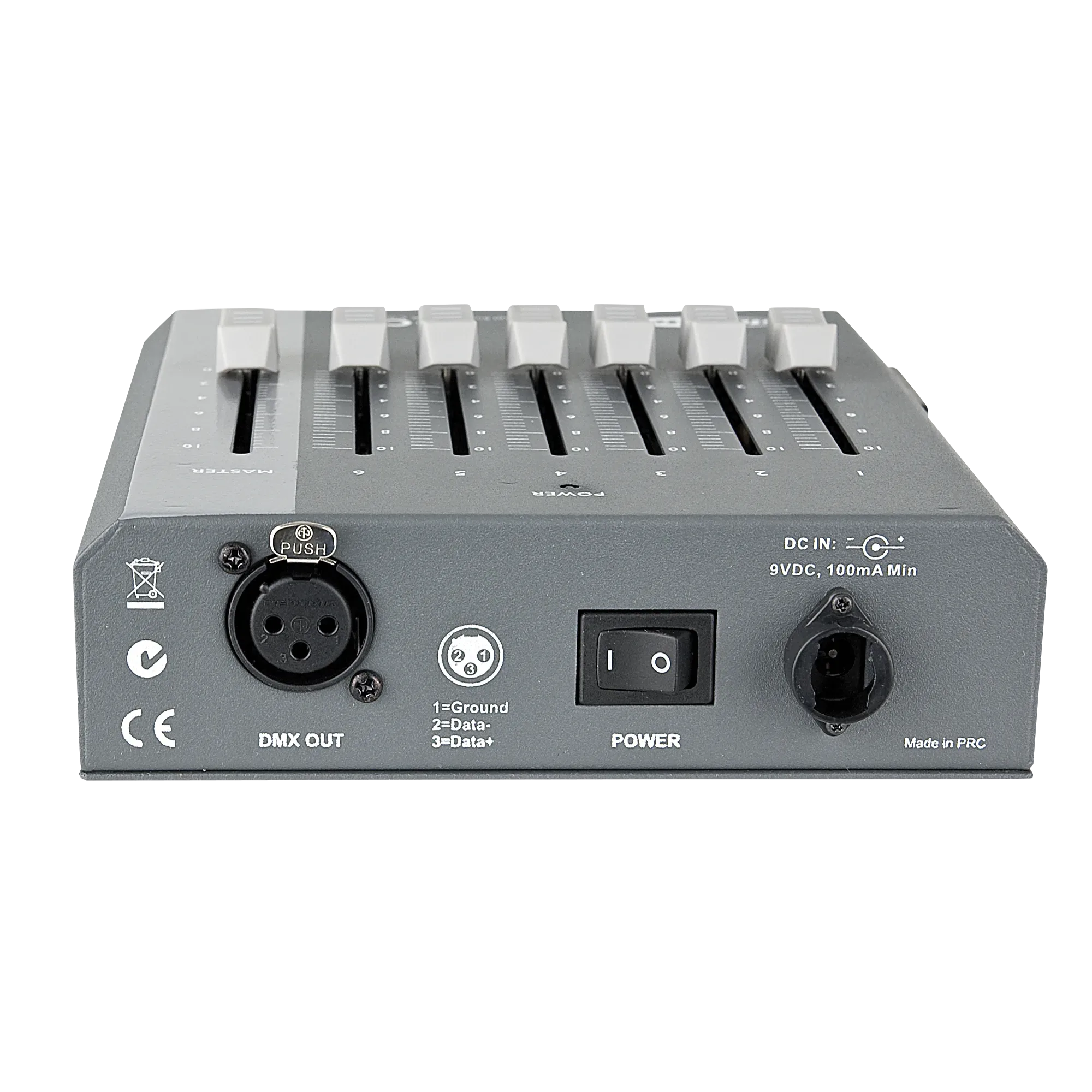

DMX Connector Out XLR 3P
Power Adapte
Adapter type AC-DC adapter
Input voltage 230 V AC, 50 Hz V
Output voltage 9 V DC
Mechanical Specifications
IP Rating IP20 (indoor use only)
Housing Metal
Colour Gray
Product Properties
LED Indicators Power
Thermal Specifications
Maximum Ambient Temperature 40 °C

Lisainfo

Kaal 0.8 kg
Mõõtmed 14.9 × 17 × 0.5 cm
