Panasonic – PTZ kaamera juhtpaneel – AW-RP150GJ
Intuitive Camera Control for Ease of Use and One-Person Operation.

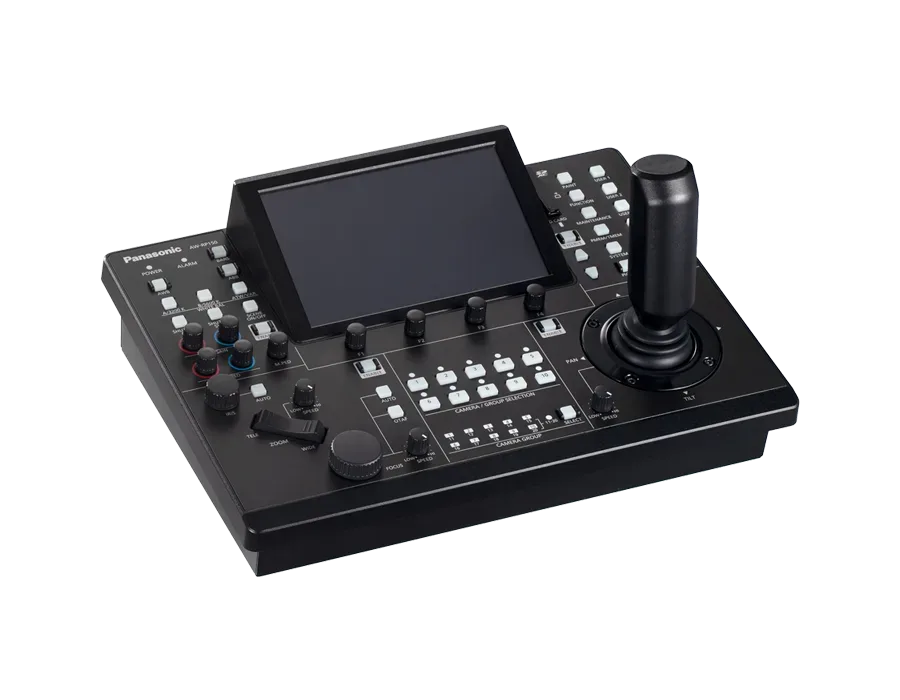

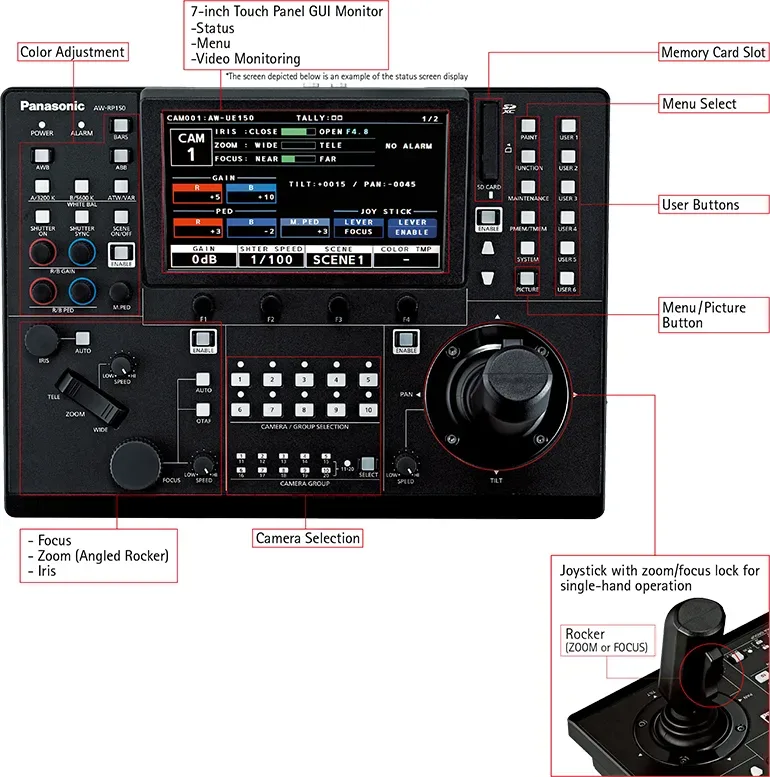

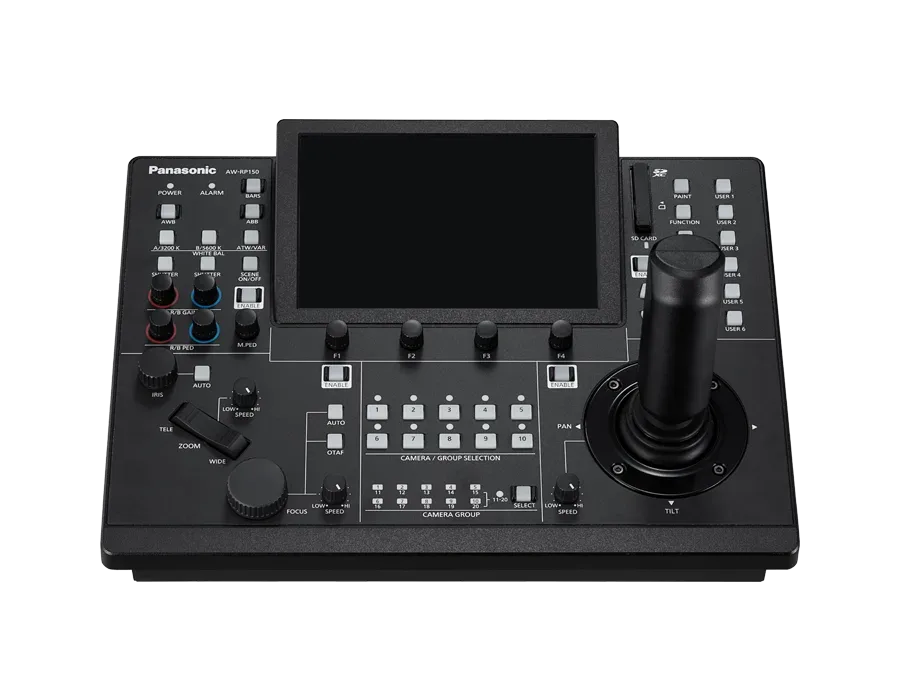

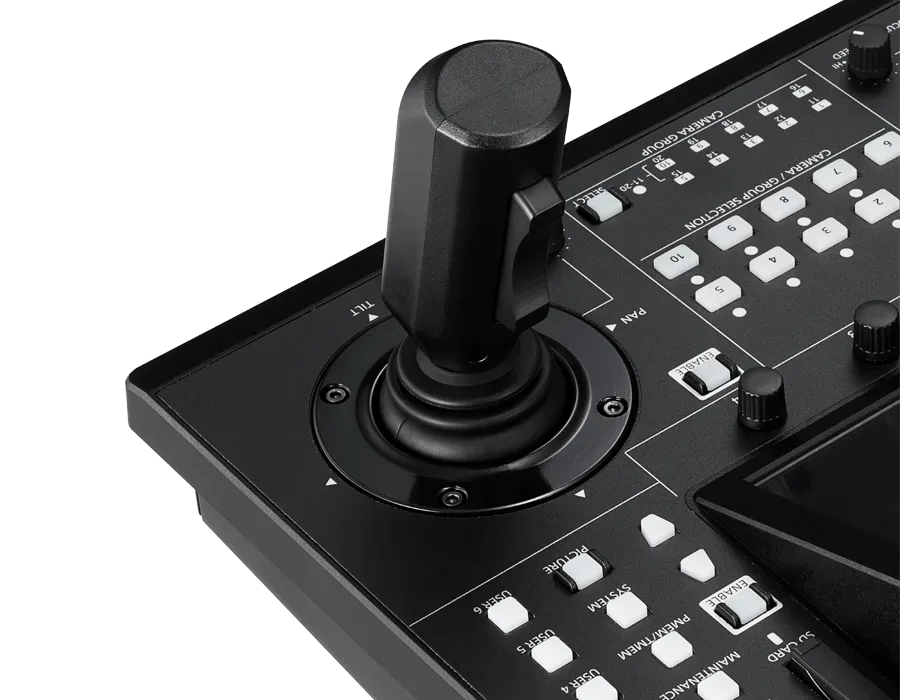

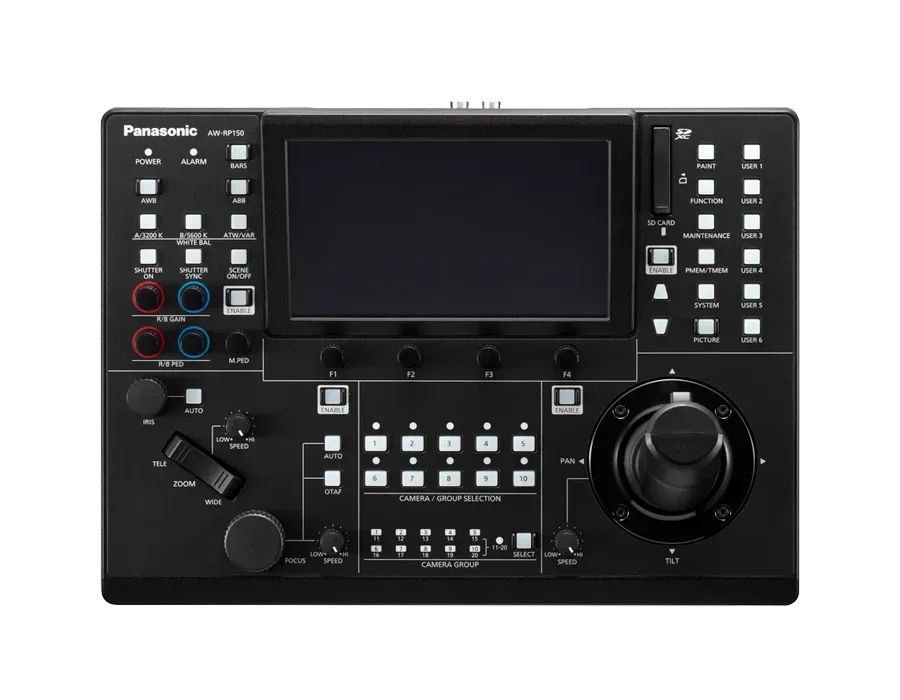

A ZOOM/FOCUS rocker mounted on the joystick manages pan and tilt operations for zoom and focus control and intuitive single-handed operation. The built-in touch display allows for easy and quick operation of all essential camera functions.
Kirjeldus
Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE+ power supply) | |
---|---|---|
Current Consumption | 1.0 A (Connector Input), 0.6 A (PoE+ power supply) | |
Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
Allowable Humidity Ranges | 10 % to 90 % (no condensation) | |
Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) | |

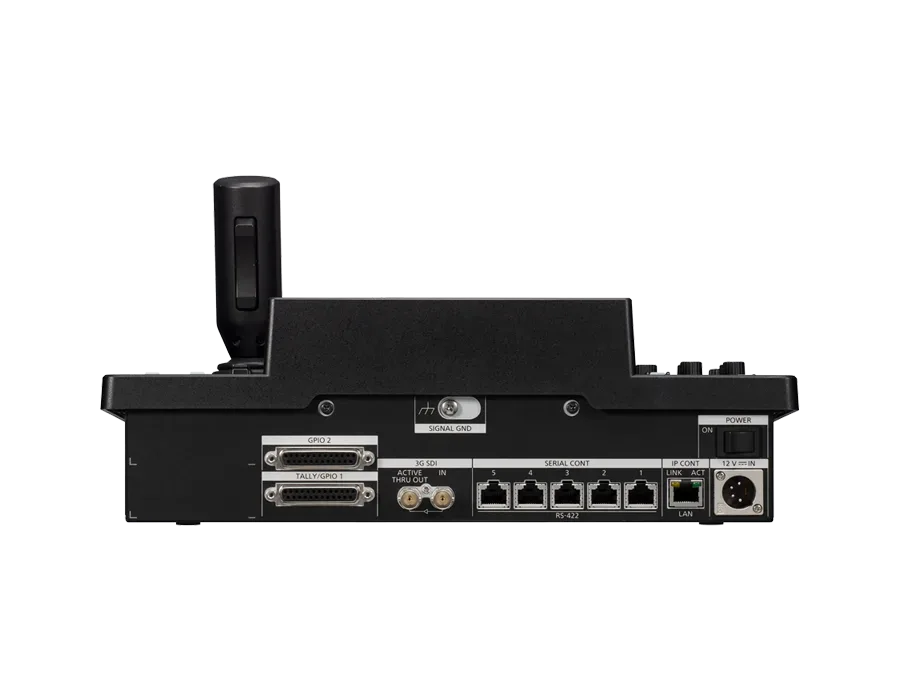

Input/Output Connectors | ||
Input | DC 12 V IN | XLR 4‑pin |
3G-SDI IN | SMPTE424M/SMPTE292 / 75 Ω (BNC x 1) Supported formats: 1080/59.94p*2, 1080/50p*3, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF |
|
Output | 3G-SDI ACTIVE THRU OUT |
SMPTE292 / 75 Ω (BNC x 1) |
Input/Output | IP CONT | 100BASE‑TX PoE+ input Connection cable: LAN cable, max. 100 m (328 ft) • When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended • When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended |
SERIAL CONT (RJ‑45) | RS‑422 (control signals for remote cameras) Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft) |
|
TALLY OUT | Open collector output (negative logic) Maximum voltage resistance DC 24 V, Maximum current 50 mA |
|
TALLY/GPIO 1 | D‑sub 25‑pin, female, inch thread TALLY IN : 10 inputs (for receiving photocoupler signals) GPI : 6 inputs (for receiving photocoupler signals) GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic) • Input/output switched with menu settings |
|
GPIO 2 | D‑sub 25‑pin, female, inch thread GPI : 10 inputs (for receiving photocoupler signals) GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic) • Input/output switched with menu settings Reserve connectors: 2 connectors (For future expansion feature) |
|
LCD Display | 7-inch Touch Panel GUI Monitor (WVGA(800×480)) | |
SD Memory Card Slot | SDHC / SDXC Memory Card Slot x 1 | |
Connection Specifications | ||
No. of Connectable Cameras | 200 (IP), 5 (RS422) | |
No. of Camera Selection Buttons | 10 | |
No. of Camera Groups | 20 (10 units per 1 group) | |
Memory | ||
Preset Memory | No. of memory presets 100 | |
Tracing Memory | No. of cameras | Cam1 to Cam10 |
Recording time, no. of memory settings | Maximum 5 min. total per camera, maximum of 10 settings per camera | |
Other Functions | ||
No. of User Assignable Buttons | 6 + up to 10 on the LCD menu | |
Pan / Tilt Speed Adjustment | 7 levels | |
TALLY LED Display Color: | green / red |
Lisainfo
Kaal | 3.2 kg |
---|---|
Mõõtmed | 34.2 × 24.5 × 17.8 cm |
