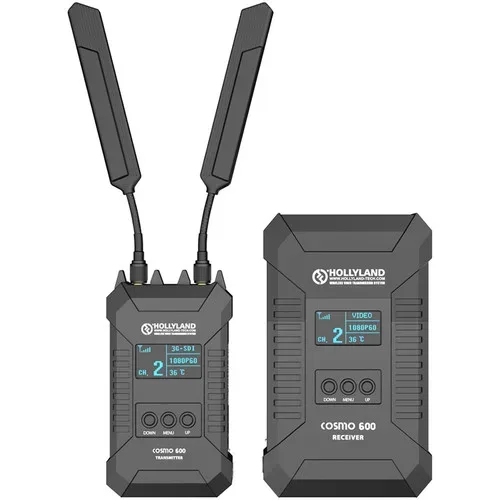

Hollyland COSMO 600 Wireless HDMI/SDI Transmission System (L-Series)

The Hollyland COSMO 600 allows you to transmit an HDMI/SDI signal up to 600′ to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1 ms. The transmitter also offers an SDI loop out and 3.5mm stereo audio input. The system operates on the 5.1-5.9 GHz frequency band and uses AES-128 encryption for secure live delivery of your video. Other features include an OLED screen on both units, timecode, and automatic synchronization with camera recording.
The transmitter comes with an L-series battery plate and the receiver features a V-mount plate. Additionally, D-Tap to LEMO cables are included for powering both devices off compatible batteries. The transmitter uses two antennas while the receiver has a built-in antenna. Three highly flexible antennas that are less disposed to accidental damage are supplied for the transmitter, one as a spare, and two mushroom antennas are also provided as replacements for the standard ones.

1 laos

Kategooriad: ,

Kirjeldus

Transmission Range
600′ / 183 m Line-of-Sight
Latency
<1 ms
Connections
1 x HDMI Type A Input
1 x 3G/HD/SD-SDI Input
1 x 3G/HD/SD-SDI Loop-Through Out
Input Resolution
1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50

3G/HD/SD-SDI Auto-Selected, SMPTE-259/274/292/296/372/424/425

Supported Audio
1 x 3.5 mm Stereo Input
Embedded 2-Channel 24-Bit/48 kHz
Frequency
5.1-5.9 GHz
Antenna Support
2 x RP-SMA Male Ports
Modulation
OFDM 16QAM
Transmission Power
17 dBm Max
Bandwidth
40 MHz
Encryption
AES-128 Encryption
Display
OLED
Firmware Upgradable
Mini-USB Port
Battery Plate
L-Series
Power Input Connection
2-Pin LEMO, Female
Power Input
7-36 VDC
Power Consumption
<6 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
Not Specified by Manufacturer
Dimensions
5 x 2.75 x 1″ / 12.7 x 7 x 2.5 cm (Not Including Antennas)
Weight
9.2 oz / 260 g
Receiver
Transmission Range
600′ / 183 m Line-of-Sight
Latency
<1 ms
Output
1 x HDMI Type A Output
2 x 3G/HD/SD-SDI
Output Resolution
1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50

3G/HD/SD-SDI Auto-Selected, SMPTE-259/274/292/296/372/424/425

Supported Audio
Embedded 2-Channel 24-Bit/48 kHz
Frequency
5.1-5.9 GHz
Antenna
Built In
Modulation
OFDM 16QAM
Receiver Sensitivity
-75 dBm
Bandwidth
40 MHz
Encryption
AES-128 Encryption
Display
OLED
Firmware Upgradable
Mini-USB Port
Battery Plate
L-Series
Power Input Connection
2-Pin LEMO, Female
Power Input
7-36 VDC
Power Consumption
<8 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
Not Specified by Manufacturer
Dimensions
15.9 x 9.4 x 2.5 cm
Weight
460 g
