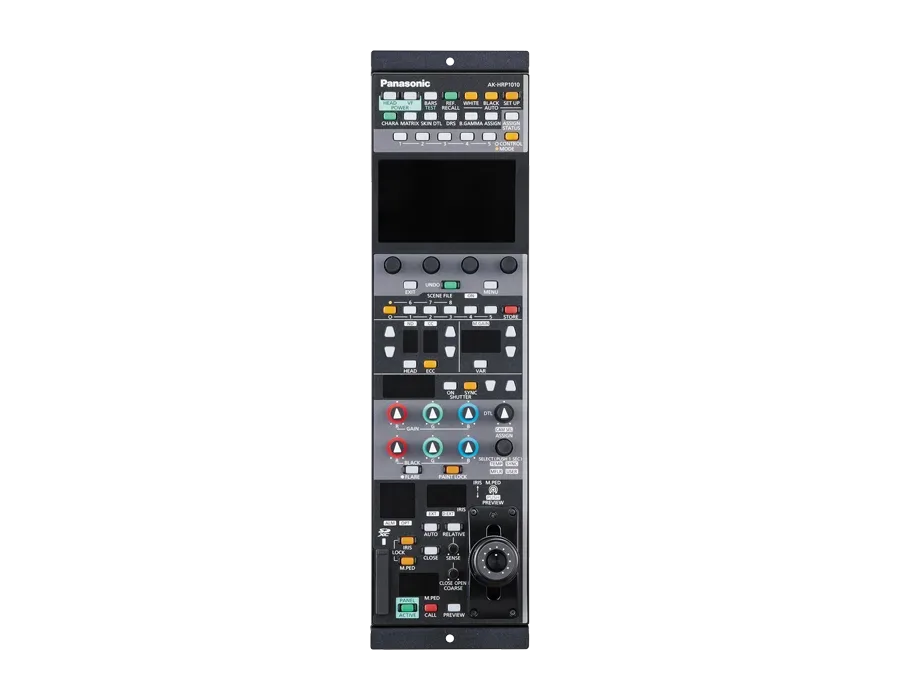

Panasonic – ROP – AK-HRP1010GJ

A Remote Operation Panel for even greater operability during shooting, equipped with a new touch panel.

  • 1/4 rack size, four units can be installed in a single 19-inch EIA rack.
  • High-resolution 3.5-inch color LCD touch panel and easy-to-use operation button layout.
  • IP connection supported, enabling control of studio cameras and Panasonic’s PTZ cameras*.
  • User-assignable knobs and priority buttons enable rapid operation of frequently-used functions.
  • Up to 99 cameras can be switched between and controlled with a single unit.
  • SDXC card support enables saving and loading of camera setting files and device settings.

8 laos


Power Supply 12 V DC (Power supply from camera: 10 V – 16 V DC)
42 V – 57 V DC (PoE power supply)
Current Consumption 0.9 A (Power supply from camera/CCU: 10 V – 16 V DC)
0.3 A (PoE power supply)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 90% or less
Storage Temperature −20 °C to 60 °C (−4 °F to 140 °F)
Camera/CCU Control Control signals (camera, CCU control)
Power supply 16 V DC (when CCU connected)*,
12 V DC (when camera connected)*
Maximum Cable Length When camera connected: 20 m (65.7 ft)
When CCU connected: 50 m (164 ft)
LCD monitor LCD color monitor, touch panel support

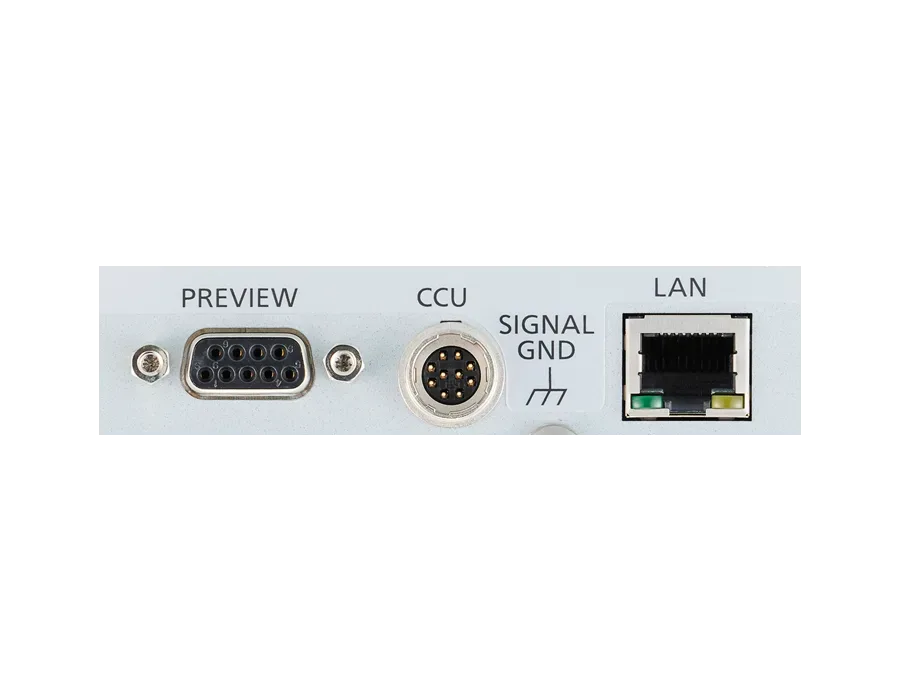

Input/output section
<CCU> connector 10-pin, male x 1
<PREVIEW> connector 9-pin, female x 1
<LAN> connector RJ-45 x 1
