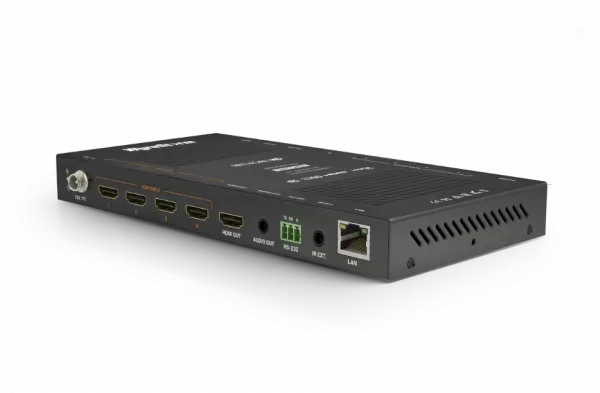

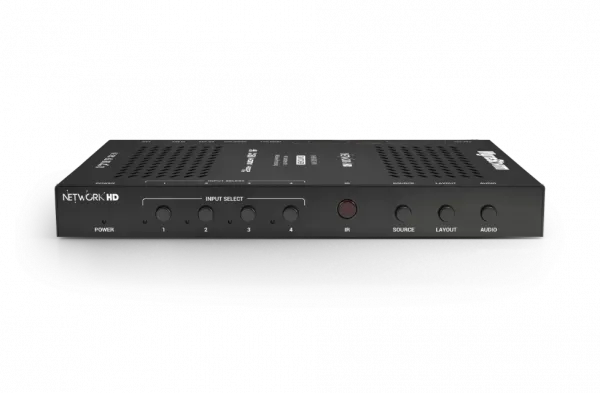

Wyrestorm NetworkHD™ 4-Input 4K60 Multiview Switcher

The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with five different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.

1 laos

Kategooriad: ,

Kirjeldus

Audio and Video

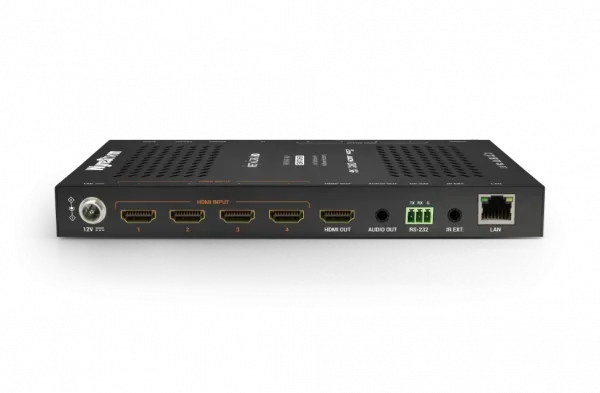

Inputs/Outputs
4x HDMI In
1x HDMI Out
1x 3.5mm TRS Analog Out
Maximum Pixel Clock
600Mhz
Max Video Resolutions
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Supported Standards
RGB | DCI | BT.2020 | Rec.709
Output Video Encoding
Uncompressed HDMI
Communication and control
HDMI HDMI 2.0b | HDCP 2.2 | CEC | EDID
Network 1x 1GbE RJ45
RS-232 1x 3-Pin Phoenix Connector (API Control)
IR 1x IR RX 3.5mm TRS Stereo Jack
Power
Power Supply 12V 2A DC
Power Consumption 18w
