Midas DL153
16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers.
Kirjeldus
- Midas DL153 16 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
- 8 electronically balanced low impedance line level outputs
- Remote operation up to 100 m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz sample rate operation
- All settings programmable from front panel controls or console

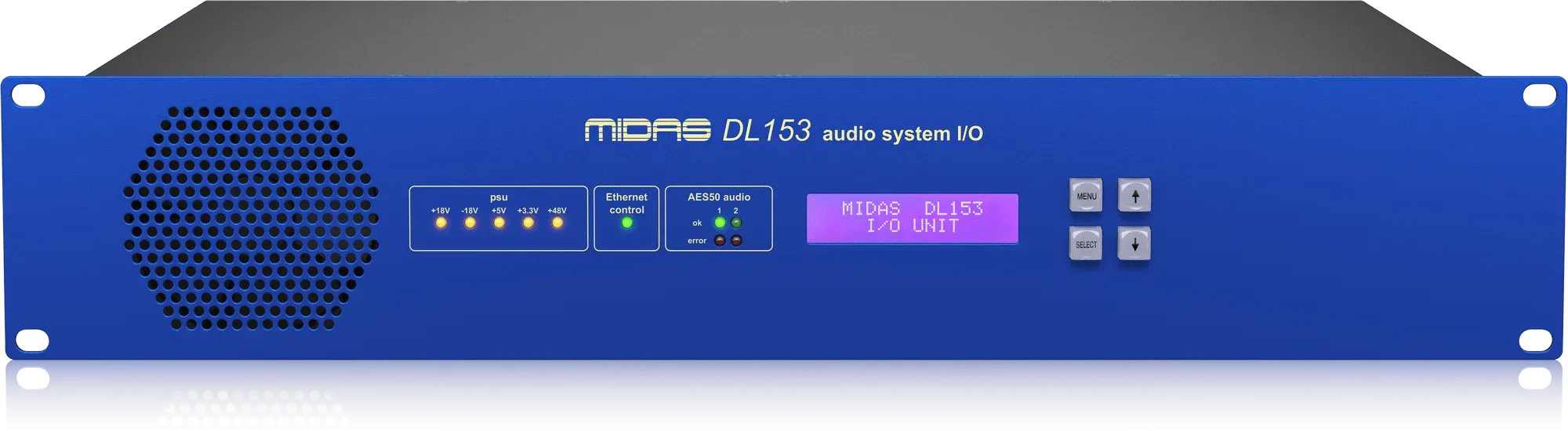

- PSU status indicator LEDs and configuration LCD display on front panel
- Supports dual redundant AES50 networks
- Features Neutrik etherCON* AES50 network ports
- Rugged 2U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
General Specifications
Sample rate: 48 kHz, 96 kHz
Dynamic range: >107 dB unweighted (20 Hz – 20 kHz)
Maximum input level: CMRR @ 1 kHz
Mic EIN (40 dB Gain): -126 dBu
Maximum Output Level: +21 dBu into 600 O
Output Noise (Unity Gain): -86 dBu
Frequency Response: ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain): <0.01%
Crosstalk @ 1 kHz: <-90 dBSystem Inputs and Outputs
Analogue Inputs: 16
Type: Mic/Line Level
Connector
Connector: 3-pin XLR Balanced
Input Impedance: 10k O
A/D Conversion: 24 bit, 96 kHz with 128 times oversampling
Phantom Power: +48V, individually switchable per channel
Analogue Outputs: 8
Type: Line Level
Connector: 3-pin XLR Balanced
Output Impedance: 50 O
D/A Conversion: 24 bit, 96 kHz with 128 times oversampling
Network Connections: 2
Connector: Neutrik etherCON with status LEDs
Redundancy: Dual cable redundancy
Network Interface: Conforms to AES50-2011
Ethernet Control Port: 1
Connector: Neutrik etherCON with status LEDs
Power
Power: 1
Connector: IEC mains inlet
Mains Input Voltage: 100 to 240 VAC, 50-60 Hz
Power Consumption: <150 W
Dimensions: 483 x 416 x 88 mm (19.0 x 16.4 x 3.5″)
Net Weight: 6.7 kg (14.7 lbs)
Operating Temperature Range: +5°C to +45°C
Storage Temperature Range: -20°C to +60°C
Lisainfo
Kaal | 6.7 kg |
---|---|
Mõõtmed | 48.3 × 37.6 × 8.8 cm |
