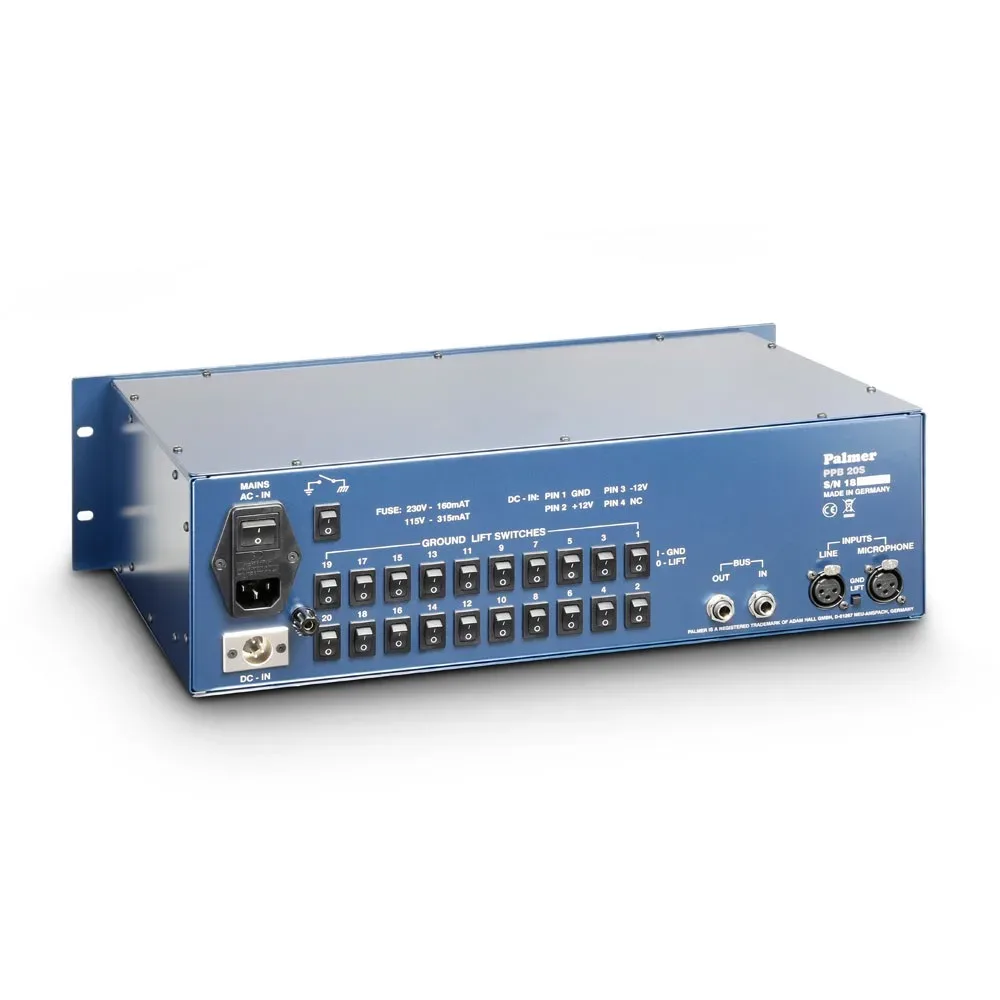

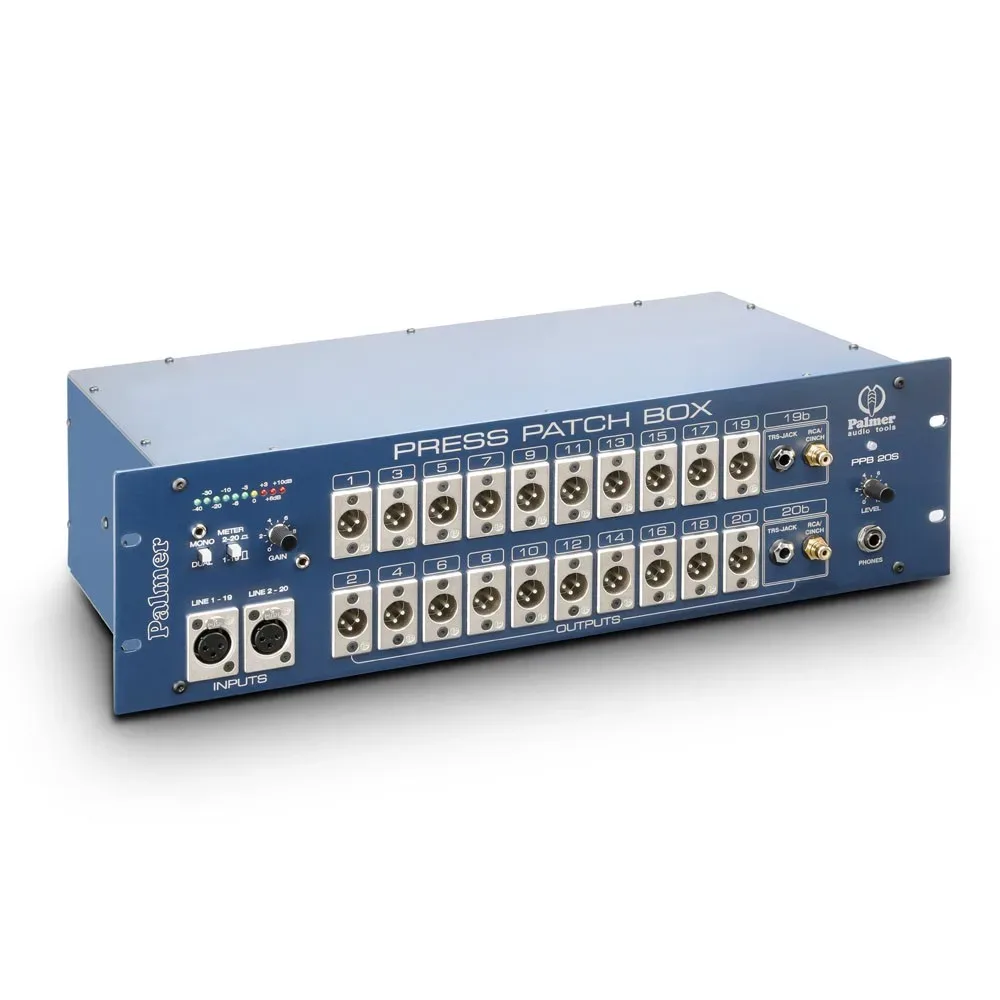

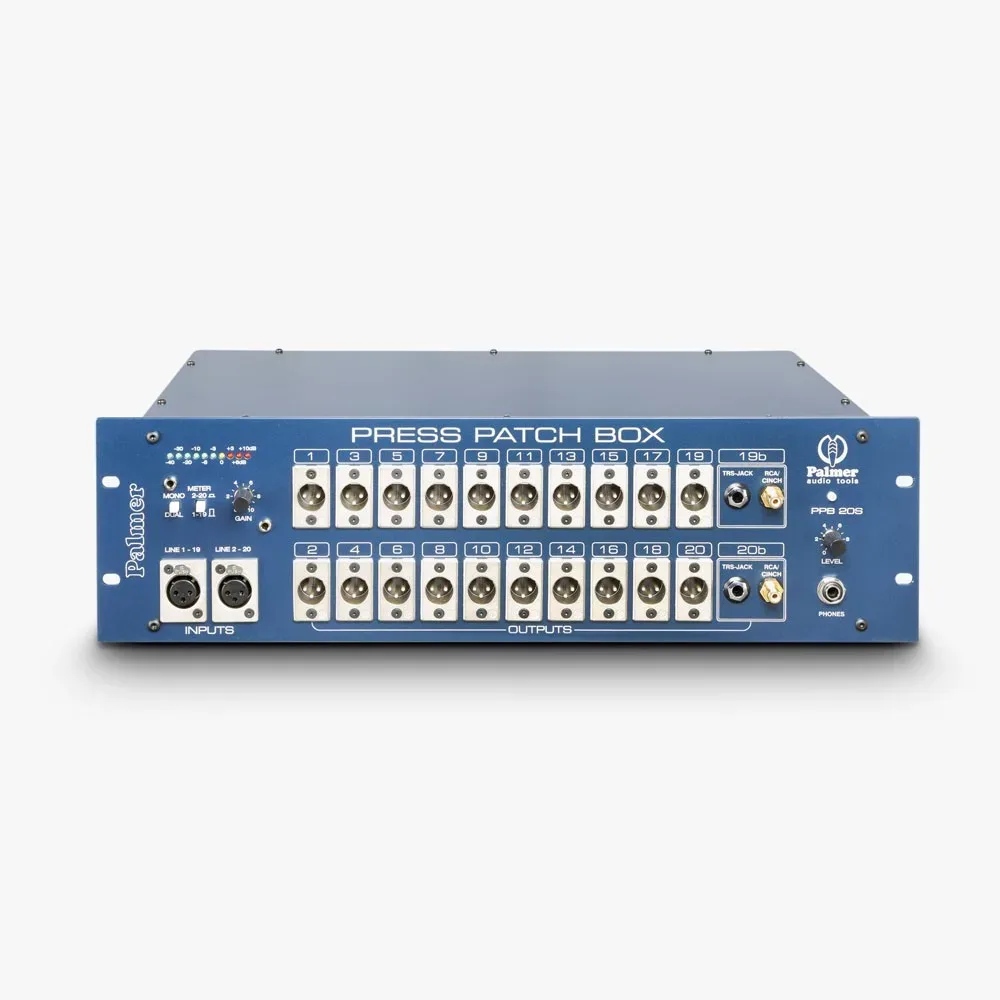

Palmer PB 20 S Press Patch Box 10-Channel Stereo / 20-Channel Mono

A stereo version of the PPB20 is available in addition to the standard mono version. Instead of a microphone and line input, the stereo version is fitted with two line inputs.
The first line input is distributed to the upper row of outputs (meaning the uneven channels), while the second line input is distributed to the even channels (meaning the lower row of outputs).

1 laos

Tootekood: PPB20S Kategooriad: ,

Kirjeldus

Product type Splitters
Type mic & line split
Split type 2 in 10 + 10
Channels 2
Number of inputs 2
Input connectors XLR
Max. input level + 20 dB
Adjustable input Yes
Number of split-outputs per canal 10
THRU outputs/channel 1
Max. output level + 20 dB
Nominal power consumption 12 W
Maximum power consumption 17 W
Output connectors 6.3 mm jack, RCA, XLR
Adjustable output No
Transformer isolated outputs Yes
Controls attenuator, ground lift, input gain, mic/line switch, phones level, Power
Power supply integrated (115 / 230 V)
Cabinet material sheet steel
Cabinet surface Powder coated
Width 480 mm
Depth 200 mm
Height 135 mm
Weight 9,09 kg
