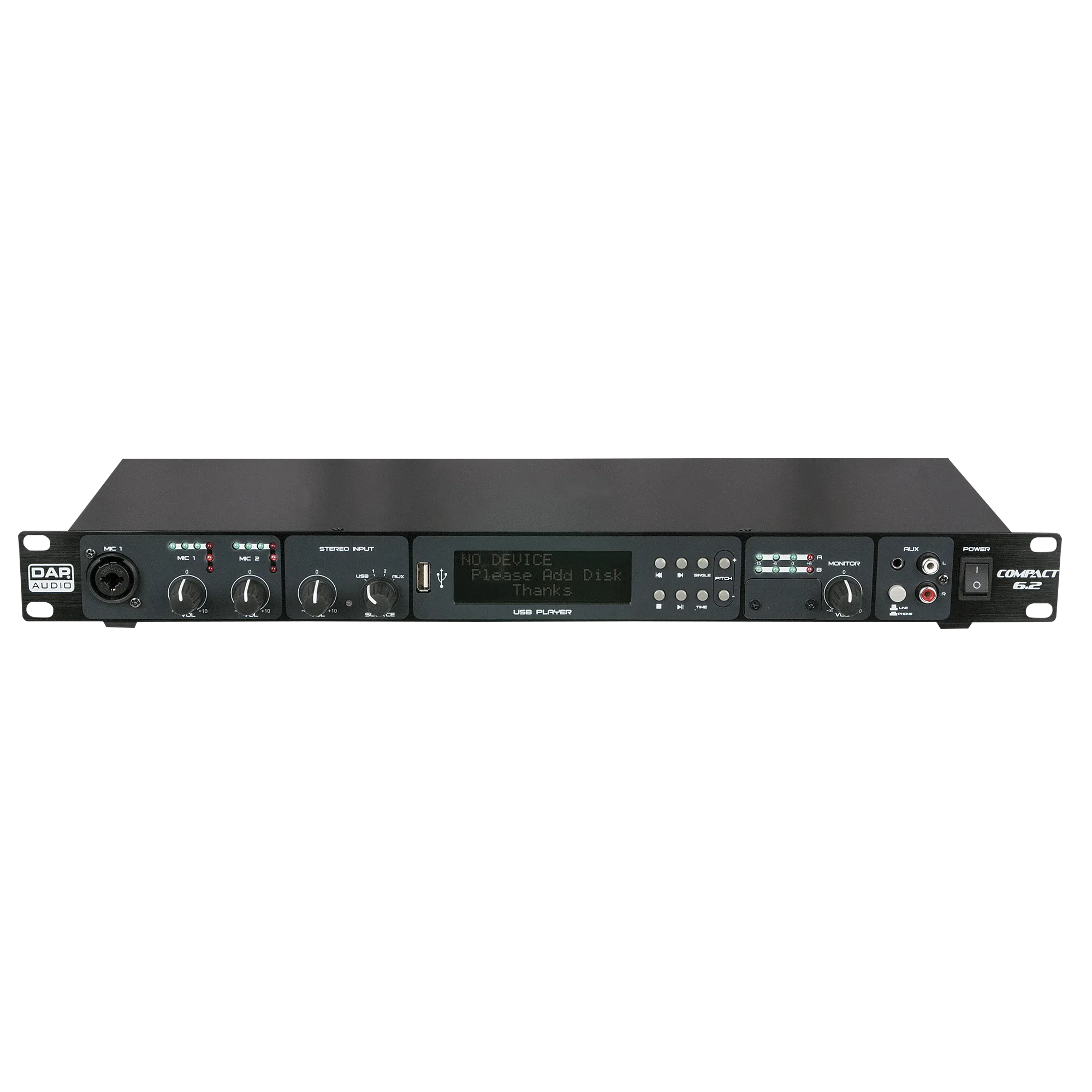

DAP Compact 6.2

6-kanaliline 1U räki mikserpult, millel on sisseehitatud USB-mängija ja 2-tsooniline väljund. Kaks mikrofoni sisendit koos kompressori ja high-pass filtritega on lihtne ja mugav kasutamiseks moderaatorile. Hääled on alati selge, arusaadav ja õige helitugevusega. Seadmel on kaks heliväljundit koos helitugevuse regulaatoritega.

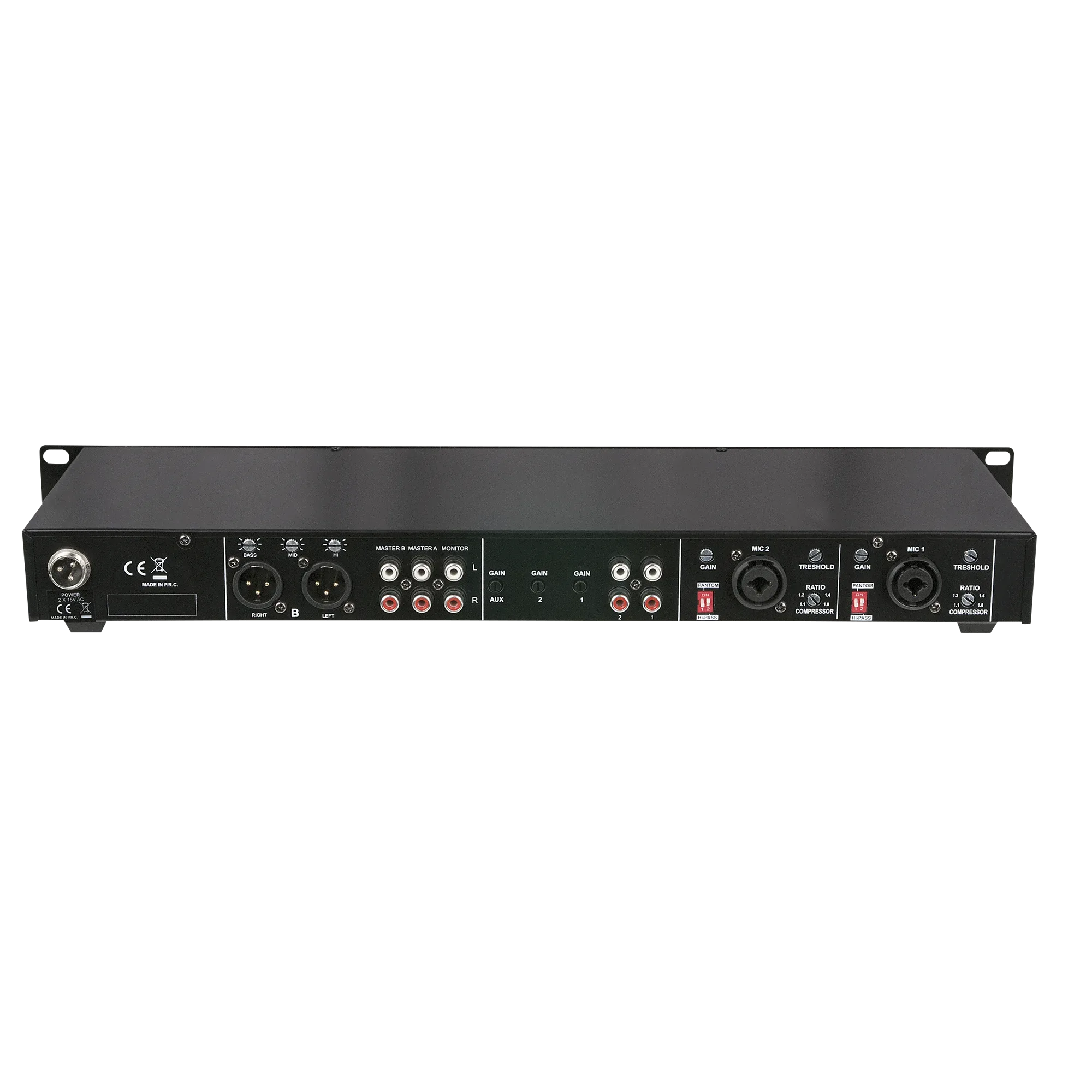

Osad parameetrid on reguleeritavad seadme tagaküljel, nagu EQ, gain, kompressor ja thershold.

Tootekood: 8717748335647 Kategooria:

Kirjeldus

Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs 2
Stereo Input Connector RCA
Auxiliary Inputs 1
Auxiliary Input Connector RCA, TRS balanced 3.5 mm
Outputs
Main Outputs 2
Main Output Connector 3-pin XLR, RCA
Playback
Supported Audio Files MP3
Supported Format FAT16, FAT32
Maximum Storage Size 16 GB
Media Input/Output USB-A
USB Type 2.0
Playback Functions Up (Skip), Down (Skip), Play, Stop, Time, Repeat
Audio Specifications
THD Level < 0.01 %
Signal-to-noise Ratio > 100 dB
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Phantom Power 48 V
Sound Editing
Parametric Main Equalizer 3 Bands
Main Output Equalizer Gain Range 6 dB
Main Output Fixed Frequencies 80, 2.500, 12.000 Hz
Dynamics Processing Compressor
Control and Programming
Display LCD
Product Properties LED Indicators
Clip, Compressing, Input level, Output level Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Output voltage 15 V AC
Power Consumption 10.5 W
Power Connector In Low Voltage DC plug
Mechanical Specifications
Flightcase Size 19″
Rack Units 1 U
Housing Metal
Colour Black
IP Rating IP20 (indoor use only)

Lisainfo

Kaal 2.2 kg
Mõõtmed 17.5 × 48.1 × 0.44 cm
