Klark Teknik DN9620

Dual Port AES50 Extender and Multiplexer with up to 500 Metre Range (Pair).

Kogus *

Kategooria:

Kirjeldus

  • Pair of DN9620 Dual Port AES50 Extenders and 19” rackmount adapter bracket
  • Extends two AES50 connections by 500 m with optical fibre or 100 m with Cat5 cable
  • High channel capacity – 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation

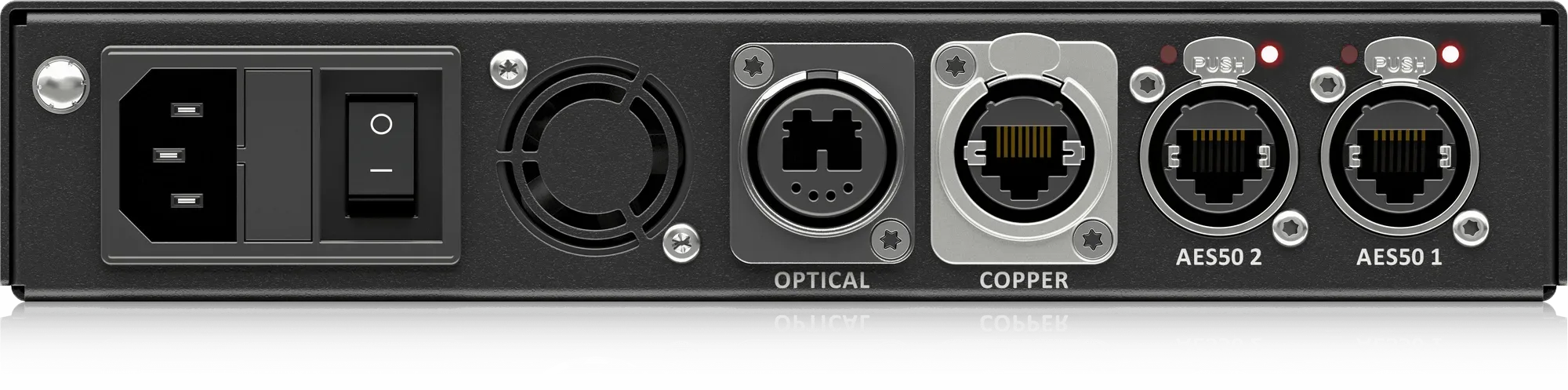

  • Neutrik etherCON* connectors used for AES50 ports and copper snake connection
  • Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection

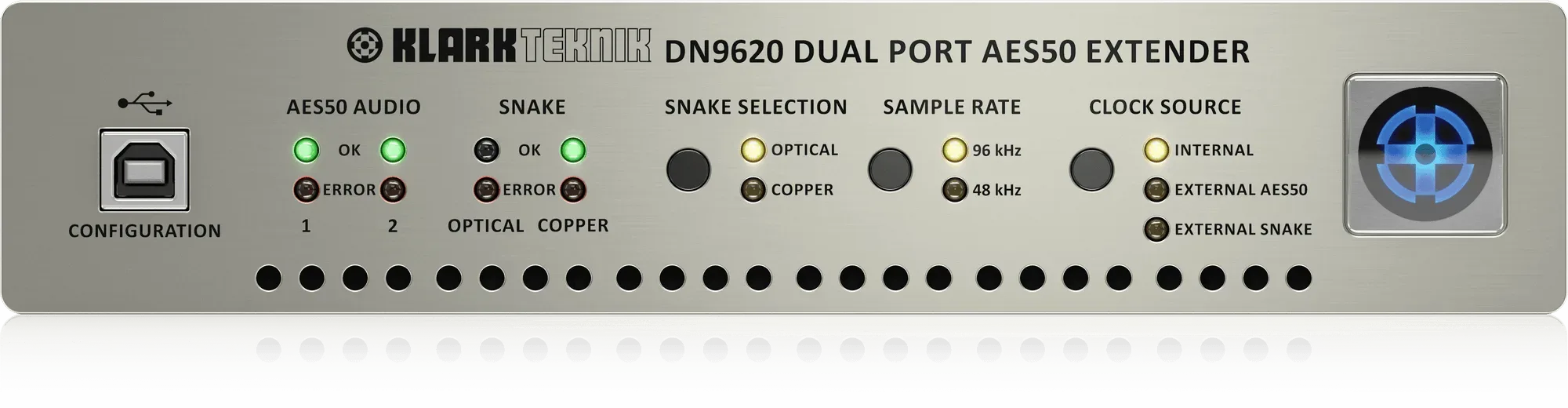

  • Comprehensive clock source options with front panel push button selection and LED indication
  • Status indicator LEDs on front panel for each AES50 port and optical and copper snake connections
  • Rugged half-width 1U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Lisainfo

Kaal 2.4 kg
Mõõtmed 26.3 × 21.7 × 4.4 cm
