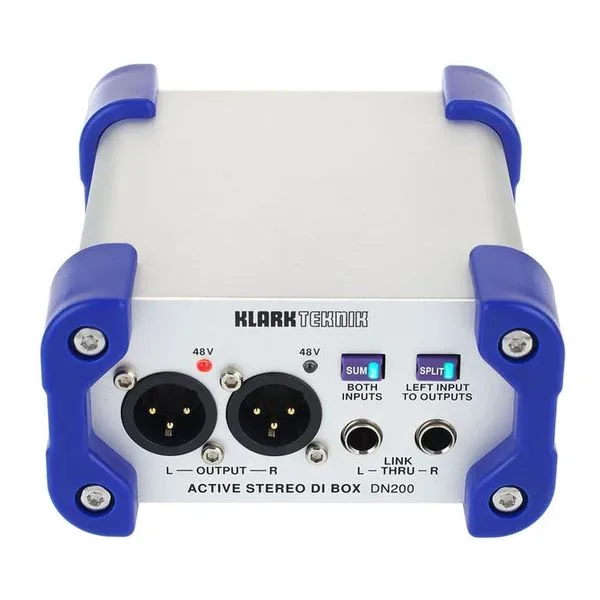

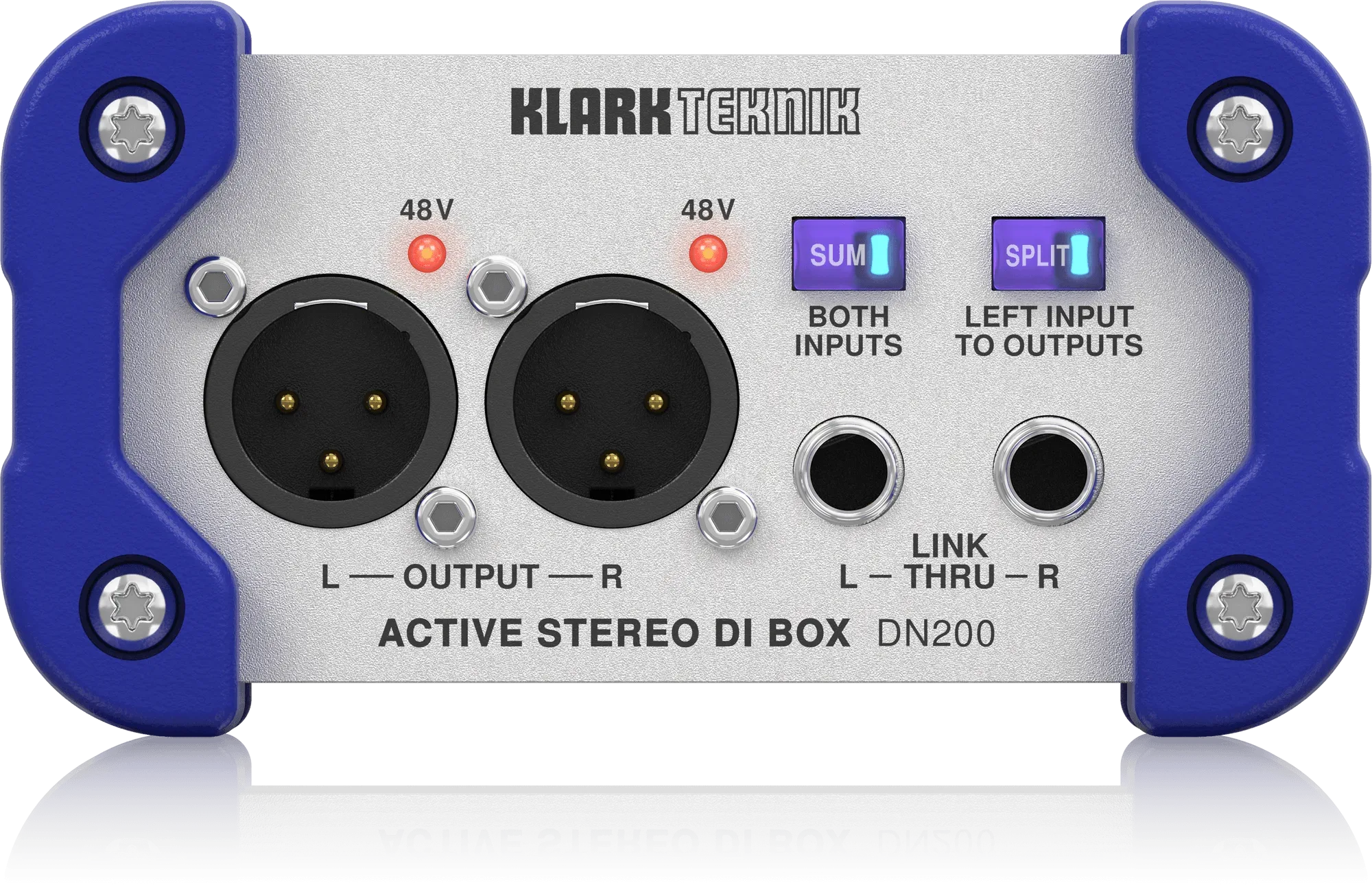

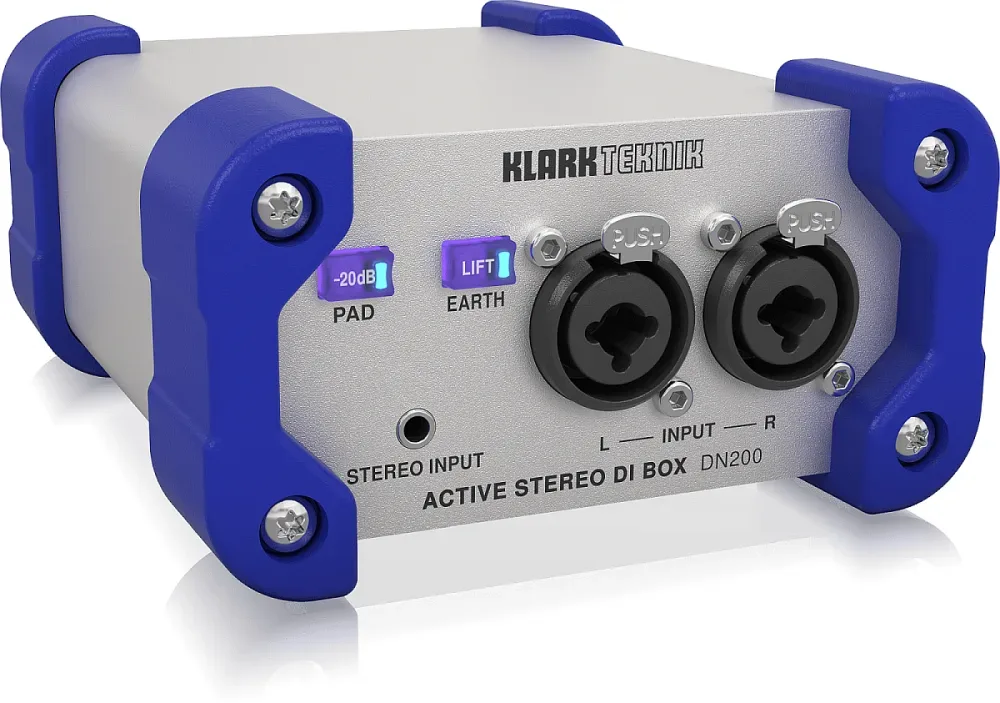

KlarkTeknik DN200

Kirjeldus

• 2-Channel Active DI box with high-headroom design and +48 V phantom power for extended dynamic range
• Sum and split options for flexible signal routing
• Fully transformer-isolated design ensures electrical separation between PA and stage equipment
• Balanced line inputs on Neutrik Combo XLR and high impedance 1/4″ TRS connectors
• Stereo input on 1/8″ TRS for connection of consumer audio equipment
• Independent phantom powering for each channel for maximum reliability
• Global 20 dB input pad and earth lift switches
• Aluminium extrusion casing with protective rubber corners
• Compact and rugged design

• Inputs

  Connectors	2 x combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack
  Impedance	1 MΩ (combo & link jacks balanced), 20 kΩ (combo XLR only), 500 kΩ (1/8″ stereo TRS jack unbalanced)
  Max input level	28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8″ TRS jack (pad enabled)
  Attenuator	20 dB pad

  Outputs

  Connectors	2 x 3-pin XLR
  Impedance	50 Ω
  Max output level	13 dBu with 10 kΩ load, 10 dBu with 600 Ω load
  Min load	600 Ω

  System

  Noise	103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor
  Frequency response	20 Hz to 20 kHz, ±1 dB, 10 kΩ load
  Distortion (THD + N)	Typically <0.005% @ 1 kHz, +10 dBu
  Crosstalk	<100 dB @ 1 kHz, inputs terminated

  Power Requirement

  Voltage	+48 V phantom
  Current consumption	<10 mA per channel
