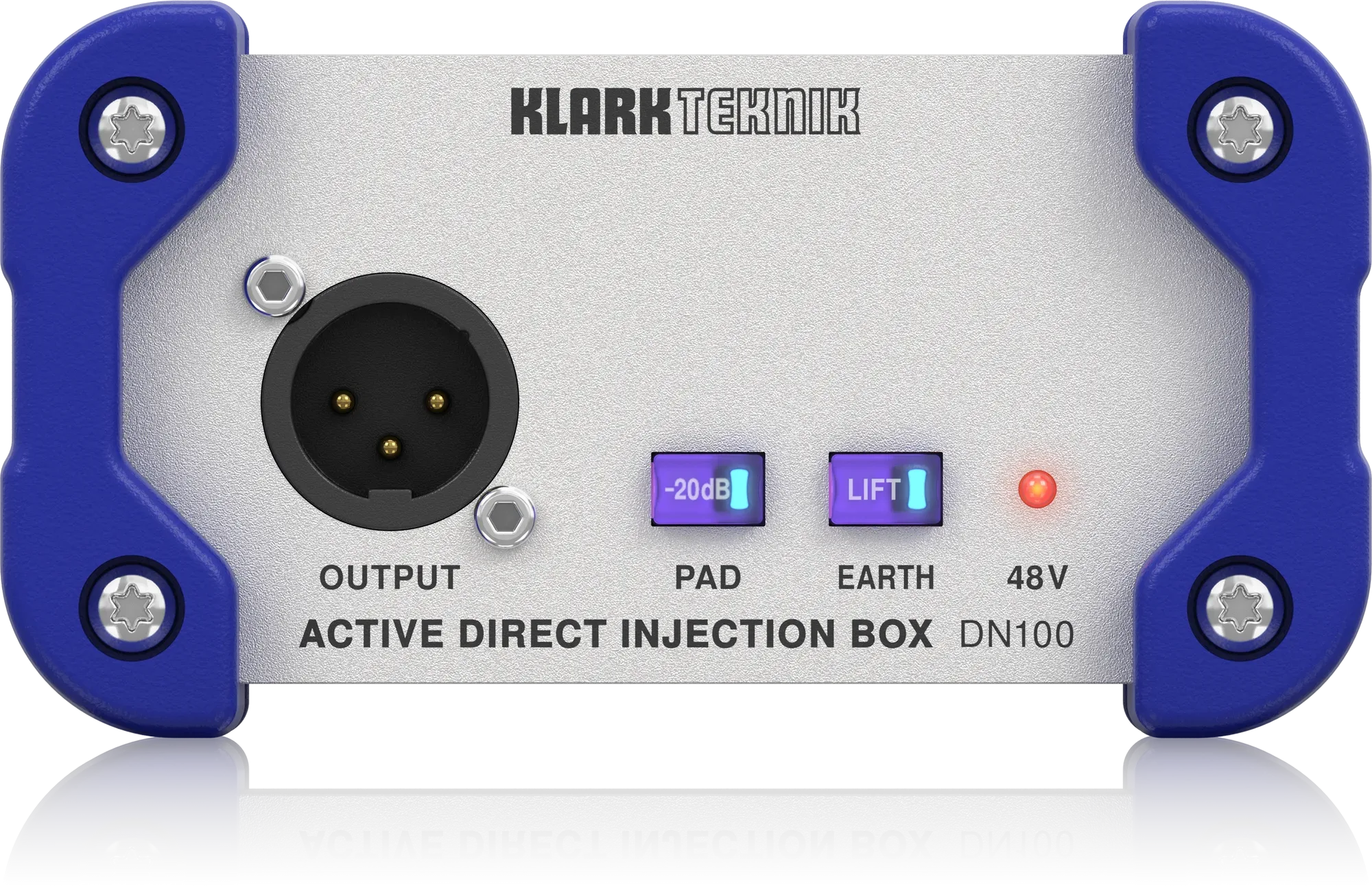

Klark Teknik DN100

Kirjeldus

• High-headroom design with +48 V phantom power for extended dynamic range
• Fully transformer-isolated design ensures electrical separation between PA and stage equipment
• Balanced line input on Neutrik* XLR and high impedance input and link output on 1/4” TRS connectors
• 30 dB input pad and earth lift switches
• Features Kensington* lock for added security
• Aluminium extrusion casing with protective silicone rubber sleeve
• Compact and rugged design

• Inputs

  Connectors	2 x 1/4″ TRS and 3-pin XLR linked in parallel
  Impedance	1 MΩ nominal, balanced or unbalanced, 20 kΩ (XLR only)
  Max input level	35 dBu (with pad enabled)
  Attenuator	20 dB pad

  Outputs

  Connector	3-pin XLR
  Impedance	50 Ω
  Max output level	15 dBu with 10 kΩ load
  Min load	600 Ω

  System

  Noise	-103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor
  Frequency response	20 Hz to 20 kHz, ±1 dB, 10 kΩ load
  Distortion (THD + N)	Typically <0.005% @ 1 kHz, +10 dBu

  Power Requirement

  Voltage	+48 V phantom
  Current consumption	<10 mA
