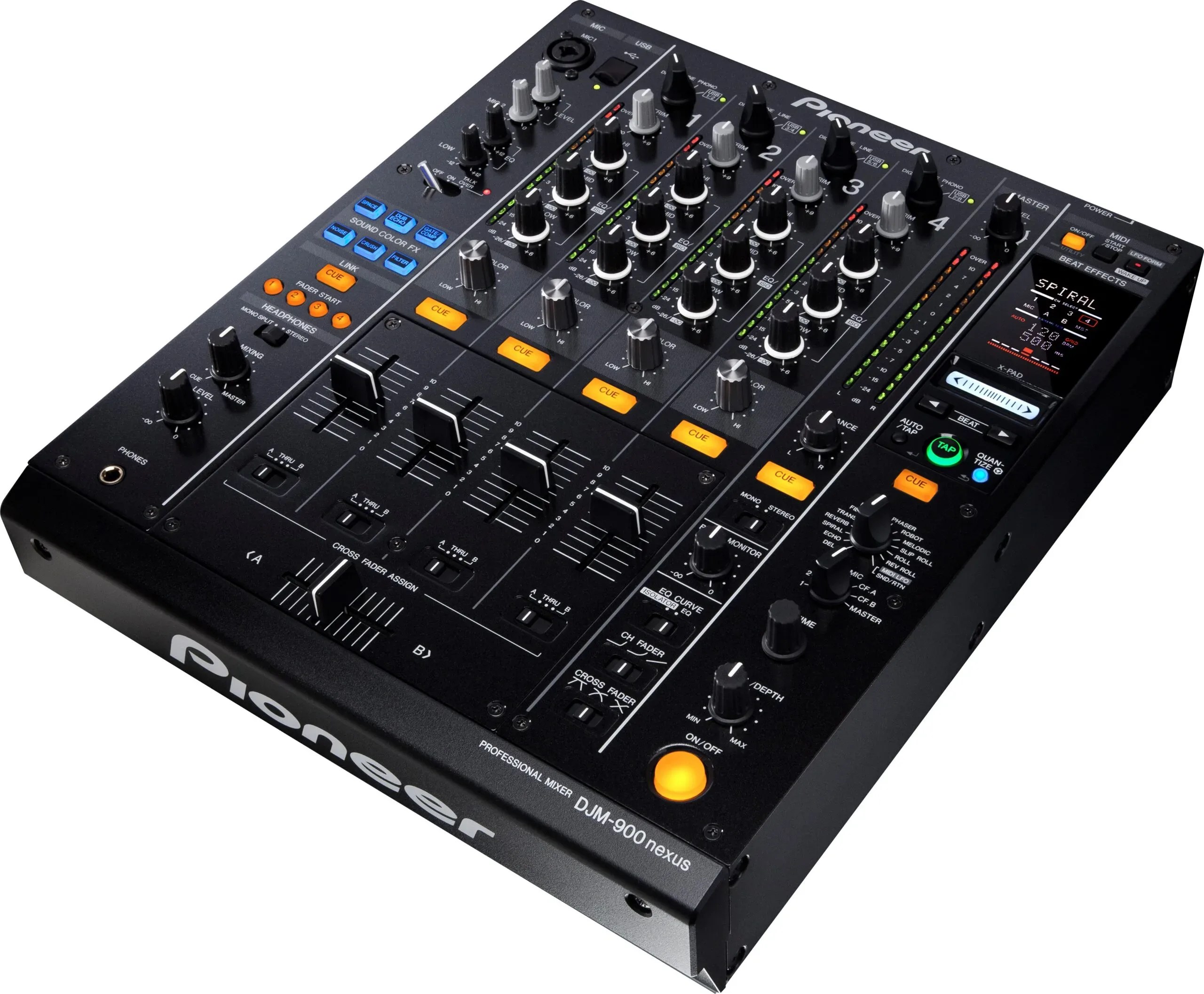

Pioneer DJM-900NXS
4-channel club digital mixer.
The DJM-900NXS is the next level in creativity, delivering excellent connectivity, up-to-date FX and mind-blowing performance features to make it the centrepiece of any professional DJ setup.
Built to stand up to the rigours of professional use, the mixer features improved fader technology and audio circuits that reduce the need for servicing and significantly increase its lifespan.
Kirjeldus
Main Features
MIDI Control: Full assignable MIDI controls
PRO DJ LINK: Yes
P-LOCK Fader Caps: Yes
Auto Standby: Yes
rekordbox Link: Yes
DVS Control: TRAKTOR SCRATCH PRO2/DUO2
Rack Mount: Yes
Sampling Rate: 96 kHz
A/D Converter: 24 bit
D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
Frequency Range: 20 – 20000 Hz
S/N Ratio Mic: 84 dB
Crosstalk Line: 82 dB
Distortion: < 0.005 %
Headroom: 19 dB
Master
Master Balance: Yes
Stereo/Mono Switch: Yes
Level Meter Size. 15 segment
Master Out Attenuator: Yes
Channels
EQ/ISO. 3 band
EQ/ISO Range: Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB
Level Meter Type: Individual
Level Meter Size. 15 segment
Peak Limiter: Yes
Performance Control
Channels: 4
Sound Color FX:
Crush
Dub Echo
Filter
Gate/Comp
Noise
Space
Beat FX:
Delay
Echo
Filter
Flanger
Melodic
Phaser
Reverb
Reverse Roll
Robot
Roll
Slip Roll
Spiral
Trans
X-PAD: Yes
rekordbox Quantize: Yes
Effect Sampler
3-Band Isolator: Yes
Auto BPM Counter: Yes
Effect Level & Depth Volume: Yes
MIDI Global Clock: Yes
Crossfader
Crossfader Type: Carbon Rail with P-Lock Fader Cap
CURVE Assignable: Yes
Field Replaceable: Yes
Fader Curve. 3
Mic
Mic Connection. Neutrik Combo
Mic EQ: 2 band
Mic EQ Range: -12 dB ~ +12 dB
Talkover. 3 Position Switch
Talkover Attenuator: Yes
MIDI Info
Assignable Controls: 61
MIDI Out (DIN):1 (5P DIN)
MIDI LF: Yes
Sound card
Connection: USB
Stereo Inputs: 4
Stereo Outputs: 4
Sample Rate. 24 bit
Frequency:
44.1 kHz
48 kHz
96 kHz

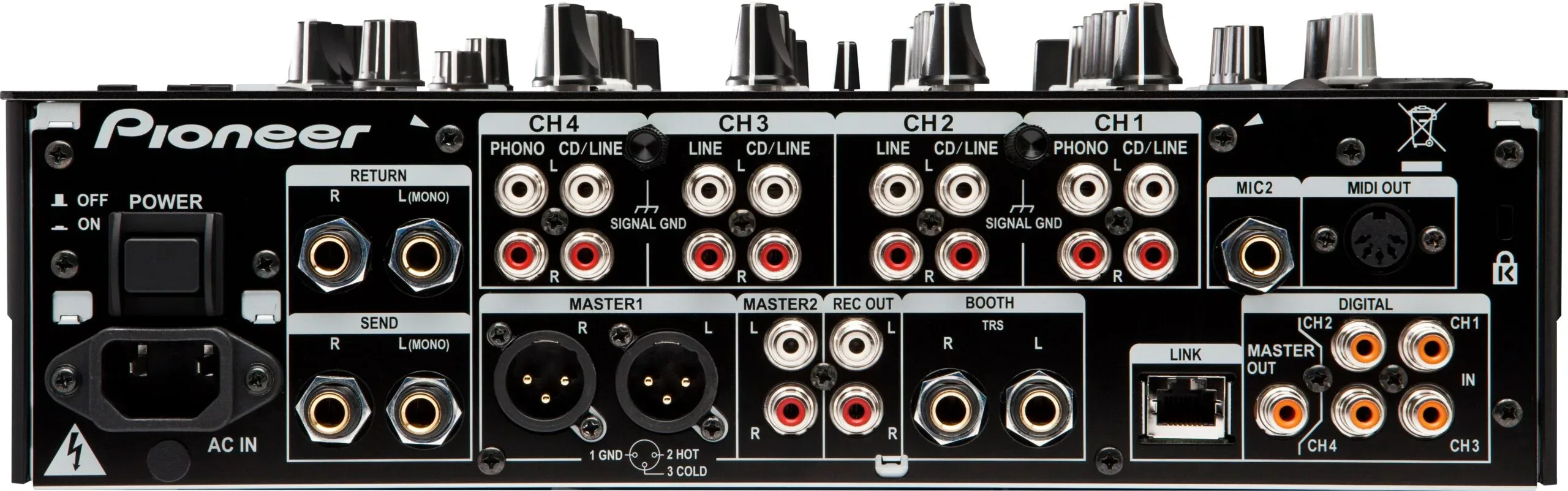

Terminals
Inputs:
1 MIC (1/4 inch Jack)
1 MIC (XLR/Jack Combo)
2 PHONO (RCA)
4 S/PDIF Digital (RCA)
6 CD/LINE (RCA)
Send/Return: 1 RETURN (1/4 inch Jack), 1 SEND (1/4 inch Jack)
LAN: 1
Outputs:
1 BOOTH (1/4 inch Jack)
1 HEADPHONE MONITOR (1/4 inch Jack)
1 REC OUT (RCA)
1 S/PDIF Digital (RCA)
2 MASTER (XLR, RCA)
USB: 1 USB B port
MIDI Control: Full assignable MIDI controls
PRO DJ LINK: Yes
P-LOCK Fader Caps: Yes
Auto Standby: Yes
rekordbox Link: Yes
DVS Control: TRAKTOR SCRATCH PRO2/DUO2
Rack Mount: Yes
Sampling Rate: 96 kHz
A/D Converter: 24 bit
D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
Frequency Range: 20 – 20000 Hz
S/N Ratio Mic: 84 dB
Crosstalk Line: 82 dB
Distortion: < 0.005 %
Headroom: 19 dB
Master
Master Balance: Yes
Stereo/Mono Switch: Yes
Level Meter Size. 15 segment
Master Out Attenuator: Yes
Channels
EQ/ISO. 3 band
EQ/ISO Range: Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB
Level Meter Type: Individual
Level Meter Size. 15 segment
Peak Limiter: Yes
Performance Control
Channels: 4
Sound Color FX:
Crush
Dub Echo
Filter
Gate/Comp
Noise
Space
Beat FX:
Delay
Echo
Filter
Flanger
Melodic
Phaser
Reverb
Reverse Roll
Robot
Roll
Slip Roll
Spiral
Trans
X-PAD: Yes
rekordbox Quantize: Yes
Effect Sampler
3-Band Isolator: Yes
Auto BPM Counter: Yes
Effect Level & Depth Volume: Yes
MIDI Global Clock: Yes
Crossfader
Crossfader Type: Carbon Rail with P-Lock Fader Cap
CURVE Assignable: Yes
Field Replaceable: Yes
Fader Curve. 3
Mic
Mic Connection. Neutrik Combo
Mic EQ: 2 band
Mic EQ Range: -12 dB ~ +12 dB
Talkover. 3 Position Switch
Talkover Attenuator: Yes
MIDI Info
Assignable Controls: 61
MIDI Out (DIN):1 (5P DIN)
MIDI LF: Yes
Sound card
Connection: USB
Stereo Inputs: 4
Stereo Outputs: 4
Sample Rate. 24 bit
Frequency:
44.1 kHz
48 kHz
96 kHz
Terminals
Inputs:
1 MIC (1/4 inch Jack)
1 MIC (XLR/Jack Combo)
2 PHONO (RCA)
4 S/PDIF Digital (RCA)
6 CD/LINE (RCA)
Send/Return: 1 RETURN (1/4 inch Jack), 1 SEND (1/4 inch Jack)
LAN: 1
Outputs:
1 BOOTH (1/4 inch Jack)
1 HEADPHONE MONITOR (1/4 inch Jack)
1 REC OUT (RCA)
1 S/PDIF Digital (RCA)
2 MASTER (XLR, RCA)
USB: 1 USB B port
Lisainfo
| Kaal | 7 kg |
|---|---|
| Mõõtmed | 33 × 40.9 × 10.79 cm |
