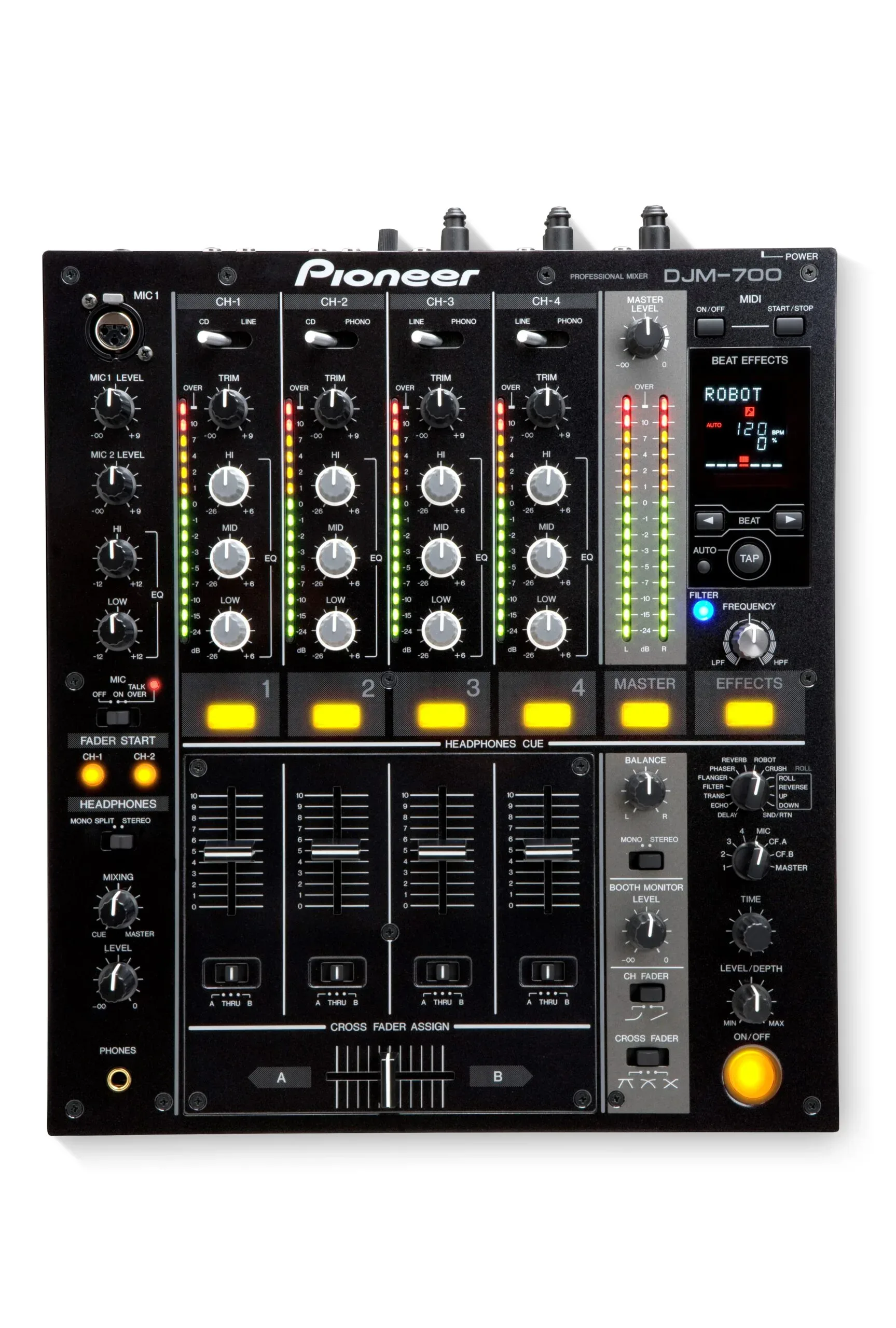

Pioneer DJM-700

4-channel mid-range digital mixer.

Delivering breathtaking scope for creativity, consummate clarity and a world first in terms of its Effect Frequency Filter, the DJM-700 is dramatically different.The 4-channel mixer inherits the sound quality of the DJM-800 and DJM-1000, it also includes some key features including MIDI connectivity, 49 assignables, cutting edge digital effects and a filter on pre-out so you can filter the effects.
Boasting 32-bit DSP [Digital Signal Processing] , 13 beat effects and enhanced roll sampler in what is an extremely familiar format for DJs, this new kit on the block is definitely in a class of its own.
With an industry-standard size and layout and a dual shield structure that eliminates digital noise, the new DJM-700 is both robust and reliable.
Setting a new industry standard for quality mid-market mixers, the DJM-700 allows DJs to transmit unique musical flows using a formidable range of features.
Designed to impress in bar, club and studio spaces alike the DJM-700 is set to have a wide appeal.

Kategooria:

Kirjeldus

S/N Ratio Line

 104 dB

S/N Ratio Phono

 94 dB

S/N Ratio Mic

 82 dB

Crosstalk Line

 82 dB

Distortion

 < 0.005 %

Master

Master Balance

 Yes

Stereo/Mono Switch

 Yes

Frequency Filter

 Yes

Level Meter Size

 15 segment

Master Out Attenuator

 Yes

Channels

EQ/ISO Range

 –26 dB ~ +6 dB

Level Meter Type

 Individual

Level Meter Size

 15 segment

Performance Control

Channels

 4

FX Frequency

 Yes

Effect Sampler

Auto BPM Counter

 Yes

Effect Level & Depth Volume

 Yes

MIDI Global Clock

 Yes

Roll Down

 Yes

Roll Up

 Yes

Roll Sampler (Fwd)

 Yes

Roll Sampler (Reverse)

 Yes

Crossfader

Crossfader Type

 Carbon Rail

CURVE Assignable

 Yes

Field Replaceable

 Yes

Fader Curve

 2

Mic

Mic Connection
  • Jack
  • XLR

Mic EQ

 2 band

Mic EQ Range

 -12 dB ~ +12 dB

Talkover

 3 Position Switch

MIDI Info

Assignable Controls

 49

MIDI Out (DIN)

 1 (5P DIN)

MIDI On/Off

 Yes

MIDI Start/Stop

 Yes

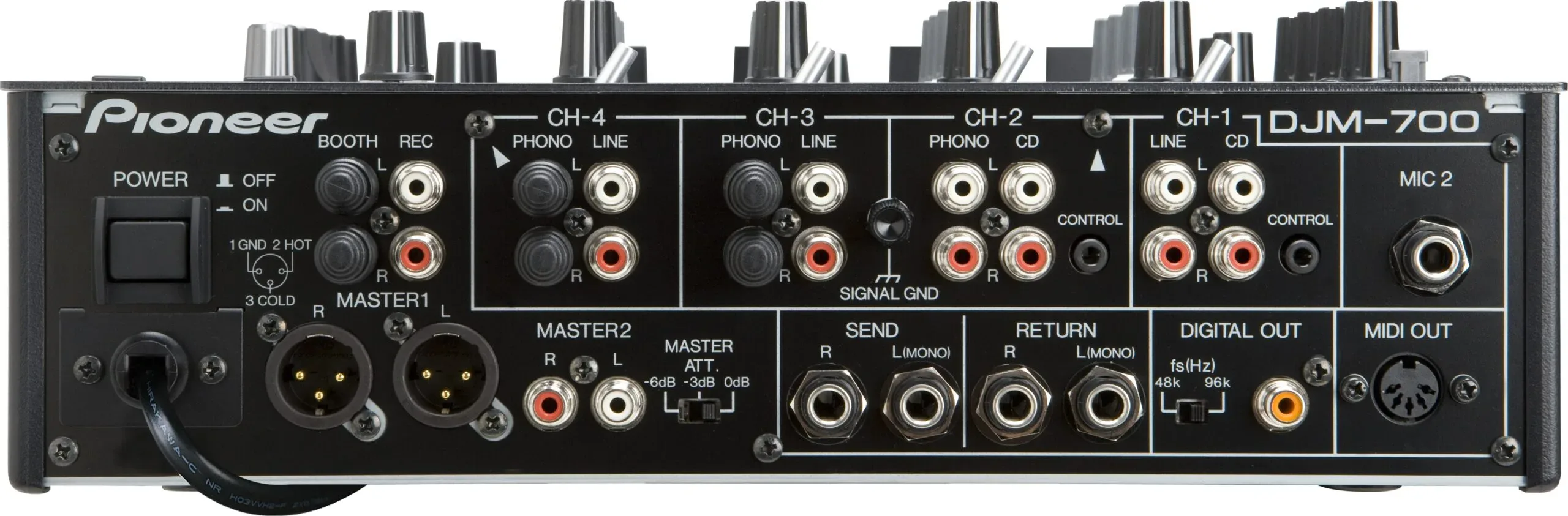

Terminals

Inputs
  • 1 MIC (1/4 inch Jack)
  • 1 MIC (XLR)
  • 1 RETURN (1/4 inch Jack)
  • 3 PHONO (RCA)
  • 5 CD/LINE (RCA)

Outputs
  • 1 BOOTH (RCA)
  • 1 MASTER (RCA)
  • 1 MASTER (XLR)
  • 1 REC OUT (RCA)
  • 1 S/PDIF Digital (RCA)
  • 1 SEND (1/4 inch Jack)

Lisainfo

Kaal 6.6 kg
Mõõtmed 32 × 38 × 10.8 cm
