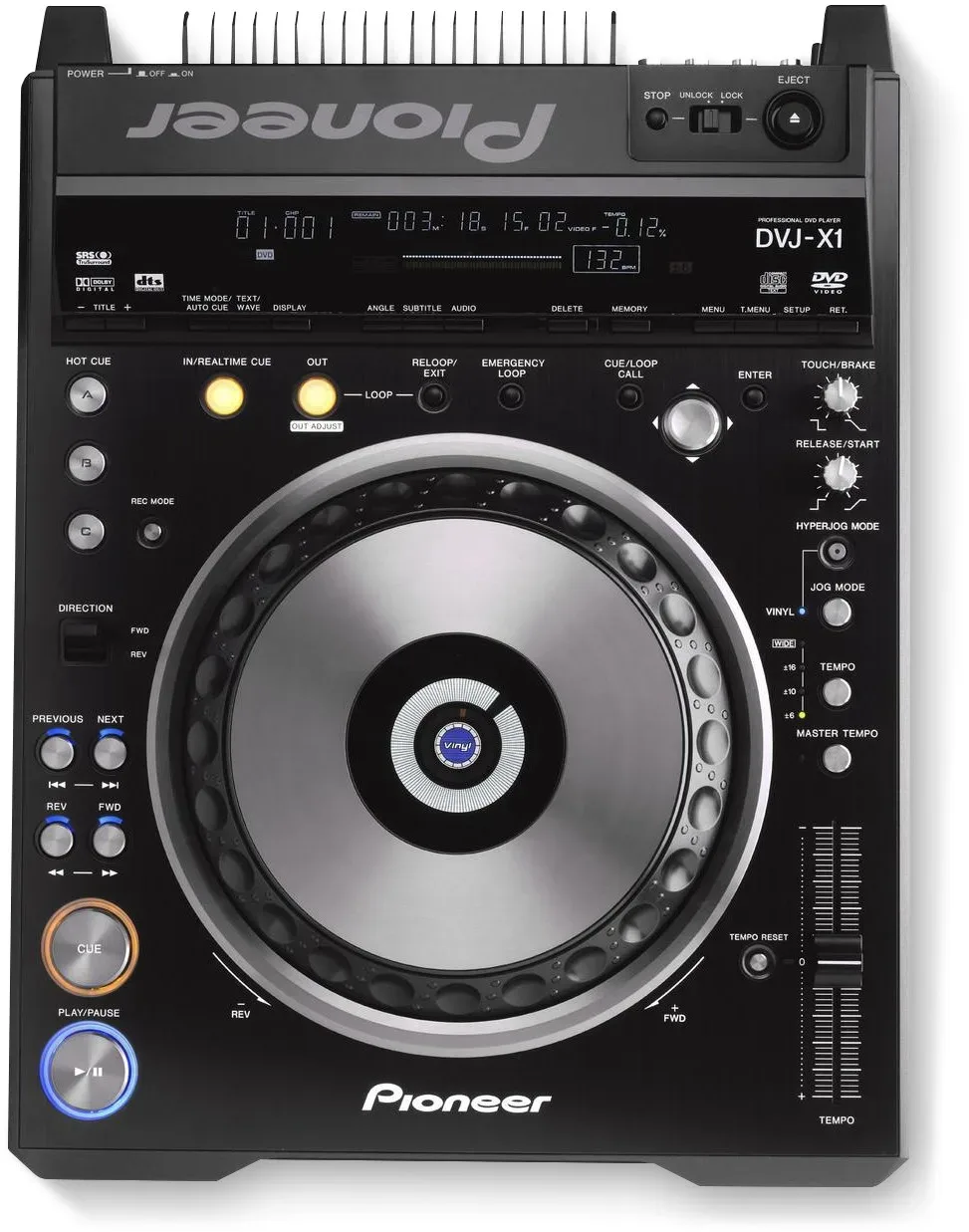

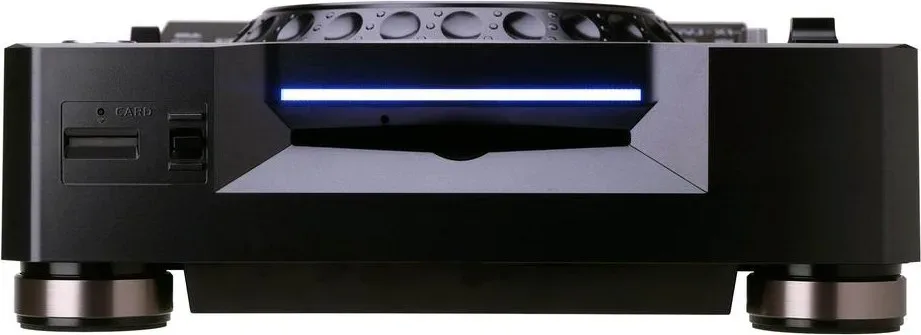

Pioneer DVJ-X1

Pro DVD video deck.

Combining Pioneer’s world-famous CD Jog Dial technology with the flexibility and capacity of DVD, the DVJ-X1 looks just like the company’s own CDJ-1000MKII CD Player. But what is even more radical is that the DVJ-X1 has the same functionality – with the added capacity to playback DVDs as well as CDs. This means that digital DJs used the preforming live with a CDJ-1000MKII will have no trouble using the DVJ-X1 as a CD-playback tool.
But crucially, DVJs will also be able to use the DVJ-X1 to manipulate DVD visuals in exactly the same way as they would music. So real-time digital video scratches, loops and instant cues are all possible with the awesome DVJ-X1, while the video and audio streams always stay in perfect sync, even when they’re being reserved and pitched. This new Pioneer unit works with all established CD formats as well as DVDs, crossing the boundaries between the once-separate audio and video domains.
Winner of the iF product design award 2005.

Kategooria:

Kirjeldus

Main Features

Anti Vibration

 Yes

Accessories
  • 32 MB SD MMC (Movable Memory Card)
  • power cord
  • manual
  • stereo phone cable
  • RCA video cable
  • Forced Eject Pin

Specifications

Legato Link Conversion

 Yes

Frequency Range DVD 96 kHz

 4 – 44,000 Hz

Signal-to-Noise Ratio

 > 115 dB (EIAJ)

Distortion

 < 0.006 % (EIAJ)

Audio Output Level

 2.0 Vrms (1 kHz, 0 dB)

Depth

 17.76 in

Weight

 16.09 lb

Frequency Range

 4 – 20000 Hz

Display

Playing Address

 Yes

Wave Zoom Display

 Yes

On Jog Display

 Yes

Performance Control

Jog Dial size

 8.11 in

Jog Dial type

 Touch sensitive

Jog Modes

 CDJ / Vinyl Mode

Hot Cue

 Yes

Auto Beat Loop

 Yes

Reloop

 Yes

Real Time Seamless Loop

 Yes

Loop Adjust

 Out Adjust

Reverse

 Yes

Pitch Bend

 Yes

Fader Start / Back Cue start

 Yes

Scratch Play / Cue

 Yes

Quick Scratch

 After searching track

Relay Play

 Yes

Vinyl Speed Adjust

 Yes

Cue Functions

Auto Cue

 Yes

Manual Cue

 Yes

Real Time Cue

 Yes

Cue point sampler

 Yes

Cue Loop Memory

 Yes

Tempo

Master Tempo

 Yes

Tempo Control steps
  • 0.02 % at +/-6 %
  • 0.05 % at +/- 10 % & 16 %

Tempo Control Ranges (CD)
  • +/-10 %
  • +/-100 %
  • +/-16 %
  • +/-6 %

Tempo Control Ranges (DVD)
  • +/-10 %
  • +/-16 %
  • +/-6 %
  • +70 % – 100 %

BPM Counter

 Yes

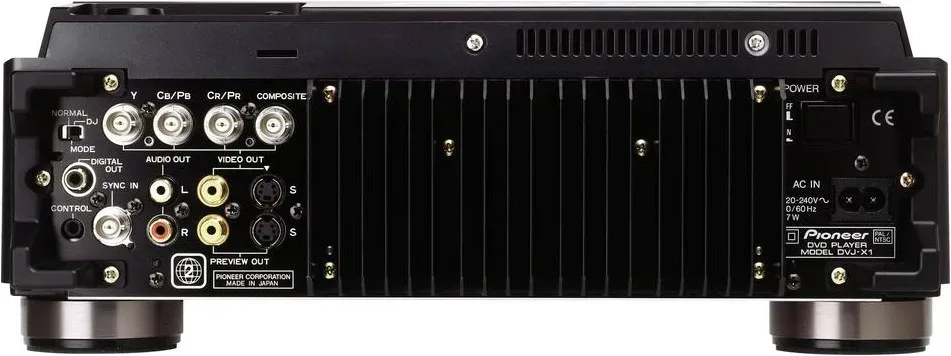

Master Video Output

Component Video Out (master)
  • CB/PB, CR/PR: 0.7 Vp-p (75 Ω)
  • Output Connector: BNC
  • Y Output Level: 1 Vp-p (75 Ω)

Composite Out 2 (master)
  • Output Connector: 1 RCA, 1 BNC
  • Y Output Level: 1 Vp-p (75 Ω)

Composite Out (preview)
  • Output Connector: RCA
  • Y Output Level: 1 Vp-p (75 Ω)

S-Video Out (master)
  • C Output Level: 286 m Vp-p (75 Ω)
  • Output Connector: S Type (4-pin DIN)
  • Y Output Level: 1 Vp-p (75 Ω)

S-Video Out (preview)
  • C Output Level: 286m Vp-p (75 Ω)
  • Output Connector: S Type (4-pin DIN)
  • Y Output Level: 1 Vp-p (75 Ω)

Lisainfo

Kaal 7.3 kg
Mõõtmed 34.8 × 45.1 × 12.8 cm
