BBP600x600x10 QTB STEEL Go back to M390 LED truss
BBP600x600x10 QTB STEEL Steel base plate with half connectors.
Showing all 21 results
-
-
BBPd800 QTB STEEL
BBPd800 QTB STEEL Round steel base plate with half connectors for M222, M290 and M390 truss series.
-
-
Milos P Truss – Single Tube 0.5 m (black)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 1 m (black)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 1 m (silver)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 1.5 m (black)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 1.5 m (silver)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 2 m (black)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos P Truss – Single Tube 2 m (silver)
The Milos Single tubes are an extremely versatile tube system and ideal for tube structures and matrix grids. Each ‘node’ consists of a solid aluminium 50×2 mm tube with female receivers. This enables you to construct simple 2-way junctions. It is an extremely fast, simple and secure construction. All single tubes include one set concial adapter with pins and safety springs.
-
Milos Pro-30 Step F Truss – Straight 1 m (black) (kopeeri)
The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005. -
Milos Pro-30 Step F Truss – Straight 1.5 m (black)
The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005. -

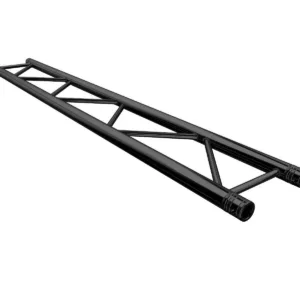

Milos Pro-30 Step F Truss – Straight 2 m (black)
The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005. -
Milos Pro-30 Step F Truss – Straight 2 m (silver)
The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005. -

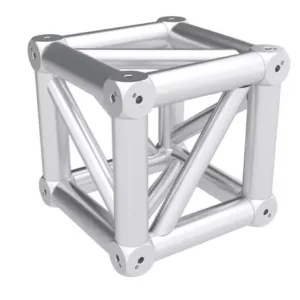

Multicube HD extender 20 cm
The new heavy-duty multicube from MILOS has no strength limitations when it comes to use in horizontal grids. It’s just as strong as the truss (MILOS 290 series truss).
The transfer of bending moments from the horizontal grid into the legs is now much better compared to welded corners or competing cubes thanks to its use of 32mm diagonals. The use of special, high quality bolts and steel inserts, together with locator holes for the receivers, makes this a unique product in the market.
-
POWERTEX Blackline PCB-S2 – 1T / 10m
The Powertex PCB-S2 Blackline Hoist is a high-quality chain block designed to provide durability, safety, and ease of operation. It is powder-coated in matt black and mounted with a black chain, which makes it perfect for use on stages and in the amusement industry. With its ergonomic hand chain and advanced features, this chain hoist ensures smooth and efficient lifting for every application.
Product benefits:
- Enhanced safety: each hoist undergoes dynamic proof load testing at 1.5 times the Working Load Limit (WLL) before leaving the factory, ensuring maximum safety and reliability. The hoist is equipped with a well-covered automatic load reaction brake and features double safety with two brake pawls and four brake springs, exceeding EN 13157 requirements. The load chain is calibrated, proof load tested and meets the requirements of EN 818-7.
- Smooth and efficient operation: the compact and lightweight construction, combined with a sprocket wheel equipped with needle bearings and a drive shaft supported by needle and slide bearings, ensures smooth and efficient operation. The fine-calibrated European-made COROLIM® protected load chain offers quiet and seamless performance.
- Low-visibility load chain: The load chain is black-painted and offers low visibility, making it ideal for use in entertainment and stage environments. This finish ensures the chain blends seamlessly into the background.
- Easy positioning and safe hooks: swivel hooks at both ends make in-line positioning easy. The hooks are designed to open at overload instead of breaking, enhancing safety. Heavy-duty steel safety latches and deformation check dots forged into the side of the hooks allow for easy overload detection.
- Convenient maintenance and documentation: each hoist is RFID-equipped for easy service and inspection, and a QR code provides on-site access to multilingual user manuals. A test certificate and Declaration of Conformity are enclosed with each hoist, ensuring compliance and traceability.
- Available spare parts: spare parts such as hooks, brake discs, safety latches, and chains are readily available, ensuring that maintenance and repairs can be carried out efficiently and further extending the hoist’s service life.
-
QBB1 M290BC
The M290 comes in three connection system versions – B, F, and U – for connection with MILOS truss, as well as with other popular truss connection systems found on the market.
-
-
SPEAKER-MOUNT-D50
SPEAKER-MOUNT-D50 Side mounted speaker holder for 48 – 50 mm tubes.
MILOS Speaker Mount d50 features a 1.38” spigot that fits standard speakers hole and has an SWL of 154 lbs. Its can be positioned anywhere on vertical 1.89” – 2” truss tubes via two clamps positioned on the rear of the mounting assembly.- 1.38” spigot is compatible with standard speaker mounting holes
- For use on 1.89” – 2” tubes
- 154 lbs SWL
- Adheres to DGUV 17 (loads above people – 77 lbs)
-
TOP-BRACKET-QTB
TOP-BRACKET-QTB Top Bracket for mounting lights on truss or on the floor.
-
TOP-RING-QTB-D1000 M290
TOP-RING-QTB-D1000 M290 top circle with 1m diameter Diameter: 1000 mm.
