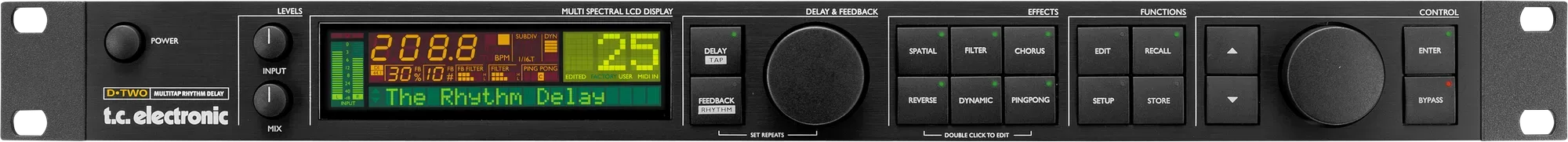

TC Electronic D-TWO
Ultimate Multi-Tap Rhythm Delay Unit with Flexible Control.
• TC quality delays and effects
• Multitap rhythm delay
• Absolute repeat control
Kirjeldus
| Connectors | RCA Phono (S/PDIF) |
| Formats | S/PDIF (24 bit), EIAJ CP-340, IEC 958 |
| Output Dither | HPF/TPDF dither 24/20/16/8 bit |
| Sample Rates | 44.1 kHz, 48 kHz |
| Processing Delay | 0.1 ms @ 48 kHz |
| Frequency Response DIO | DC to 23.9 kHz ± 0.01 dB @ 48 kHz |
ANALOG INPUTS
| Connectors | 1/4″ phone jack, balanced |
| Impedance, bal/unbal | 21 kOhm / 13 kOhm |
| Max. Input Level | +24 dBu |
| Min. Input Level for 0 dBFS | 0 dBu |
| Sensitivity @ 12 dB headroom | -12 dBu to +12 dBu |
| A to D Conversion | 24 bit, 128 x oversampling bitstream |
| A to D Delay | 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz |
| Dynamic Range | 100 dB typ, 20 Hz – 20 kHz |
| THD | typ < 92 dB (0,0025 %) @ 1 kHz |
| Frequency Response | +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz |
| Crosstalk | <-95 dB, 20 Hz to 20 kHz |
Analog Outputs
| Connectors | 1/4″ phone jack, balanced |
| Impedance bal/unbal | 40 Ohm |
| Max. Output Level | +20 dBu (balanced) |
| Output Ranges | Balanced: 20/14/8/2 dBu Unbalanced: 14/8/2 dBu |
| D to A Conversion | 24 bit, 128 x oversampling bitstream |
| D to A Delay | 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz |
| Dynamic Range | 104 dB typ, 20 Hz to 20 kHz |
| THD | typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output |
| Frequency Response | +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz |
| Crosstalk | <-100 dB, 20 Hz to 20 kHz |
EMC
| Complies with | EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B |
SAFETY
| Certified to | IEC 65, EN 60065, UL6500 and CSA E65 |
ENVIRONMENT
| Operating Temperature | 32° F to 122° F (0° C to 50° C) |
| Storage Temperature | -22° F to 167° F (-30° C to 70° C) |
| Humidity | Max. 90 % non-condensing |
CONTROL INTERFACE
| MIDI | In/Out/Thru: 5 Pin DIN |
| Pedal | 1/4″ phone jack |
GENERAL
| Finish | Anodized aluminum front, Plated and painted steel chassis |
| Display | 23 character / 280 icon STN-LCD display |
| Dimensions | 483 x 44 x 195 mm |
| Weight | 1.85 kg |
| Mains Voltage | 100 to 240 VAC, 50 to 60 Hz (auto-select) |
| Power Consumption | <15 W |
