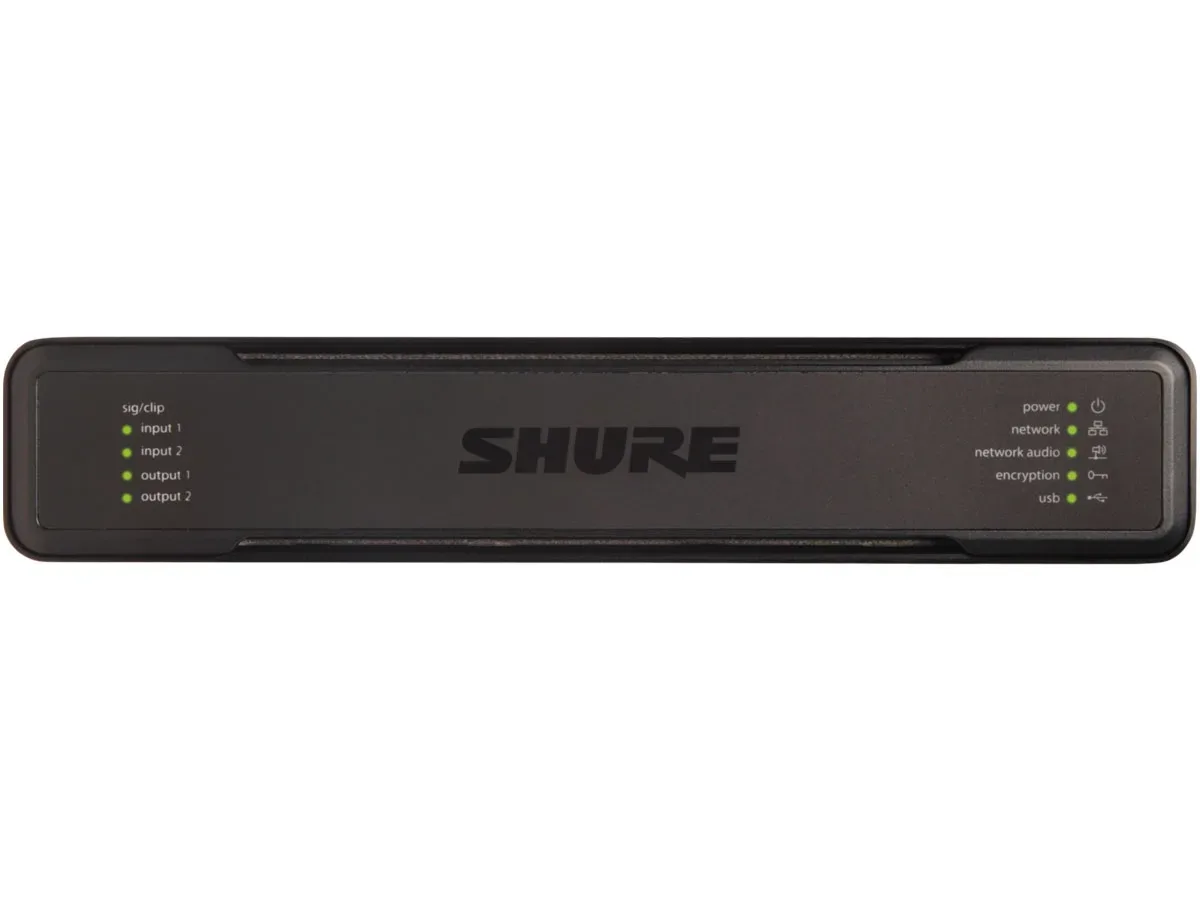

Shure IntelliMix P300

Audio Conferencing Processor.
Don’t let echo, noise, or distortion take over the meeting. The IntelliMix® P300 enhances every aspect of conference audio. Combined with Microflex® Advance™ or Microflex® Wireless microphones, the clear sound reproduction and intelligent mixing keeps the agenda on track with clear communication.

Kogus *

Kategooriad: , , ,

Kirjeldus

Automatic mixing. Quick set up.
The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio.

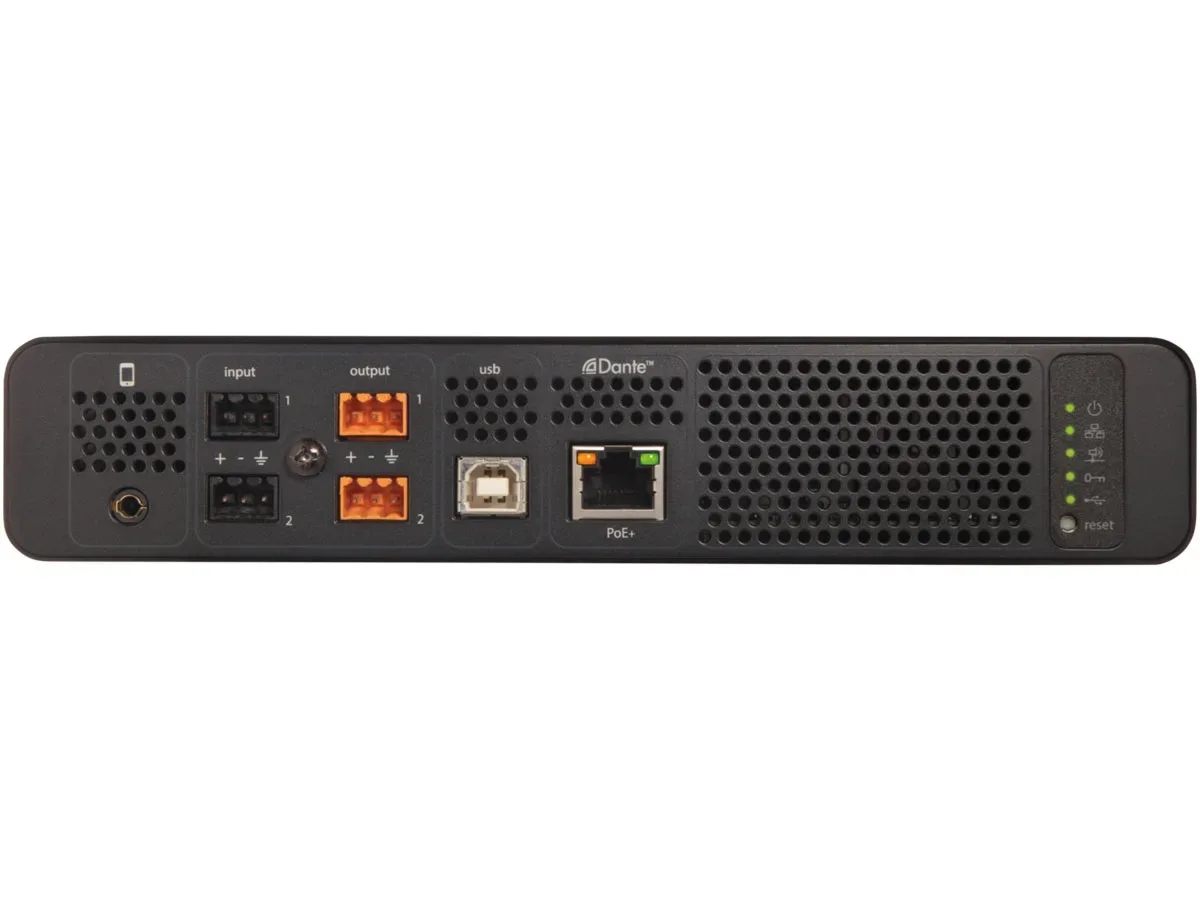

    • Input: (2) 3-pin block connector (Active Balanced)
    • Output: (2) 3-pin block connector (Impedance Balanced)
    • Mobile: (1) TRRS 3.5 mm (1/8″)
    • USB Connections: (1) USB 2.0, Type B | Single port carries 2 input and 2 output channels (Summed mono)
    • Network Connections (Dante Digital Audio): (1) RJ45 | 10 Dante Inputs , 8 Dante Outputs
    • Polarity: Non-inverting, any input to any output
    • Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
    • Power Consumption: 17.5 W, maximum
    • Weight: 1710 g
    • Dimensions (HxWxD): 4 x 21 x 22.6 cm
    • Control Software: Shure Designer
    • Operating Temperature Range: −6.7°C (20°F) to 50°C (122°F)
    • Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
    • Thermal Power Dissipation: Maximum 17.5 W (60 BTU/hr) | typical 14.6 W (50 BTU/hr)
    • Audio Frequency Response: +1, -1.5 dB | 20 to 20,000 Hz
    • Dante Digital Audio Sampling Rate: 48 kHz
    • Dante Digital Audio Bit Depth: 24
    • USB Audio Sampling Rate: 48 kHz
    • USB Audio Bit Depth: 16, 24

Latency (Does not include Dante latency)

  • Firmware 4.1 and newer: Dante 1-8 in to Dante out (AEC enabled) 15.4 ms | Dante 1-8 in to Dante out (AEC disabled) 8.7 ms | Dante 9-10 in to Dante out 3.4 ms | Analog in to Analog out 3.8 ms
  • Firmware 3.1 and older: Dante 1-8 in to Dante out (AEC enabled) 12.5 ms | Dante 1-8 in to Dante out (AEC disabled) 5.8 ms | Dante 9-10 in to Dante out 1.8 ms | Analog in to Analog out 2.2 ms
  • Analog Connections (Block Connectors) Dynamic Range: 20 Hz to 20 kHz, A-weighted, typical
  • Analog Connections Analog-to-Dante: 113 dB
  • Analog Connections Dante-to-Analog: 117 dB
  • Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
  • Line: -86 dBV
  • Aux: -98 dBV
  • Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain | <0.05%
  • Common Mode Rejection Ratio: 150Ω balanced source @ 1 kHz | >50 dB
  • Input Impedance: 9.6 kΩ
  • Input Clipping Level: Line +27 dBV | Aux +15 dBV
  • Output Impedance: 80 Ω
  • Output Clipping Level: Line +20 dBV | Aux +0 dBV | Mic -26 dBV
  • Mobile Connection Pin Assignments: Tip Audio Input (Left) | Ring 1 Audio Input (Right ) | Ring 2 Ground | Sleeve Audio Output (To Phone)
  • Dynamic Range: 20 Hz to 20 kHz, A-weighted, typical | Analog-to-Dante 99 dB | Dante-to-Analog 90 dB
  • Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 20Ω | -95 dBV
  • Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain | <0.05%
  • Input Impedance: 3.7 kΩ
  • Input Clipping Level: +4 dBV
  • Output Impedance: 1.4 kΩ
  • Output Clipping Level: Output terminated with 2.2 kΩ | -20 dBV
  • Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)

Lisainfo

Kaal 1.710 kg
Mõõtmed 21 × 22.6 × 4 cm
