Kahe kanaliga True Diversity juhtmevaba mikrofonisüsteem

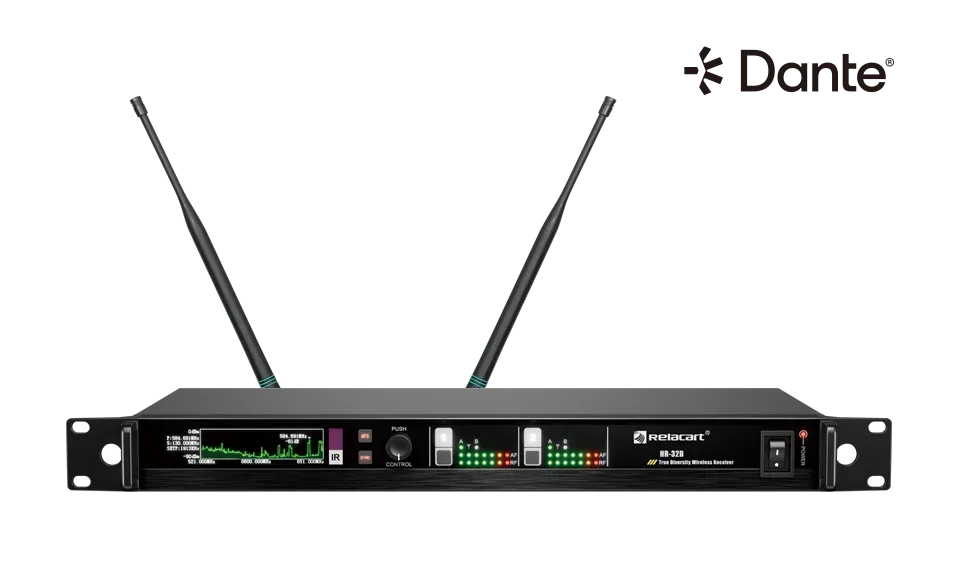

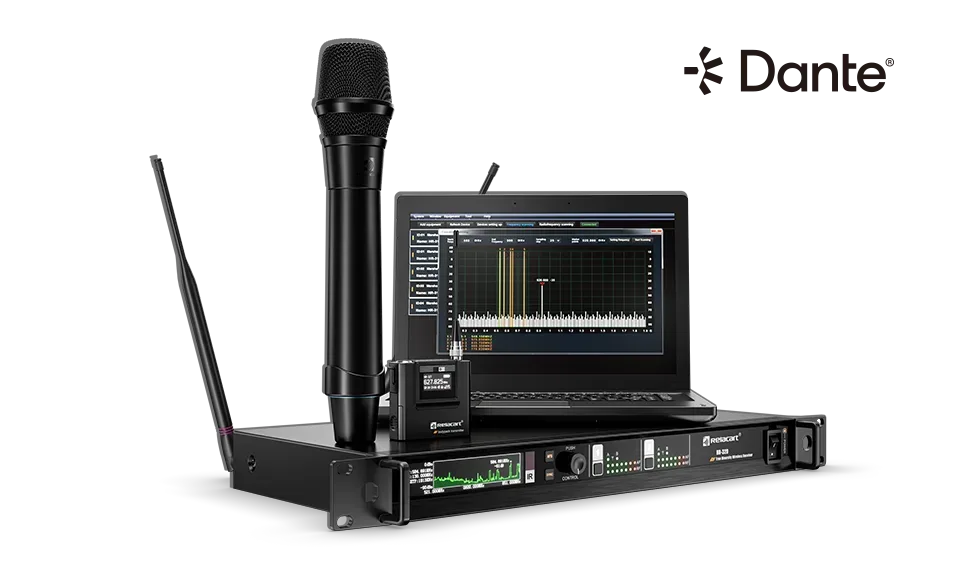

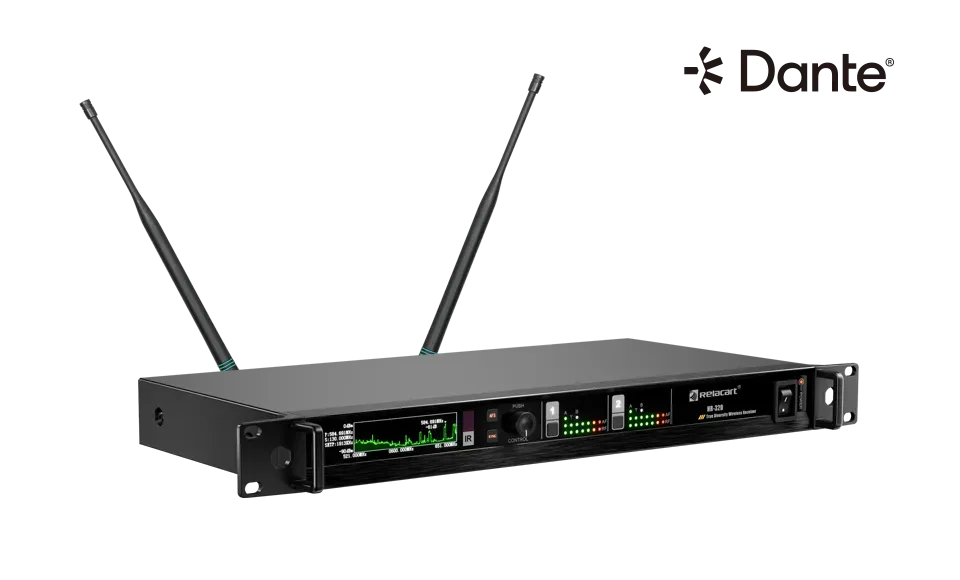

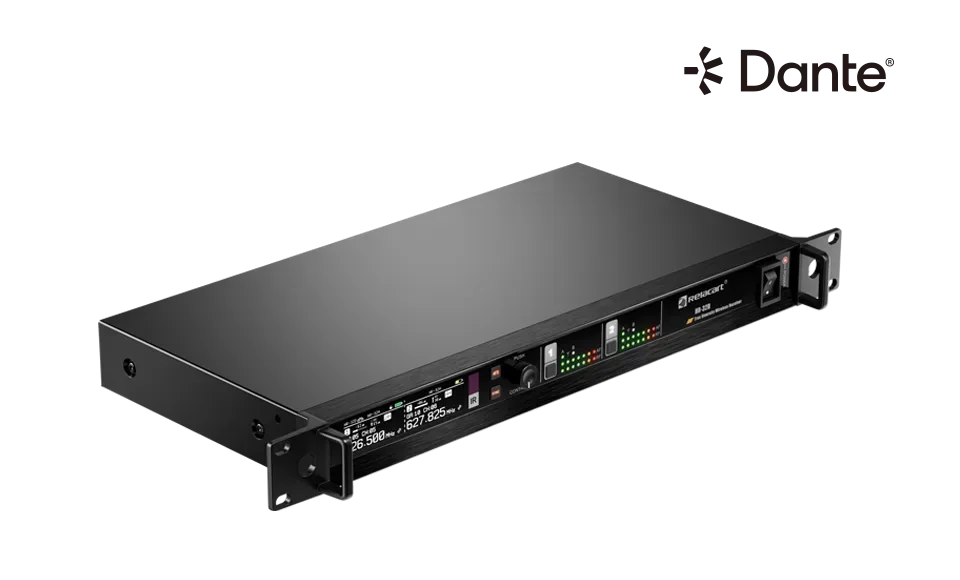

HR-32D is a dual channel wireless microphone system integrating spectrum analyzer and wireless audio transmission.The spectrum analyzer is adopted to make your system realize frequency visualization and controllability, create a stable wireless working environment for the scene and provide users with ideal clean and soul-penetrating sound. HR-32 series is designed for professional performance, offering 130MHz switching bandwidth (depending on region), flexible frequency management, upgradeable RWW Wireless System Management Software and reliable, simple yet sophisticated technology, rugged housing for protection.This fully functional and flexible wireless microphone system provides professionals with more excellent choices and fully proves professionalism in all kinds.

Tootekood: HR-32D Kategooriad: ,


  • Main Frame Size:EIA Standard Rack 1U
  • Receiving Channel:Dual Channel
  • Receiving Mode:True Diversity
  • Frequency Reliability:±0.005%(-10-50°C)
  • External Antenna Interface:BNC,DC 12V/150mA output
  • External Audio Interface:Mixed 6.35mm unbalanced ,independent channel XLR output
  • Ethernet Port:Support Dante communication protocol
  • Receiving Frequency Band:521.25MHz-936.85MHz
  • Working Mode:PLL frequency synthesis oscillation and secondary mixing reception technology
  • Receiving Sensitivity:When the offset is equal to 25KHz and 5dBu is input, S/N>60dB
  • Bandwidth:Single channel 130MHz(depending on the region)
  • Max. Deviation:±50KHz
  • Audio Sampling Rate:96KHz 24-bit
  • Audio Extension:Relacart DSP digital audio extension algorithm
  • Comprehensive S/N:>105dB
  • Comprehensive T.H.D:<0.7%@1KHz
  • Frequency Response:60Hz-18KHz±3dB
  • Working Range:100M Typical(in open space)
  • Power Mode:AC 100~240V , 50/60Hz


Kaal 1.8 kg
Mõõtmed 48 × 35 × 4.3 cm
