Showtec Titan Strobe FLEX FX

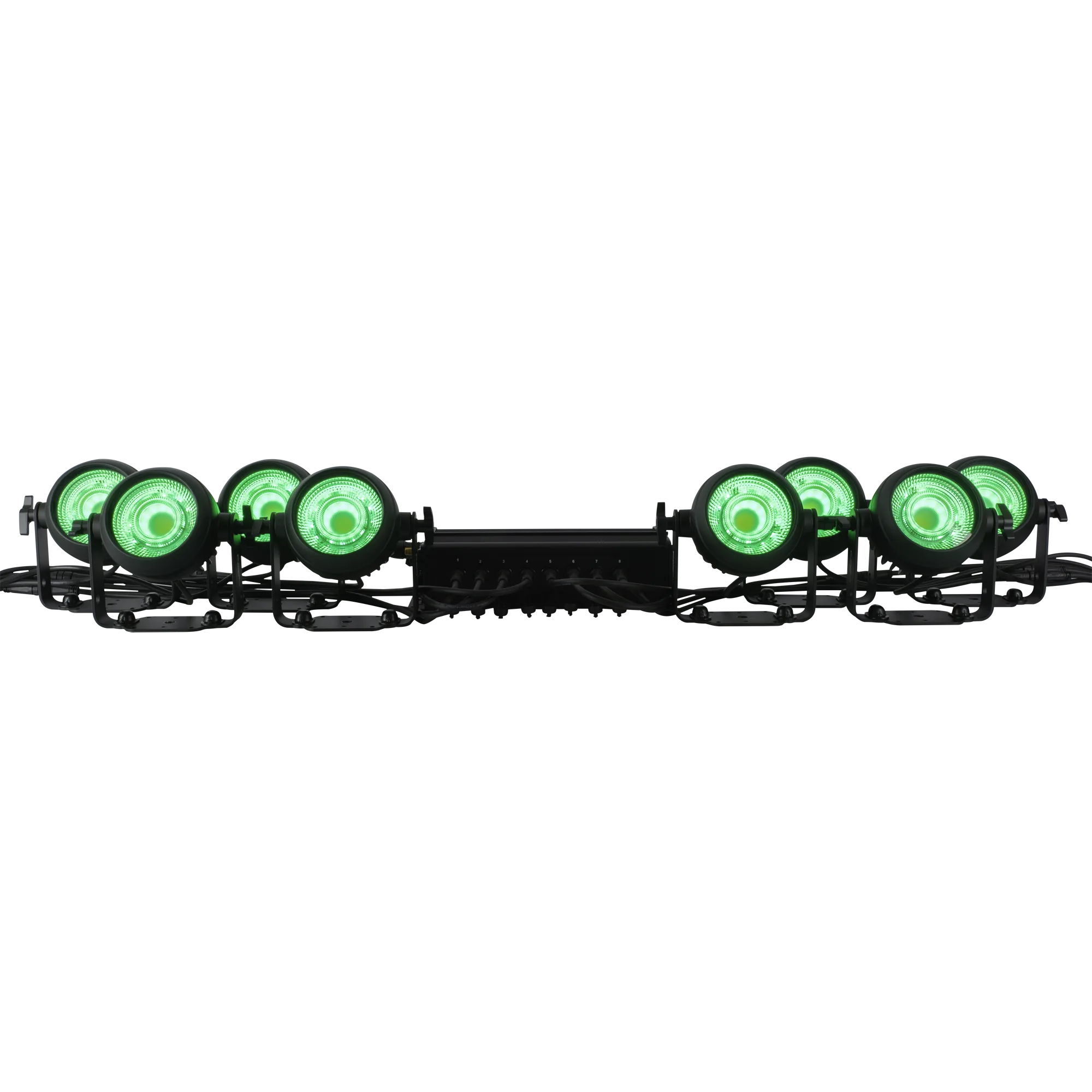

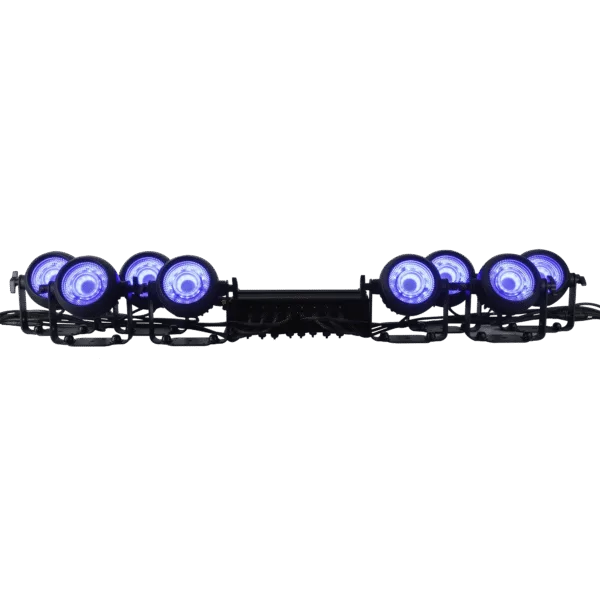

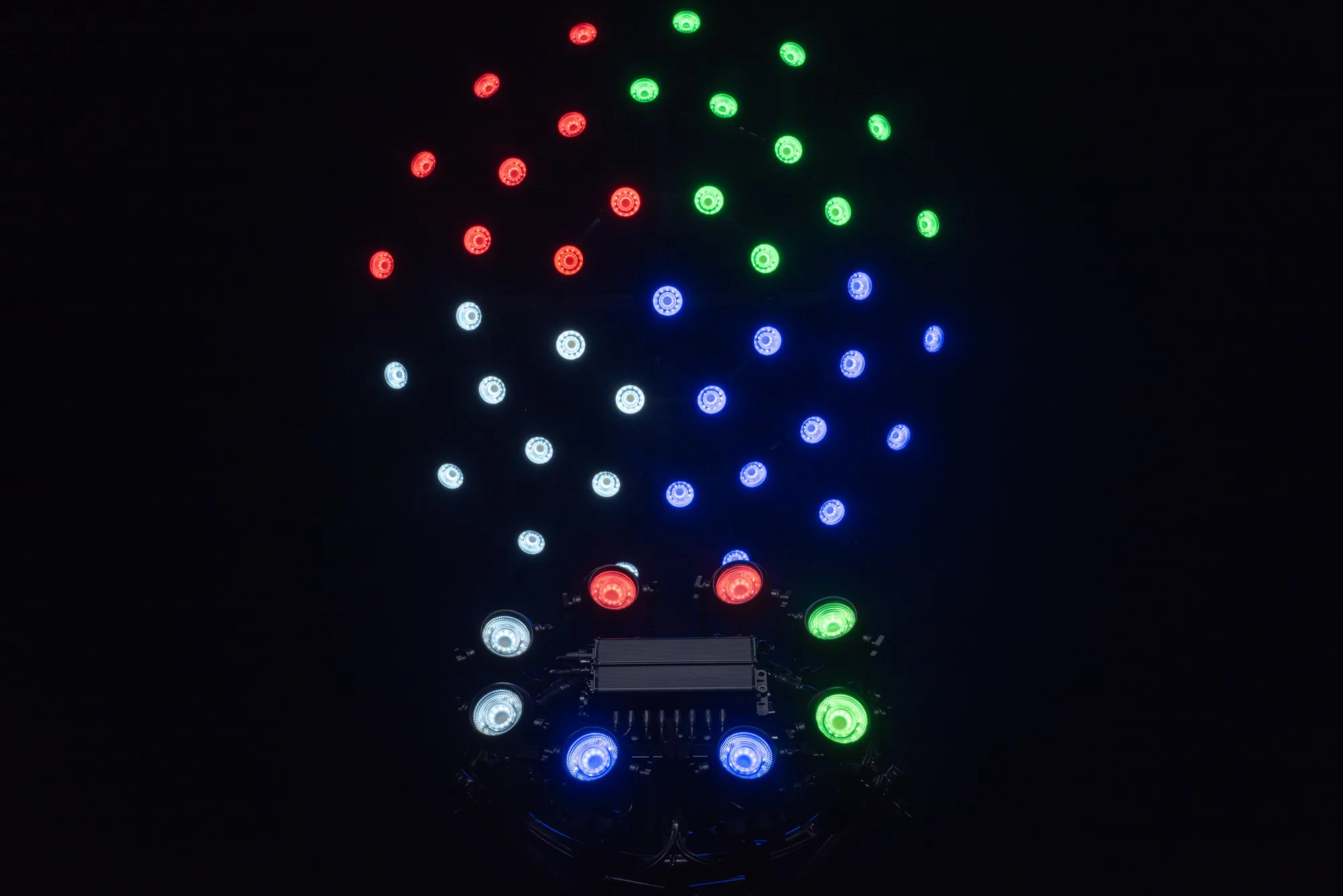

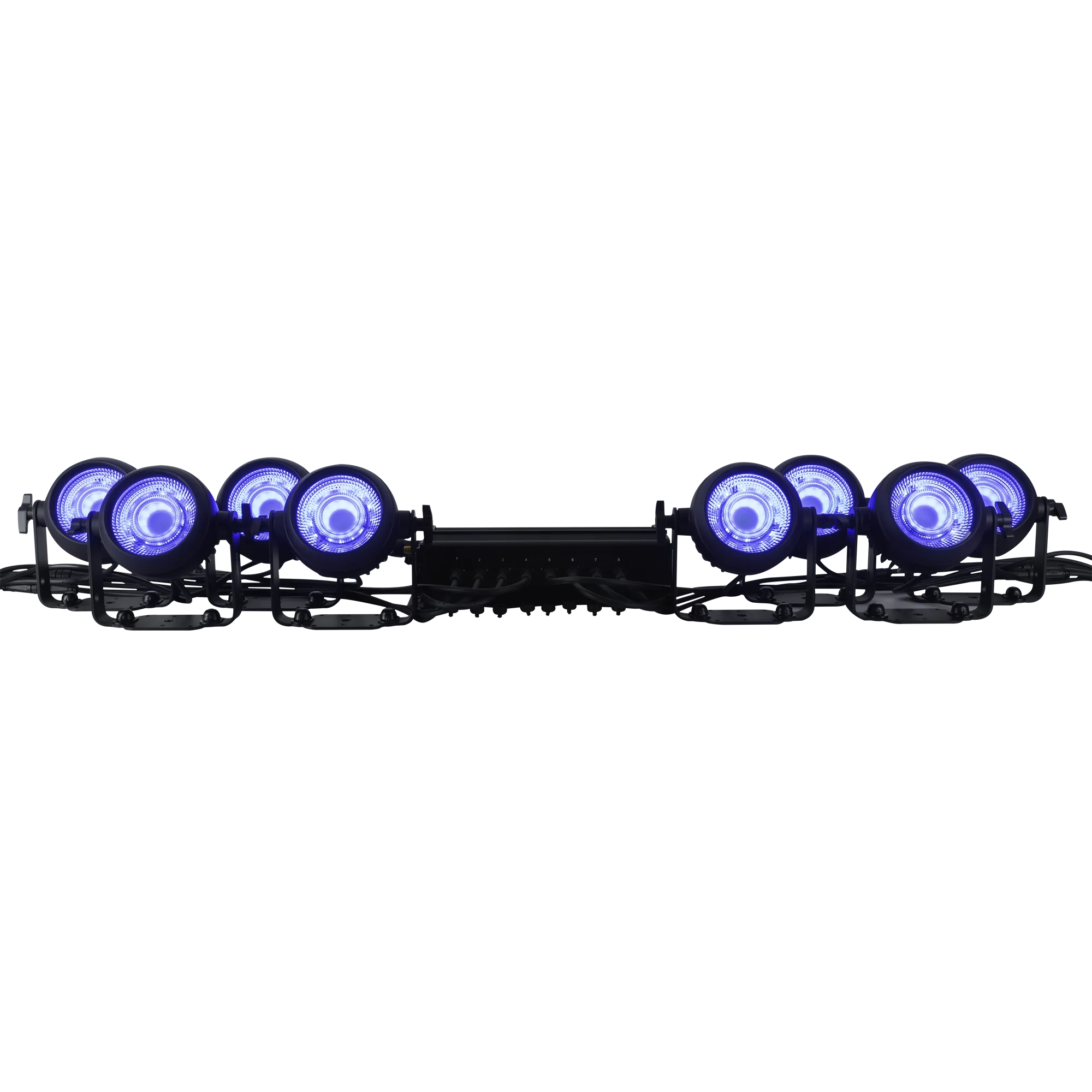

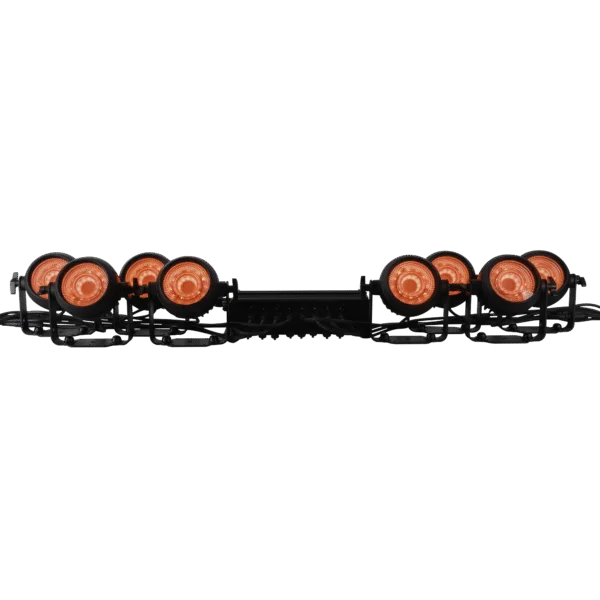

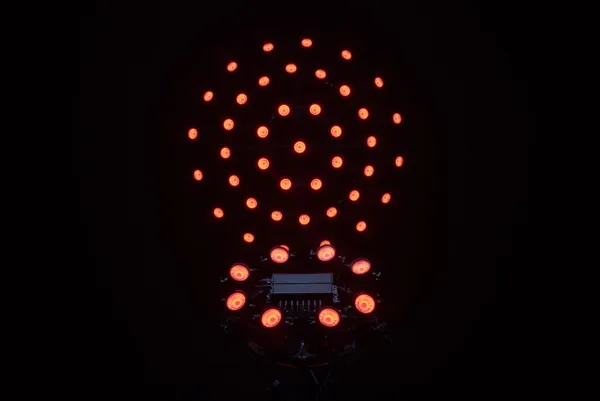

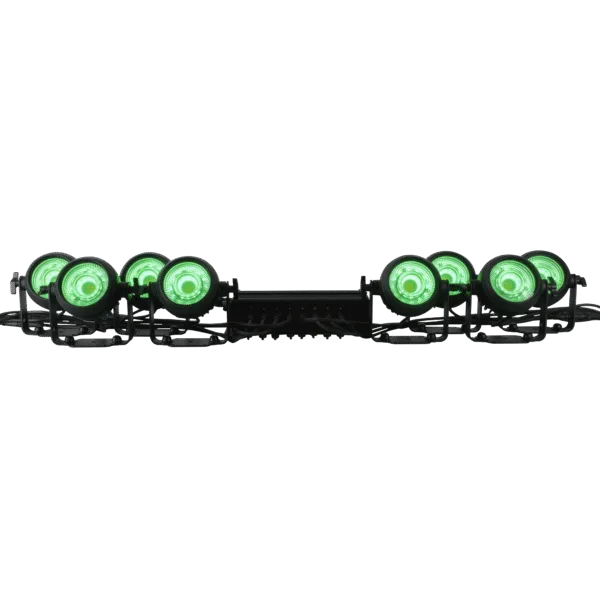

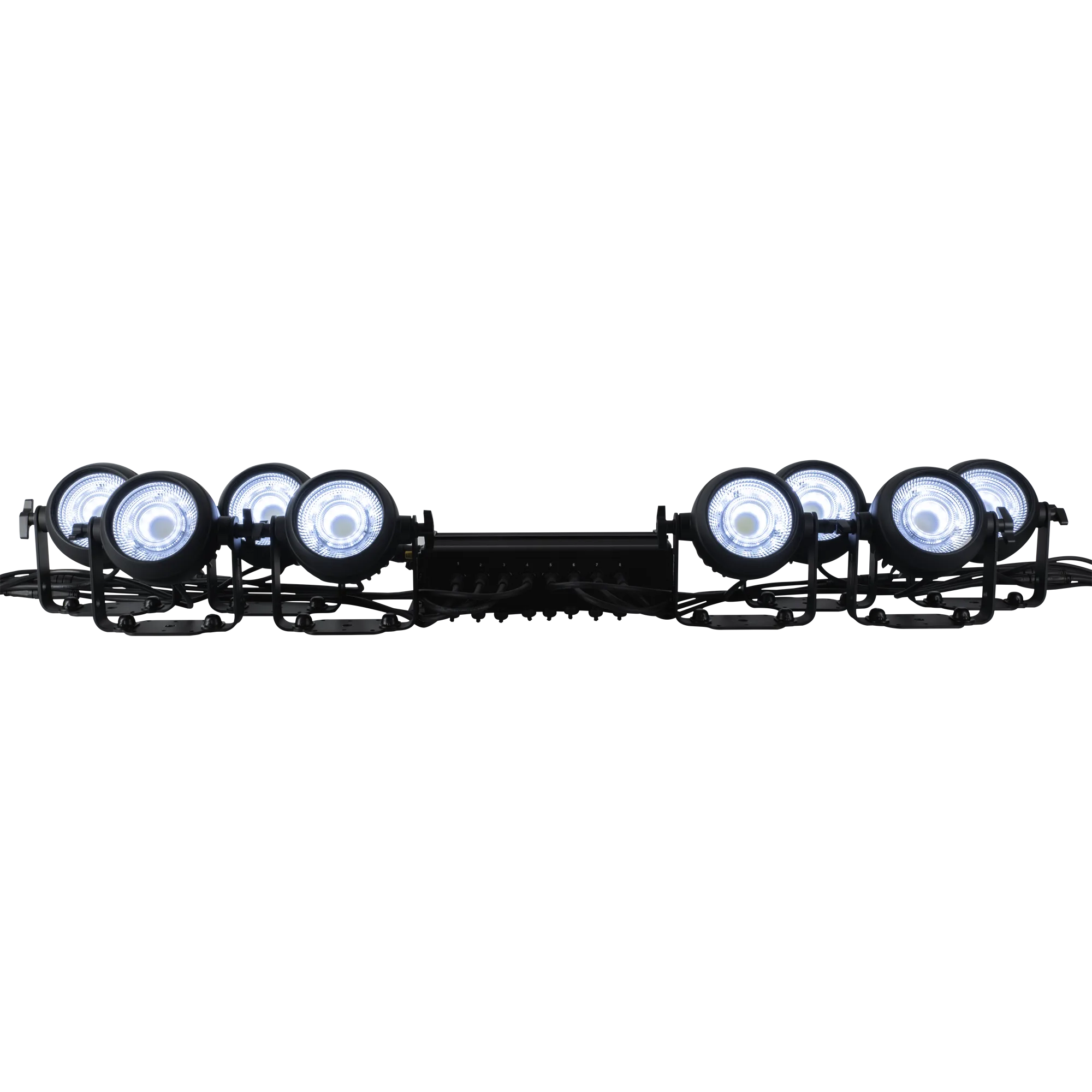

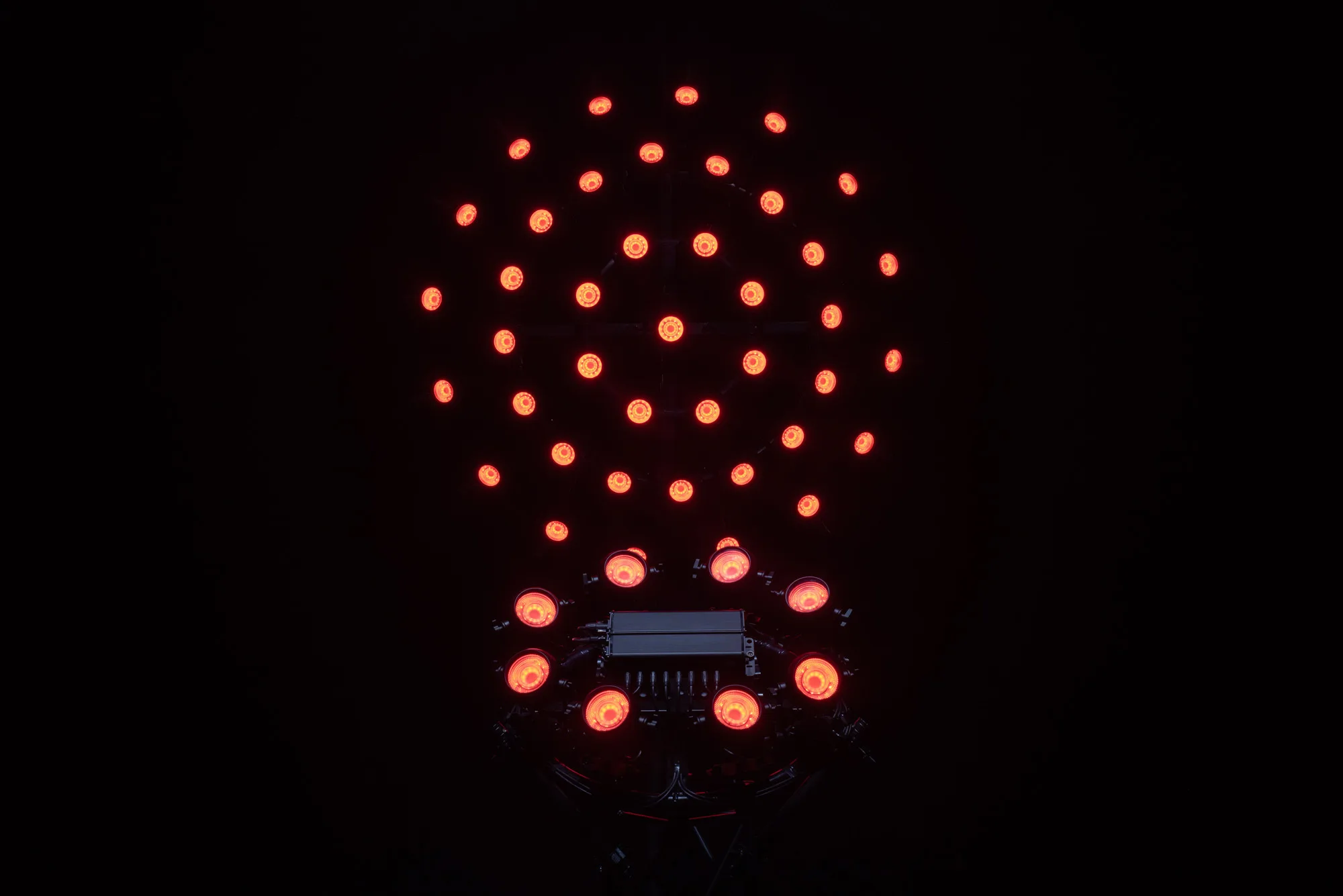

he Showtec Titan Strobe FLEX FX is a set of 8 high-power LED strobes and a dedicated controller. Each individual pod has a powerful cold white 100-watt COB LED for strobing and a ring of 12 individually controllable 2-watt RGBW LEDs. The integrated RGBW LEDs allow you to create unique full-colour LED ring effects. The powerful LED light source combined with a strobe functionality allows you to use the Titan Strobe FLEX FX as a strobe light with bright colour effects. It uses a Fresnel lens to create the optimum beam angle. The light effect can be controlled via DMX/RDM, Art-Net, sACN and Master/Slave, but can also run in stand-alone mode with several built-in programs.
The strobe pods have a special mounting bracket with 4 holes at a 45-degree angle, so you don’t have to detach the pod from it to drill through the holes to mount it. The bracket also has a 12.5 mm hole, while the controller has two 12.5 mm holes and an M10 threaded insert for attaching a clamp. You can also attach a quick lock bracket to the controller and pods. The pods and controller have a robust IP65-rated aluminium enclosure and are ready for outdoor shows. Dedicated 4x 2.5 m and 4x 5 m cables with control signals and power are included. Additional dedicated cables of various lengths are available separately (maximum length allowed: 30 m).

Kogus *

Kirjeldus

Light Source Type: LED
Light Source Power: 100 W
LED Colour Type: CW, RGBW
Optical
Beam Angle (Circular): 53 °
Control and Programming
Control Mode: Art-Net, Built-in Program, DMX, Manual, RDM
DMX Channels: 4, 8, 11, 32, 52, 64, 88, 416
Protocols: Art-Net, DMX
Dynamic Effects
Dimmer: 0-100 %
Strobe: 0-20 Hz
Electrical Specifications and Connections
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 740 W
Power Connector In: powerCON TRUE1
Power Connector Out: powerCON TRUE1
DMX Connector: XLR 5P In/Out
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Data Connector: etherCON In/Out
Data Connector In: etherCON
Data Connector Out: etherCON
Mechanical Specifications
Height (mm): 195 mm (7.677″)
Width (mm): 221 mm (8.701″)
Depth (mm): 115 mm (4.528″)
Weight: 1.61 kg (3.549 lb)
Controller Height: 103 mm (4.055″)
Controller Width: 171 mm (6.732″)
Controller Depth: 372 mm (14.646″)
Controller Weight: 3.65 kg (8.047 lb)
IP Rating: IP65
Housing: Aluminium die-cast
Colour: Black
Product Properties: Cooling
Forced Convection: Rigging
Mounting Options: Clamp, Quick-Lock
Safety Attachment: Yes
Thermal Specifications
Maximum Ambient Temperature: 40 °C (104 °F)
Maximum Surface Temperature: 62 °C (143.6 °F)
Minimum Ambient Temperature: -5 °C (23 °F)
