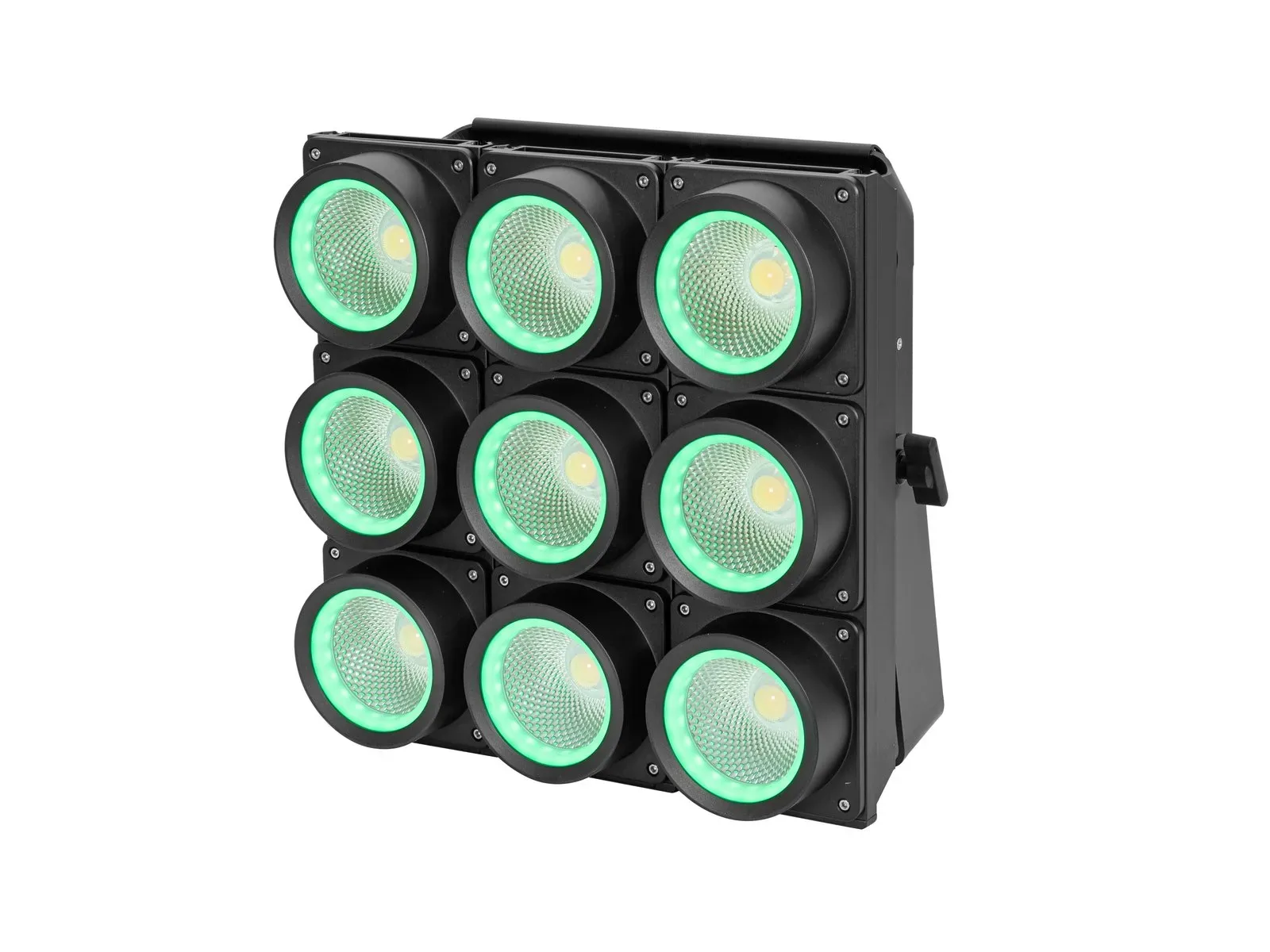

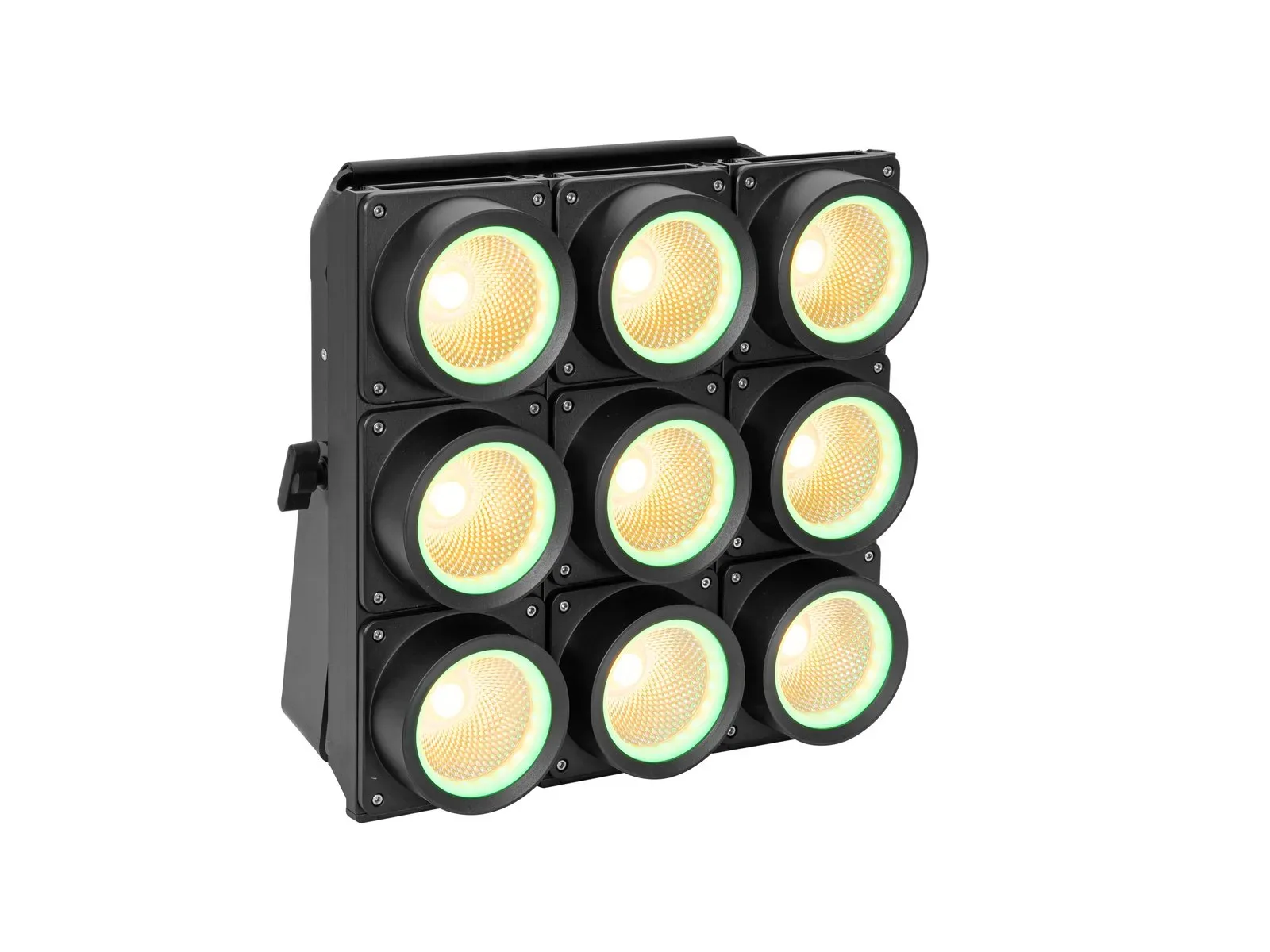

LED IP Atmo Blinder 9

Weather-proof blinder with pixel control and atmo cluster

  • 360 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
    18 segments controlled separately
  • Variable color temperature 1800 K – 6000 K
  • 9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
    LEDs controlled separately
  • Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
  • One RGB LED segment is directed towards the front, one towards the reflector
  • Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
  • 15 integrated show programs
  • Strobe effect
  • With a beam angle of 20°
  • Control via stand-alone; DMX; ArtNet; RDM; Master/slave function
  • Multicolor LCD display
  • Flicker-free
  • With Mounting bracket; with Omega bracket
  • The device is cooled by low-noise cooling fan
  • Preprogrammed in Light Captain
  • Mains input and output for power linking up to 4 units
  • Suitable for outdoor use IP65
  • For application areas such as: Mobile use; Stage; Rental
  • Very quiet working noise
  • Application possibility: Suspended; on stand
Tootekood: 41606430 Kategooria:


Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 330 W
IP classification: IP65
Protection class: Protection class I
Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output: IP T-Con (F) mounting version
Lamp type: LED lamp
LED: 360 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
Color temperature: 1800K – 6000K adjustable
DMX channels: 13; 18; 72; 85
DMX input: 3-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
Cooling: Low-noise cooling fan
Control: Stand-alone; DMX; ArtNet; RDM; Master/slave function
Preprogrammed in: Light Captain
Projection: Flicker-free
Beam angle: 20°
Beam angle (1/2 peak): 20°
Beam angle (1/10 peak): 58°
Housing color: Black
Attachment system: Mounting bracket
2x Omega bracket
Display type: Multicolor LCD display
Connections: 2 x RJ-45 (F) mounting version


Kaal 13.65 kg
Mõõtmed 20.5 × 37.7 × 38.4 cm
