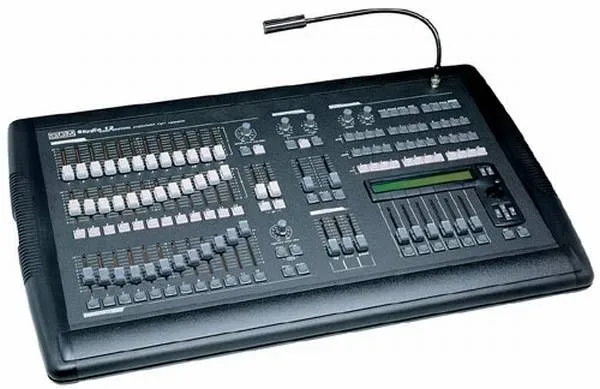

SGM Studio 12 Scan Control lighting console
Studio 12 Scan Control is a reliable user-friendly lighting console, able to control 12
or 24 channels of dimmable fixtures, and 12 ‘intelligent’ units using up to 36 DMX
channels each.
Studio 12 Scan Control’s controls include:
Manual Presets (2 rows of 12 faders, which can be used as two 12-channel presets
or a single 24-channel preset);Registers (1 row of 12 faders which control the memory
registers);Light Chase controls (for programming and controlling chases); DMX Unit
controls (per controlling moving head fixtures, scanners, colour-changers, dimmers, and
any other equipment using DMX 512 protocol).Studio 12 Scan Control is an extremely
versatile lighting control console, ideal for a vast range of applications: from concerts to
theatres, clubs to television studios, from small to large show events.
Kirjeldus
New 512 channel lighting control desks on which 12 channels with double presets are
dedicated to dimmer channels (24 channels with single preset).
Programs for scanners and moving head fixtures already stored in the desks and able
to be used directly.
2 presets + memory registers on three independent rows of faders.
12 programmable chases (max. 12 steps).
144 scene memories.
12 pages of memory registers.
Chases easily stored in the memories.
Link function for memory updating.
DMX in/out connector, SMPTE socket for changing memory registers in sync.
Independent regulation of preset crossfade times.
Audio input and built-in microphone for music sync functions.
MIDI in/thru/out connectors.
Data and memories can be downloaded to a PC.
Jack socket for pedal for stepping up/down through memory registers.
XLR socket for service light (3W 12V).
Universal controller for 12 DMX units (scanners, colourchangers or dimmers), using
a maximum of 36 channels each.
12 programs with 12 scenes each reserved for fixtures.
Universal AL4 switching power supply included.
Lisainfo
| Kaal | 13 kg |
|---|---|
| Mõõtmed | 78 × 49 × 9.5 cm |
