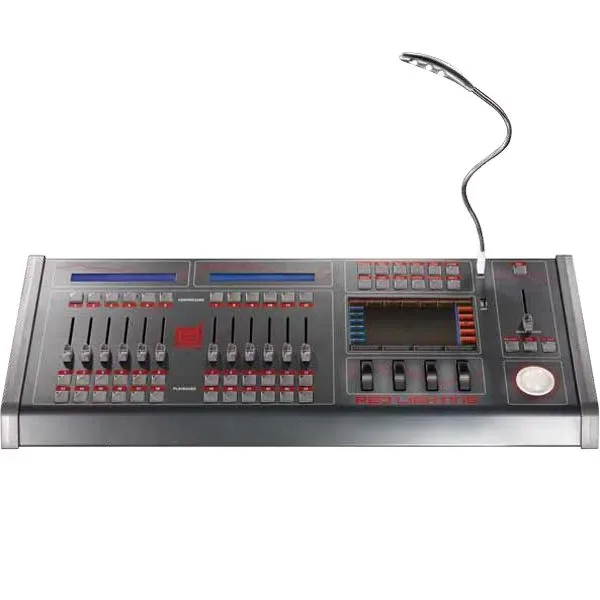

Red Lighting ReDMX

– 7” color TFT Touch Screen color
Display 800×480 pixel for a powerful
intuitive grafics interface
– 2 Rear-lit 72-digit (2 lines of 36)
LCD screen for the display of fader
configuration
– 12 keys for direct access to playback
and programming functions
– 12 faders with individual keys playback
freely programmableas master/group
master/manual cue
– 24 keys for direct access to playback
registers
– 4 encoder wheels for controlling
attributes during programming and
control of effects during playback
– Jog Ball for PAN and TILT control with
“locks” and “fine” buttons
– Grand Master fader + DBO key
– New round keys fine control
– Internal SD memory

Tootekood: 1E600199 Kategooria:

Kirjeldus

POWER
– Powerful GUI for easy programming
and control of a maximum of 576 Cue
lists, each with a maximum
od 999 Cues
– 3072 DMX channels. 4 DMX Out
lines 1 DMX In line (independent)
2 universe on xlr 5 and 3 pin (up to 6
universe 3072 channel on arthnet)
– Playback of a maximum of 24 cue-lists
simultaneously
– Advanced shape engine
– Updateable personality library
– 6 families of Palettes for rapid
control of the automated fixtures’s
functions. Palette Chris/Gam/Lee
Rosco preprogrammed available on all
kind of projector either RGB and CMY
– Cues: max 999 for each playback
register
– Maximum number of cues storable
per show: 9999
– 2 flexible LED lights
– Universal 82-265 Volt onboard
switching power supply

OUTPUT
– 3072 channels freely configurable
– DMX channels for any number
of dimmer channels and/or
automated fixtures

CONNECTION
– 2 xlr connector 5 pin: DMX out
– 2 xlr connector 3 pini: Dmx out
– 1 rj45 connector: artnet
– 1 xlr connector 5 pin: DMX in
– 1 xlr 3 connector pin: SMPTE in
– 3 din connector: Midi In/Out/Thru
– 1 USB connector: for backup on
external usb mass storage
– 2 USB connector for light
– 2 extension connector

Lisainfo

Kaal 11 kg
Mõõtmed 69.2 × 29.8 × 10.6 cm
