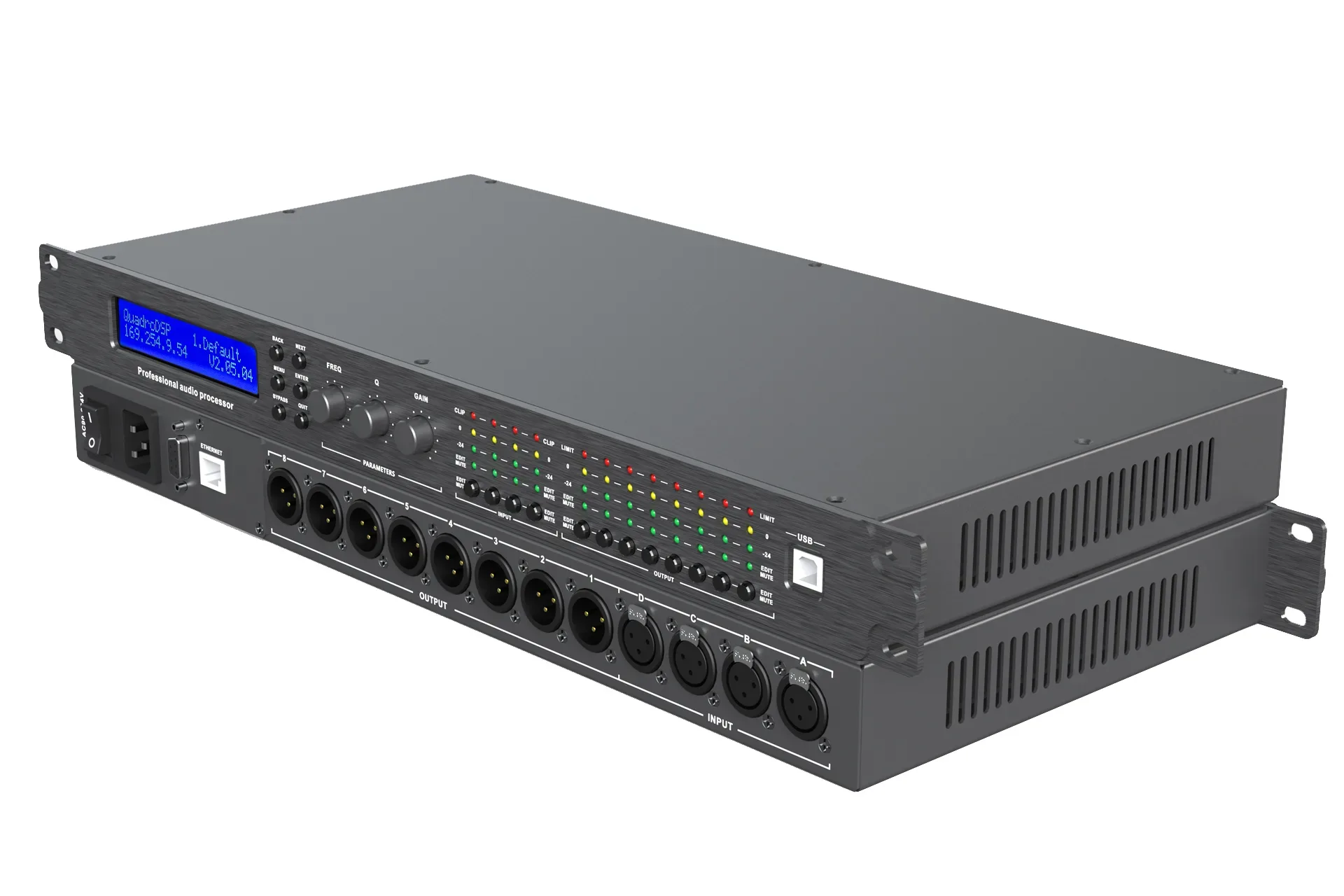

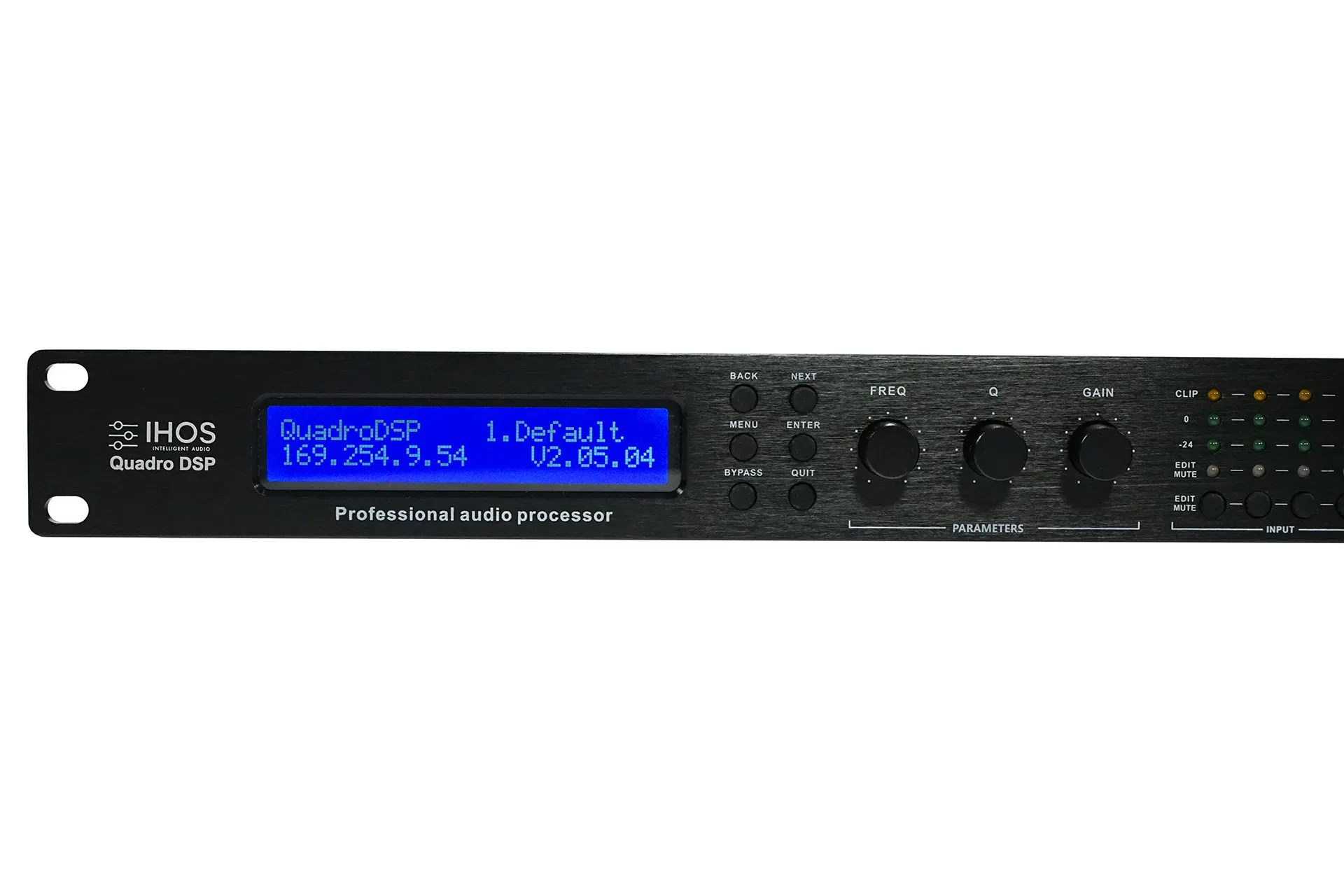

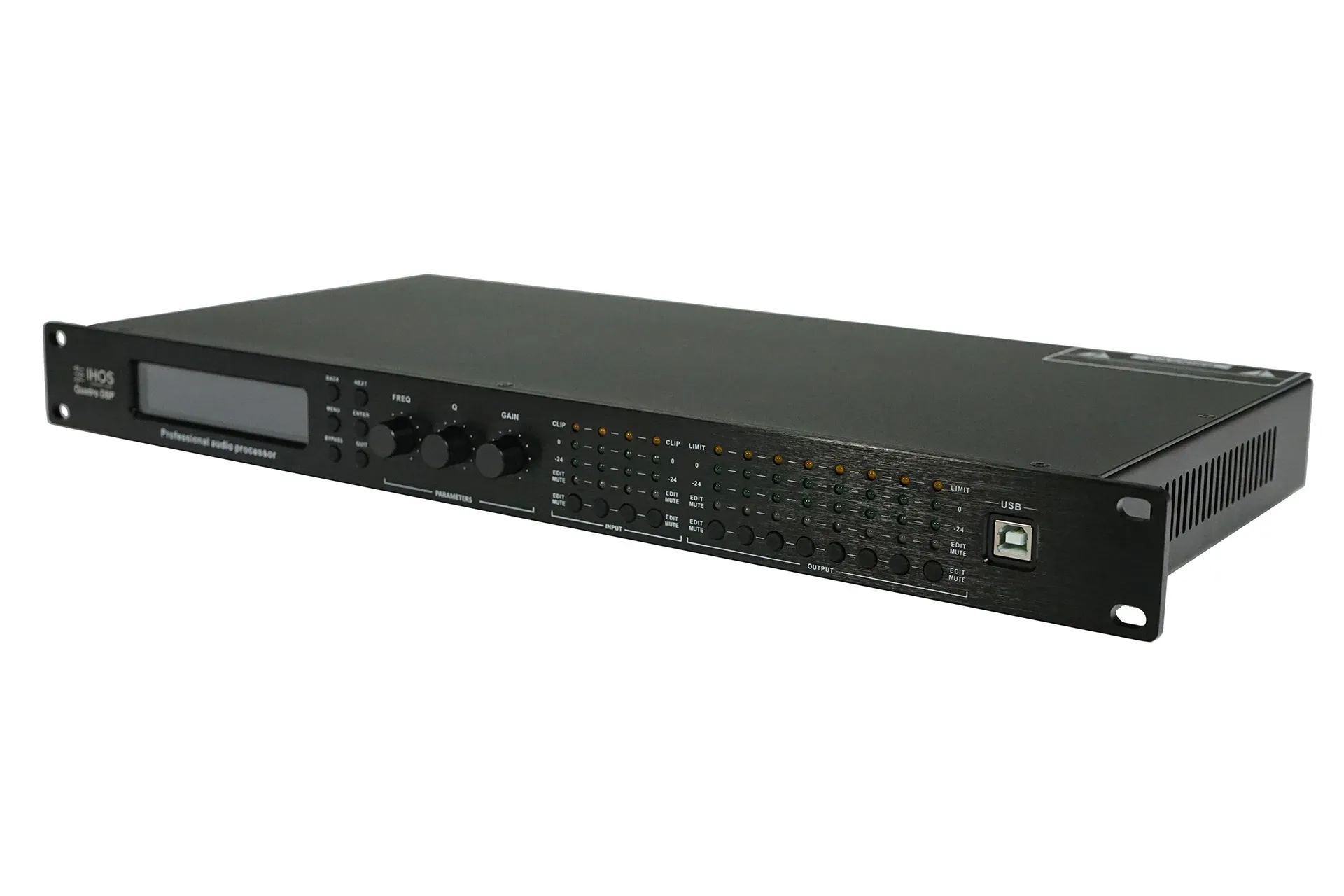

Quadro DSP

Professional speaker processor, with variable DSP functions, and integrated compressors, limiters, frequency dividers, dynamic EQ, delayers, equalizers, input and output with FIR phase correction, and audio mixers.

Suitable for stadium, performances, auditoriums, halls, and conference rooms.

Kogus *

Tootekood: L006241 Kategooria:

Kirjeldus

Technical Details
Dspmodule
Signal processing: ADI SHARC 21489
Audio system delay: 2.8 ms
D/A conversion: 24-bit
Sampling Rate: 96kHz

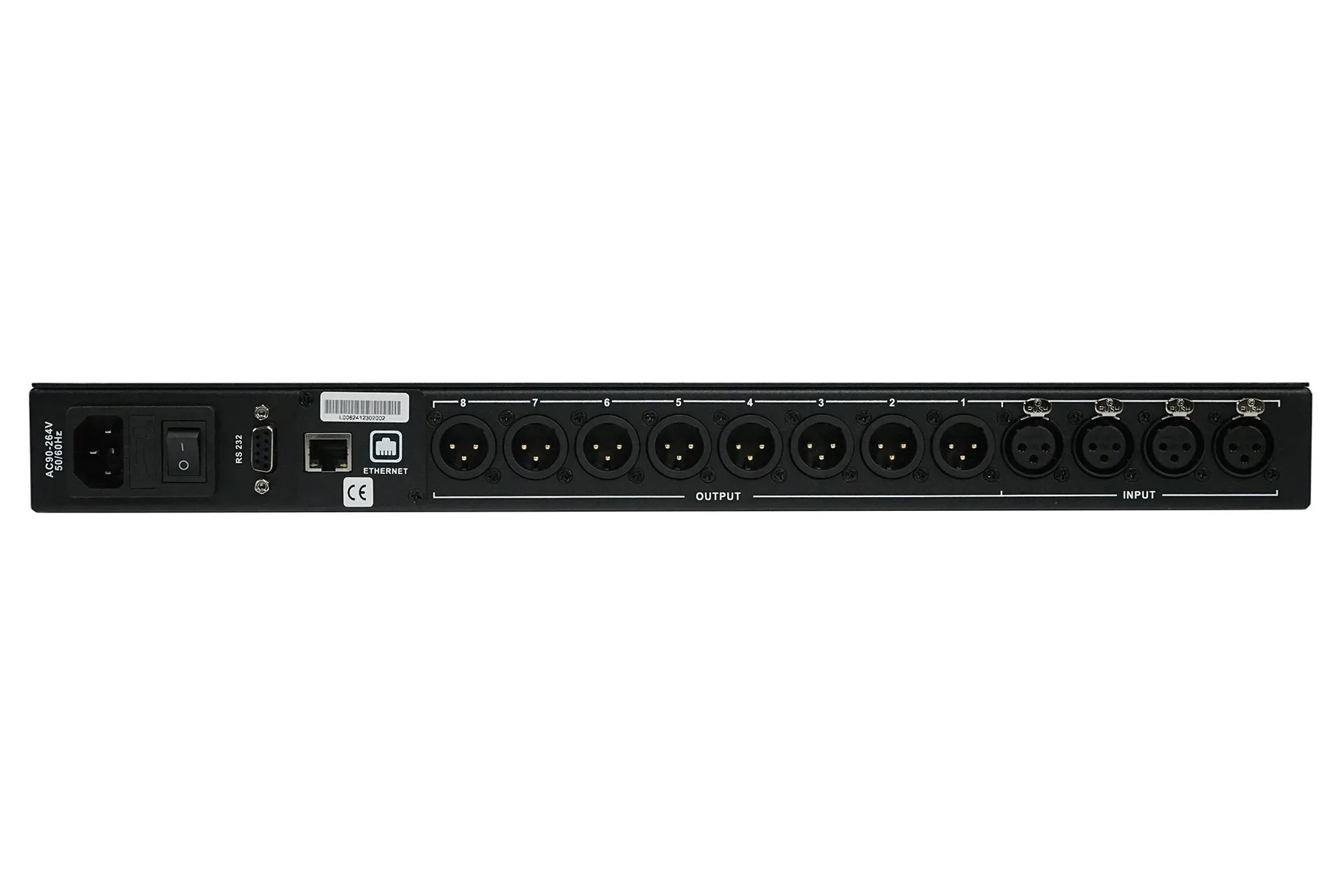

Analog audio inputs and outputs
Input channel: 4 balanced inputs.Line level.
Audio interface: Cannon male and female
Input resistance: 22kΩ
Maximum input level: 16dBu/Line
Output channel: 8x balanced outputs, Line level
Output impedance: 150Ω
Audio performance specifications
Frequency response curve: 20Hz～40kHz(±0.5dB)/Line
Noise floor: 20Hz～20kHz,A-wt,-93dBu
THD+N: -90dB(@0dBu,1kHz,A-wt)/Line
SNR: 108dB(@16dBu,1kHz,A-wt)/Line
Communication ports and indicators
USB: Micro-B type
Serial port
RJ-45, for TCP/IP network connection

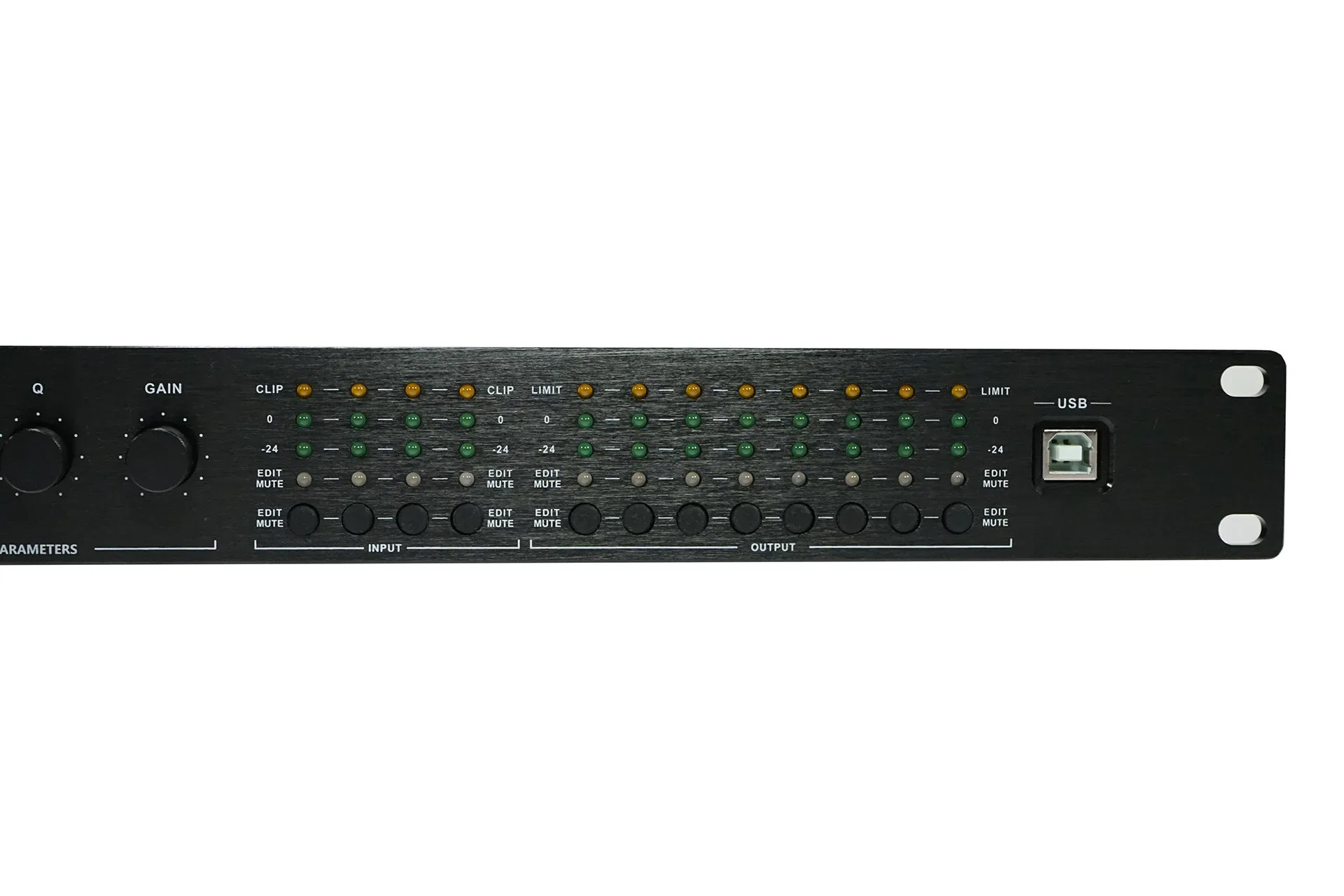

LED Indicators: CLIP, LEVEL, EDIT, MUTE
Physical Dimensions / Electrical characteristics
Power supply range: AC90V～264V50/60Hz
Operating temperature -20℃～80℃



Lisainfo

Kaal 3.2 kg
Mõõtmed 48.3 × 22.6 × 4.45 cm
