PTZOptics SDI Cameras 20X-NDI-WH-C
PTZOPTICS Broadcast & Conference Camera.
The PTZOptics 20X-NDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for NDI|HX, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.
SDI refers to Serial Digital Interface, a standard for the delivery of digital video via a coaxial cable. The SDI standard has been widely adopted by the broadcast industry to transmit uncompressed, unencrypted digital video signals.
Kirjeldus
| Video Outputs | Video Outputs | (1) Video over Ethernet (1080p@60fps capable) (1) 3G-SDI (up to 1080P@60fps capable) (1) HDMI (up to 1080p@60fps capable)1 (1) CVBS2 USB 2.03 |

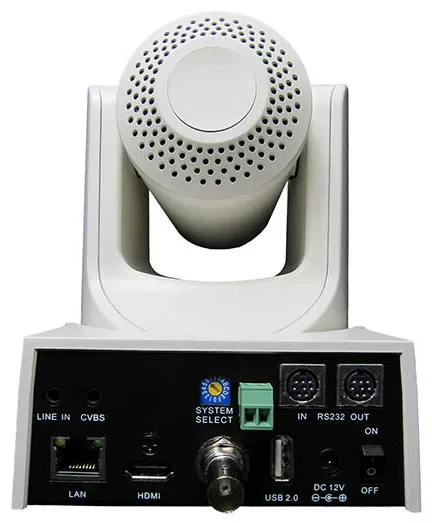

| Connectors | (1) 3G-SDI (BNC – 75 Ohm, Female) (1) HDMI v1.3 Type A (Female) (1) 10/100/1000 RJ-45 (1) Non-powered 3.5mm Female Input |
|
| Aspect Ratios | 4:3, 16:9 | |
| Standard Resolutions | PAL, PAL wide, NTSC, NTSC Wide | |
| Output Resolution Range | 480i-30 to 1080p60 | |
| Frame Rate | Up to 60 fps | |
| IP Streaming | Video Bitrate Range: 32 – 20480 kbps Maximum 1080p Frame Rate 60fps Maximum 720p Frame Rate 120fps Audio Bitrate Options: 96K, 129K, 256K AAC Audio Encoding Audio Sample Rate Options: 44.1K, 48K |
|
| Recommended maximum Cable Length for SDI (based on standards) | 300 ft | |
| Recommended maximum Cable Length for HDMI (based on standards) | 45 ft | |
| Recommended maximum Cable Length for Ethernet (based on standards) | 328 ft | |
| Camera and Lens | Video Sensor | Panasonic 1/2.7” CMOS, 2.07 Megapixels |
| Scanning Mode | Progressive | |
| Frame Rates | Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25 Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 (Beta) CVBS Only (576i-30, 480i-30) |
|
| Focal Length | 12x Optical, F3.5mm-42.3mm, F1.8-F2.8 20x Optical, F4.42mm-88.5mm, F1.8-F2.8 30x Optical, F4.42mm-132.6mm, F1.8-F2.8 |
|
| Zoom Length | 12X Optical, 20X Optical or 30X Optical | |
| Digital Zoom | 16x | |
| Field of View | 12X Lens – 72.5° 20X Lens – 60.7° 30X Lens – 60.7° |
|
| Min Lux | 0.5 Lux at F1.8, AGC ON | |
| Shutter Speed | 1/30s – 1/10000s | |
| SNR | ≥55dB | |
| Vertical Flip & Mirror | Supported | |
| Horizontal Angle of View | 12X Lens – 6.9° (tele) to 72.5° (wide) 20X Lens – 3.36° (tele) to 60.7° (wide) 30X Lens – 2.28° (tele) to 60.7° (wide) |
|
| Vertical Angle of View | 12X Lens – 3.9° (tele) to 44.8° (wide) 20X Lens – 1.89° (tele) to 34.1°(wide) 30X Lens – 1.28° (tele) to 34.1° (wide) |
|
| Wide Dynamic Range | Supported | |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Audio | Analog audio inputs | Line In, 3.5mm (HDMI & IP Stream Only) |
| Networking | DHCP | Supported |
| Static IP | Supported | |
| Multicast | Supported | |
| Dual Streaming | Supported | |
| 720p120fps | Supported | |
| HTTP Port Number | Default 80 | |
| RTSP Port | Default 554 | |
| PTZ Port | Default 5678 | |
| UDP Port | Default 1259 | |
| Web Management | Supported Guest & Admin Logins |
|
| Camera Control | (1) 8-pin mini din In | RS-232, RS-485, VISCA, PELCO-D/P |
| (1) 8-pin mini din Out (passthrough) | Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line | |
| (1) RS-485 | 2-pin phoenix port Protocols: VISCA/Pelco-D/Pelco-P |
|
| Baud Rate | 2400/4800/9600 bits | |
| IP | PTZOptics VISCA over IP4 | |
| Recommended maximum cable length for RS-232 | 90 feet (30 meters) | |
| Recommended maximum cable length for RS-485 | 3,600 feet (1,200 meters) | |
| Pan & Tilt Movement | Pan Movement | ±170° |
| Tilt Rotation | Up: 90°, Down: 30° | |
| PTZ Presets | 10 via IR (255 via Serial or IP) 255 presets via Serial or IP |
|
| Horizontal Pan Range | ±170° | |
| Vertical Pan Range | -30° to +90° | |
| Pan Speed Range | 1.7° ~ 100°/s | |
| Tilt Speed Range | 1.7° ~ 69.9°/s | |
| Preset Accuracy | 0.1° | |
| Electrical Index | Power Supply | 12W (Max) |
| Input Voltage | 12V DC (10.8 – 13.0V DC) or PoE 802.3af | |
| Power over Ethernet | Standard PoE supported | |
| Physical Specifications | Dimension (in.) | 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt) |
| Dimensions (mm) | 142W x 164H x 169D (189H max w/ Tilt) | |
| Box Dimensions | 9” x 9” x 10” | 229mm x 254mm x 229mm | |
| Camera Weight | 3.20 lbs. (1.45 kg) | |
| Boxed Weight | 5.4 lbs. (2.45 kg) | |
| Regulatory Compliance | FCC compliance: | FCC 47 CFR Part 15 Subpart B – Class A:2011, ANSI C63.4-2014 |
| CE compliance: | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 |
