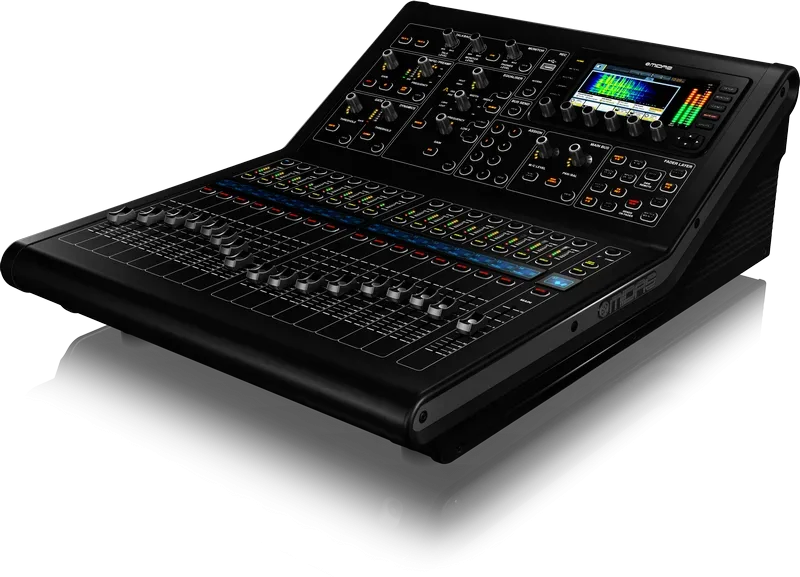

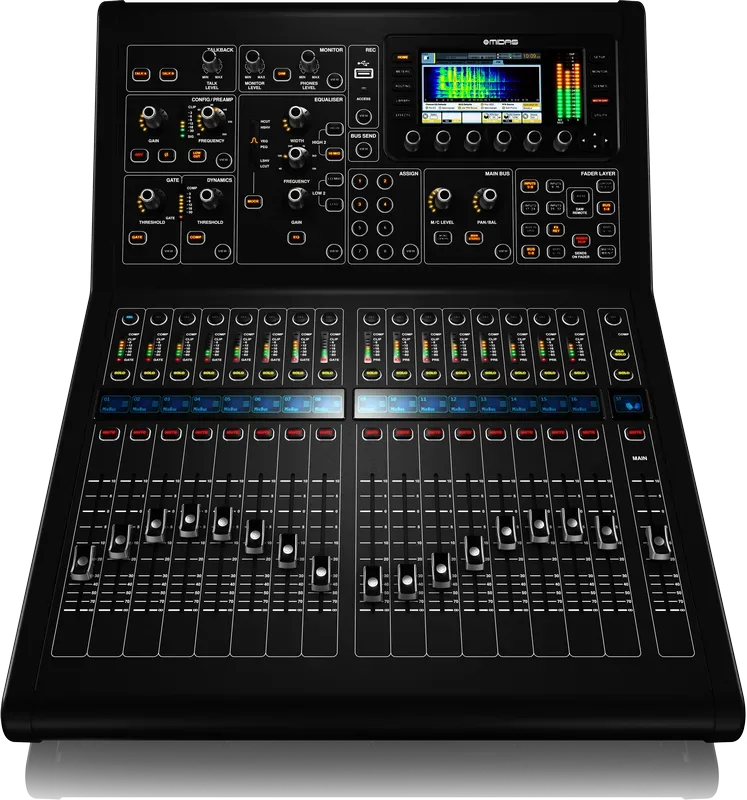

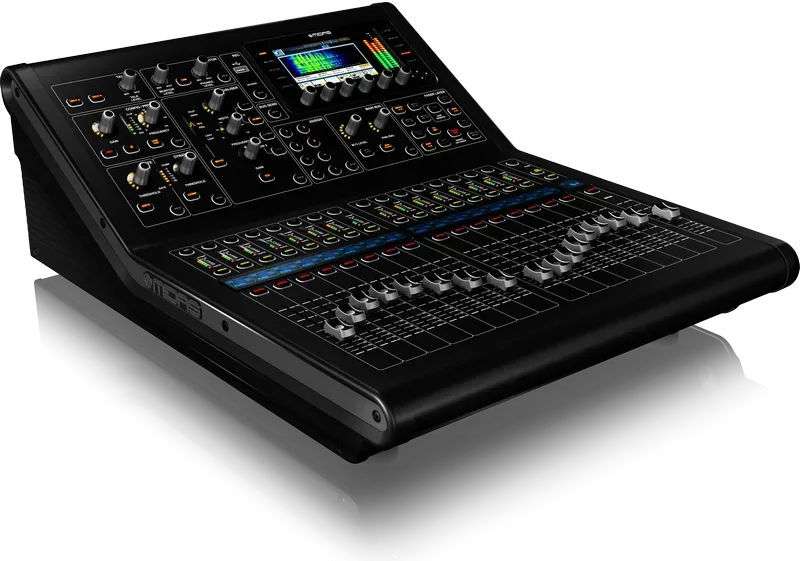

Midas M32R
M32R was to combine the best of classic British console designs with advanced modern technology to completely redefine what a rack mountable digital desktop mixing console can offer.
Digital Console for Live and Studio with 40 Input Channels, 16 MIDAS PRO Microphone Preamplifiers and 25 Mix Buses.
Kirjeldus
- Live performance and studio recording digital console with up to 40 simultaneous input channels
- 16 award-winning MIDAS PRO microphone preamplifiers
- 25 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 96 inputs and 96 outputs
- Open architecture allows for future 96 kHz operation
- 192 kHz ADC and DAC converters for outstanding audio performance
- Industry-leading design by Bentley* Motors Designer
- High-performance aluminium and high-impact steel structure
- Rack mount brackets included for ultimate flexibility
- 40 bit floating point digital signal processing
- 8 DCA and 6 mute groups
- 8 digital signal processing effects engines
- 17 MIDAS PRO motorised 100 mm faders
- Daylight viewable 5” full colour TFT display screen
- 32 x 32 channel USB 2.0 audio interface
- DAW remote control emulations of Mackie Control* and HUI* protocols
- Optional wireless remote control with MIDAS Apps for iPhone* and iPad*
- Auto-ranging universal switch-mode power supply
Processing
Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
Output Processing Channels: 16-Aug
16 aux buses, 6 matrices, main LRC: 100
Internal Effects Engines (True Stereo / Mono): 16-Aug
Internal Show Automation (structured Cues / Snippets): 500 / 100
Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
Signal Processing: 40-Bit Floating Point
A/D Conversion (8-channel, 96 kHz ready): 24-Bit, 114 dB Dynamic Range, A-weighted
D/A Conversion (stereo, 96 kHz ready): 24-Bit, 120 dB Dynamic Range, A-weighted
I/O Latency (Console Input to Output): 0.8 ms
Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

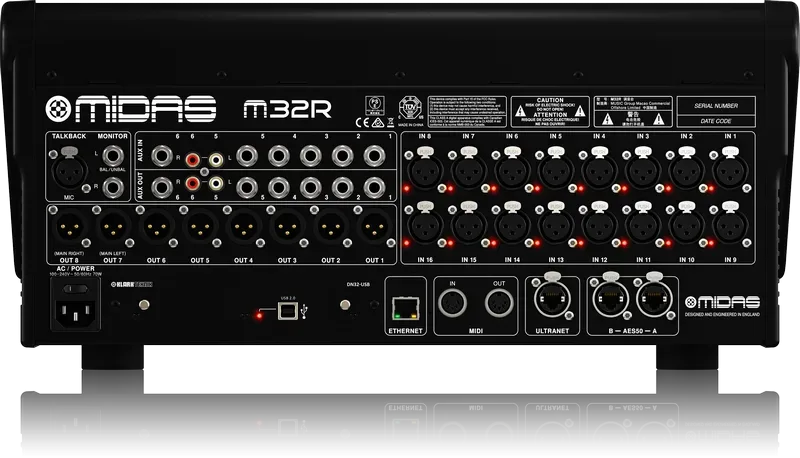

Connectors
MIDAS PRO Series Microphone Preamplifier (XLR): 16
Talkback Microphone Input (XLR): 1
RCA Inputs / Outputs: 2-Feb
XLR Outputs: 8
Monitoring Outputs (XLR / ¼” TRS Balanced): 2-Feb
Aux Inputs/Outputs (¼” TRS Balanced): 6-Jun
Phones Output (¼” TRS): 1 (Stereo)
AES50 Ports (KLARK TEKNIK SuperMAC): 2
Expansion Card Interface: 32 Channel Audio Input / Output
ULTRANET P-16 Connector (No Power Supplied): 1
MIDI Inputs / Outputs: 1-Jan
USB Type A (Audio and Data Import / Export): 1
USB Type B, rear panel, for remote control: 1
Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics
Design MIDAS PRO Series
THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% unweighted
Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
Non-Clip Maximum Input Level: +23 dBu
Phantom Power (Switchable per Input): +48 V
Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB 22 Hz-22 kHz, unweighted
CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB
Input/Output Characteristics
Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB 20 Hz-20 kHz
Dynamic Range, Analogue In to Analogue Out: 106 dB 22 Hz-22 kHz, unweighted
A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB 22 Hz-22 kHz, unweighted
D/A Dynamic Range, Converter and Output (Typical): 109 dB 22 Hz-22 kHz, unweighted
Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz, unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz, unweighted
Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz-22 kHz, unweighted
Display
Main Screen: 5″ TFT LCD, 800 x 480 Resolution, 262k Colours
Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
Main Meter: 18 Segment (-45 dB to Clip)
Power
Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
Power Consumption: 70 W
Physical
Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
Output Processing Channels: 16-Aug
16 aux buses, 6 matrices, main LRC: 100
Internal Effects Engines (True Stereo / Mono): 16-Aug
Internal Show Automation (structured Cues / Snippets): 500 / 100
Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
Signal Processing: 40-Bit Floating Point
A/D Conversion (8-channel, 96 kHz ready): 24-Bit, 114 dB Dynamic Range, A-weighted
D/A Conversion (stereo, 96 kHz ready): 24-Bit, 120 dB Dynamic Range, A-weighted
I/O Latency (Console Input to Output): 0.8 ms
Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms
Connectors
MIDAS PRO Series Microphone Preamplifier (XLR): 16
Talkback Microphone Input (XLR): 1
RCA Inputs / Outputs: 2-Feb
XLR Outputs: 8
Monitoring Outputs (XLR / ¼” TRS Balanced): 2-Feb
Aux Inputs/Outputs (¼” TRS Balanced): 6-Jun
Phones Output (¼” TRS): 1 (Stereo)
AES50 Ports (KLARK TEKNIK SuperMAC): 2
Expansion Card Interface: 32 Channel Audio Input / Output
ULTRANET P-16 Connector (No Power Supplied): 1
MIDI Inputs / Outputs: 1-Jan
USB Type A (Audio and Data Import / Export): 1
USB Type B, rear panel, for remote control: 1
Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics
Design MIDAS PRO Series
THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% unweighted
Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
Non-Clip Maximum Input Level: +23 dBu
Phantom Power (Switchable per Input): +48 V
Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB 22 Hz-22 kHz, unweighted
CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB
Input/Output Characteristics
Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB 20 Hz-20 kHz
Dynamic Range, Analogue In to Analogue Out: 106 dB 22 Hz-22 kHz, unweighted
A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB 22 Hz-22 kHz, unweighted
D/A Dynamic Range, Converter and Output (Typical): 109 dB 22 Hz-22 kHz, unweighted
Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz, unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz, unweighted
Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz-22 kHz, unweighted
Display
Main Screen: 5″ TFT LCD, 800 x 480 Resolution, 262k Colours
Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
Main Meter: 18 Segment (-45 dB to Clip)
Power
Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
Power Consumption: 70 W
Physical
Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
Lisainfo
| Kaal | 14.3 kg |
|---|---|
| Mõõtmed | 47.8 × 61.7 × 20.8 cm |
