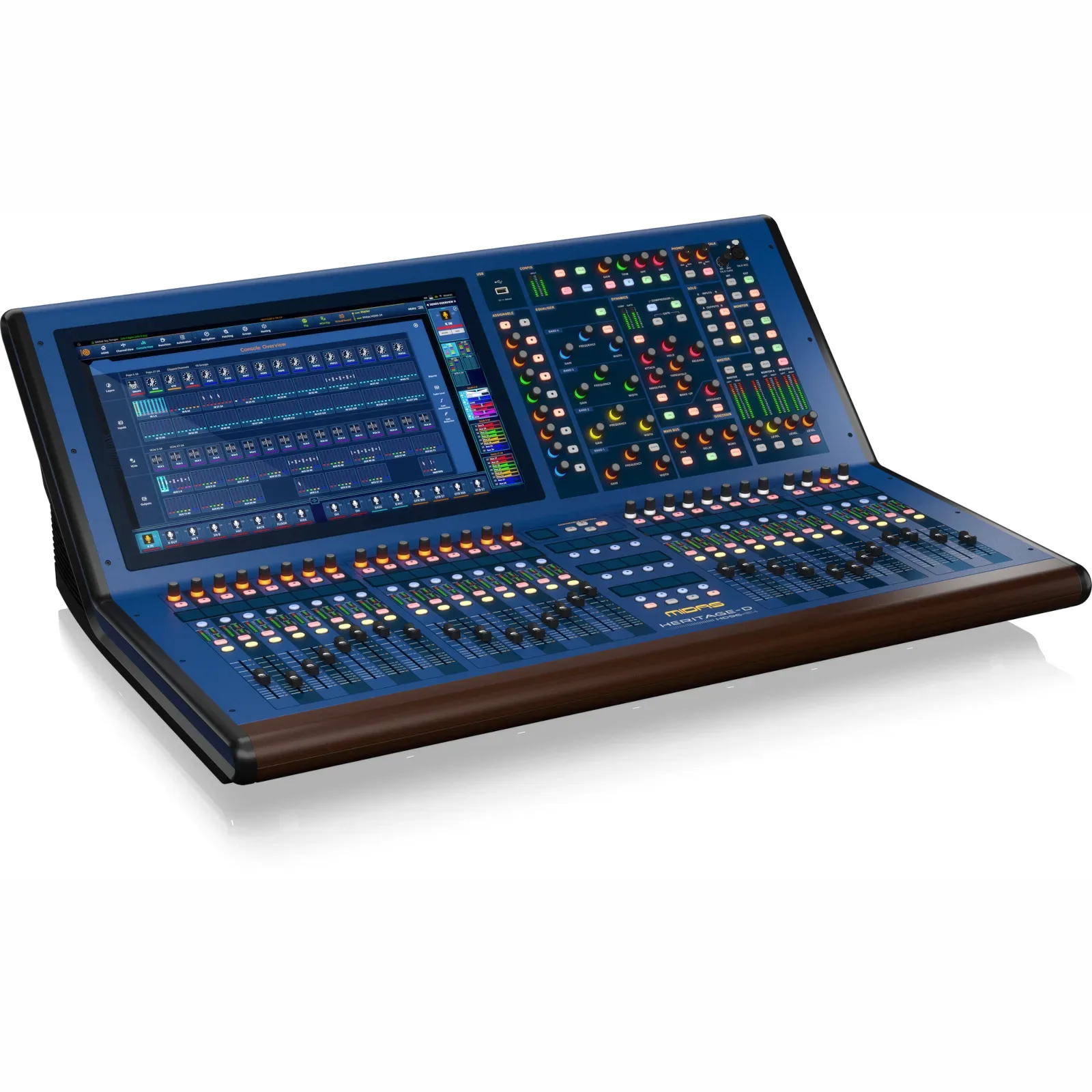

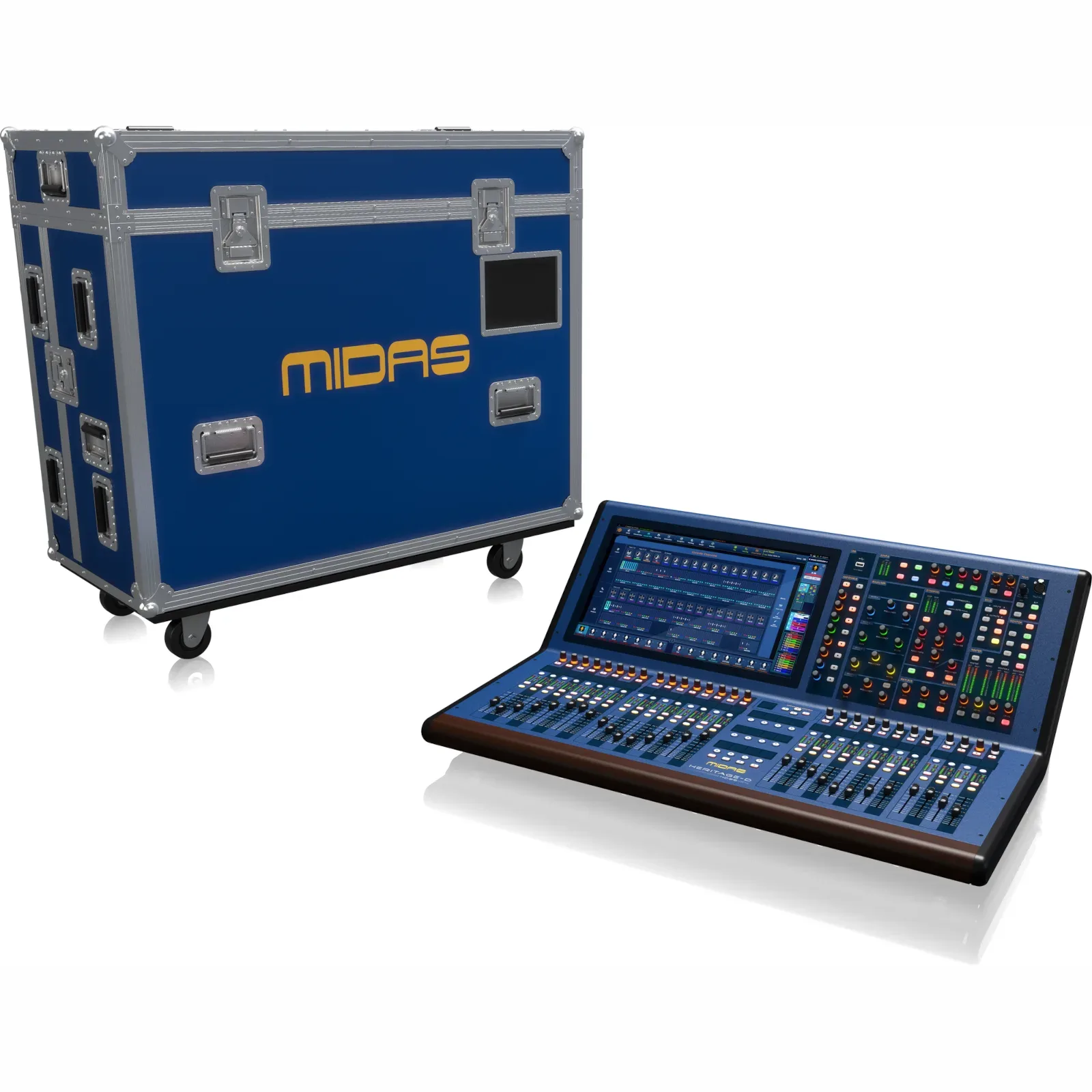

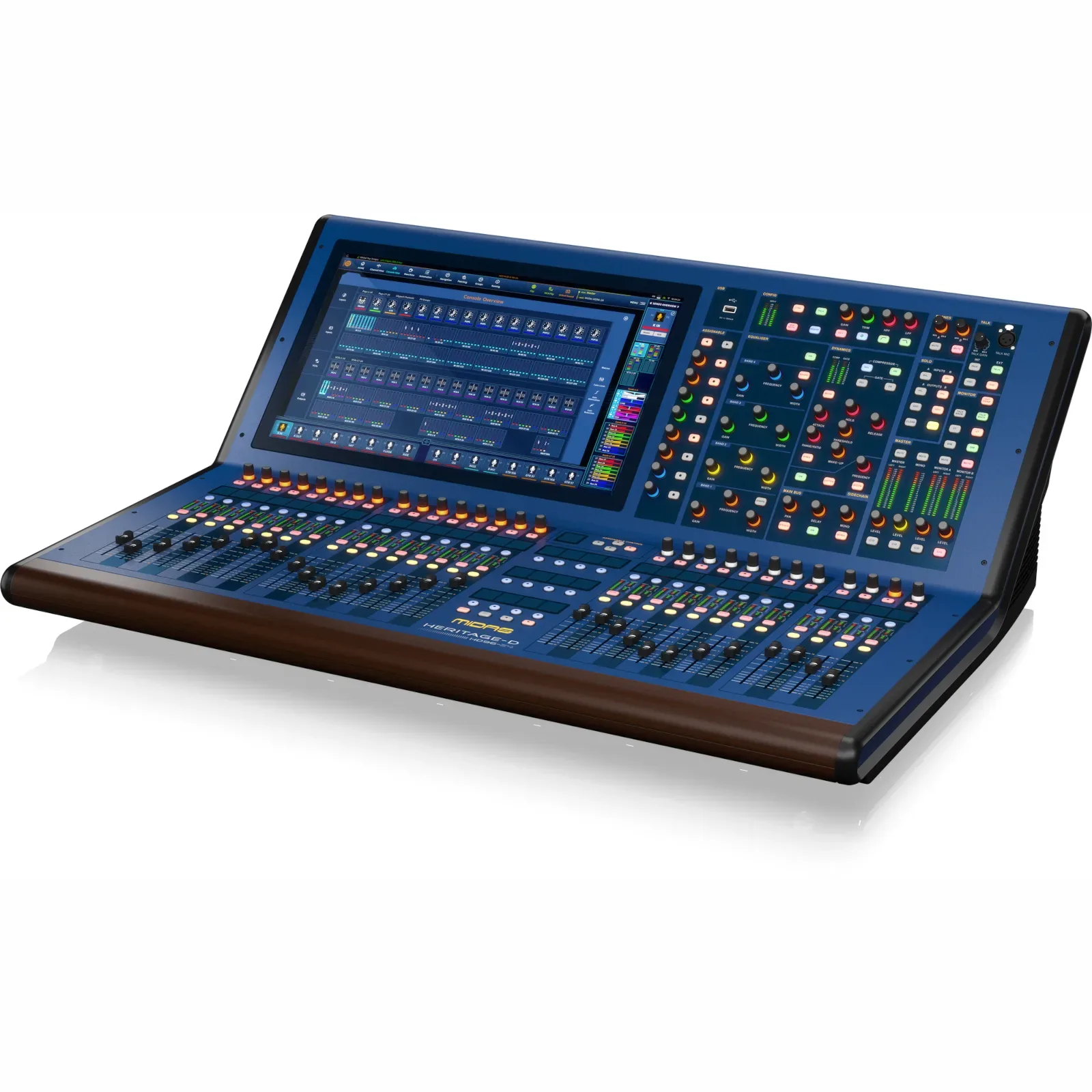

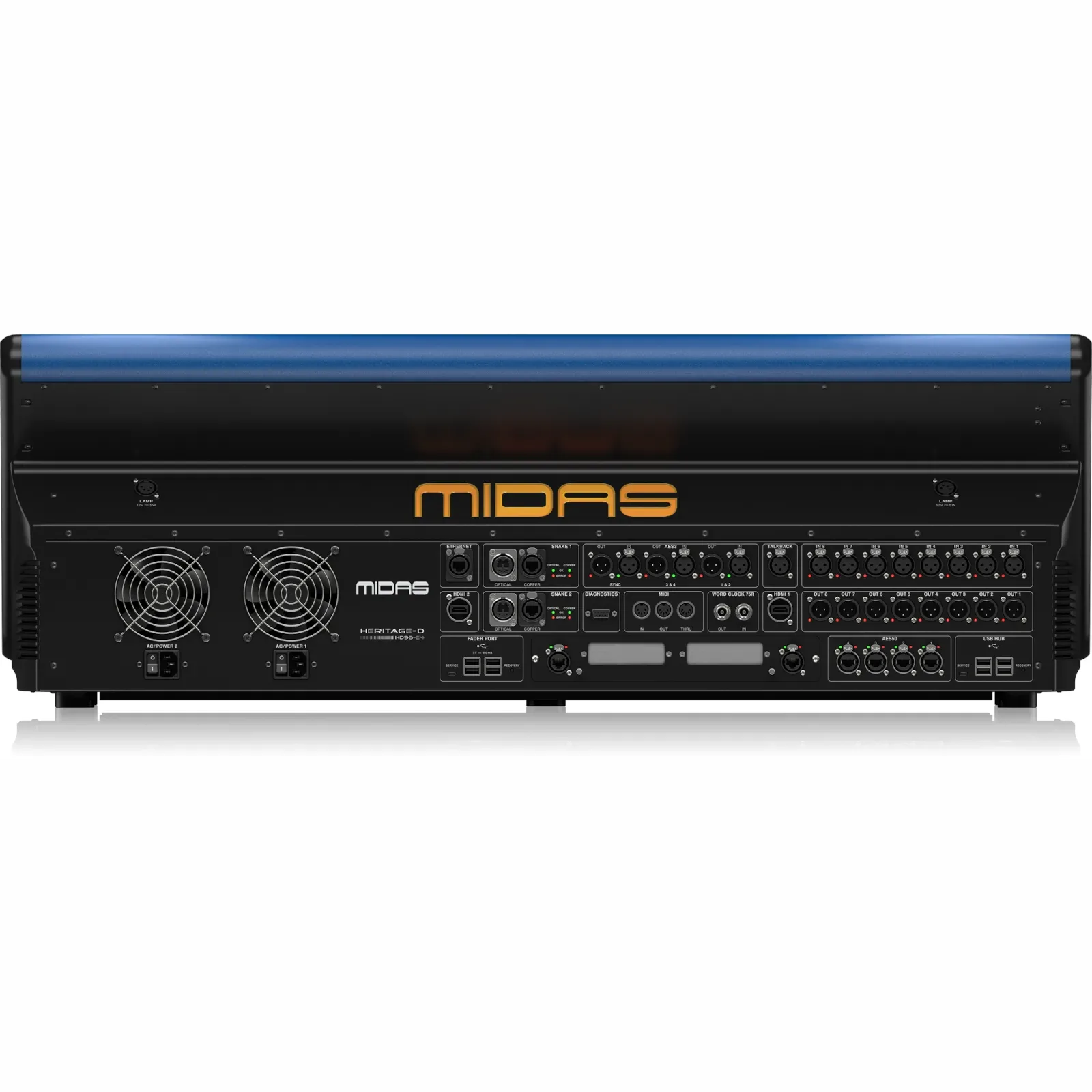

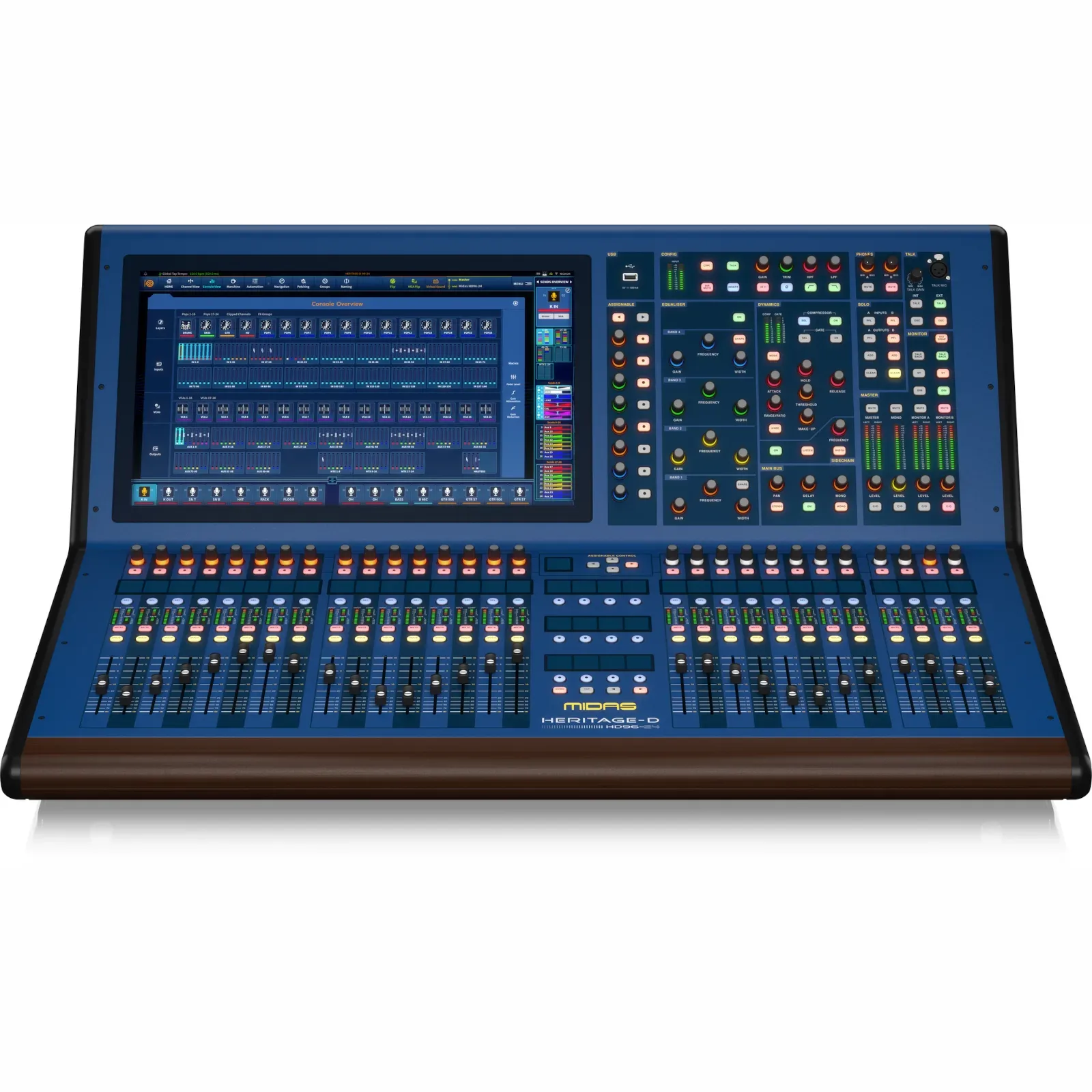

Midas Heritage-D HD96-24 TP

  • Midas Heritage-D HD-96-TP Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
  • 120 time-aligned and phase-coherent mix buses
  • 21″ full colour TFT display screen with capacitive touch sensing
  • Advanced and multi-gesture touchscreen user interface
  • Award-winning Midas microphone preamplifiers
  • HyperMAC and AES50 networking allows up to 576 inputs and 576 outputs @ 96 kHz sample rate
  • Dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion
  • 24 VCA (variable control association) groups, and unlimited POPulation groups
  • Up to 24 multi-channel digital signal processing effects engines
  • Integrated Wireless transceiver module
  • Dual ULTRANET Ports providing 32 additional digital outputs
  • 28 Midas PRO motorised 100 mm faders
  • Fully interpolated touch sensitive controls
  • Dual redundant auto-ranging universal switch-mode power supplies


Input processing channels: 144 flexi channels
Output processing channels: 96 flexi aux outputs, 24 matrices, stereo bus, mono bus
Internal effects engines:
24 x effects slots (up to 96 effects)
32 x Stereo multiband compressors
96 x Stereo dynamic equalisers
Point-to-point routing matrix: 622 x 652
Signal processing: 64-bit floating point
D/A converter: 24-bit, 96 kHz and 128 times oversampling
A/D converter: 24-bit, 96 kHz and 128 times oversampling
Sampling frequency: 96 kHz
I/O latency (surface input to output): 1.34 ms
Input audio processing:
Dual-slope high and low-pass filters
True phase filter control
4-band parametric EQ with 3 shelf modes
4-mode creative input compressors
Input gates or ducker
Insert point on/off with processing order change
Direct output with adjustable level and processing pick of point
Delay-compensated aux return mode on inputs
5 x tap-off points per send
Output audio processing:
Output 4-band parametric EQ with shelving/HP/LP options
4-mode creative output dynamics
Insert point on/off with processing order change
Direct input with adjustable level and processing tap-off point
Mixing control assistance:
12 x talk groups
12 x mute groups
24 x surface POPulation groups
24 x VCA associated population groups
Scene snapshot automation


Kaal 43.2 kg
Mõõtmed 102.8 × 71.9 × 35.2 cm
