Midas DL32
Digital mixing has revolutionized virtually everything in the liveentertainment production workflow.
The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console,
and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.

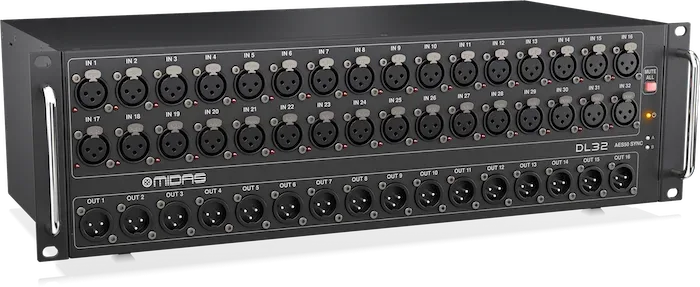

32 Input, 16 Output Stage Box with 32 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces.
Kirjeldus
- Midas DL32 has 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
- 16 electronically balanced low impedance line level outputs
- ULTRANET personal monitoring system connectivity for in-ear applications
- Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
- Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required
- Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
- Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
- 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs

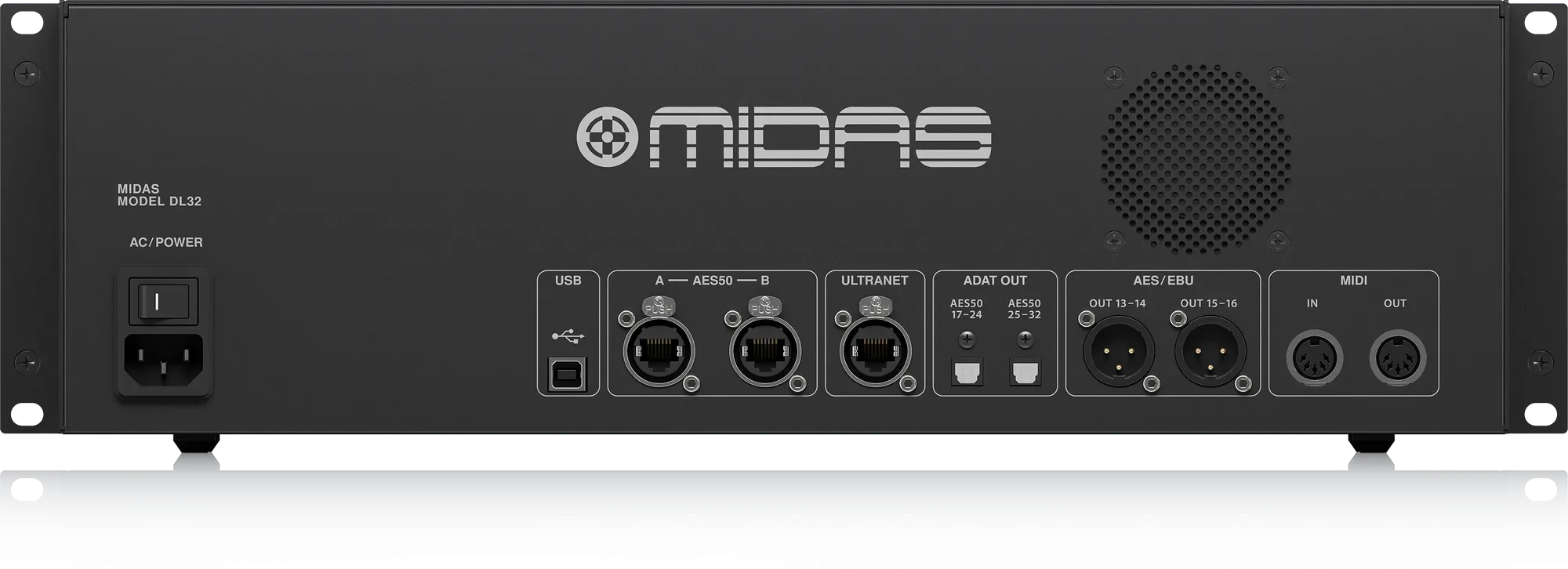

- Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
- Mute All function for quietly patching any inputs on stage
- MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
- Features Neutrik etherCON* AES50 and ULTRANET network ports
- Rugged 3U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Processing
Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
Output Processing Channels: 16
16 aux buses, 6 matrices, main LRC: 100
Internal Effects Engines (True Stereo / Mono): 16
Internal Show Automation (structured Cues / Snippets): 500 / 100
Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
Signal Processing: 40-Bit Floating Point
A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)
I/O Latency (Console Input to Output): 0.8 ms
Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms
Connectors
MIDAS PRO Series Microphone Preamplifier (XLR): 32
Talkback Microphone Input (XLR): 1
RCA Inputs / Outputs: 2
XLR Outputs: 16
Monitoring Outputs (XLR / ¼” TRS Balanced): 2
Aux Inputs/Outputs (¼” TRS Balanced): 6
Phones Output (¼” TRS): 2 (Stereo)
Digital AES/EBU Output (XLR): 1
AES50 Ports (KLARK TEKNIK SuperMAC): 2
Expansion Card Interface: 32 Channel Audio Input / Output
ULTRANET P-16 Connector (No Power Supplied): 1
MIDI Inputs / Outputs: 1
USB Type A (Audio and Data Import / Export): 1
USB Type B, rear panel, for remote control: 1
Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics
Design: MIDAS PRO Series
THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
Non-Clip Maximum Input Level: +23 dBu
Phantom Power (Switchable per Input): +48 V
Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB (22 Hz-22 kHz, unweighted)
CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB
Input/Output Characteristics
Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB (20 Hz-20 kHz)
Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, TRS and Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted
Display
Main Screen: 7″ TFT LCD, 800 x 480 Resolution, 262k Colours
Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
Main Meter: 24 Segment (-57 dB to Clip)
Power
Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
Power Consumption: 120 W
Physical
Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
Output Processing Channels: 16
16 aux buses, 6 matrices, main LRC: 100
Internal Effects Engines (True Stereo / Mono): 16
Internal Show Automation (structured Cues / Snippets): 500 / 100
Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
Signal Processing: 40-Bit Floating Point
A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)
I/O Latency (Console Input to Output): 0.8 ms
Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms
Connectors
MIDAS PRO Series Microphone Preamplifier (XLR): 32
Talkback Microphone Input (XLR): 1
RCA Inputs / Outputs: 2
XLR Outputs: 16
Monitoring Outputs (XLR / ¼” TRS Balanced): 2
Aux Inputs/Outputs (¼” TRS Balanced): 6
Phones Output (¼” TRS): 2 (Stereo)
Digital AES/EBU Output (XLR): 1
AES50 Ports (KLARK TEKNIK SuperMAC): 2
Expansion Card Interface: 32 Channel Audio Input / Output
ULTRANET P-16 Connector (No Power Supplied): 1
MIDI Inputs / Outputs: 1
USB Type A (Audio and Data Import / Export): 1
USB Type B, rear panel, for remote control: 1
Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics
Design: MIDAS PRO Series
THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
Non-Clip Maximum Input Level: +23 dBu
Phantom Power (Switchable per Input): +48 V
Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB (22 Hz-22 kHz, unweighted)
CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB
Input/Output Characteristics
Frequency Response @ 48 kHz Sample Rate 0 dB to -1 dB (20 Hz-20 kHz)
Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, TRS and Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted
Display
Main Screen: 7″ TFT LCD, 800 x 480 Resolution, 262k Colours
Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
Main Meter: 24 Segment (-57 dB to Clip)
Power
Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
Power Consumption: 120 W
Physical
Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
Lisainfo
| Kaal | 5.7 kg |
|---|---|
| Mõõtmed | 48.2 × 24.2 × 13.8 cm |
