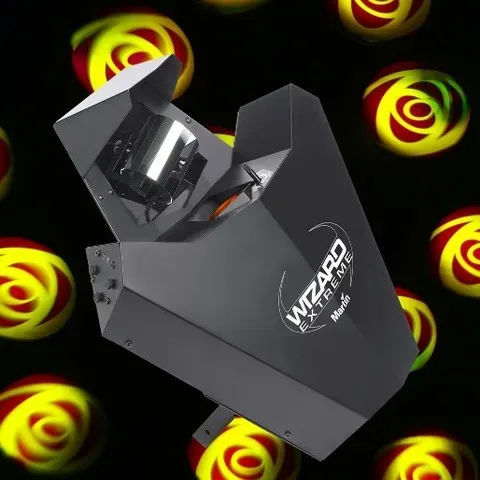

Martin Wizard Extreme

The Wizard Extreme is a 250 W discharge light with rapid movement, over 80 color and gobo beams and a shutter for rapid strobe effects.

  • 250 W discharge lamp
  • Long lamp life (3000 hrs)
  • 7 interchangeable colors plus 2 open positions and twinkle effect
  • Separate shutter for strobe effect
  • Rotating and swiveling mirror drum
  • Manual focus
  • DMX, stand alone (music or auto-trig) and host/client function
  • Continuous operation – no cool down time needed
  • 12 pre-programmed macros for fast start-up
  • 13 gobos plus open (3 with dichroic reflectors)
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Kogus *

Kategooria:

Kirjeldus

DYNAMIC EFFECTS
Motorized rotating parabolic mirror dish:Color wheel: 8 colors + open, full and split color selection, twinkle and shake effectsColor/gobo wheel: 12 gobos + open, stepped scroll to full positions or continuous rotation, shake effectDimmer: 0 – 100%Shutter: 0 – 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackoutMotorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)
CONTROL AND PROGRAMMING
Control options: DMX, stand-alone, synchronized (host/client)DMX channels: 1/8/11Macro programs selectable via DMX: 12Stand-alone trigger options: Music trig, auto trig (both selectable via DIP siwtch or via DMX)DMX address setting: DIP switchStand-alone programming: DIP switchProtocol: USITT DMX512/1990Receiver: RS-485Firmware update: Serial upload via DMX link
LAMPType: 250 W dischargeFitted as standard: Osram HSD 250/80Color temperature: 8000 KAverage lifetime: 3000 hoursSocket: G5.3Approved alternative lamp(s): Philips MSD 250/2, Osram HSD 250/60, Philips MSD 200
OPTICS
Manual focus: 2 m – 20 m
CONSTRUCTION
Housing: Steel and aluminumColor(s): BlackProtection rating: IP20
INSTALLATION
Mounting points: Adjustable bracket, floor stand (accessory) multi-coupler bracket (accessory)Orientation: Any
CONNECTIONSAC
power input: 3-pin IEC male socketDMX data in/out: 3-pin locking XLR
ELECTRICALAC power: User-reconfigurable 100-130/200-240 V nominal, 50/60 Hz (US model) 220-240 V nominal, 50 Hz (EU model)Main fuse: 6.3 AT (US model). 3.15 AT (EU model)
TYPICAL POWER AND CURRENT
100 V, 50 Hz: 320 W, 3.8 A100 V, 60 Hz: 310 W, 3.4 A120 V, 60 Hz: 310 W, 2.7 A230 V, 50 Hz: 320 W, 1.5 A250 V, 50 Hz: 310 W, 1.4 AMeasurements made at nominal voltage. Allow for a deviation of +/- 10%.:
THERMALC
ooling: Forced airMaximum ambient temperature (Ta max.): 40° CMaximum surface temperature, steady state, Ta=40° C: 80° CTotal heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 1060 / 1090 BTU/hr.

APPROVALSEU safety: EN 60598-2-17EU EMC: EN 55103-1, EN 55103-2US safety: ANSI/UL 1573Canadian safety: CSA C22.2 No. 166

INCLUDED ITEMS
Osram HSD 250/80 lamp: 97010116Mounting bracket:5 m data cable, 3-pin XLR: 118200082 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 115015013 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 115010173 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013User manual: 35000155
ACCESSORIES
Philips MSD 250/2 lamp: 97010100Wizard multi-coupler bracket: 91606010Wizard floor stand: 91606008G-clamp: 91602003Half-coupler clamp: 91602005DMX termination plug, 3-pin male XLR: 916130175-pin male XLR to 3-pin female XLR adaptor: 11820005Safety cable, safe working load 50 kg: 91604003

Lisainfo

Kaal 14.5 kg
Mõõtmed 55.2 × 51.6 × 20.8 cm
