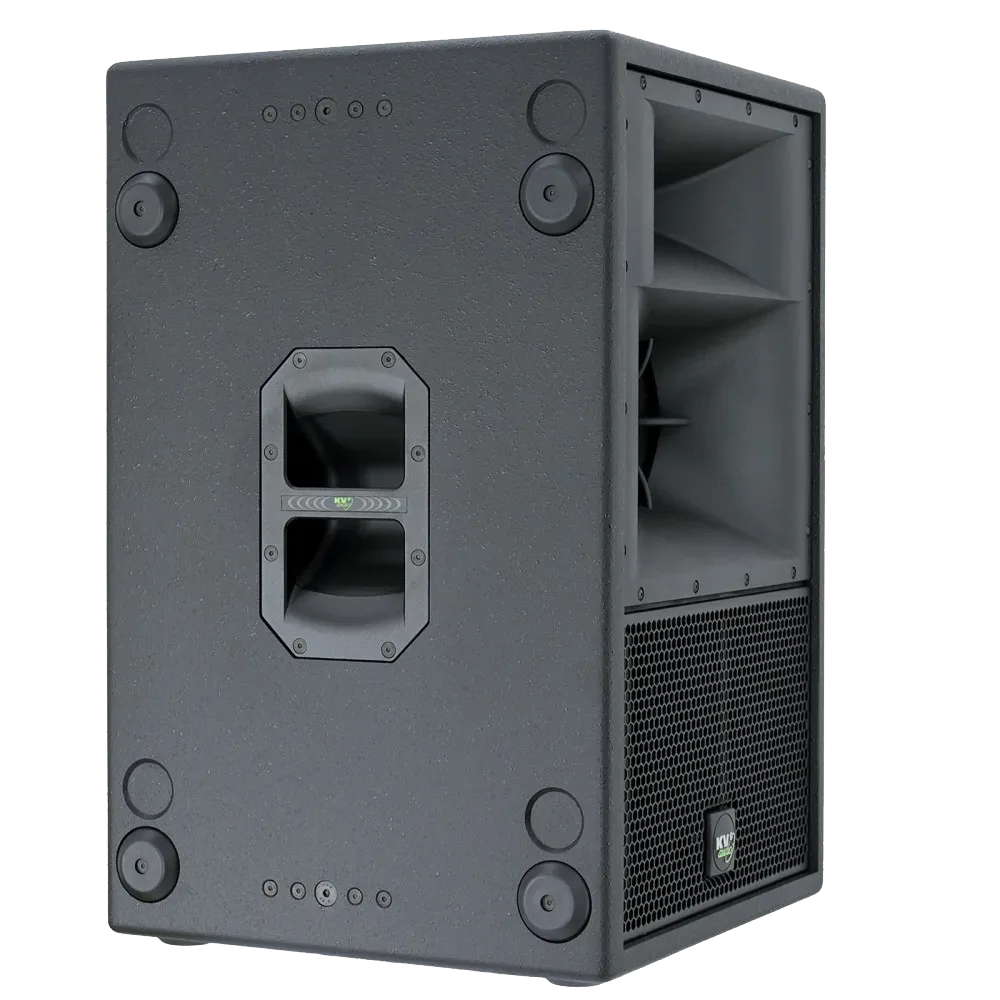

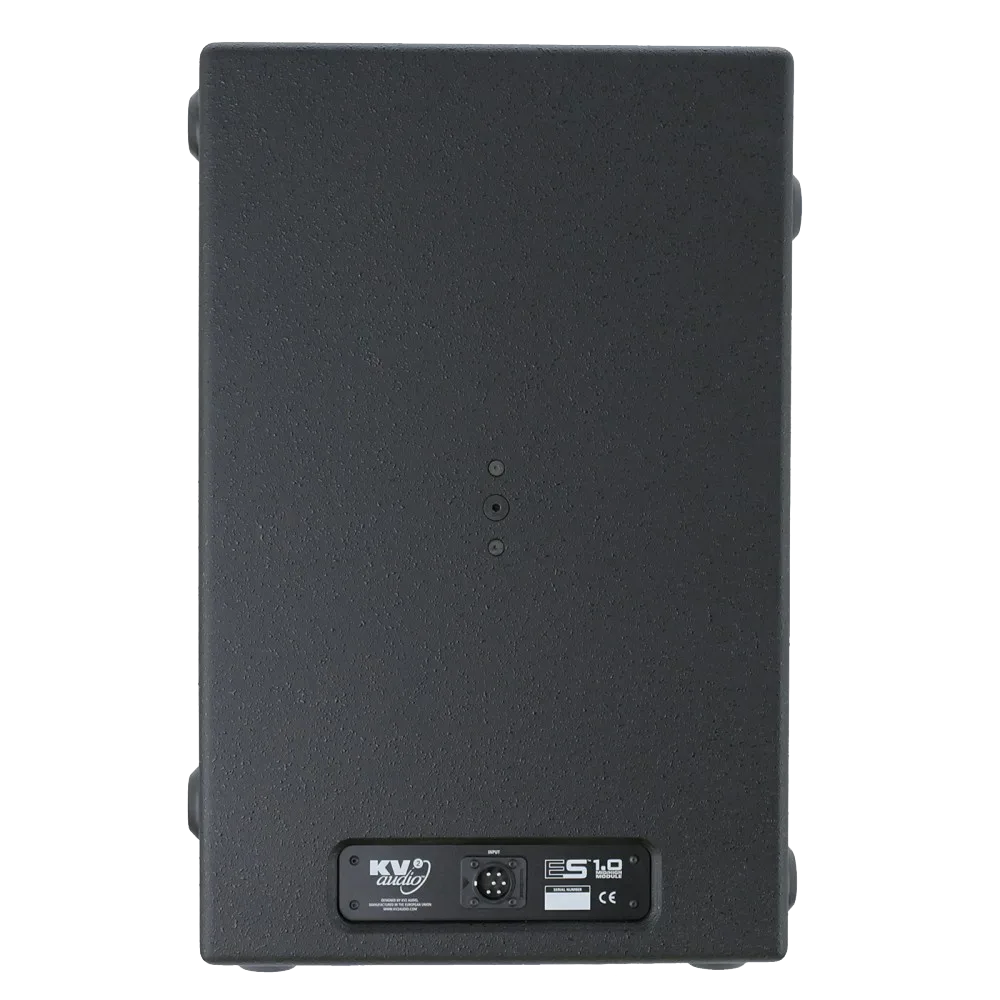

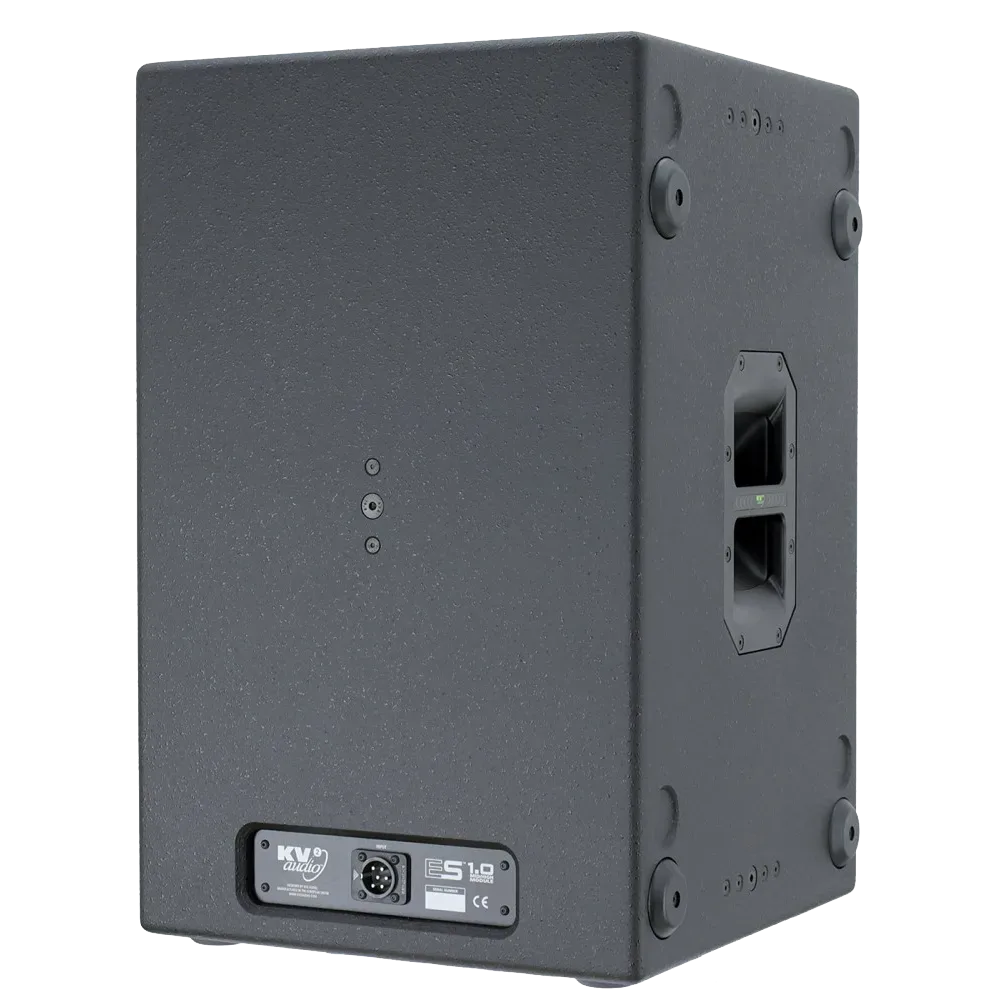

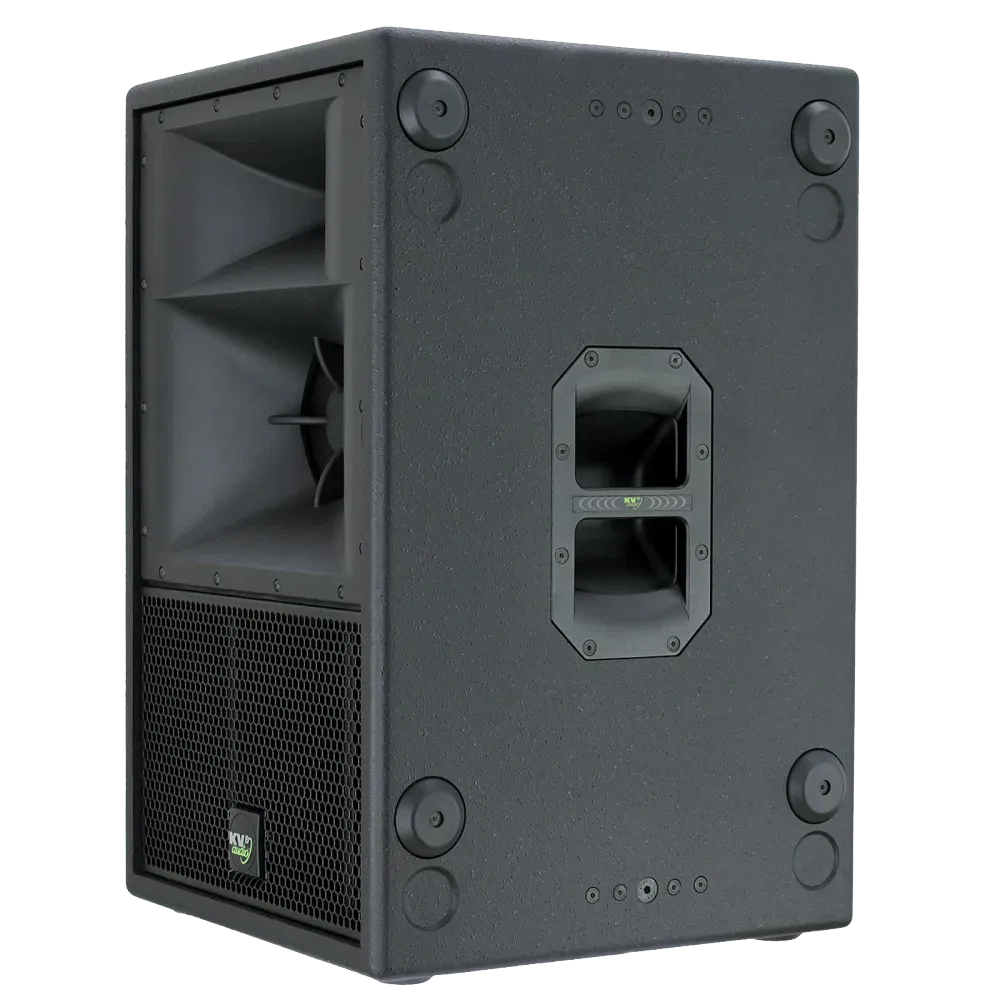

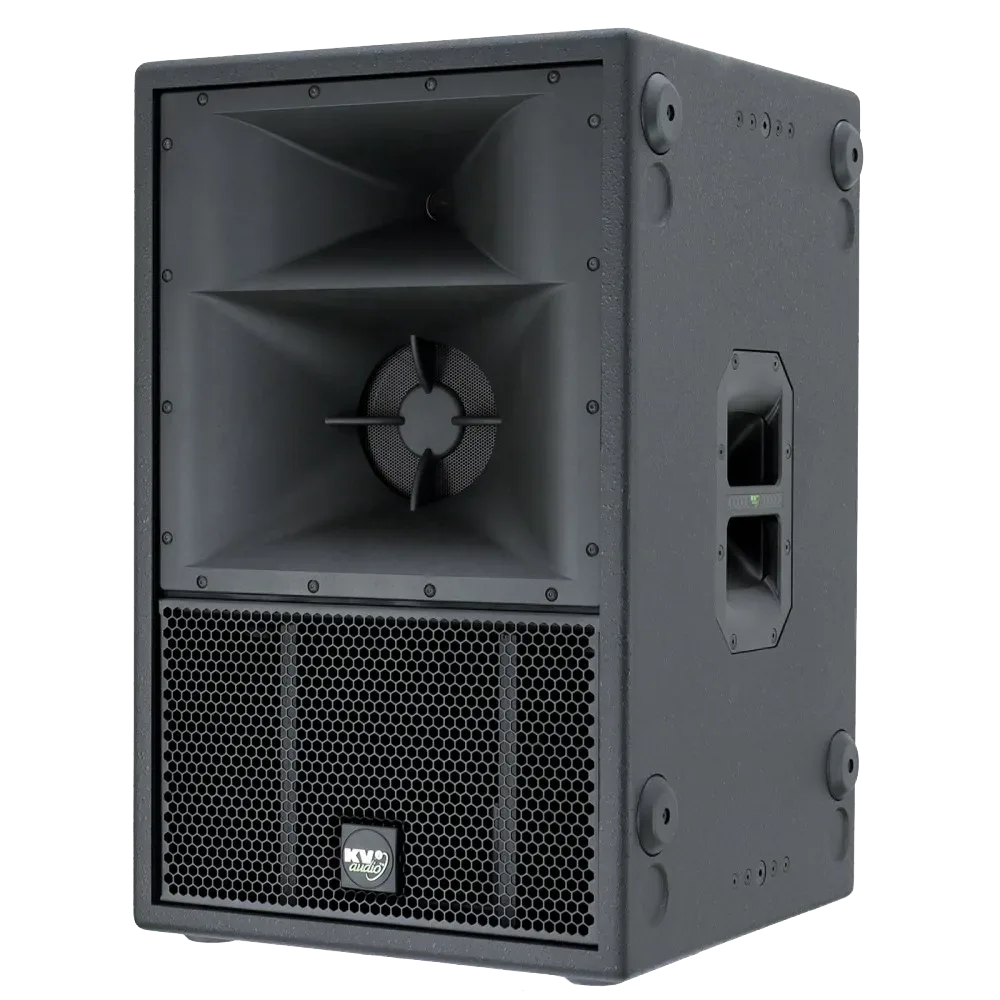

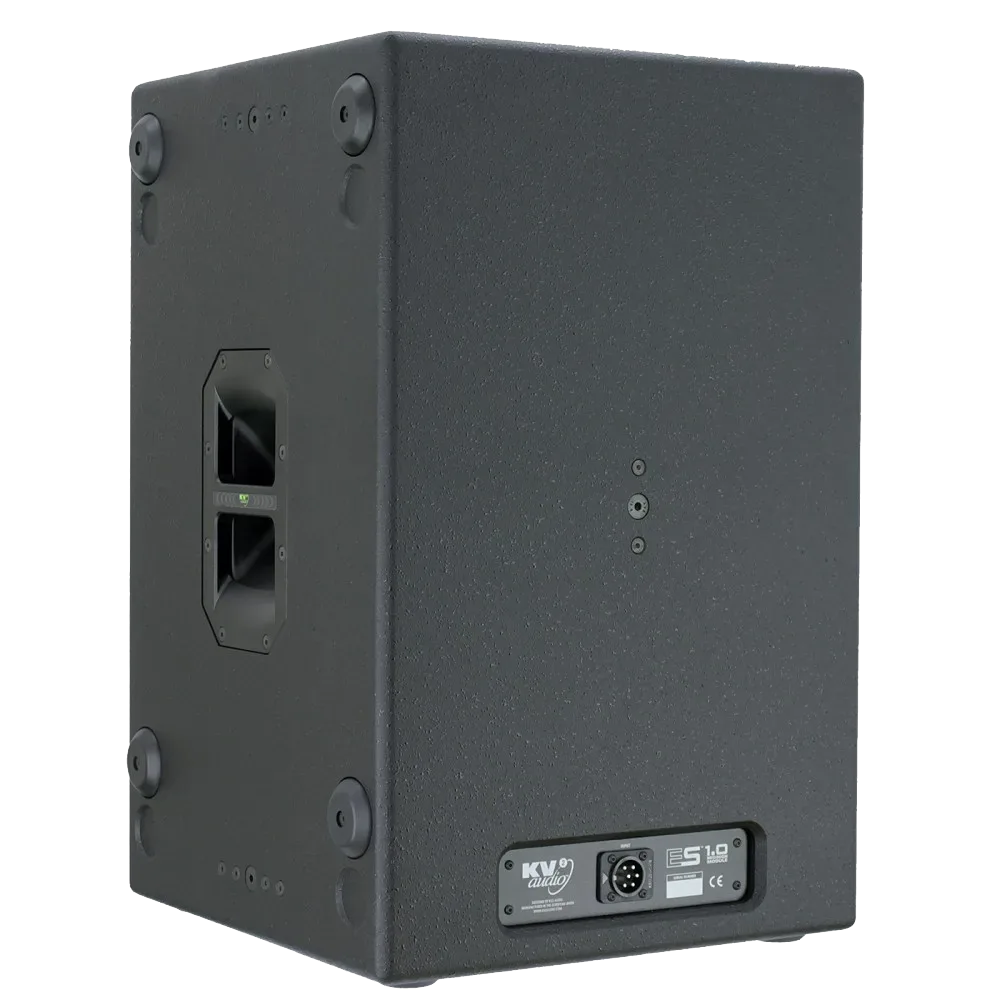

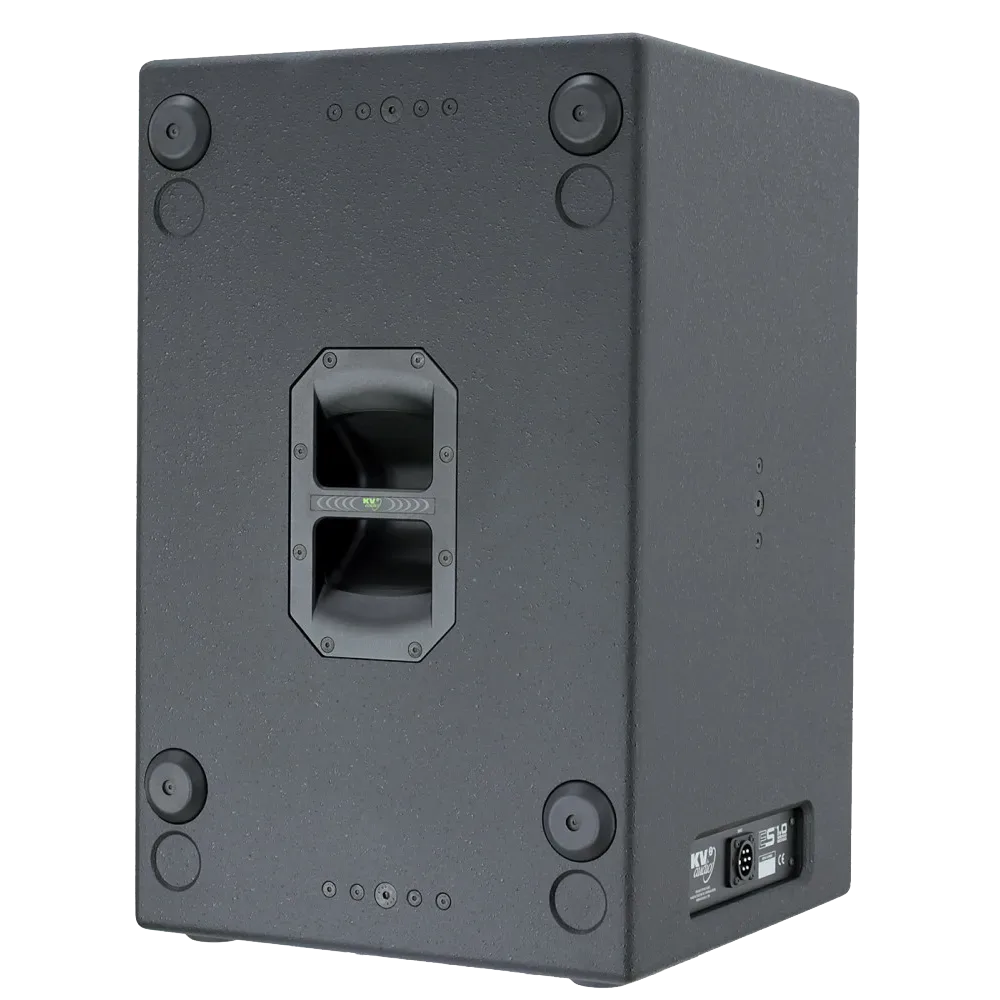

KV2 Audio ES1.0
The Core of Your ES System.
The ES1.0 is a 3-way, very high output, active-driven, mid-high / mid-bass module designed as part of a complete ES system, driven by the EPAK2500/R control and amplification unit. The ES1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES1.0 (running two horizontally per side) it becomes an even more powerful tool, providing peak SPL of 139dB and a throw of up to 40 metres for applications of up to 3000 people.
Kirjeldus
System Acoustic Perfomance
Max SPL Long-term 131dB
Max SPL Peak 137dB
-3dB Response 130Hz to 20kHz
-10dB Response 85Hz to 28kHz
Impedance Low 16Ω Mid 8Ω High 8Ω
Crossover Point 130Hz, 500Hz, 2.5kHz
High Frequency Section
High Horn Coverage Horizontal /
Vertical
90° x 40° rotatable
High Frequency Amplifier
Requirement
100W from EPAK 2500/R
Throat Exit Diameter / Diaphragm
Size
1″ / 1.75″
Diaphragm Material Titanium
Magnet Type Neodymium
Mid Range Section
Acoustic Design Horn Loaded
Mid Horn Coverage Horizontal /
Vertical
90° x 40° rotatable
Midrange Amplifier Requirement 200W from EPAK 2500/R
Woofer Size / Voice Coil Diameter 6″ / 1.75″
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Mid-Bass Section
Acoustic Design Horn Loaded
Mid-bass Amplifier Requirement 600W from EPAK 2500/R
Woofer Size / Voice Coil Diameter /
Design
12″ / 3″ / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Speaker Input
Speaker Input AP6
Cabinet
Cabinet Material Baltic birch
Handles 2
Pole Mount 35 mm
Color “Orange peeled”
Matt Black or any RAL
Lisainfo
| Kaal | 34 kg |
|---|---|
| Mõõtmed | 45 × 45 × 70 cm |
