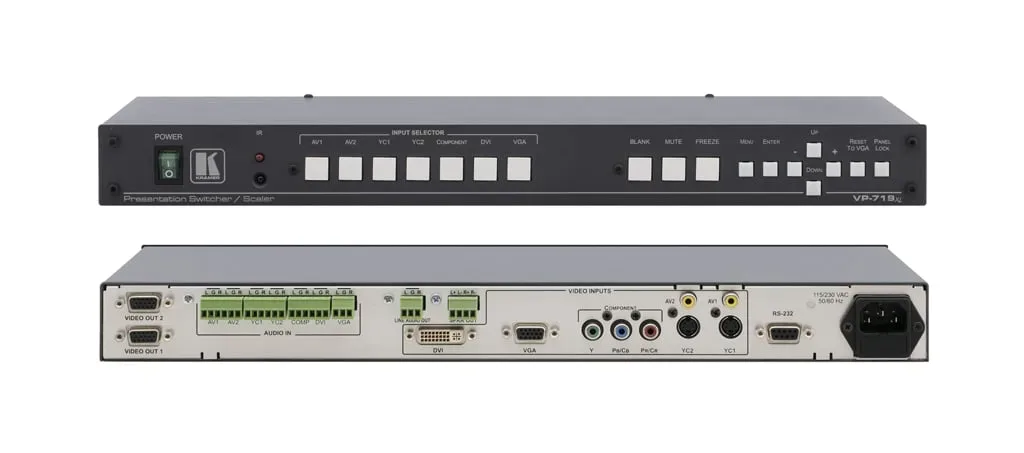

Kramer Presenthation Switcher Scaler VP-719XL
The VP-719xl is a 7-input scaler/switcher with unbalanced stereo audio. It scales any composite, s-Video (Y/C), component video (YUV), DVI Video or computer graphics video signal up or down to a selectable graphics output resolution and provides glitch-free switching between sources through FTB™ (fade-thru-black) switching technology.
Kirjeldus
INPUT:Video: 2 CV: 1Vpp/75Ω on RCA connectors; 2 Y/C: 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on 4−pin connectors; 1 component (Y, Pb/Cb, Pr/Cr) on RCA connectors, both progressive and interlaced signals accepted; 1 DVI−D on a DVI−I connector; 1 VGA on a 15−pin HD (F) connector (VGA through UXGA + HDTV); Audio: 7 unbalanced stereo audio inputs on terminal block connectors.
OUTPUT:Video: 2 VGA on 15−pin HD (F) connectors for computer output resolutions (RGBHV); Audio: 1 line−level stereo and 1 stereo loudspeaker (5W RMS per channel) on terminal block connectors.
OUTPUT RESOLUTION:Computer (RGBHV): VGA (640×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024), UXGA (1600×1200), 1024×852, 1024×1024, 1366×768, 1365×1024, 1280×720, 720×483, 852×480, 1400×1050, 1280×768, & custom.
CONTROL:Front panel and infrared remote with on−screen display; RS−232 (on a 9−pin D−sub connector).
ADDITIONAL CONTROLS:Freeze frame, zoom, selectable vertical refresh rates, audio and video ProcAmp, output image scaling, and aspect ratio selection.
MAX AUDIO IN:1.9Vpp.
MAX AUDIO OUT:4.8Vpp.
POWER CONSUMPTION:110−240V AC, 50/60Hz, 50VA.
INCLUDED ACCESSORIES:IR remote control, power cord, null−modem adapter.
