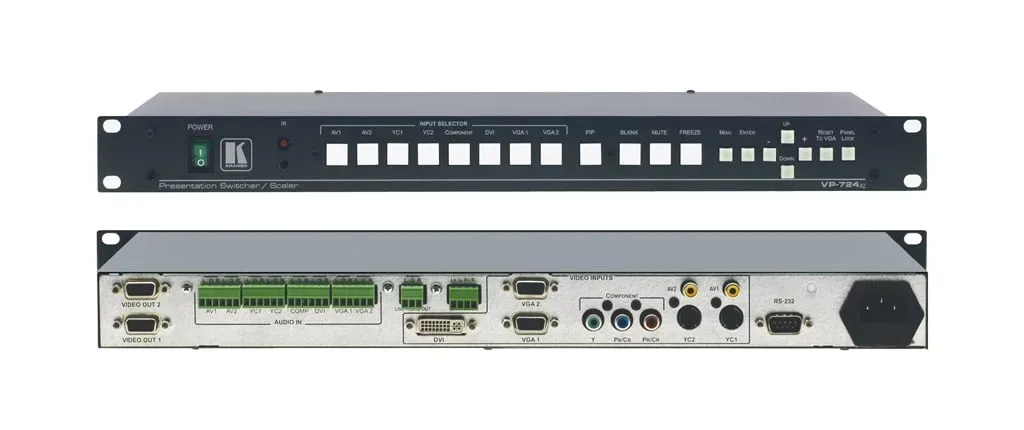

Kramer Presenthation Scaler VP-724XL

The VP-724xl is an 8-input scaler/switcher with unbalanced stereo audio. It scales any composite, s-Video (Y/C), component video (YUV), DVI video or computer graphics video signal up or down to a selectable graphics or HDTV output resolution and provides glitch-free switching between sources through FTB™ (fade-thru-black) switching technology.

Kategooria:

Kirjeldus

  • INPUT:
    Video (8): 2xCV (1Vpp/75Ω) on RCAs; 2xY/C (Y=1Vpp/75Ω, C=0.3Vpp/75Ω) on 4−pin connectors; 1xComponent (Y, Pb/Cb, Pr/Cr) on RCA connectors − both progressive and interlaced signals accepted; 1xDVI−D on a DVI−I connector; 2xVGA on HD−15F Connectors (VGA through UXGA + HDTV); Audio: 8 unbalanced stereo audio inputs on terminal block connectors.
    OUTPUT:
    Video: 2 VGA on HD−15F connectors for computer output resolutions (RGBHV) and component output resolutions (HDTV). Audio: 1 line−level stereo and 1 stereo loudspeaker (5 Watts RMS per channel) on terminal block connectors.
    OUTPUT RESOLUTION:
    Computer (RGBHV): VGA (640×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024), UXGA (1600×1200), 1024×852, 1024×1024, 1366×768, 1365×1024, 1280×720, 720×483, 852×480, 1400×1050, 1280×768. HDTV (Component): 480p, 720p, 1080i, 1080p.
    CONTROL:
    Front Panel and Infrared remote with on−screen display;RS−232 (on a DB−9 connector).
    ADDITIONAL CONTROLS:
    Picture−In−Picture: Video in graphics (or vice versa) in sizes up to quarter screen at any location, or split−screen (2 images side−by−side); freeze frame, zoom, selectable vertical refresh rates, audio and video proc amp, output image scaling, and aspect ratio.
    MAX AUDIO IN:
    1.9 Vpp
    MAX AUDIO OUT:
    4.8 Vpp
    POWER CONSUMPTION:
    110−240V AC, 50/60Hz, 50VA.
    INCLUDED ACCESSORIES:
    IR remote control, power cord, null modem adapter.
