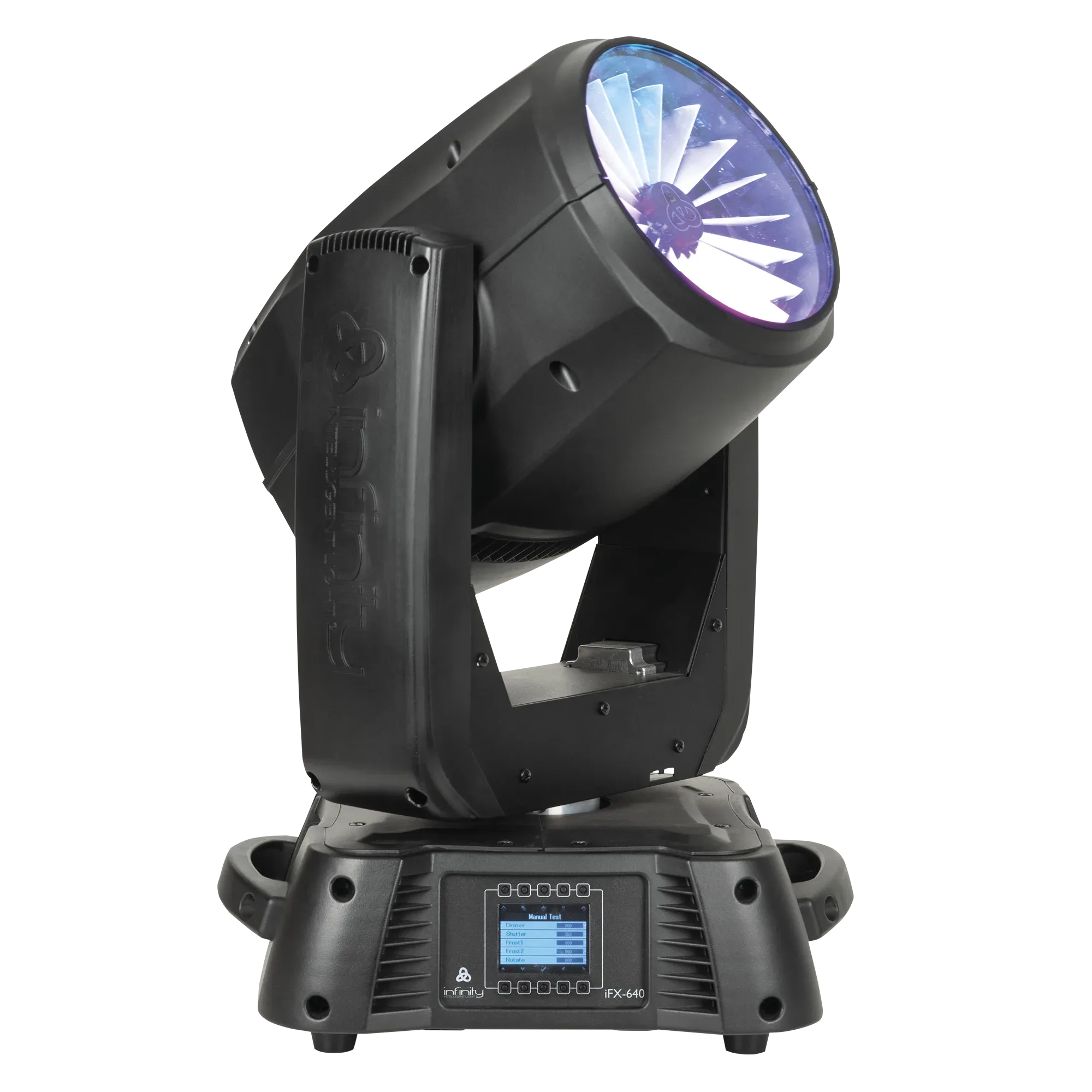

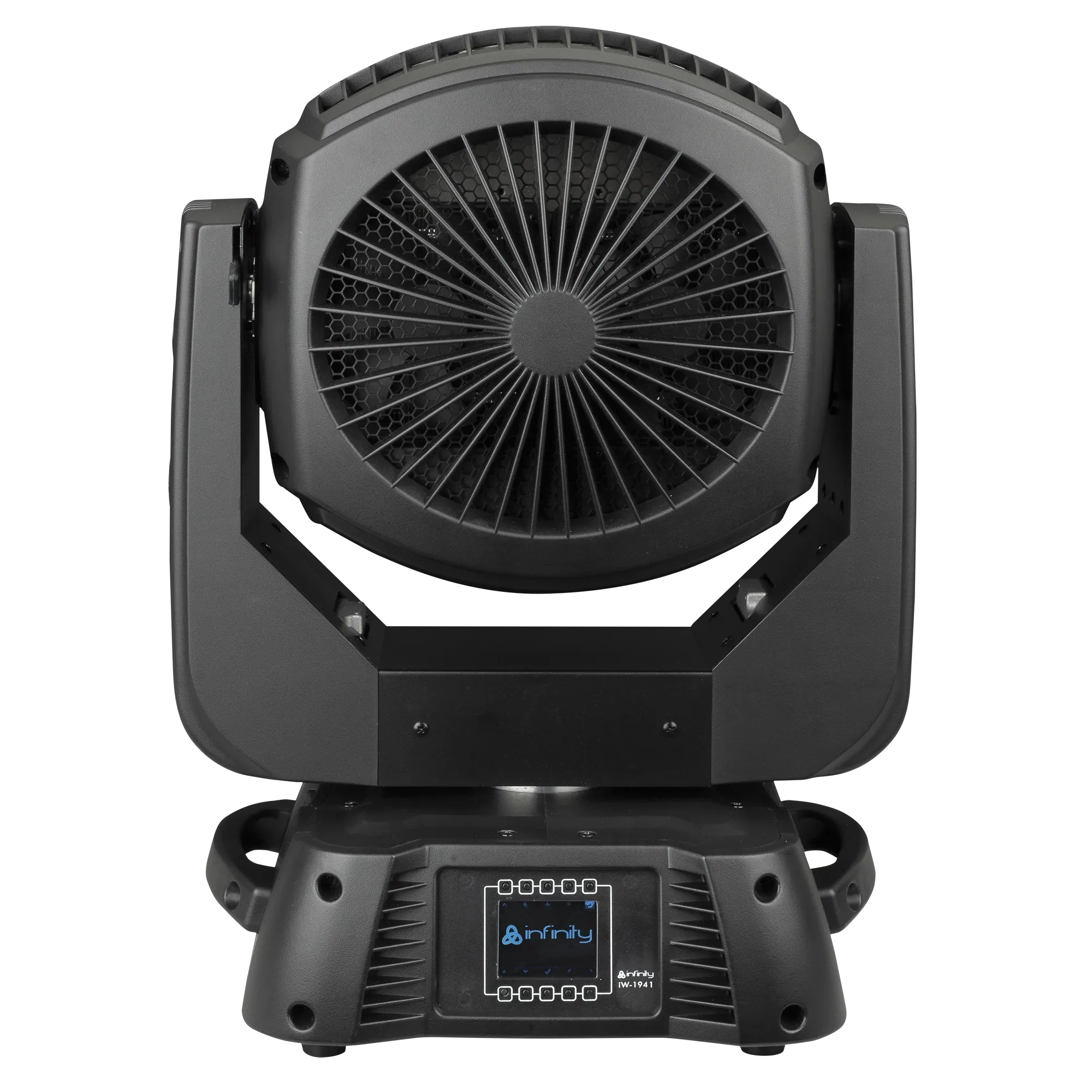

Infinity iFX-640 Wash

The Infinity iFX-640 is a 6x 40 watt RGBW effect Moving Head with Individual Pixel Control. This creative eye-candy lighting fixture is perfectly fit to create stunning effects with its 4 dimmer curves, an endlessly rotatable, bi-directional front lens to create prism beam effects, a diffraction filter that creates flower effects, beam diffusion blades for making a nice wash, and a strobe function.
With the iFX-640 you can create nice colours, from punchy saturates to smooth pastels and whites. It’s also possible to seamlessly transition from a narrow 5° beam to a wide 36° wash thanks to its motorised zoom. Furthermore, you can control the angle of the beam diffusion blades on a continuous scale. This allows you to create a frost effect that is precisely tailored to your scene. Controlling this fixture can be done manually and via DMX in either Manual and Auto-Run mode.

Kogus *

Tootekood: 8717748513489 Kategooria:

Kirjeldus

Source
Light Source Type LED
Light Source Quantity 6
Light Source Power 40 W
LED Colour Type RGBW
Life Expectancy 20000 h
Refresh Rate (Max.) 15 kHz
Luminous Flux (Total) 1800 lm
CRI 80
Optical
Beam Angle Minimum (Circular) 5 °
Beam Angle Max. (Circular) 36 °
Zoom Type Motorised
Zoom Ratio 1:7
Frost Yes
Control and Programming
Control Mode Auto, DMX, Manual
DMX Channels 24
Protocols DMX, RDM
Wireless Optional
Display Battery, Gravity Sensor, LCD
Fan mode Yes
Dim Curve Linear, Square, I-Square, S-Curve
Zone Control (Sections) 6
Dimmer Resolution 16 bit
Zoom Resolution 8 bit
Frost Resolution 8 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Prism 1 Circular
Movement
Pan 540 °
Tilt 270 °
Pan/Tilt Resolution 16-bit
Continuous Movement Rotating Optics

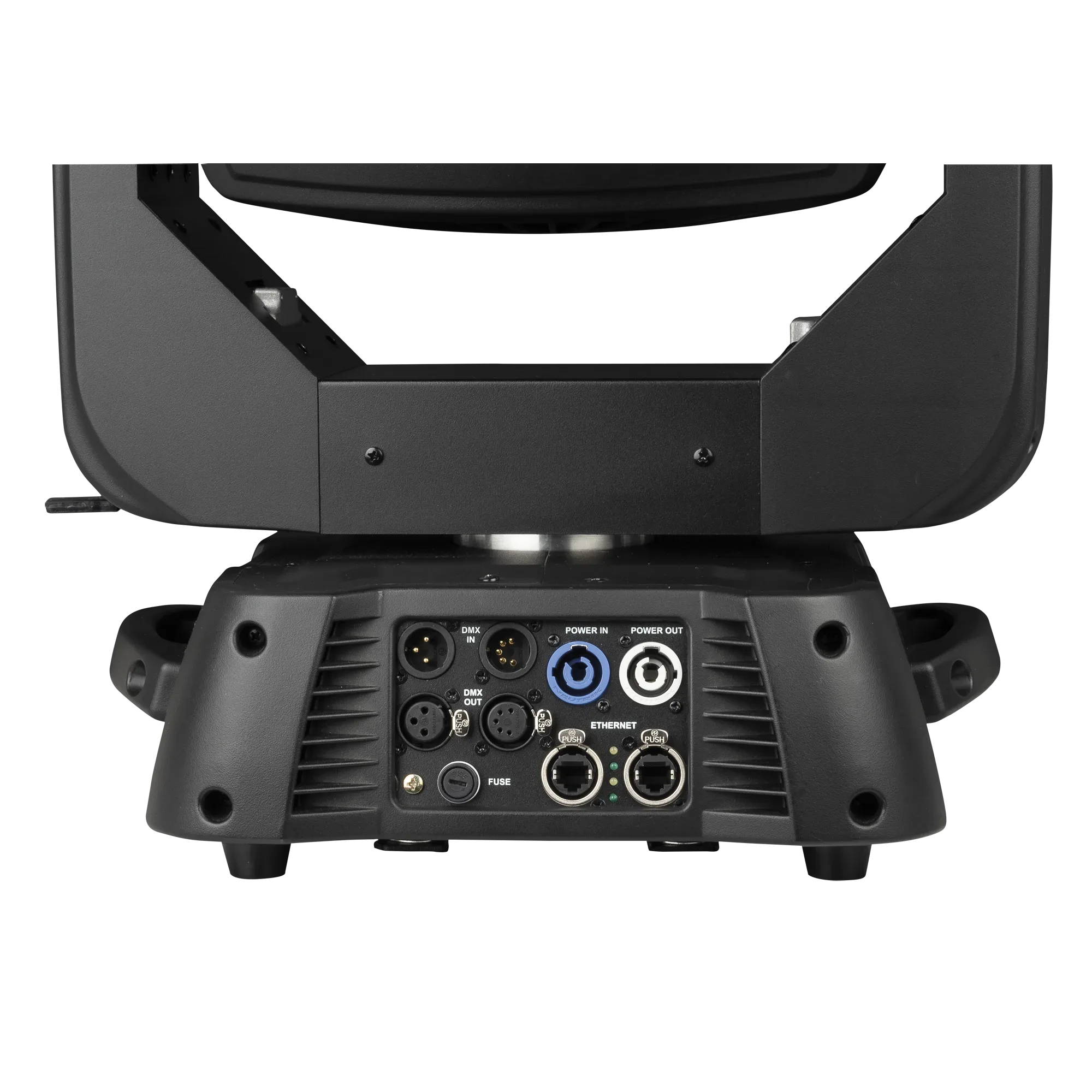

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 360 W
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
Length (mm) 304 mm
Width (mm) 364 mm
Height (mm) 540 mm
Weight 14.3 kg
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Active
Rigging
Mounting Options Quick-Lock
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 45 °C
Minimum Operating Temperature -5 °C

Lisainfo

Kaal 14.3 kg
Mõõtmed 304 × 364 × 540 cm
