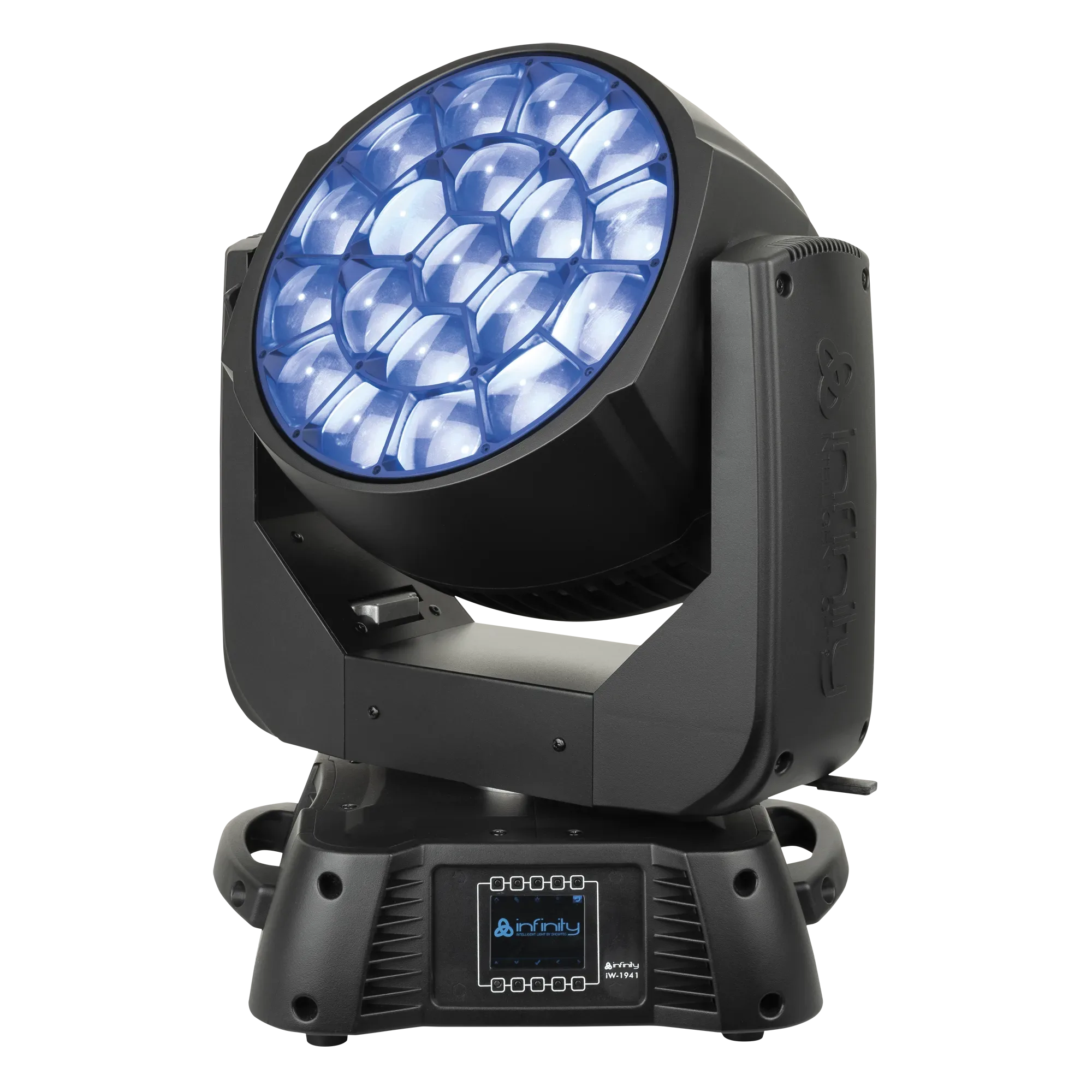

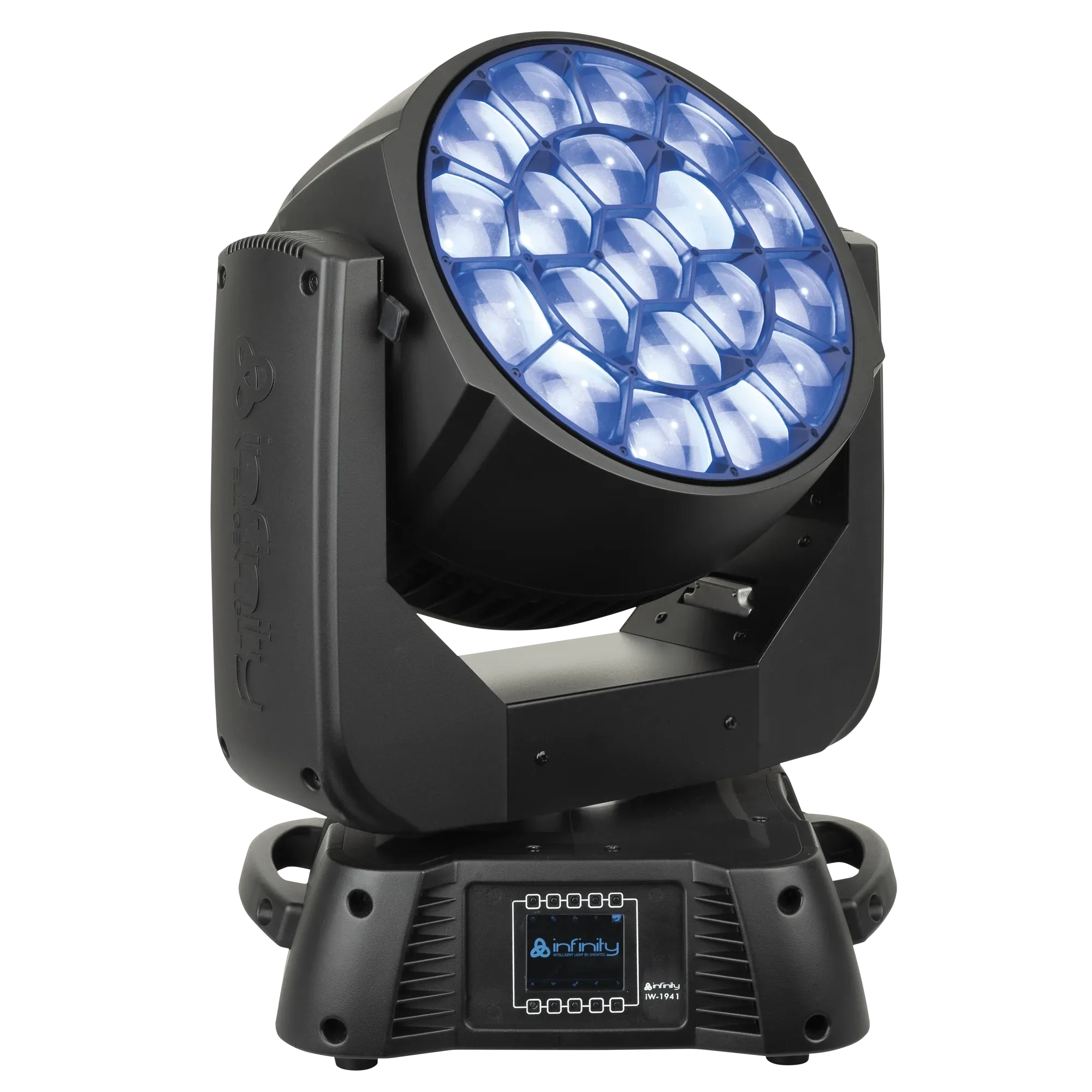

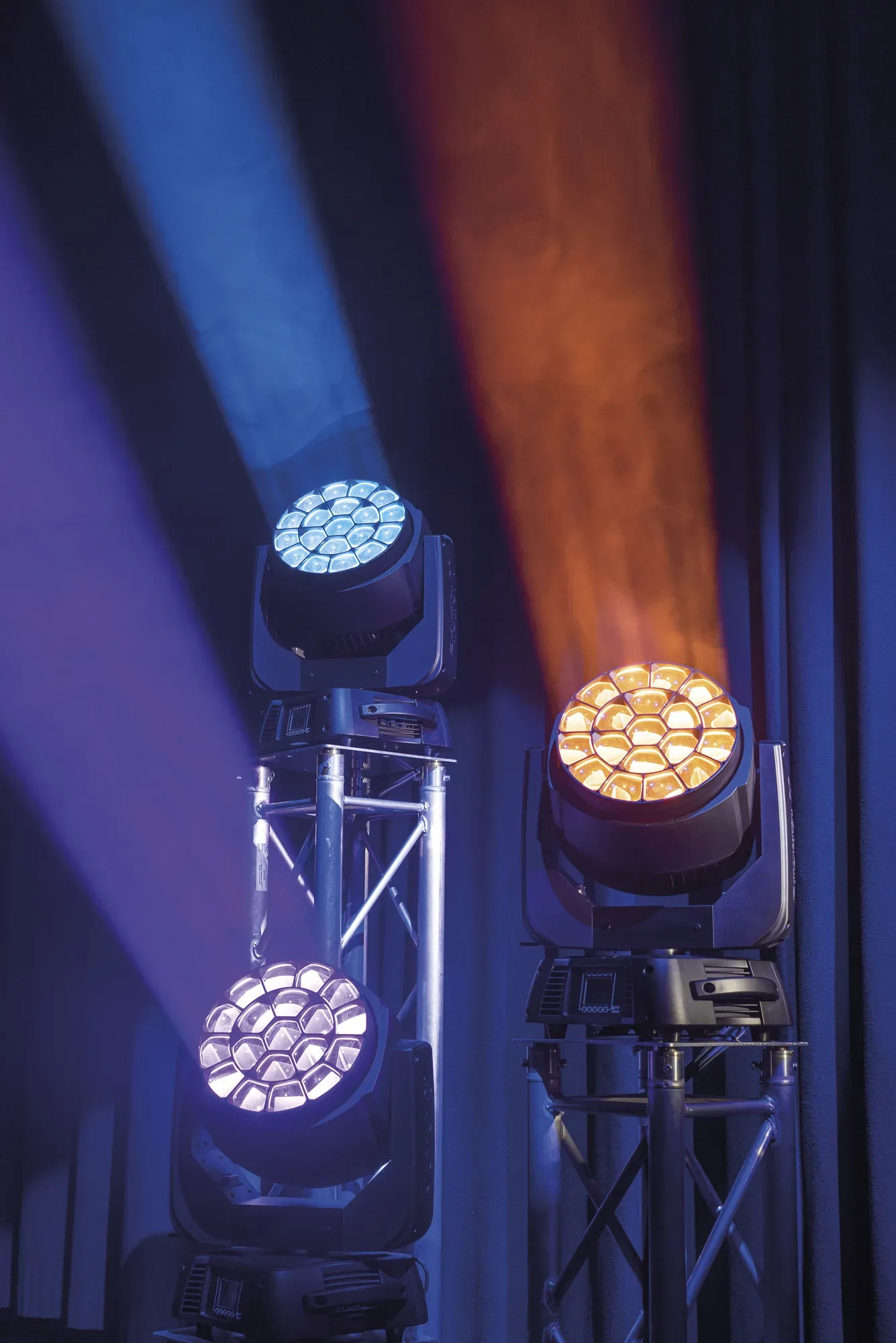

Infinity iW-1941 RDM Wash

The Infinity iW-1941 RDM moving head wash light with a motorised zoom, creating a beam from 3.6° to 60°, produces a massive output due to the use of 19 RGBW 40 W Osram LEDs, while the silent fan ensures whisper-quiet operation. Individual pixels are controlled via DMX, Art-Net or RDM. Equipped with features like adjustable pan/tilt range, multiple dimming settings RGBW/CMY option, 0 – 20Hz strobe and various operating modes, the iW-1941 RDM is a formidable unit in any setup or situation. The iW-1941 RDM combines very fast movements, a wide zoom range and a powerful output to create spectacular light effects.

Tootekood: 8717748466174 Kategooria:

Kirjeldus

Source
Light Source Type LED
Light Source Quantity 19
Light Source Power 40 W
LED Colour Type RGBW
Refresh Rate (Max.) 15 kHz
Illuminance @ 3 m 101571 lx
Luminous Flux (Total) 8742 lm
Luminous Flux (Red) 1982 lm
Luminous Flux (Green) 3227 lm
Luminous Flux (Blue) 1077 lm
Luminous Flux (White) 4501 lm
CRI 78
Optical
Beam Angle Minimum (Circular) 3.6 °
Beam Angle Max. (Circular) 60 °
Zoom Type Motorised
Zoom Minimum 3.6 °
Zoom Maximum 60 °
Control and Programming
Control Mode Auto, DMX, Master Slave
DMX Channels 25, 177, 76 Art-Net + 13 DMX
Protocols Art-Net, DMX, RDM
Wireless Optional
Display Touch
Dim Curve Linear, Square, I-Square, S-Curve
Zone Control (Sections) 19
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement Pan
540 ° Tilt
270 ° Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 625 W
Fuse 10 A

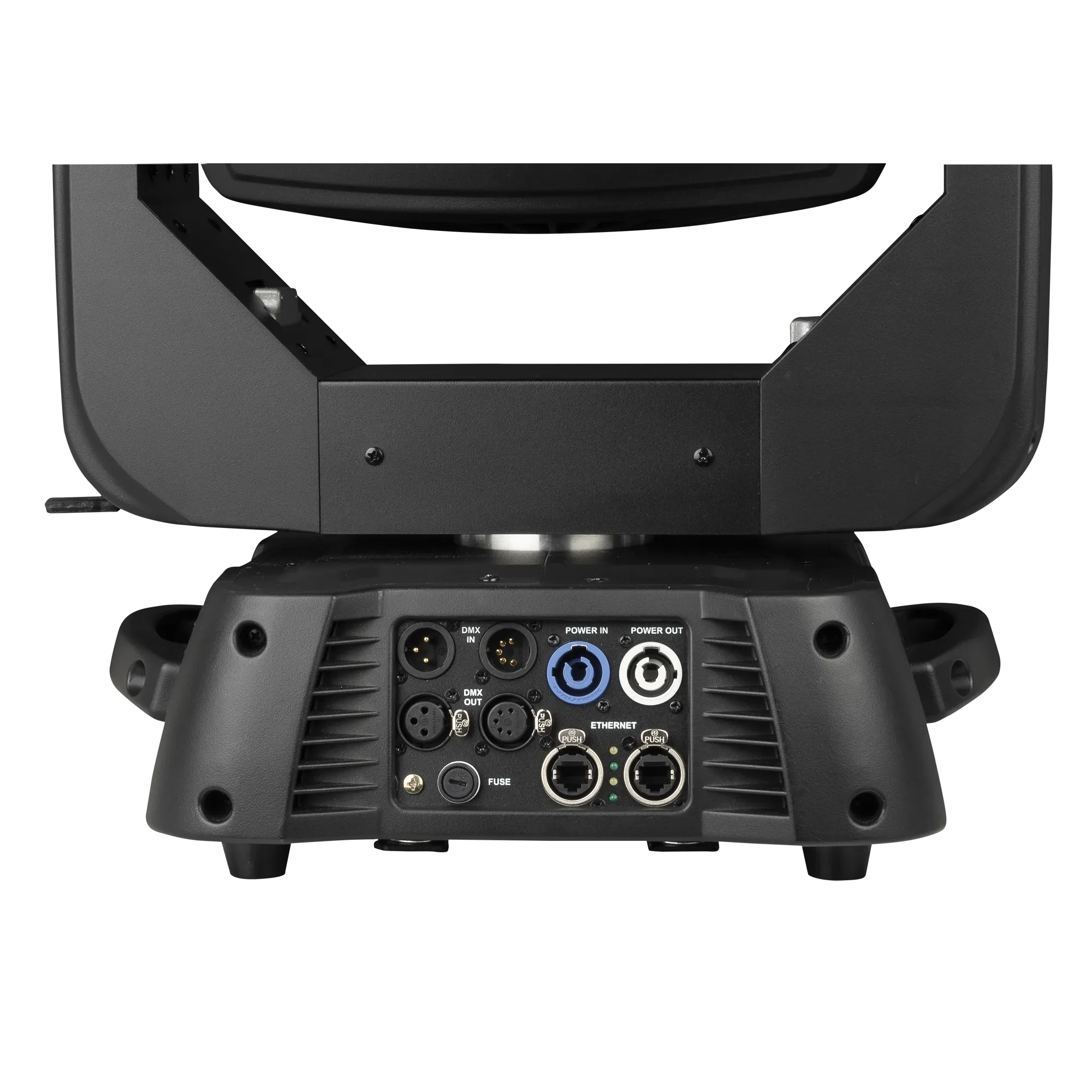

Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Data Connector In RJ45
Data Connector Out RJ45
Mechanical Specifications
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties

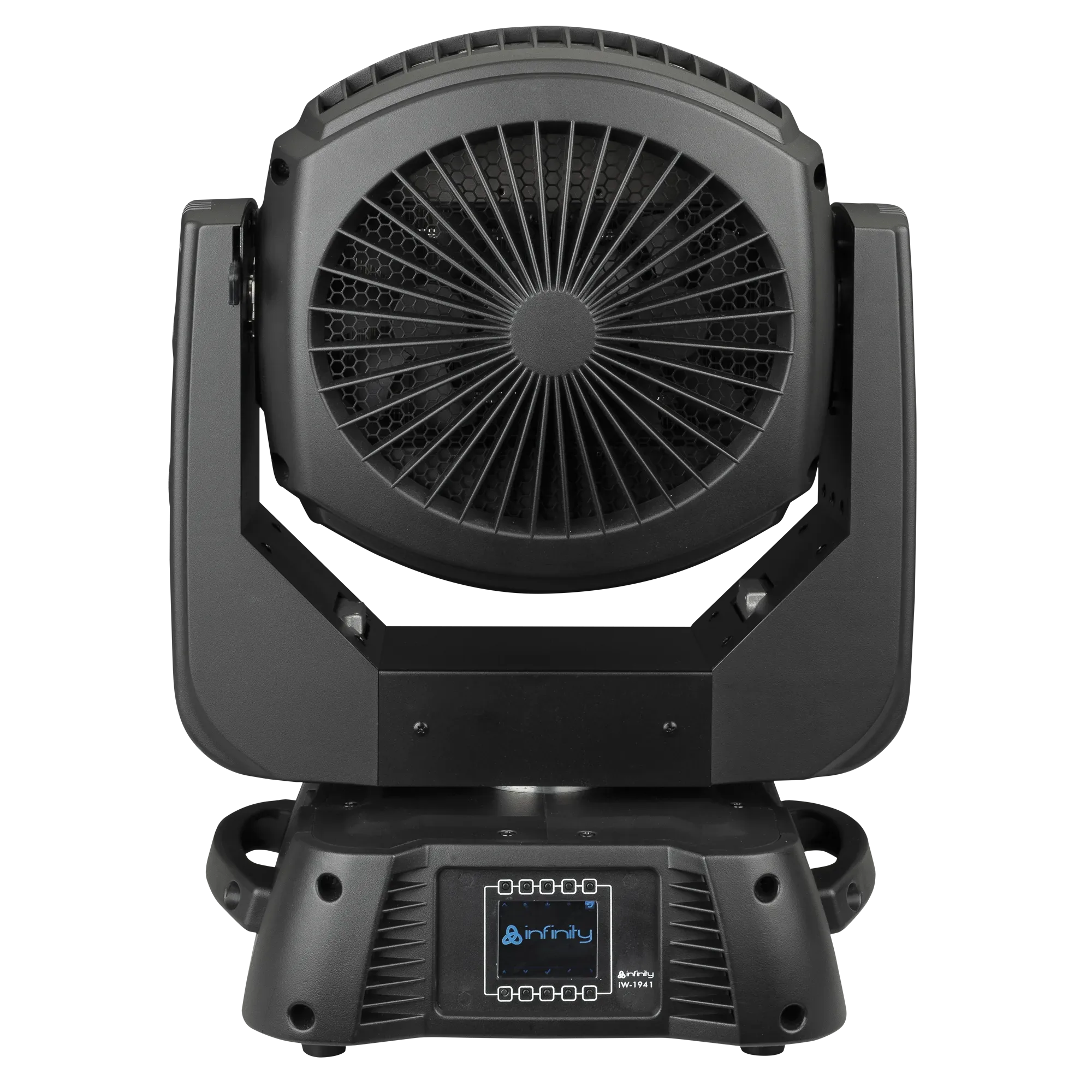

Cooling Axial fan
Rigging
Mounting Options Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 45 °C
Maximum Surface Temperature 80 °C

Lisainfo

Kaal 19.26 kg
Mõõtmed 365 × 304 × 468 cm
