Infinity B401 Beam

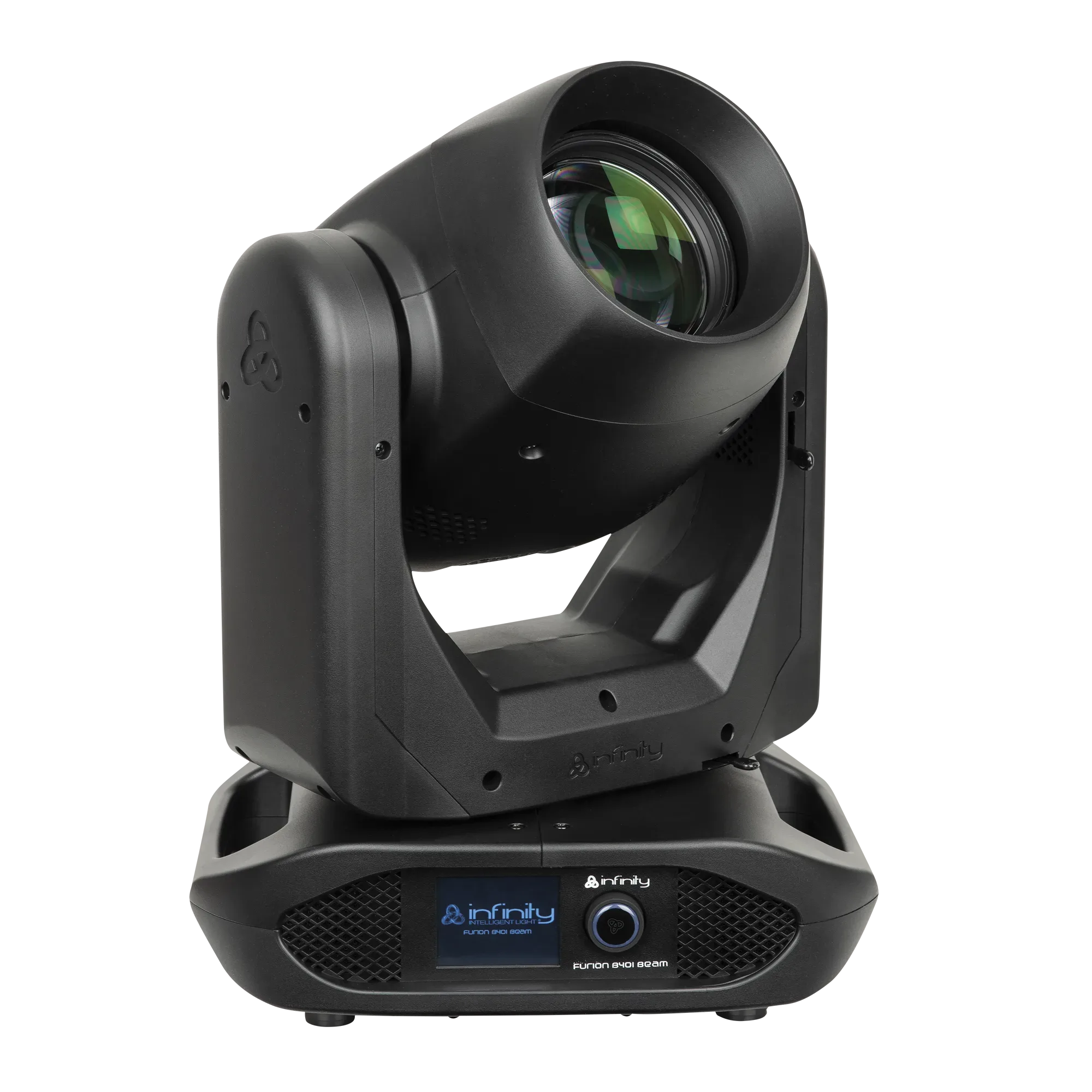

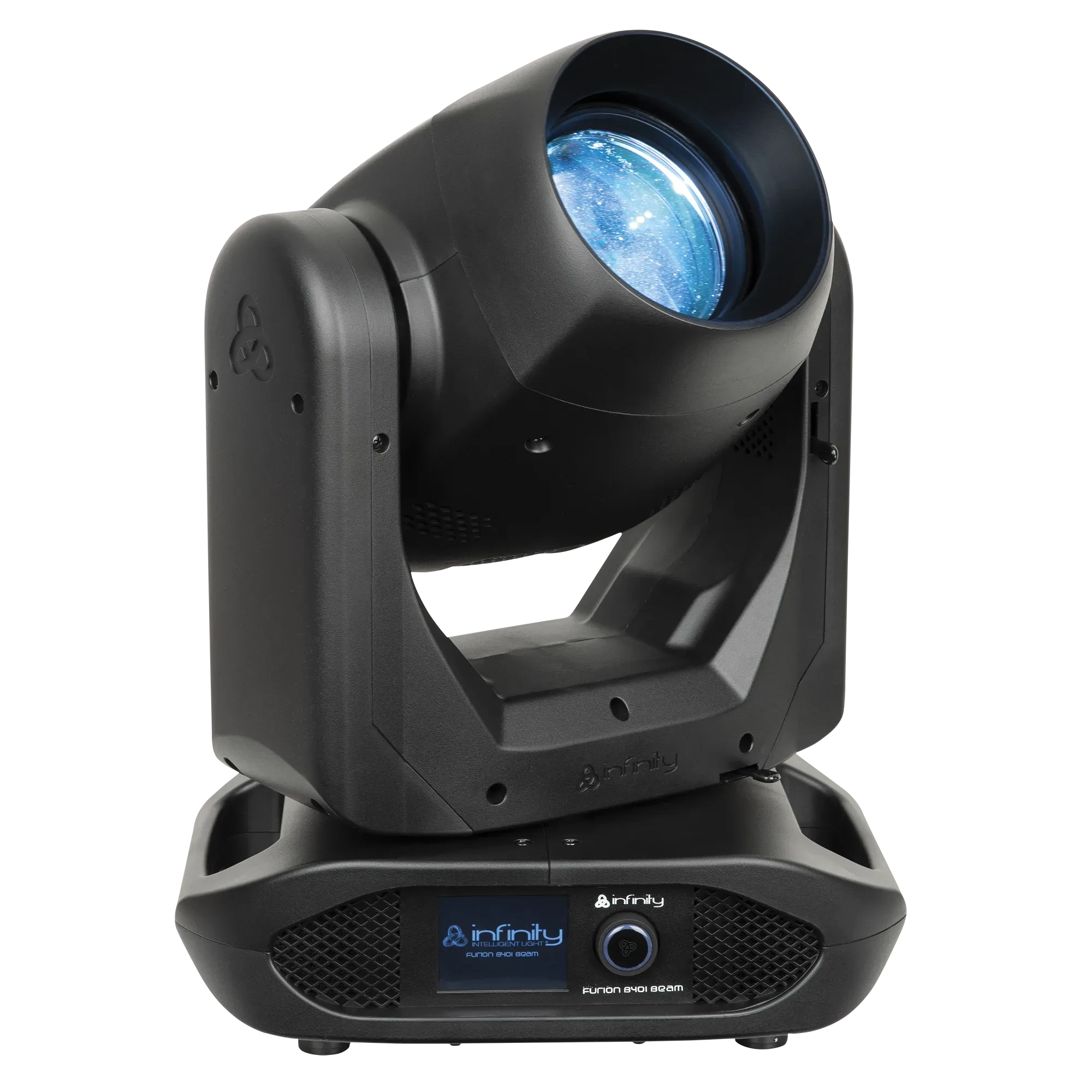

The Infinity Furion B401 Beam. A versatile moving head with a powerful Osram Sirius HRI 230 W 7R as light source. Like the rest of the family the B401 has been equipped with extremely precise and fast motors which deliver the 4° beam every time. The Furion B401 is equipped with 17 metal gobos which create awesome effects by using the 2 prisms. The most interesting feature which truly defines the Furion B401 is the colour bump-wheel. The colour bump-wheel brings the total of dichroic filters up to 14 + white. With this quantity switching between different single colours or creating a vast amount of split colours or bump colours is very easy, tremendously quick and accurate. The 14 dichroic colours in the Furion B401 have no fixed positions which make them very flexible in generating the required colour in no time. Besides having the choice to be able to bump between colours, the amount of white visible in the beam can also be determined.

Kogus *

Tootekood: B401 Kategooria:

Kirjeldus

Source
Light Source Type Discharge
Light Source Quantity 1
Light Source Power 230 W
Life Expectancy 2500 h
Light Socket E20.6
Luminous Flux (Total) 18200 lm
CCT 7600 K
Source Warm-up Time 3 min
Source Hot Restart Time 5 min
Optical
Beam Angle Max. (Circular) 4 °
Frost Yes
Focus Motorised
Control and Programming
Control Mode Auto, DMX, Master Slave
DMX Channels
16, 18, 23
Protocols Art-Net, DMX, RDM, sACN
Wireless Wireless DMX

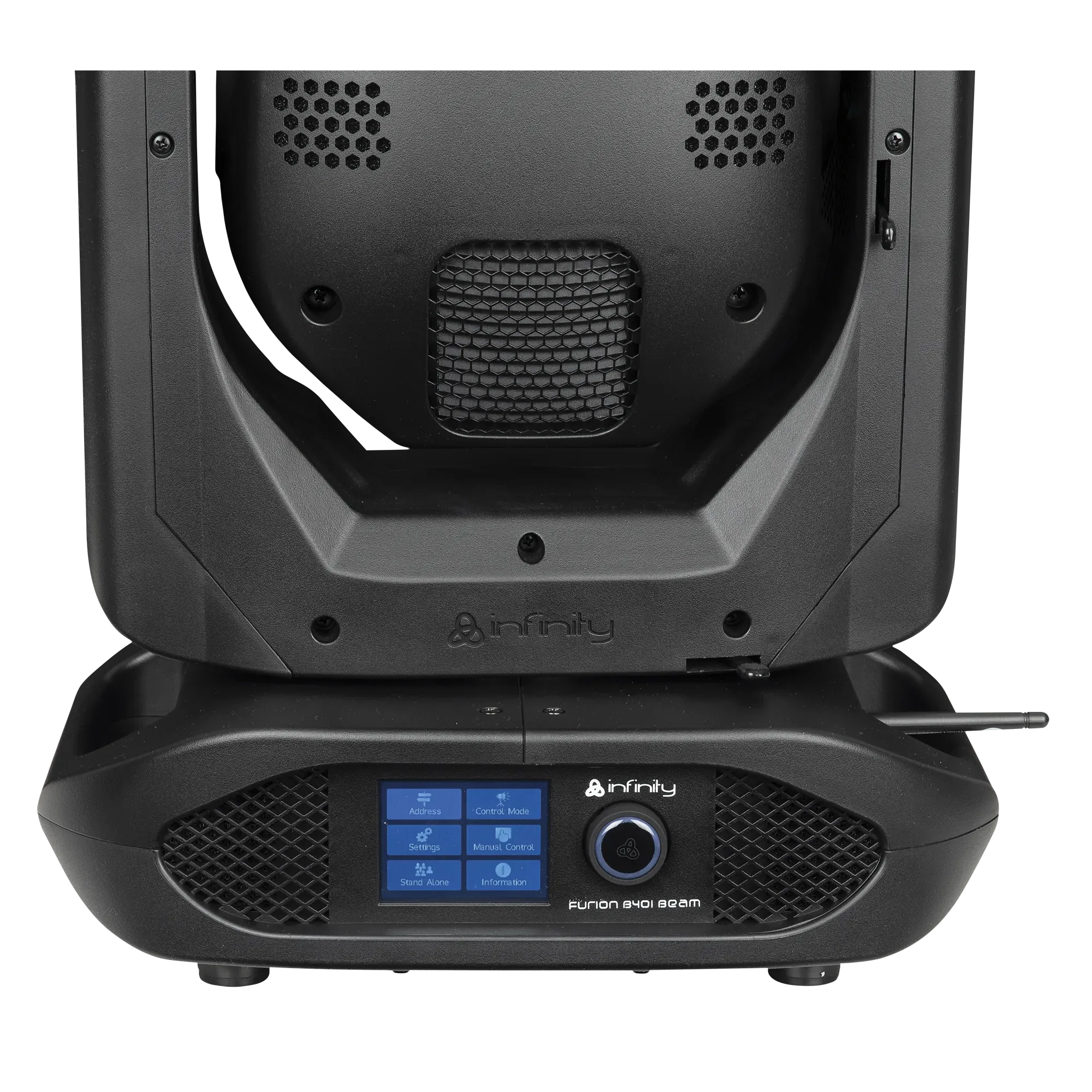

Display Battery, Gravity Sensor, LCD, Touch
Dimmer Resolution 16 bit
Focus Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Shutter Yes
Prism 1 16-facte Circulair
Prism 2 5-facet Linear
Prism Overlay Yes
Prism Index & Rotate Yes
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 14 + Open
Gobo System Metal
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1 17 + Open
Movement
Pan 540 °
Tilt 270 °
Pan/Tilt Resolution 16-bit

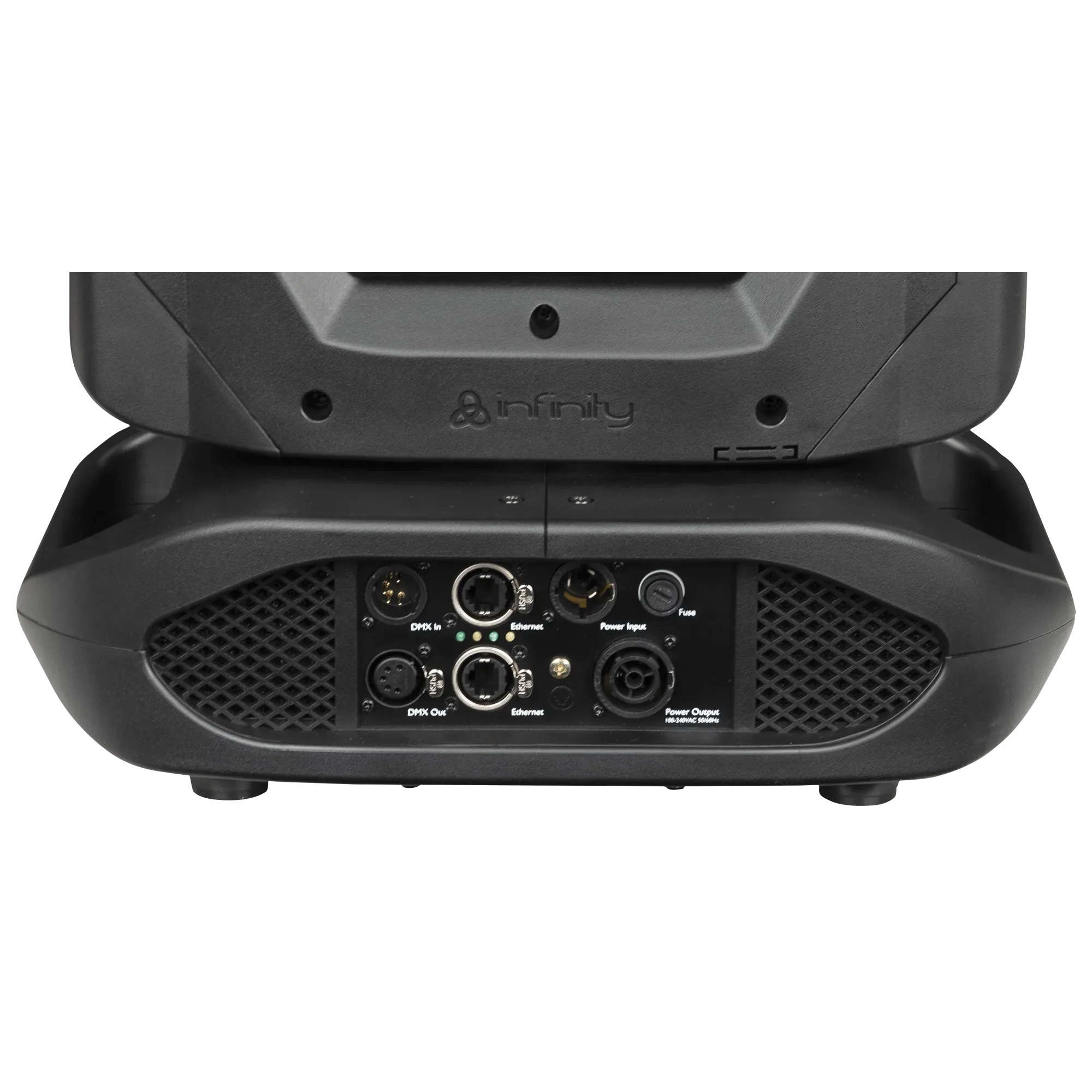

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 402 W
Fuse 7 A
Power Connector In  powerCON TRUE1
Power Connector Out powerCON TRUE1
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Data Connector In RJ45
Data Connector Out RJ45
Mechanical Specifications
IP Rating  IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling  Axial fan

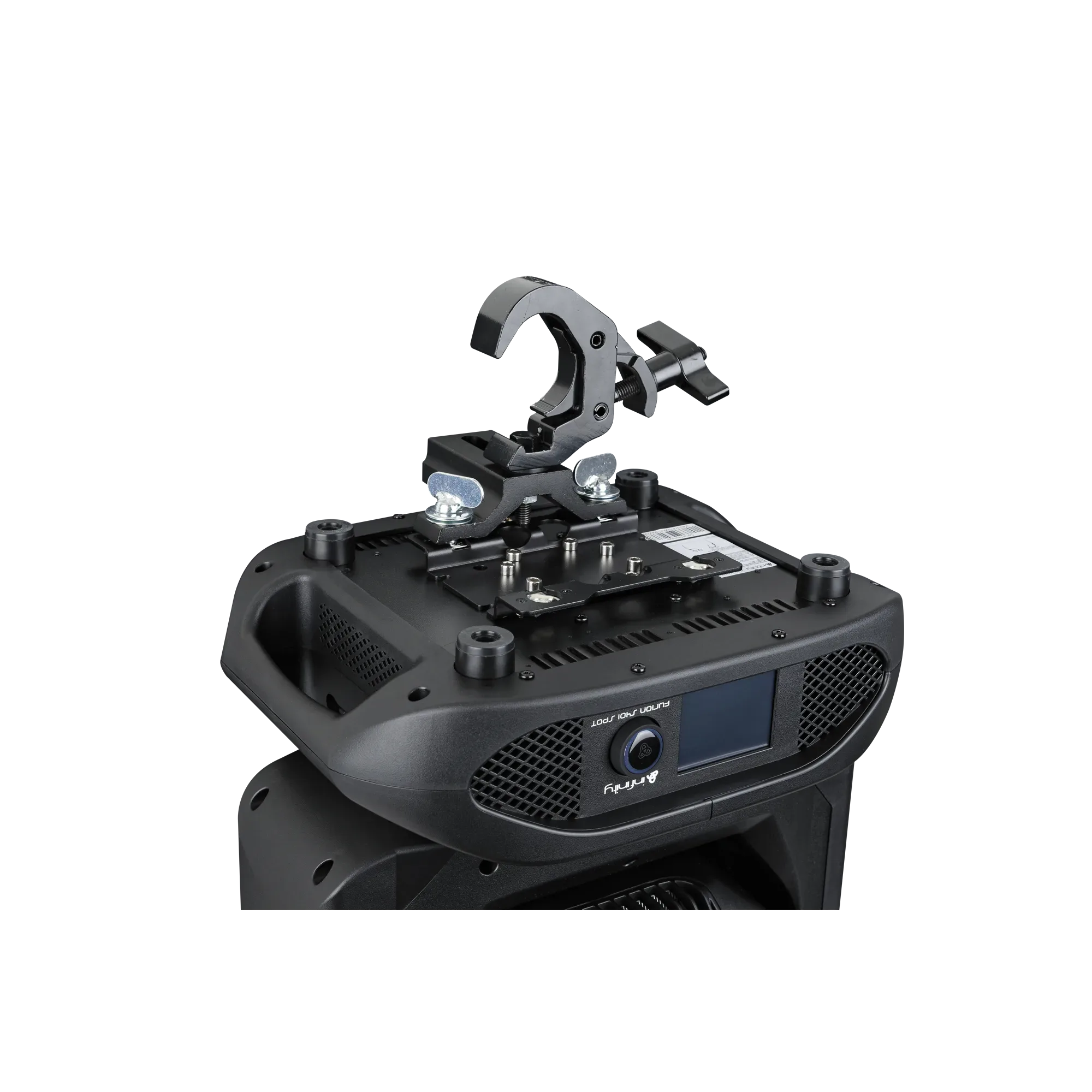

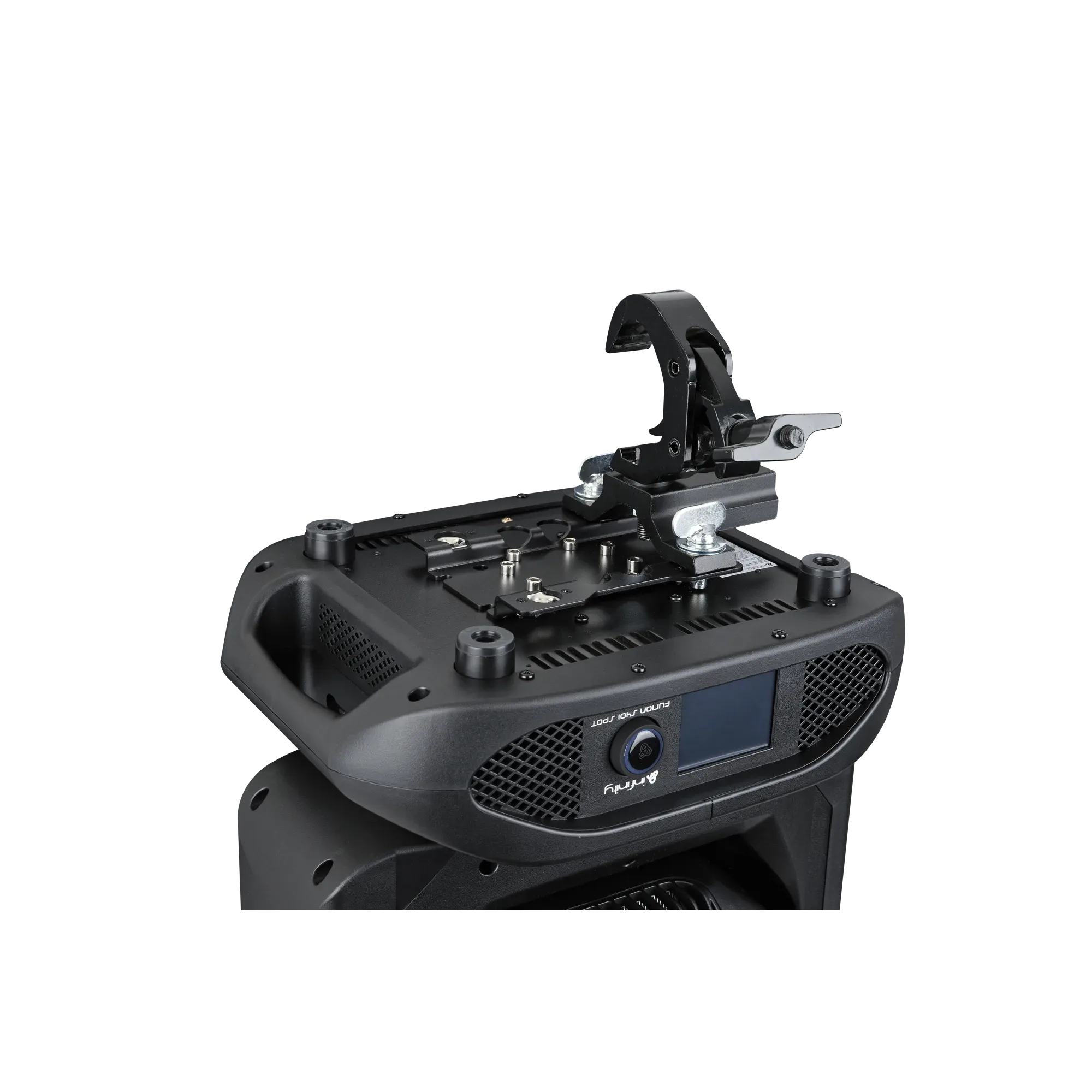

Rigging Mounting Options
Quick-Lock Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Maximum Surface Temperature 60 °C
Minimum Distance to Objects 12 m

Lisainfo

Kaal 21 kg
Mõõtmed 28.4 × 38 × 51.9 cm
