Hydor Beam

Innovative outdoor IP66 Beam moving head , MSD Platinum Flex 380 watt, Total Output (Lumen)120.000, 7200K, CRI 80Ra, beam angle 2°, variable focus with range from 5m to infinity, 2 prims,8-facet,16-facet controllable independently can produce 24 facet prism effect, frost filter, Fixed gobo wheel: 12 gobos + open, Color wheel: 14 colors + open, Control channels (DMX): 15/12/16, DMX-512 RDM, durable die casting aluminum, 24 kg.

Kogus *

Tootekood: L005607 Kategooriad: ,

Kirjeldus

Light source / Optics

Light source: PHILIPS MSD Platinum Flex 380watt
Expected lifetime: 6000 hours.
Color temperature: 7200K.
CRI:Ra≥80

Effects

0-100%, mechanical dimming
Beam angle: 2°
High-precision glass lenses, electronic linear HD focus.
Fixed gobo wheel with 12 gobos plus open (includes beam reducers and ‘animation effect’).
Color wheel with 14 dichroic filters plus open, with rainbow and split colour capability.
2 combinable prisms: 1x 8Facet and 1x 16Facet, prism combination can produce 24 prism effect.
Frost: 1-independent frost effect
High speed strobe, 1-25hz random strobe, pulse strobe from slow to fast, synchronous and asynchronous strobe

Control

Protocol: DMX-512 RDM
Control channels (DMX): 15/12/16
LCD display for accessing the options menu.
DMX data input/output: Chassis 3-pin (in/out)

Installation / Dimension details

IP66 protection against dust and water / humidity.
Power supply: 220, 240 Volt AC, 50/60 Hz.
electronic Ballast
Power consumption: 580 Watt, max. current draw 2,9A, power factor 0,99.

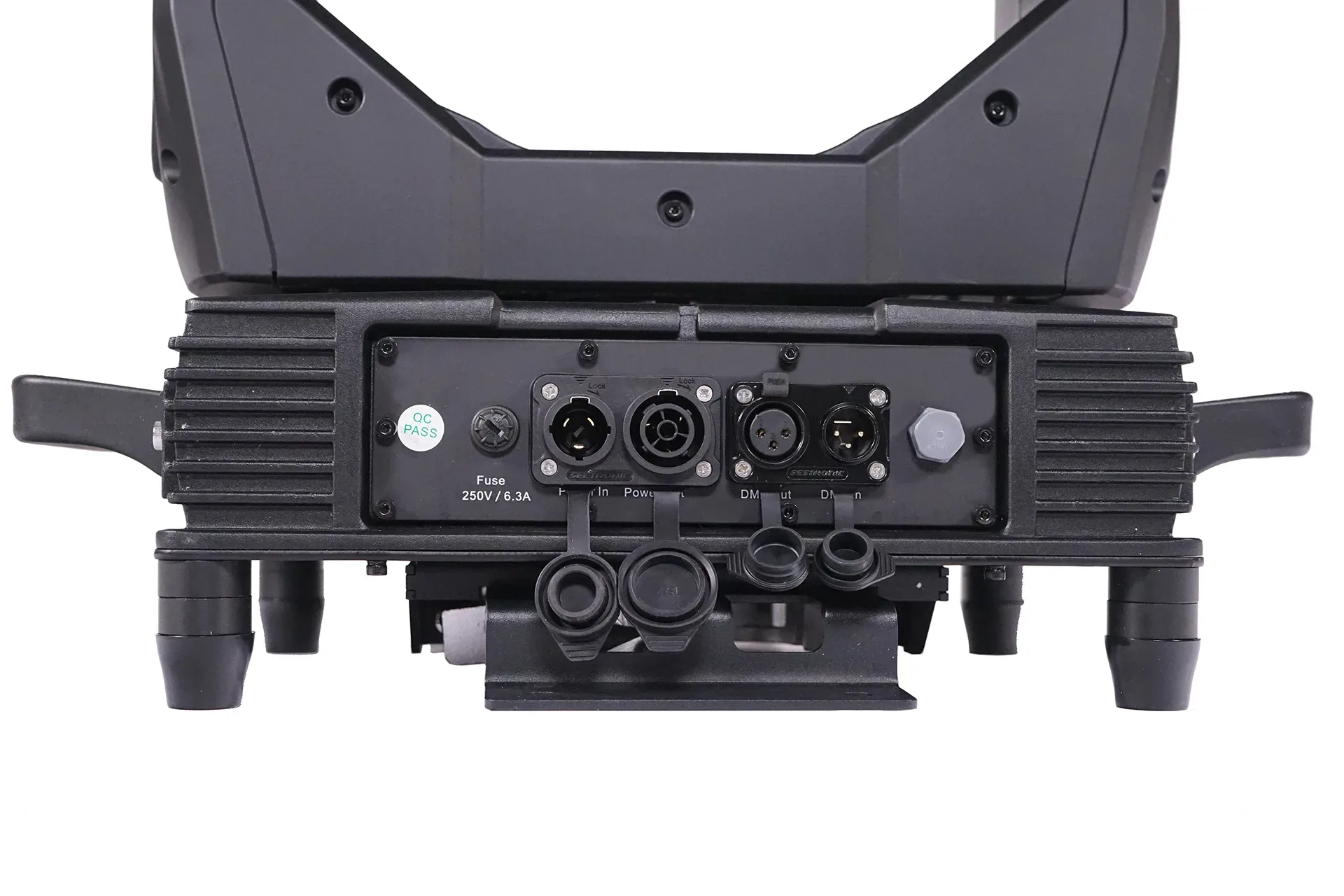

3pin XLR for DMX512 connection.
True powercon input/output
Chassis made of die casting durable aluminium, steel and plastic.
Operation temperatures: -15°C to +45°C.
Storage temperatures: -40°C to +60°C.

Lisainfo

Kaal 24 kg
Mõõtmed 47.3 × 30.4 × 67.6 cm
