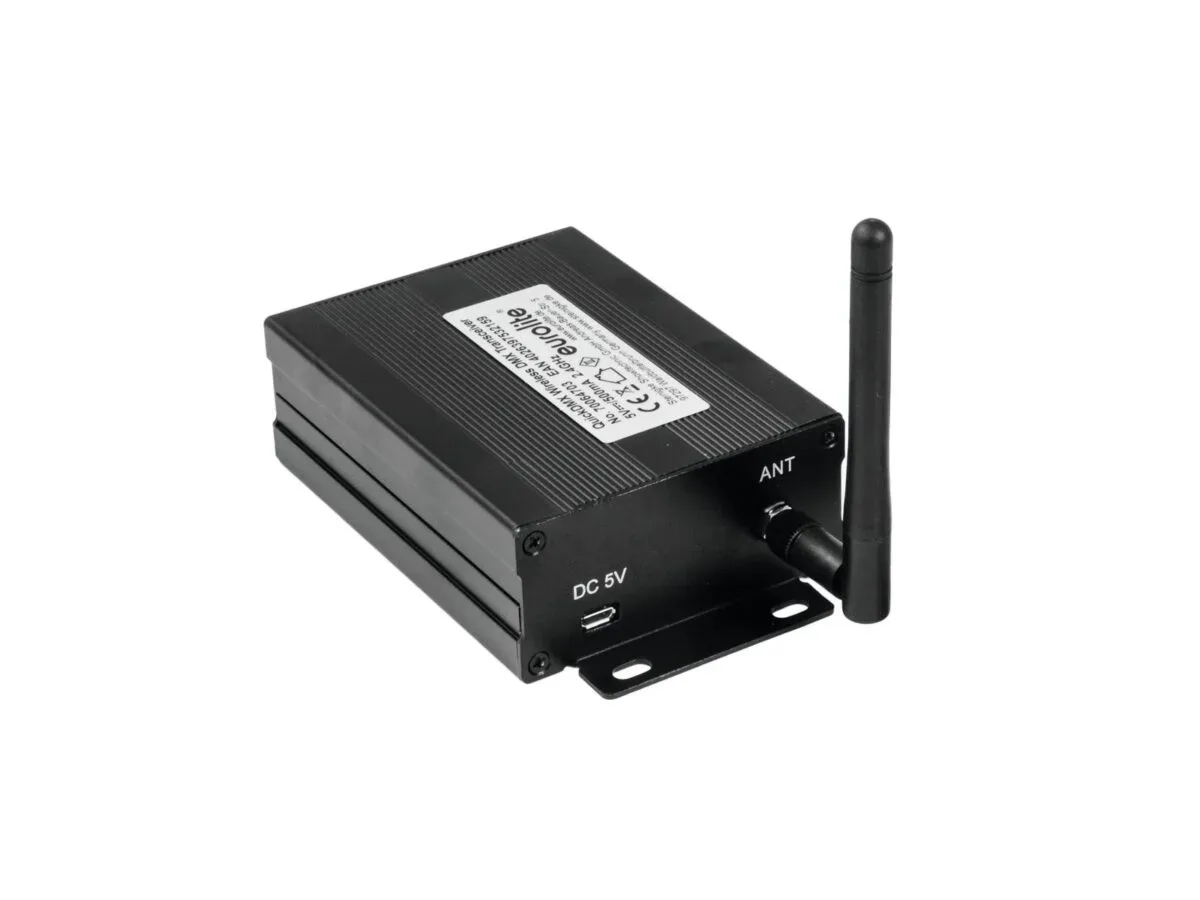

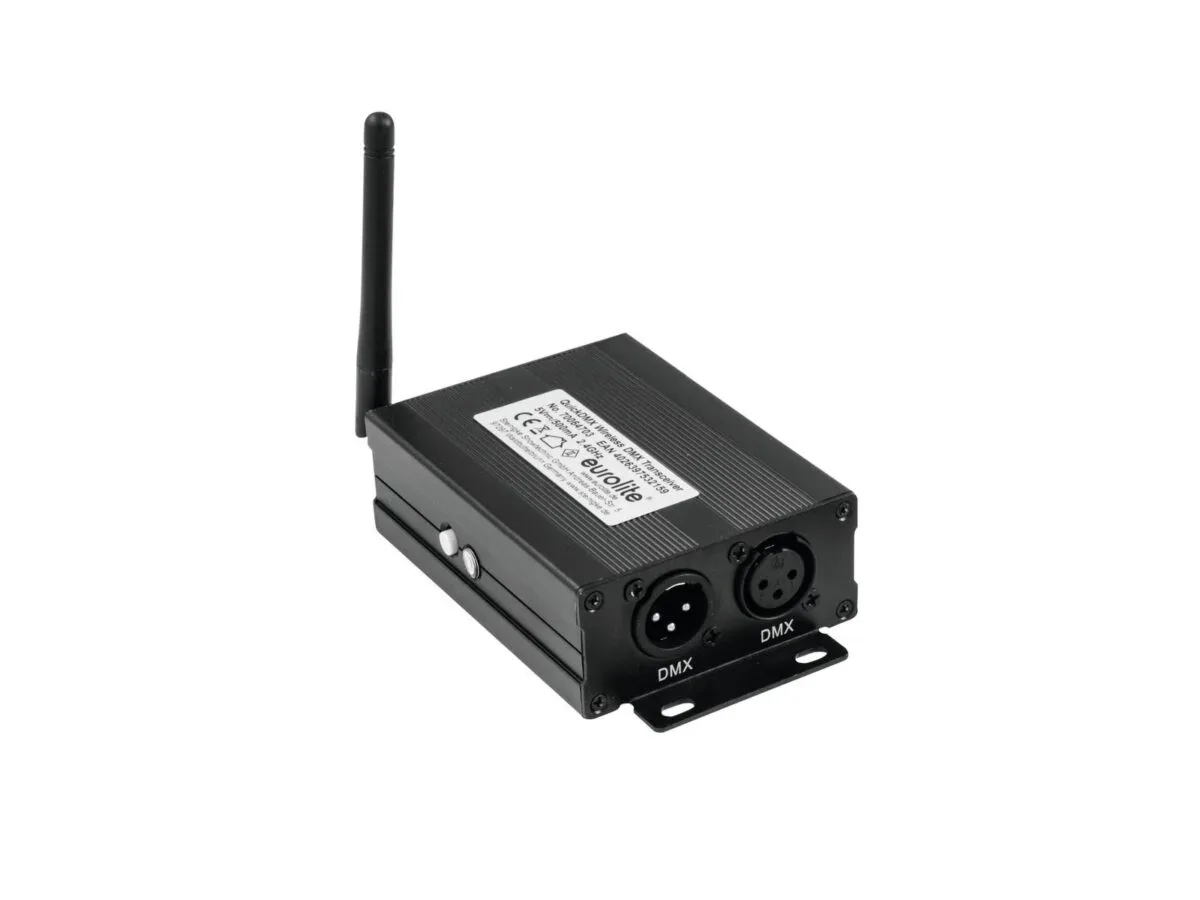

Eurolite QuickDMX Wireless Transmitter/Receiver

Wireless DMX system 2.4 GHz.

  • DMX input and output, 3-pin XLR
  • Auto-switching transceiver
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
  • LED indication for functions
  • Micro USB port PSU included
  • 2.4 GHz ISM band – license-free worldwide
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Controlling by DMX QuickDMX built-in
  • Use a operating range up to 400m

Kogus *

Kategooria:

Kirjeldus

Power supply: 100-240 V AC, 50/60 Hz
5 V DC 500 mA
IP classification: IP20
Power connection: Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided)
DMX channels: Input 512
Output 512
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX QuickDMX built-in
Carrier frequency: 2,4 GHz
Modulation: GFSK
Parallel mode: Max. 6 transmitter
Range: 400 m
Color: Black

Lisainfo

Kaal 0.29 kg
Mõõtmed 21.1 × 10 × 7.5 cm
