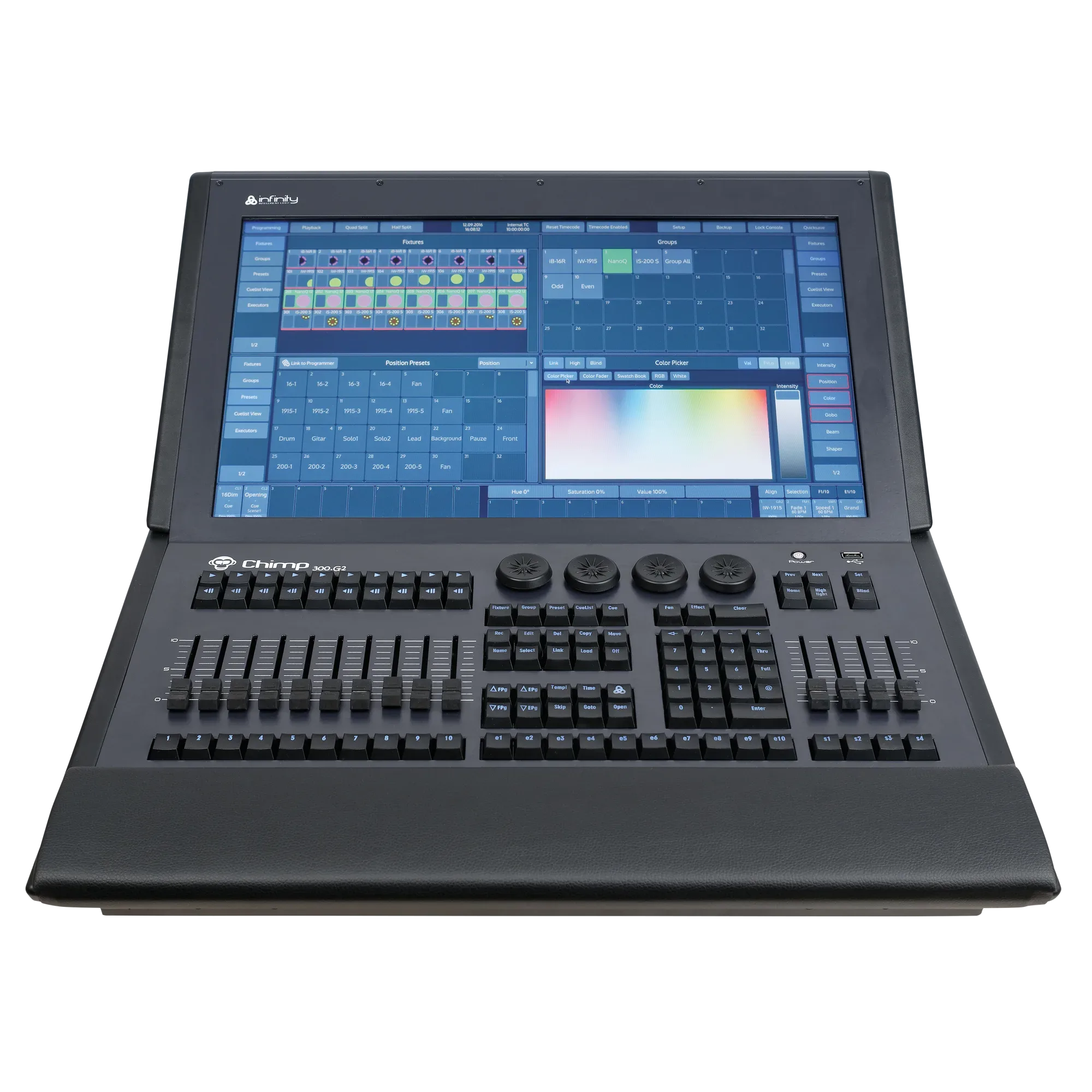

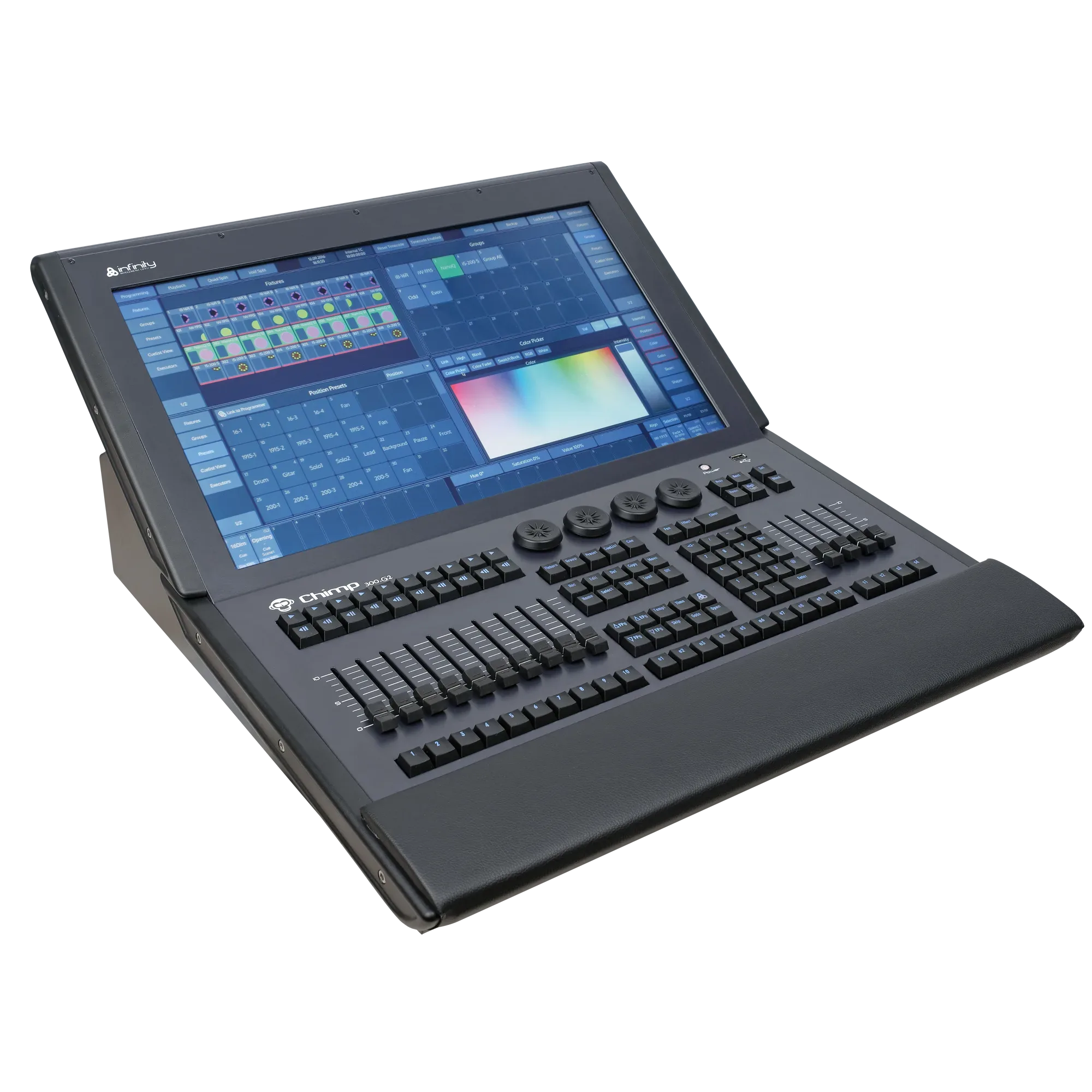

Infinity Chimp 300.G2

22 inch Capacitive Full HD Touchscreen

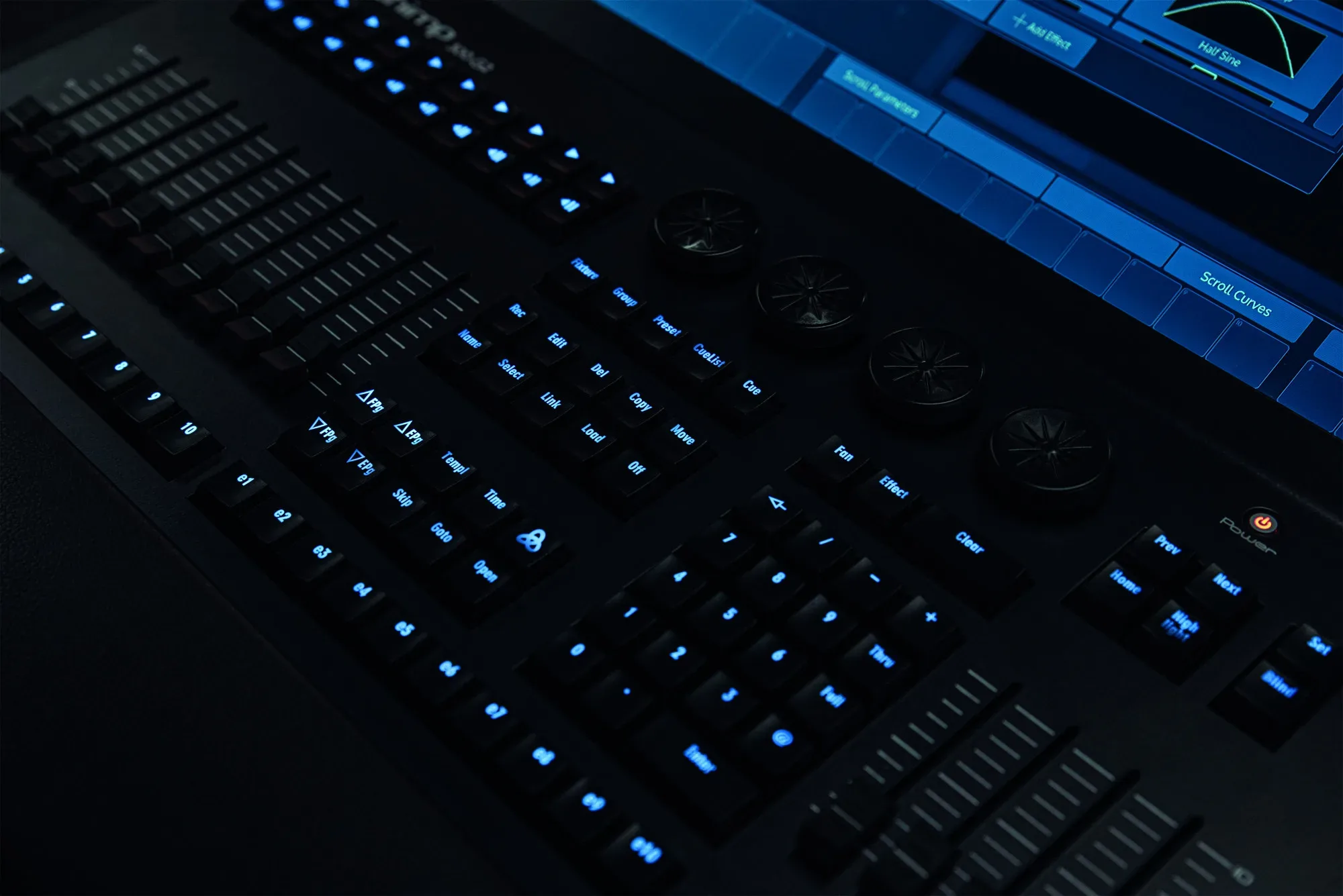

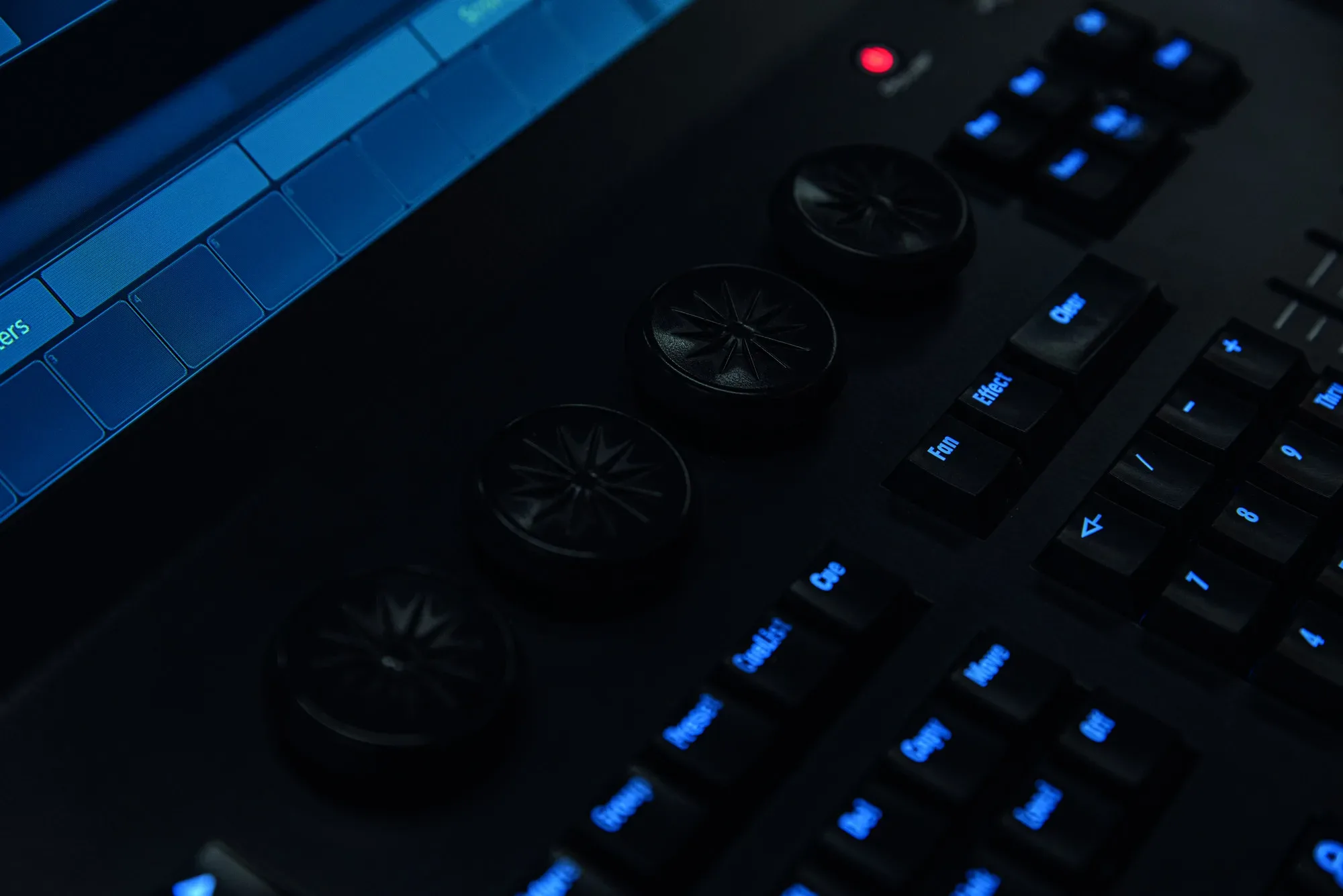

Familiar keys, numeric keypad and 4 encoders
Minimum 2048 channels of DMX (expandable)
All DMX fixtures addable
Libraries provided by Atlabase
The Infinity Chimp 300.G2 light controller with integrated 22” touchscreen delivers all the tools you need to create a lightshow within minutes. With the Chimp 300.G2 you have access to four universes with unlimited patchable fixtures. It has been engineered with one thing in mind: user convenience. It is the perfect controller for beginners and even more so for advanced users.
You can connect an additional external touchscreen to the Chimp 300.G2. Use personalized colours in the GUI, add Magic sheets to visualize your show in 2D and put the extensive Atlabase to good use. The Atlabase fixture file offers more than 21,000 fixtures to choose from. But in case your specific fixture is missing, you can add this to your setup via the built-in Fixture Builder. Add effects, movements, colour changes and more by using the Effects Engine. Choose your desired colour out of the Filter libraries from Lee, Rosco or Apollo. The integrated Wireless DMX module by Wireless Solutions enhances the flexibility of the system. With each software version new features are added to the Chimp and the Atlabase fixture library is updated.
Tootekood: 8717748455178 Kategooria:


Wireless Specifications
Wireless Mode  G4s
Gain (dB) 5 dB
Gain (mW) 10 mW
Reaction Time 8 ms
Antenna Type Omni
Antenna Radiation 360 x 90 °
Control and Programming
Control Mode  DMX, MIDI
DMX Channels 2048
Patch mode Yes
Wireless Wireless DMX
Display LCD, Touch
Display Resolution (Horizontal) 1920 px
Display Resolution (Vertical) 1080 px
Display Size 22 “
External Display Resolution (Horizontal) 1920
External Display Resolution (Vertical) 1080
Fixture Channels 2048
Unlimited Fixtures Yes
Buttons 97
Cue Lists 400
Encoder Wheels 4
Faders 14
Memories 10000
OSC (Open Sound Control) Yes
Playback Buttons 10
Playback Faders 10
Playback Pages 60
Art-Net Yes
SMPTE Timecode Yes
Effects Engine Yes
Universes 4

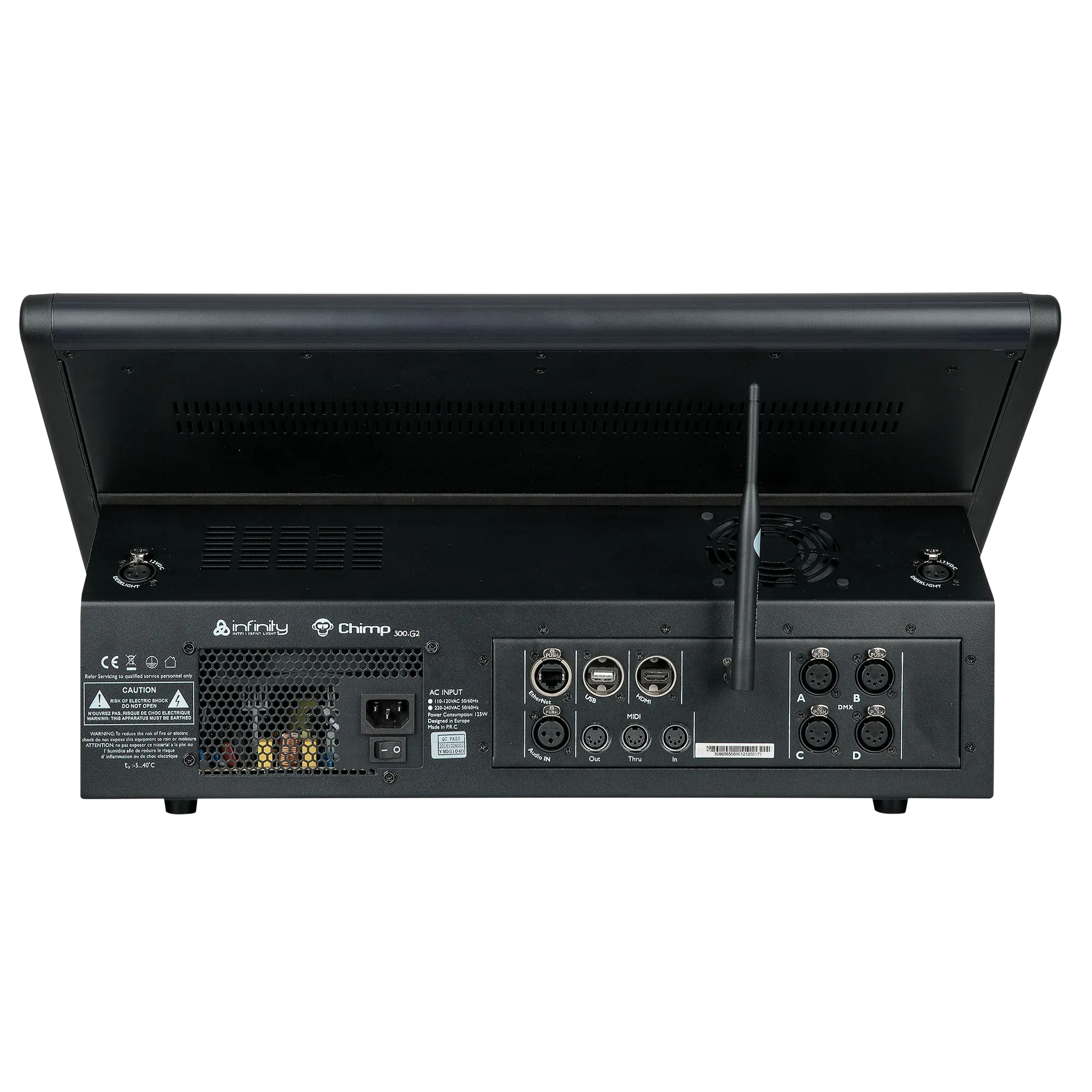

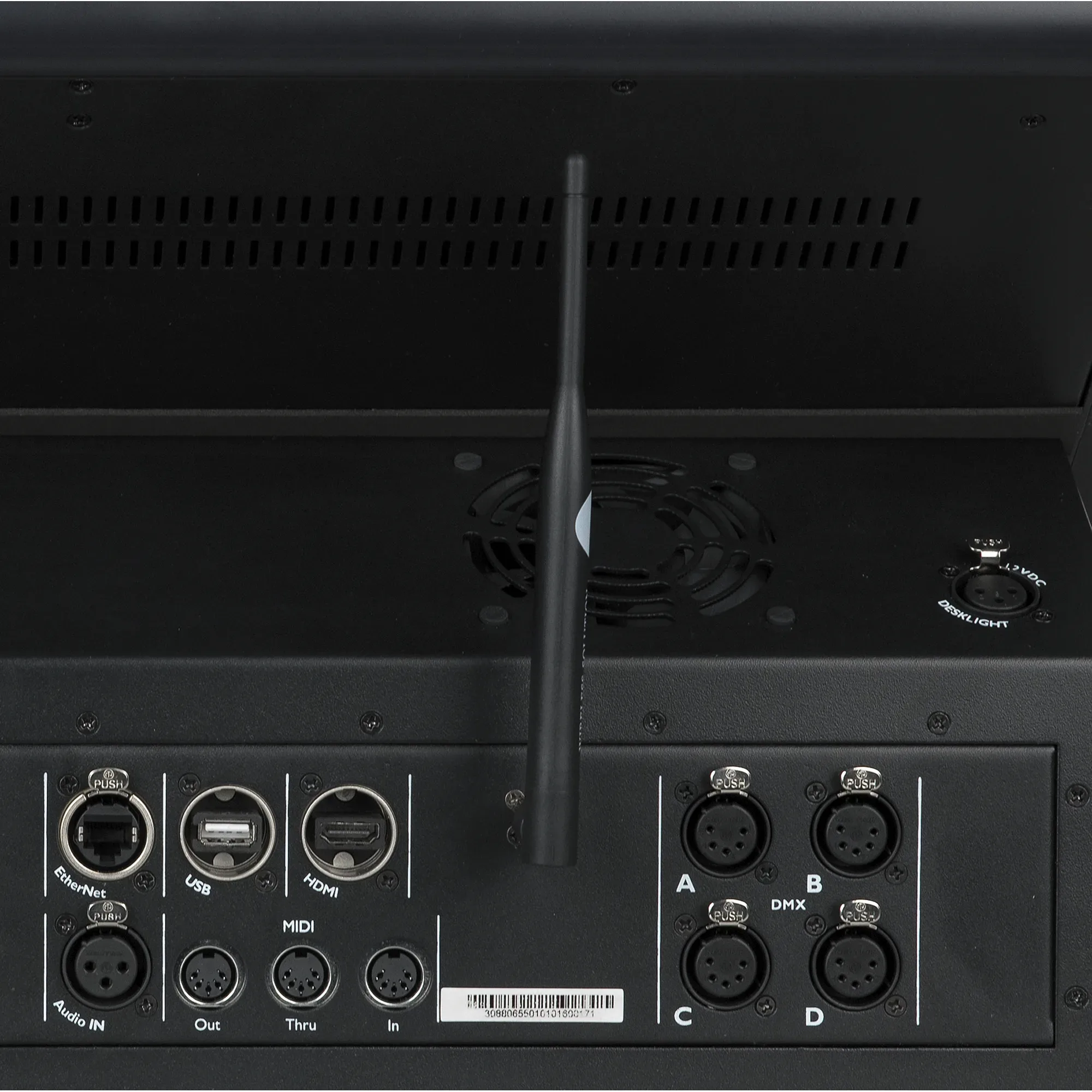

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 125 W
Power Connector In IEC
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Data Connector In etherCON, RJ45, USB
Data Connector Out etherCON, RJ45, USB
MIDI Connector Yes
HDMI Outputs 1
Ethernet Ports 1
Audio Triggers 6
Mechanical Specifications
IP Rating  IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Convection
Desk Light 3P XLR female
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Ambient Temperature -5 °C
Included Items Included Cables
IEC cable Included Accessories
RF antenna


Kaal 18 kg
Mõõtmed 57.5 × 64.7 × 27.9 cm
