Eurolite LED IP CCR-600 QCL Wall Light
PRO outdoor spotlight (IP65) in case with 60 x 8 W 4in1 LED (RGBW).
- DMX-controlled operation or stand-alone operation with Master/Slave function
- DMX control via any standard DMX controller
- 4, 5, or 8 DMX channels selectable
- With integrated wireless receiver for WDMX operation (Wireless Solution – made in Sweden)
- For architectural lighting
- Suitable for external use (IP65)
- For permanet installation

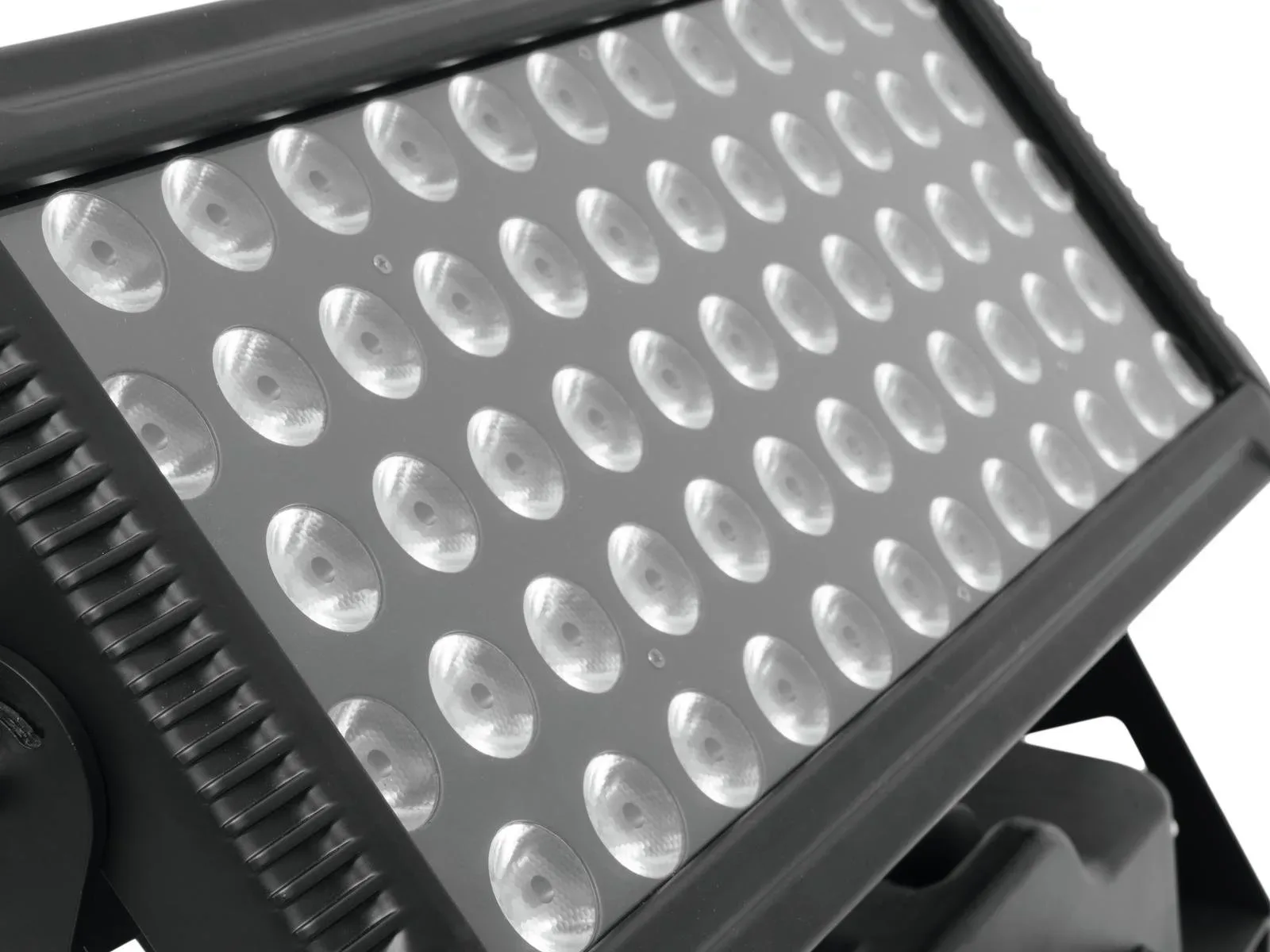

- Equipped with 60 x 4in1 QCL LED in the colors red, green, blue and white
- Stepless RGBW color blend
- Color macros
- Dimmer
- Dimmer speed (step response) adjustable
- Strobe effect with adjustable speed
- Internal programs
- Programmable color change speed

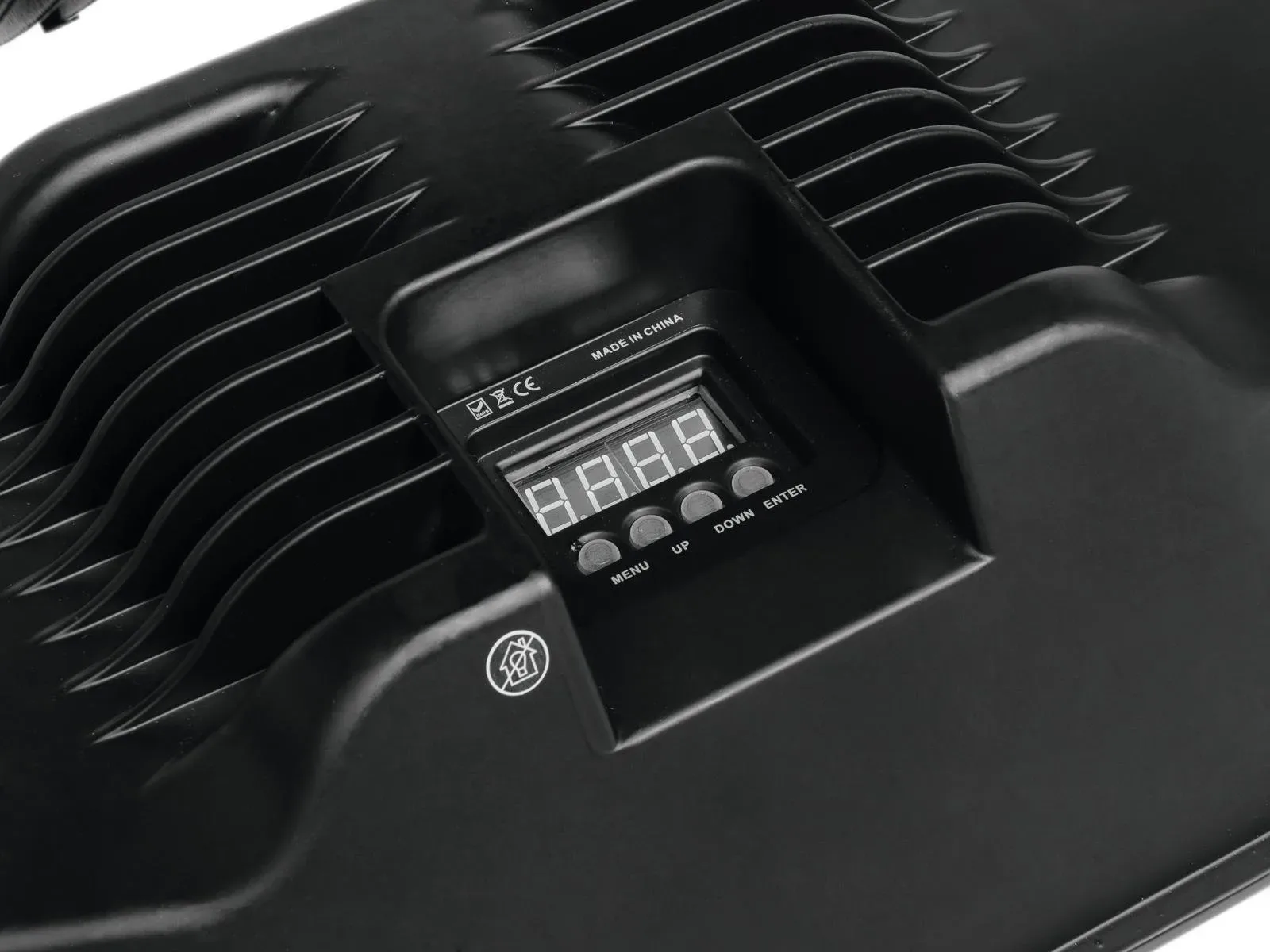

- Addressing and setting via Control Board with LED display and four operating buttons
- Switch-mode power supply for operation between 100 and 240 volts
- Feed-through output allows to power up to 8 devices
- Ready for connection via power cord with 3-pin 16A CEE plug

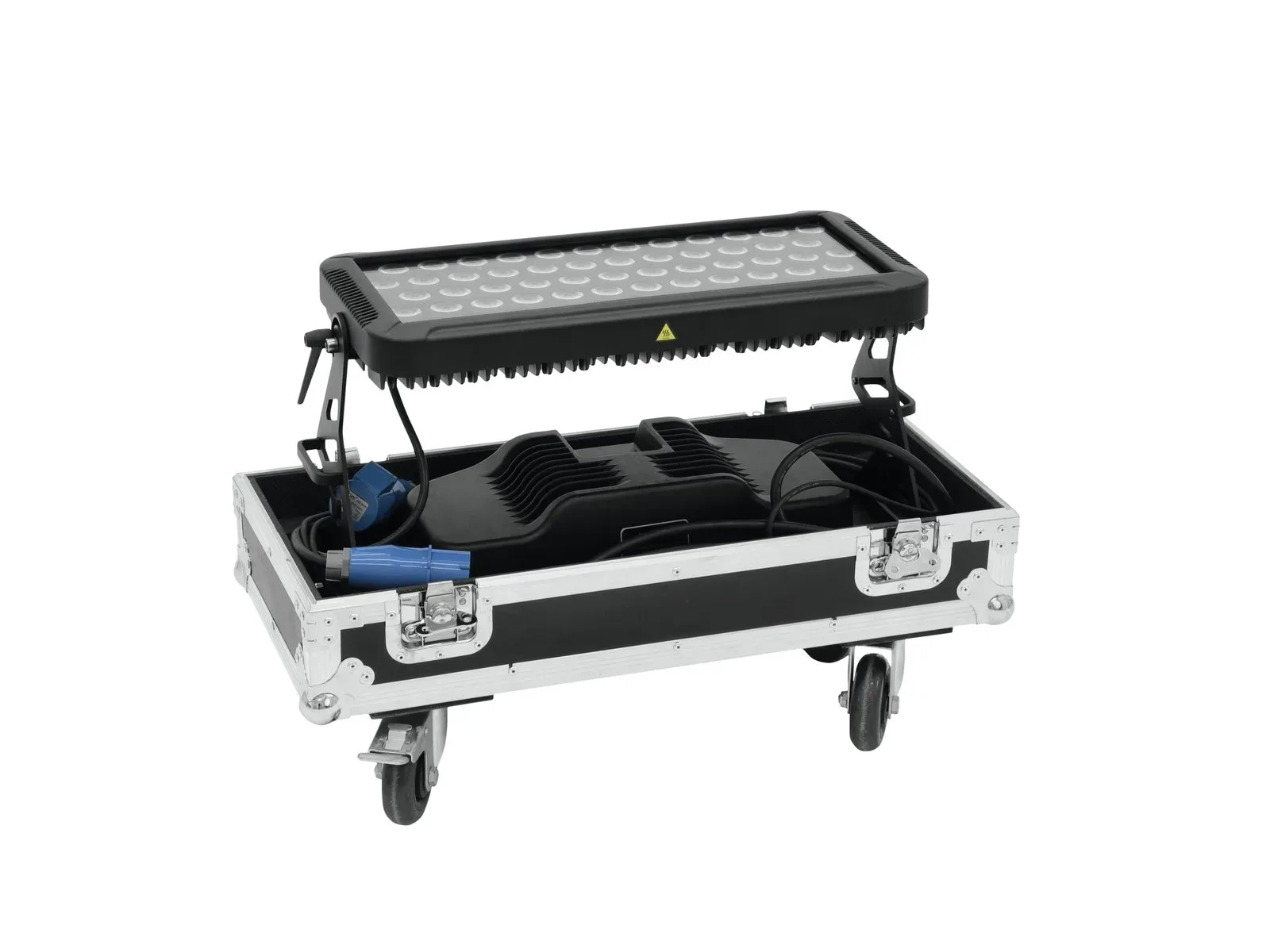

- Flightcase included in delivery
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; W-DMX by wireless solution
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free
- With a beam angle of 15°
- Suitable for outdoor use IP65
Kirjeldus
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 230 W |
| IP classification: | IP65 |
| Lamp type: | LED lamp |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; W-DMX by wireless solution |
| Preprogrammed in: | Light´J; LED PC-Control 512 |
| Projection: | Flicker-free |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 48° |
| Housing color: | Black |
| Protection grade: | IP65 |
| DMX channels: | 4/5/8 |
| DMX connection: | 3-pin XLR |
| Beam angle: | 15° |
| LED type: | 8 W QCL (R,G,B,W) |
| LED number: | 60 |
| Flash-rate: | 18 Hz |
