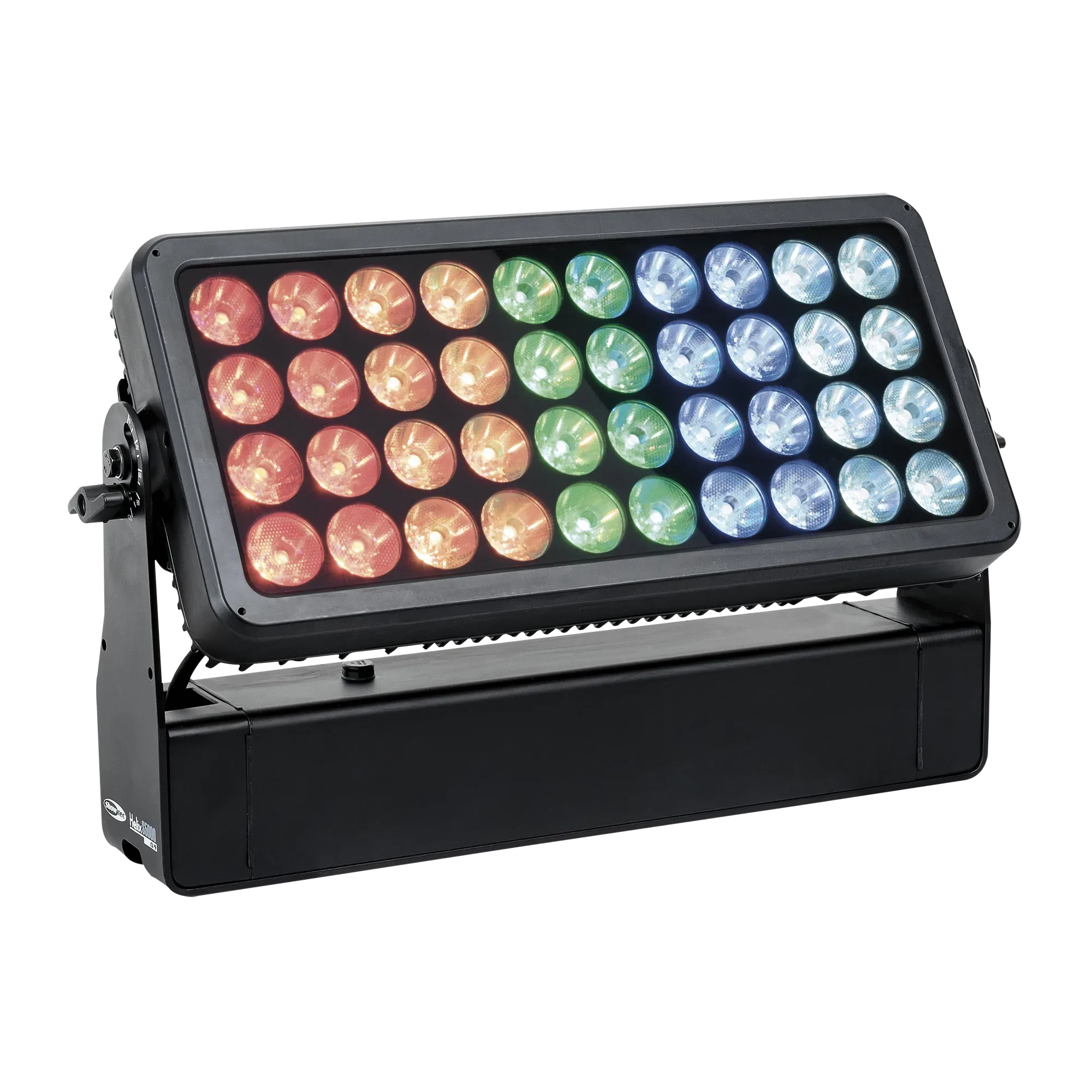

Showtec Helix S5000 Q4 Washer

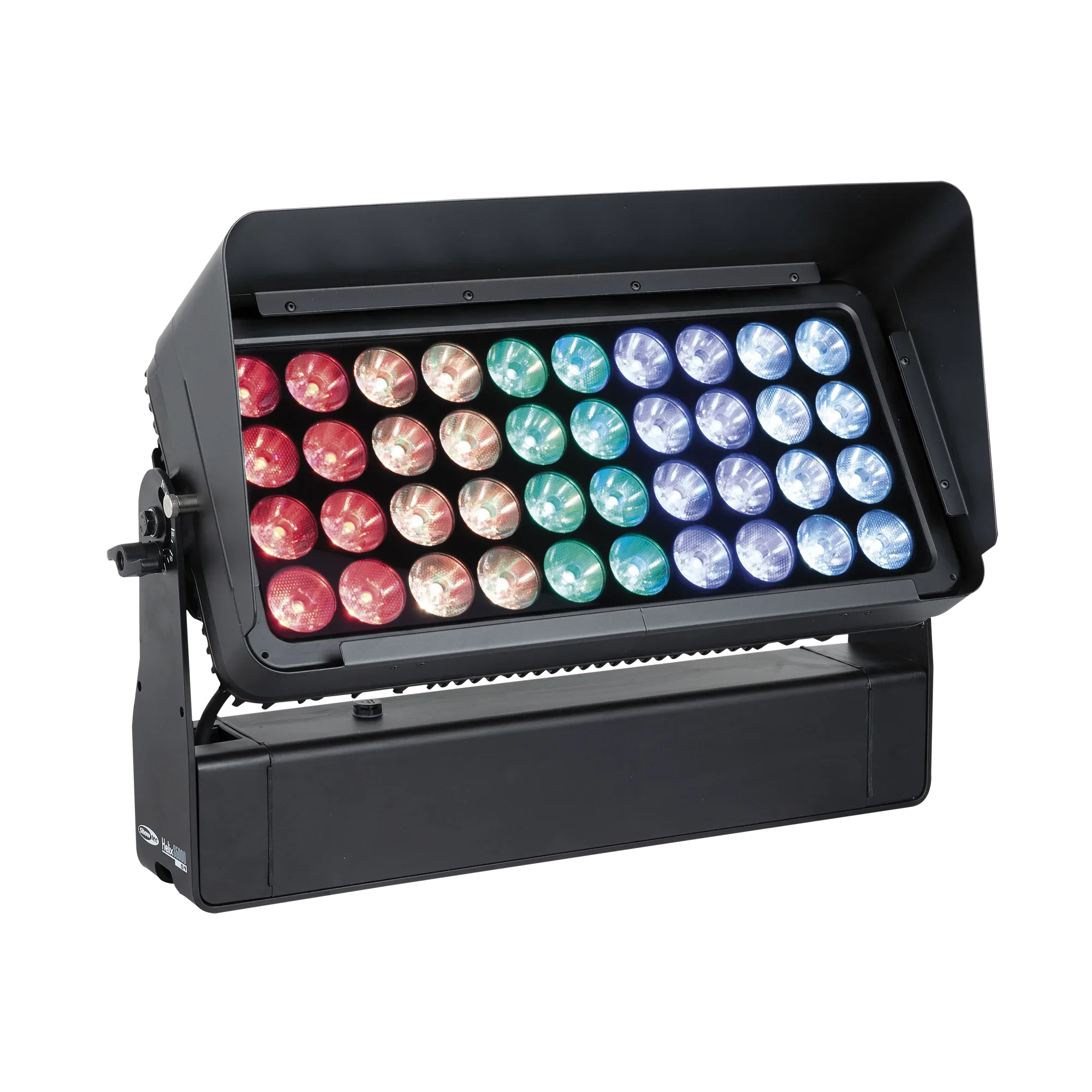

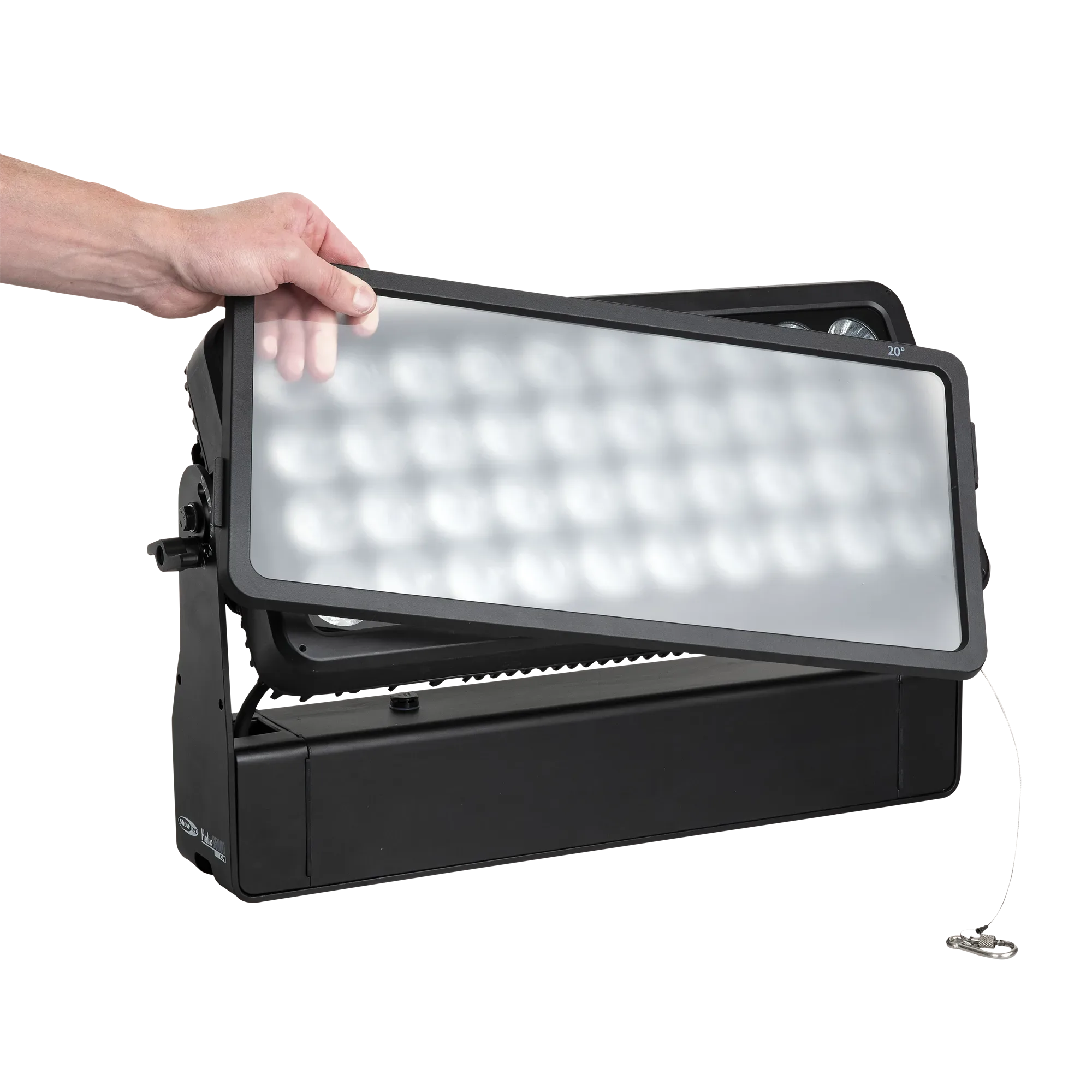

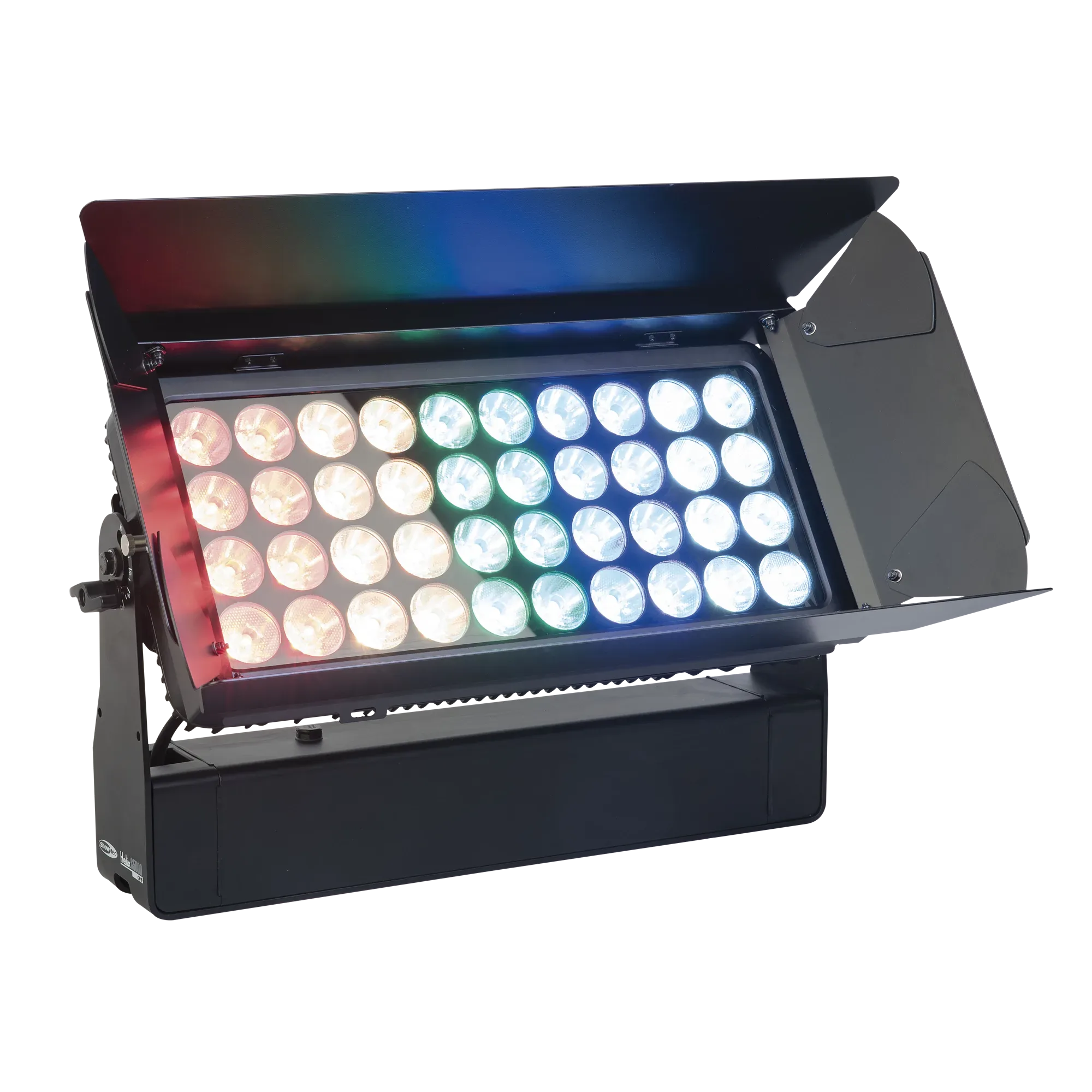

Bright 40 x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.
Tootekood: 8717748555267 Kategooriad: ,


Light Source Type LED
Light Source Quantity 40
Light Source Power 10 W
LED Colour Type RGBW
Refresh Rate 3000 Hz
Illuminance @ 2 m 54000 lx
Luminous Flux (Total) 14560 lm
Beam Angle (Horizontal) 10 °
Beam Angle (Vertical) 10 °
Wireless Specifications
Wireless Mode G3, G4, CRMX
Reaction Time 8 ms
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave
DMX Channels 4, 6, 8, 20, 24
Protocols DMX, RDM
Wireless LumenRadio

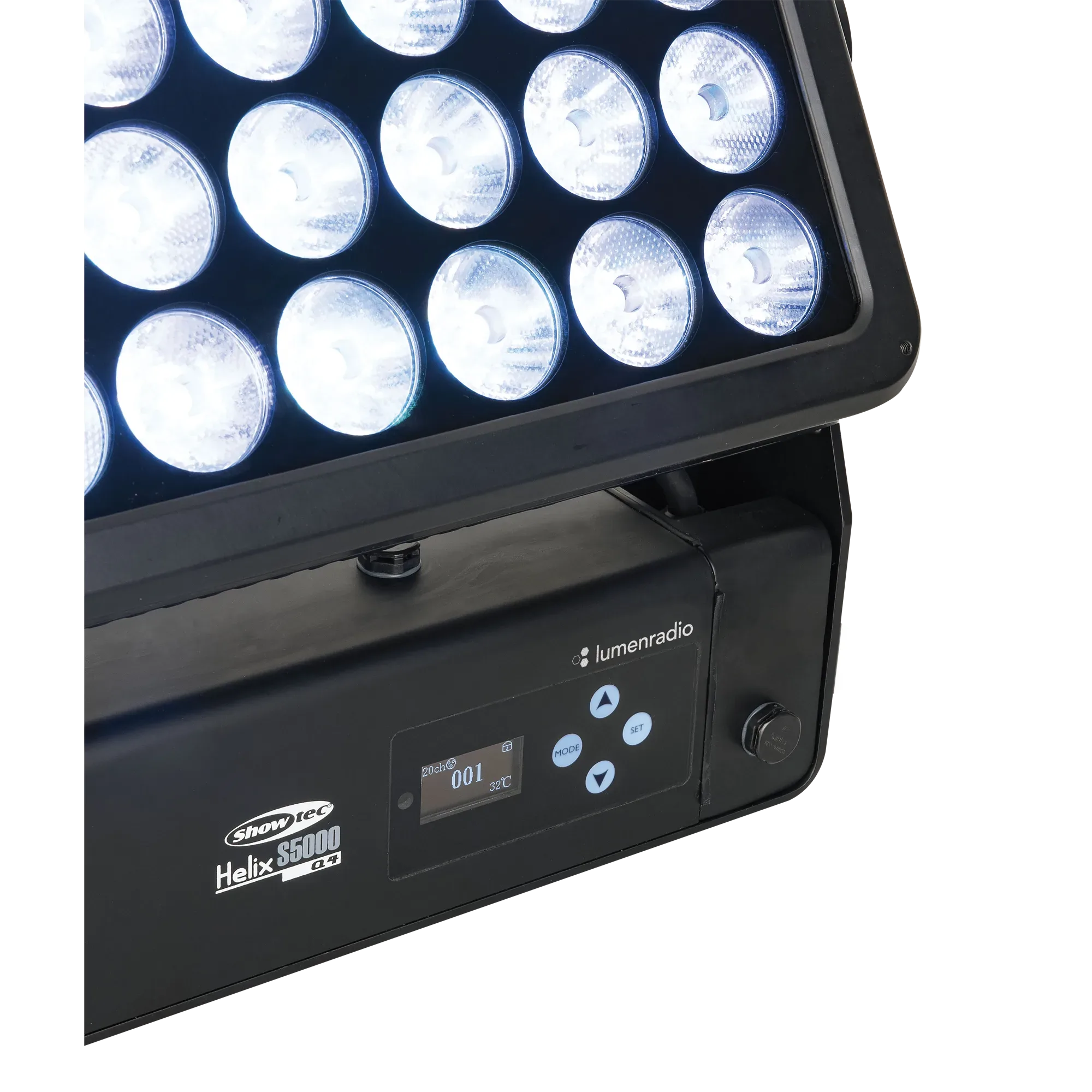

Display OLED, Touch
Fan mode Yes
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 415 W
Power Connector In powerCON TRUE1 TOP
Power Connector Out powerCON TRUE1 TOP
DMX Connector Dedicated 5P IP65 In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Cable Length 1.5 m
Mechanical Specifications
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties

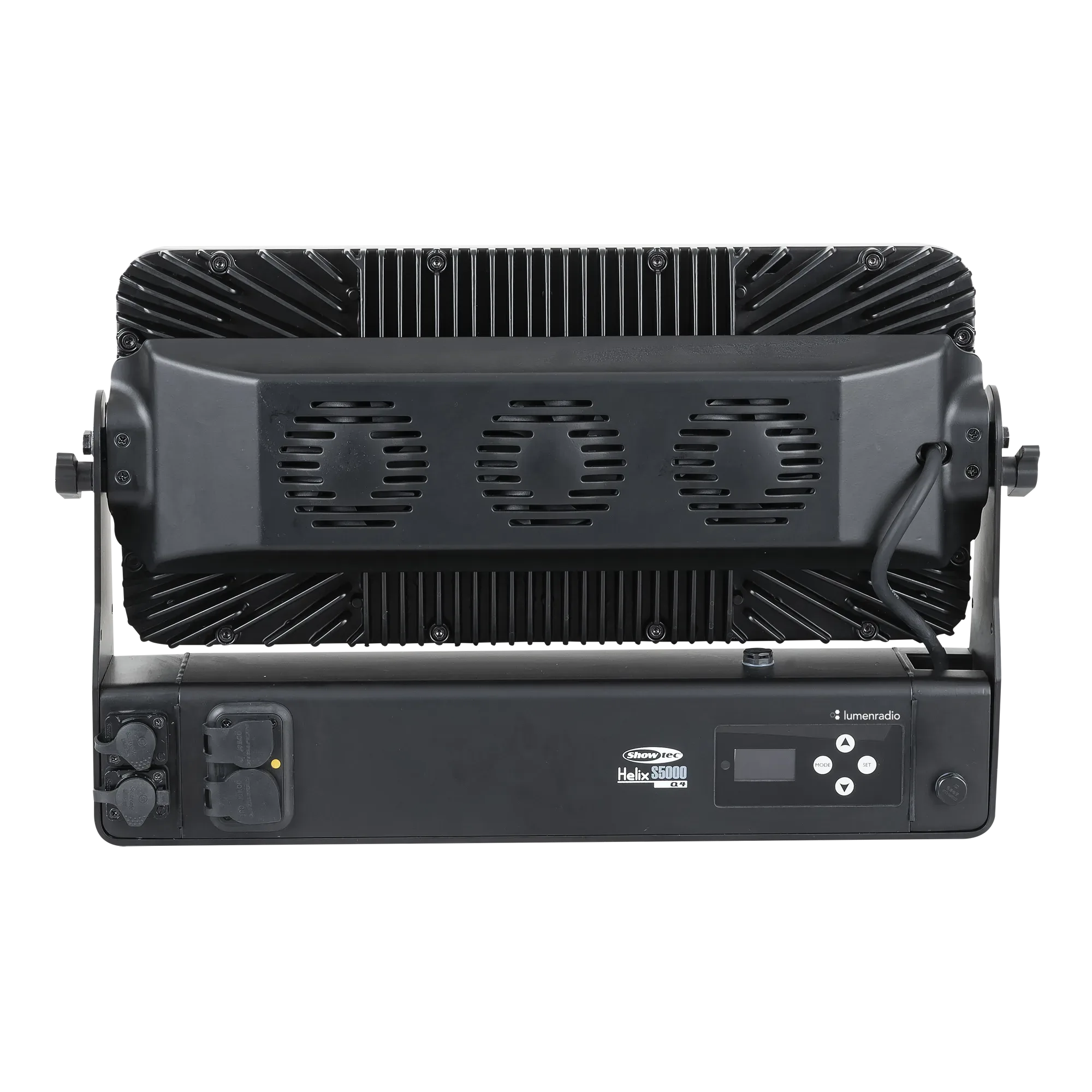

Cooling Convection/Axial fan

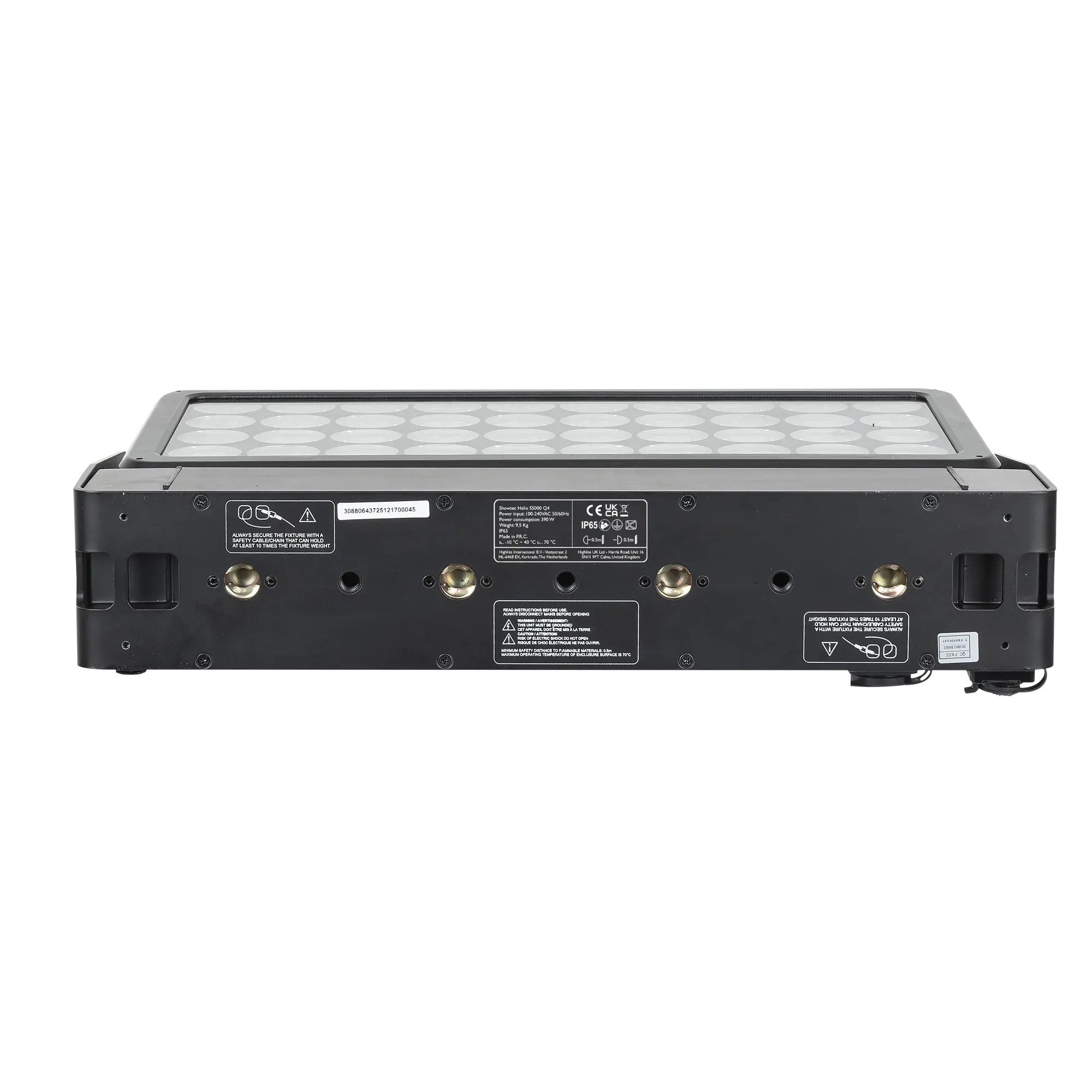

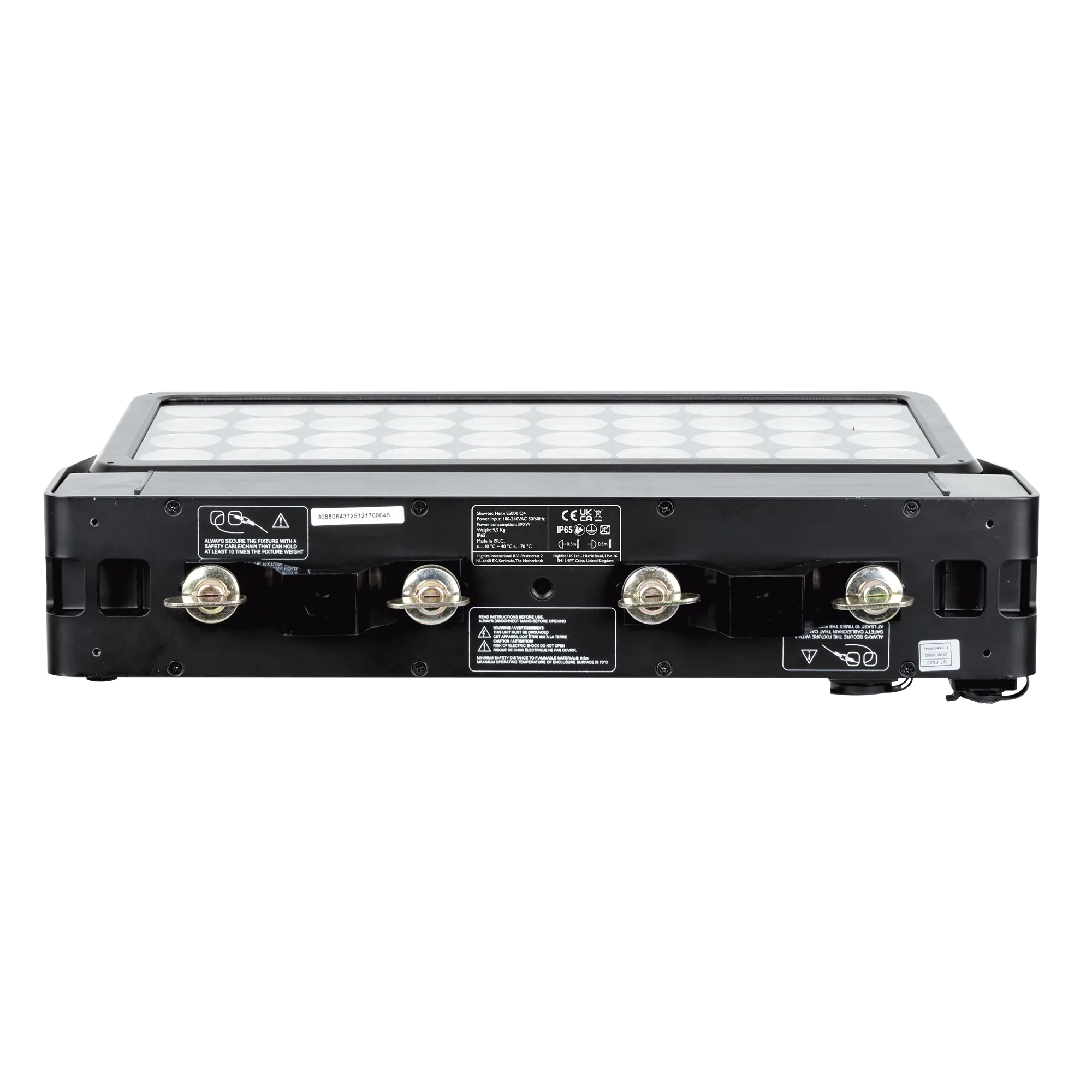

Mounting Options Baseplate, Clamp, Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Maximum Surface Temperature 60 °C
Minimum Operating Temperature -10 °C


Kaal 11.5 kg
Mõõtmed 530 × 125 × 330 cm
